ReliaCOR 31-11
FANLESS AI PCNVIDIA Orin NX - LTE - GNSS

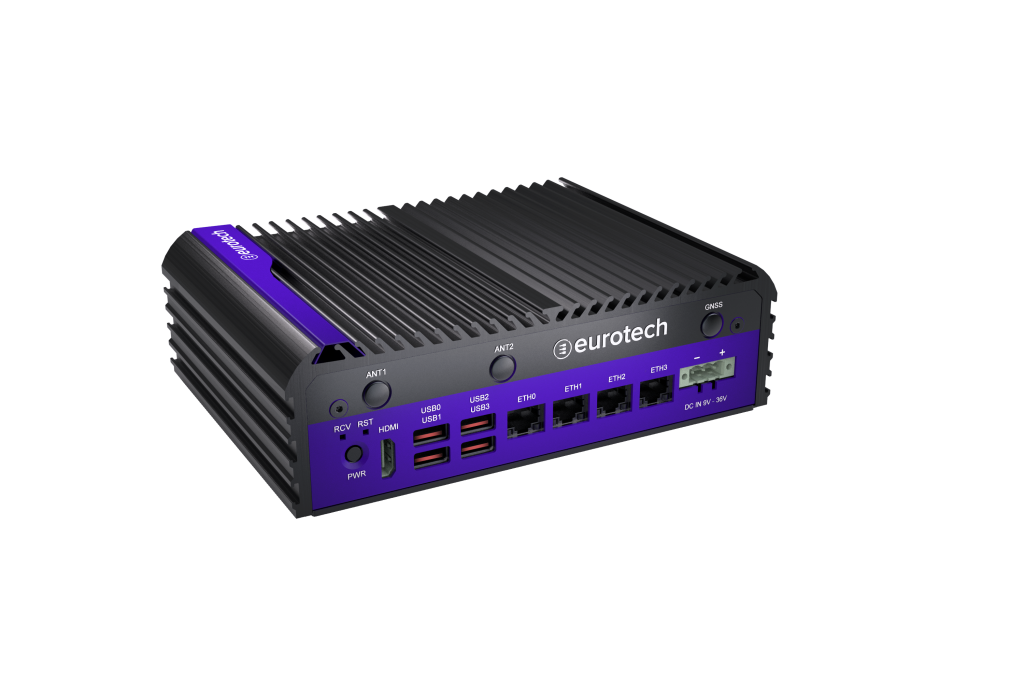

The ReliaCOR 31-11 is a compact fanless and ventless embedded Edge AI system based on NVIDIA® Jetson Orin™ NX platform, developing up to 100 TOPS of AI performance. The ReliaCOR 31-11 has been designed to Industrial AI applications like:
- Artificial/Machine vision
- Smart NVR (Network Video Recorder)
- Multi camera people counters, Crowd Analytics and Scene Detection
Key Highlights:
- NVIDIA® Jetson Orin™ NX, Up to 100 TOPS
- Best in Class Cybersecurity
- PoE Camera Support
- Connectivity Options
- Compact and Fanless
- Easy to Program
- Cloud Certified
-20°C TO 55°C
NORTH AMERICA
JAPAN
GNSS
WI-FI (Optional)
BLUETOOTH (Optional)
5G-READY (Optional)
Up to 100 TOPS
The ReliaCOR 31-11 is a compact fanless and ventless embedded Edge AI system based on NVIDIA® Jetson Orin™ NX platform, delivering up to 100 TOPS of AI performance.
Designed for industrial use cases, it offers reliable operation thanks to industrial grade ruggedization and a robust power supply. Very compact and power efficient, the ReliaCOR 31-11 can be deployed even in space constrained use cases.
The ReliaCOR 31-11 is powered by the NVIDIA® Jetson Orin™ NX platform featuring a 1024-core NVIDIA Ampere™ architecture GPU with 32 Tensor cores and an 8-core Arm® Cortex®-A78AE CPU, delivering up to 100 TOPS of AI performance. It supports rich I/O interfaces: 4x 1GbE with PoE , 4x USB 3.1 Gen 1 (5Gbps), two serial ports, 1x CAN interface and isolated Digital I/O. The ReliaCOR 31-11 features a wide range of wireless connectivity capabilities: it is available with an LTE Cat 4 Global cellular modem and discrete GNSS; other radio technologies such as Wi-Fi 6E and Bluetooth 5.3 are also available as a factory options.
The ReliaCOR 31-11 offers best in class Cybersecurity: it leads the market with the ISASecure/IEC 62443-4-2 SL2 (Factory Option) and a full trusted chain from manufacturing to deployment. Protection starts at the hardware level, with full support for TPM 2.0, Secure Boot and an always-on physical antitampering monitor/logger that is active even when the system is removed from power. For most demanding customers, special production-only images can be configured with full hardware hardening (interface disabling) to further reduce the attack surface.
The ReliaCOR 31-11 comes with Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGivmiddleware for IoT Edge Gateways. Distributed and supported by Eurotech, ESF offers ready-to-use field protocols, MQTT connectivity, web-based visual data flow programming and deep configuration. ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.
| Ordering Code: RECOR-31-11-xx-yy | ||||
|---|---|---|---|---|
| Hardware Configuration (-xx) | -12 | -15 | -21 | |
| NVIDIA MODULE | Core | NVIDIA® Jetson Orin™ NX 16GB | ||
| CPU | 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3) | |||
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores | |||
| Memory | 16GB LPDDR5 | |||
| AI Performance | 100 TOPS | |||
| STORAGE | NVME | 256GB, M.2 Key M, PCIe x4, TLC | 512GB, M.2 Key M, PCIe x4, TLC | |

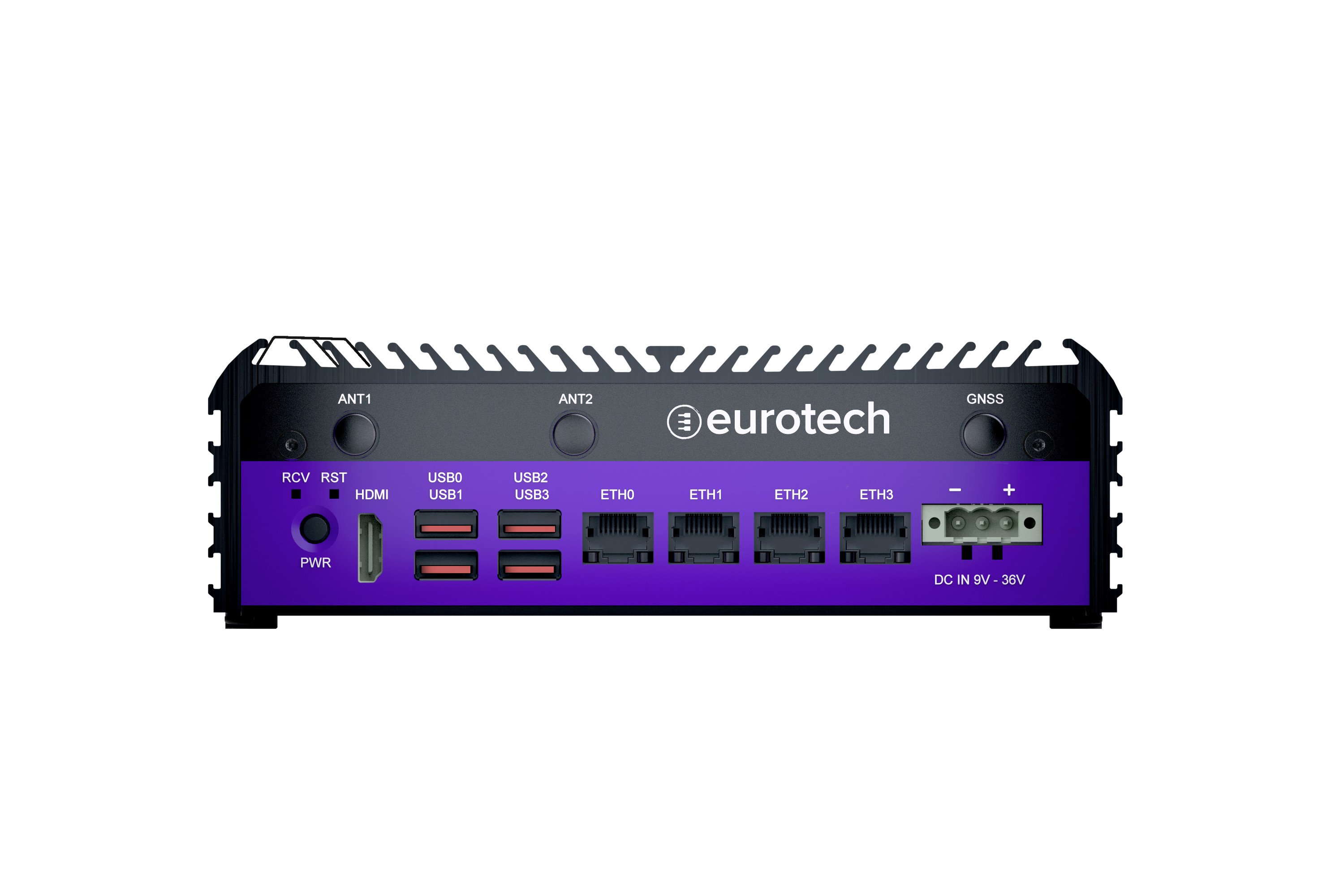

| I/O INTERFACES | Ethernet | 4x 1GbE (RJ-45) | ||
| PoE | Yes, PoE+ (1) | |||
| USB | 4x USB 3.1 Gen 1 (Type A, 5Gbps); 1x USB OTG (Micro-B) | |||

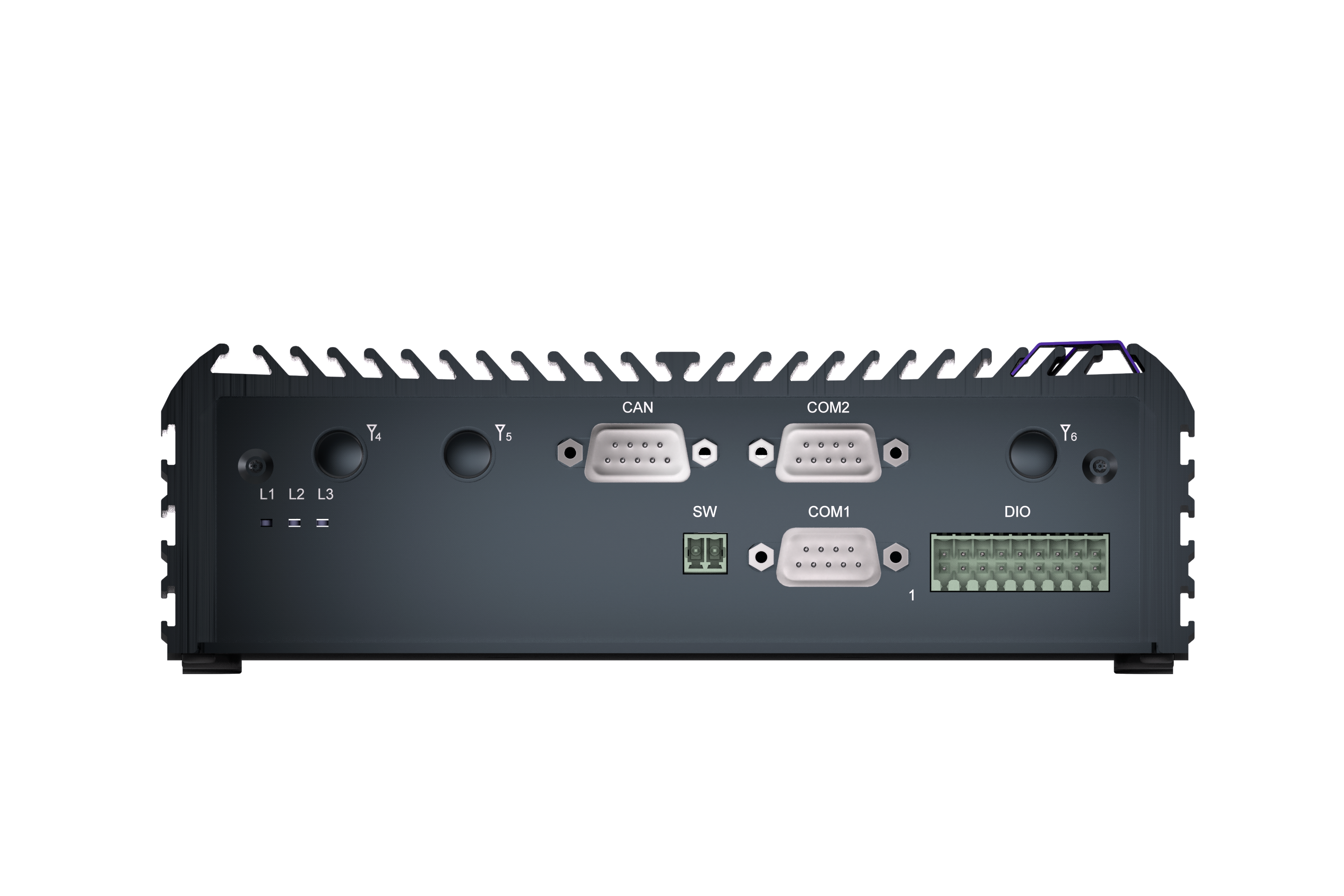

| Serial | 2x RS-232/485; DB9 | |||
| CANBus | 1x CANBus 2.0 (DB9) | |||
| Digital IN | 8x Isolated; Terminal Block | |||
| Digital OUT | 8x Isolated; Terminal Block | |||
| Video | 1x HDMI 2K (2560 x 1440) 60Hz | |||
| RADIO INTERFACES | Cellular | - | 1x LTE Cat 4 Global | |
| SIM | - | Dual Nano SIM Card Holder (User Accessible) | ||
| GNSS | - | GPS, Glonass, Beidou, Galileo, QZSS | ||
| Wi-Fi/BT | Factory Option | |||
| CYBER (HW) | TPM | TPM 2.0 | ||
| Antitampering | Antitampering Switches | |||
| COOLING | Technology | Fanless and Ventless | ||
| POWER | Power Input | 9 to 36V (12VDC Nominal); 3-pin Terminal Block (2) | ||
| INTERNAL EXPANSIONS | M.2 Key B | 1x M.2 Key B (3042/3052, USB 3.2 Gen1) | ||
| M.2 Key E | 1x M.2 Key E (2230, PCIe x1, USB 2.0) | |||
| M.2 Key M | 1x M.2 Key M (2242/2280, PCIe x4) | |||
| ENVIRONMENTAL | Operating Temperature | -20°C to +55 °C (2) | ||
| Storage Temperature | -30° to 85°C | |||
| Relative Humidity (Non-condensing) | 10 to 95% non Condensing | |||
| CERTIFICATIONS | Regulatory | CE, FCC, ISED | ||
| Safety | IEC 62368-1, UL62368-1 (UL Listed) | |||
| Radios | - | RED (EU) | ||
| Environmental | ROHS3, REACH | |||
| Cybersecurity | ISA/IEC 62443-4-1/-4-2 SL2 (§) | EN 18031-1 (RED-DA) - Off-the-shelf Compliance, ISA/IEC 62443-4-1/-4-2 SL2 (§) | ||
| Vibration | IEC60068-2-64:2008; Designed to comply with MIL-STD-810G Method 514.7 Procedure I | |||
| Shock | IEC60068-2-27:2008; Designed to comply with MIL-STD-810G Method 514.7 Procedure I | |||
| Ingress | IP40 | |||
| IoT Platform | GreenEdge (§), AWS IoT GreenGrass qualified (§), AWS IoT Core qualified (§) | |||
| MECHANICAL | Enclosure | Extruded Aluminum with Heavy Duty Metal | ||
| Weights | 2.8 ~ 3.6 kg | |||
| Dimensions | 192x140x58mm (WxDxH) | |||
| Mounting Options | Wall Mounting/DIN rail (Optional) | |||
* Planned or Ongoing
§ Factory Option (Required MOQ), Contact Eurotech for more information
(1) With input voltage 9 to 12 V DC, do not use PoE; max system power consumption = 55 W; With input voltage 12 to 24 V DC, you can use PoE only in half power budget (60 W); max system power consumption = 120 W; With input voltage 24 to 36 V DC, you can use POE in full power budget (120 W); max system power consumption = 220 W
(2) The maximum allowed current at the input power connector is 15 A. Make sure to verify compliance with this requirement based on your input voltage. The system’s sustained thermal load (heat released inside the system) must not exceed 35 W when approaching the upper operating temperature limit of 55°C.
| Ordering Code: RECOR-31-11-xx-yy | |||||
|---|---|---|---|---|---|
| Software Configuration (-yy) | -02 | -03 | -04 | -09 | |
| OS | JetPack | Yes | |||
| IOT FRAMEWORK | Everyware Software Framework (Java/OSGi) | - | Yes | ||
| SUITE AND SERVICES | Everyware GreenEdge (EGE) | - | Yes (§) | - | |
| SOFTWARE HARDENING | Hardening | - | Yes (§) | ||
| CERTIFICATIONS | Cybersecurity | - | ISASecure/IEC 62443-4-1/-4-2 SL2 Host (§) | ||
| IoT Platform | - | AWS IoT Core (§), AWS IoT GreenGrass (§) | - | ||
§ Factory Option (Required MOQ), Contact Eurotech for more information
