DynaGATE 20-30

Automotive Multi-service IoT Edge GatewayIntel Atom, LTE Cat 4

The DynaGATE 20-30 is an IoT Edge Gateway, E-Mark certified, that addresses the challenges of the next-generation applications for smart transportation and fleet management.

  • Intel Atom® x5/x7 Powered
  • Carrier-certified (NA, EU,JP)
  • Global Cat 4 LTE
  • Automotive Grade (E-Mark, SAE J1455)
  • SAE J1939 and J1708
  • Cloud Certified
  • Open Platform
  • Highly Customizable
  • Long-term Availability
Industries
Transportation & Off-road
Ruggedization
High
Operating Temperature: -40 to +70°C
Cybersecurity
TPM 2.0
Certifications
E-Mark
Geographic Area
EU
North America
Connectivity options
Wi-Fi
Bluetooth
GNSS
GNSS RTK
LTE Cat 4
Intel Atom Powered
Powered by Intel Atom x5 and x7 (E3900) CPU: up to four cores in a fanless, ventless enclosure
IoT Ready
Breadth of connectivity options: carrier certified LTE Cat 4 cellular modems for multiple geographies, Wi-Fi, BLE, Fast Ethernet and Fieldbus interfaces, including CAN bus ports, optoisolated digital I/Os, protected USB and isolated RS-485
Automotive Grade
E-Mark certification (SAE J1455 option), untethered GPS, 6-axis sensor, high retention USB connectors, wide operating temperature, 6-35V power supply with transient protection and ignition key input, and optional conformal coating
Field Protocol Support
Native support for automotive protocols SAE J1939, J1708 and industrial protocols like Modbus and OPC UA, the extensible, secure, and platform-independent industrial interoperability standard
Cloud Certified
Seamless integration with Eurotech Everyware Cloud, Microsoft Azure IoT, AWS IoT and other Cloud services
Open Platform
Provides a Java/OSGi IoT Edge Framework, no lock into proprietary solutions
Customizable
Flexible: personalization and full customization options are available, ranging from branding (“skin” and color) to deep HW/SW configurations (e.g. optional RTK GPS)

The DynaGATE 20-30 is an IoT Edge Gateway, E-Mark certified, that addresses the challenges of the next-generation applications for smart transportation and fleet management. It combines hardware, software and connectivity to bridge the vehicle with leading Cloud services.

Based on the Intel® Atom™ x5 and x7 (E39xx) processor, with up to 8GB of ECC RAM and 64GB of eMMC, the DynaGATE 20-30 is a fanless, compact unit designed to exceed the requirements of automotive applications: it features extended operating temperature range, IP54 ingress protection, a wide range automotive power supply and a 6-axis sensor (accelerometer + gyroscope).

It provides protected USB 2.0 and 3.0, one configurable RS-232/422/485, DI/DOs, and dual CAN bus interfaces – plus, a wide range of connectivity capabilities including two Gigabit Ethernet on M12, up to two global LTE Cat 4 cellular modems, Wi-Fi, Bluetooth Low Energy, and a GNSS with Untethered Dead Reckoning; two mPCIe and one M.2 slots can be reconfigured to host custom expansions and peripherals (Factory Option). Sophisticated power saving and management capabilities include: power monitoring, Wake-On-Ring/SMS and Wake-On-RTC. The DynaGATE 20-30 adds integrated hardware and software security through a dedicated TPM 2.0 chip and is Secure Boot ready.

Powered by Everyware Software Framework (ESF), the Eurotech framework for IoT Edge devices, the DynaGATE 20-30 is a gateway that is easy to use, program and manage. The friendly web-based user interface allows to visually compose powerful data flows, such as the ones to acquire data from the vehicle through the built-in support for the SAE J1939 and J1708 standards. Vehicle data can then be analyzed on the Edge and published to the Cloud though the popular MQTT protocol. Everyware Cloud, Eurotech IoT Integration Platform, completes this solution by providing data integration to the applications and by offering complete management of the devices deployed on the field.

For customers requiring more configuration flexibility, Eurotech Professional Services offer an extensive number of options, both for the hardware (e.g. additional features, custom front panel/connectors, branding) and for the software (e.g. customized application images).

Ordering code: DYGATE-20-30-XX
XX-10-11-20-21-22
PROCESSORCPUIntel Atom x5-E3940, 1.60GHz (1.80GHz), Quad CoreIntel Atom x7-E3950, 1.60GHz (2.00GHz), Quad Core
MEMORYRAM4GB (DDR3L 1600MHz - non ECC)8GB (DDR3L 1600MHz - with ECC)
STORAGEEmbedded16GB eMMC64GB eMMC
Other1x microSD Slot (User Accessible); Factory Option: M.2 SATA III 128 GB

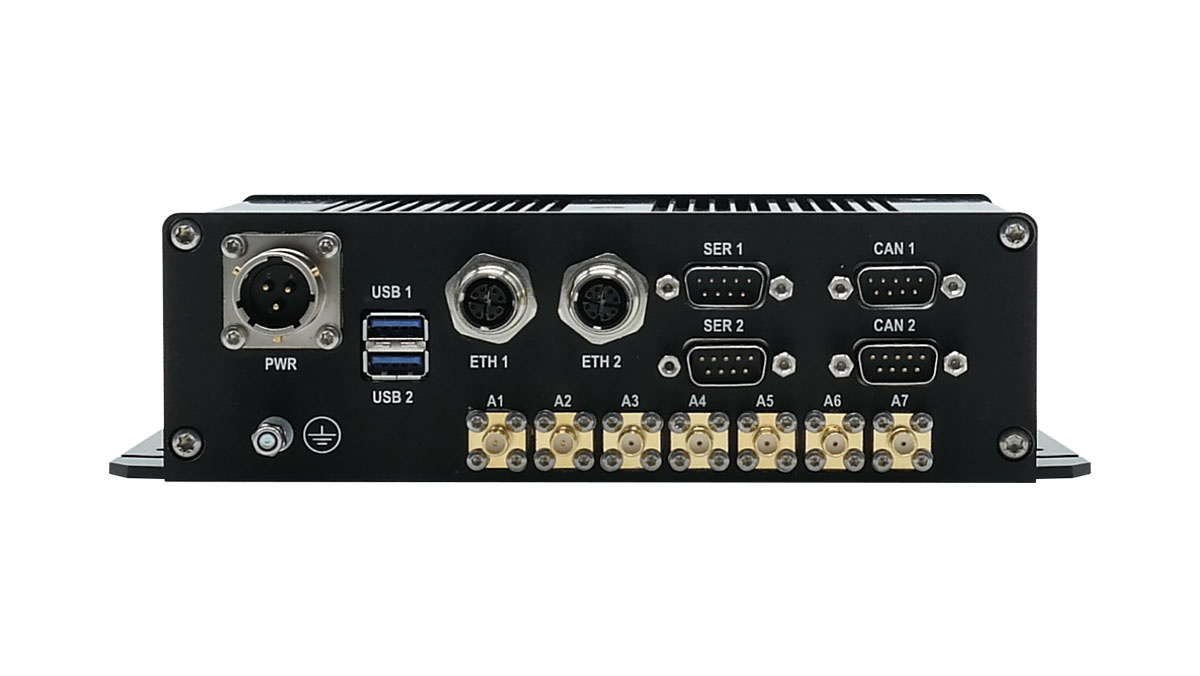

I/O INTERFACESEthernet2x 10/100/1000Mbps, M12 X-coded Connector
USB1x USB 2.0 Noise and Surge Protected; 1x USB 3.0 Noise and Surge Protected; 1x USB 2.0 (Service Panel)
Serial1x RS-485 Isolated; 1x RS-232/RS-485/RS-422 Isolated; 1x TTL Console (Service Panel)
CAN 2.0B2x CANBus with 5V/100mA Power Out, Isolated
Digital I/O3x Isolated Digital Input, 3x Isolated Digital Output, Factory Option: Odometer input
Analog I/O2x Not Isolated Analog Inputs (12-bit, 0-36VDC)
Video1x mini DisplayPort
Audio1x Stereo Mic, 1x Stereo Line Out (Service Panel)
RADIO INTERFACESCellular-1x LTE Cat 4 Global (*), 2G/3G Fallback-1x LTE Cat 4 Global (*), 2G/3G Fallback
GPSGPS/QZSS/GLONASS/BeiDou/Galileo with Untethered Dead ReckoningGPS/QZSS/GLONASS/BeiDou/Galileo with Real Time Kinematics
Wi-Fi / BT802.11 a/b/g/n + Bluetooth 4.0
Antennas (External)2x SMA (Cellular with Antenna Diversity) - 2x RP-SMA (Wi-Fi/BT) - 1x SMA (GPS)
SPECIAL FEATURESUltra-low Power MgmtWake-On-Ring/SMS - Wake-On-RTC Alarm
Power MonitoringInput Voltage and Current Monitor
OTHERRTCYes, with SuperCAP (up 2 Months Retain), Fast Reboot Support
System WatchdogYes, Discrete Chip
EEPROM32KB
TPMTPM 2.0
Sensors6-Axis (Accelerometer, Gyroscope), Temperature
LEDs1x Power - 2x MiniPCIe Slot - 1x M.2 Slot - 2x Programmable (Dual Color Green/Amber)

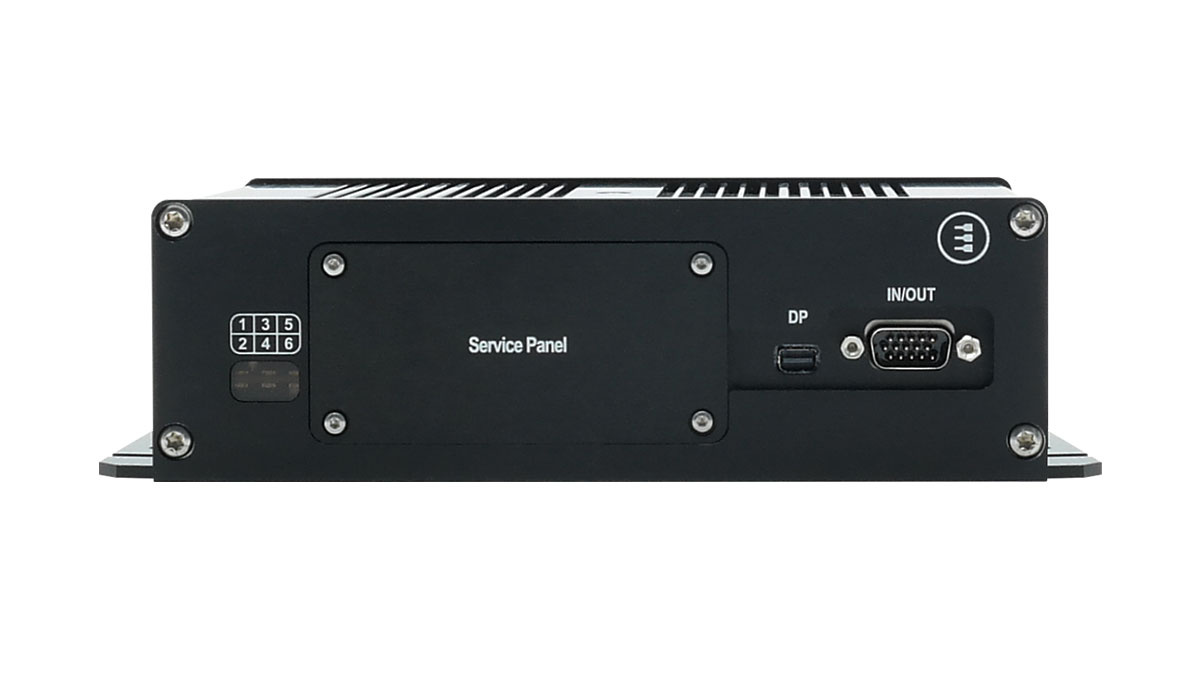

MISCButtons1x Reset, 1x Programmable (Service Panel)
SIM slot2x Micro-SIM Push Push (Service Panel) - User Configurable as Dual SIM/Single modem or Single SIM/Dual Modem
POWERInputNominal: 12-24 VDC; Range: 6 to 35VDC, Load Dump Protection and Ignition Key Sense
ConsumptionNominal: 17W
ENVIRONMENTOperating Temp- 40 to +70 °C
Storage Temp- 40 to +70 °C
CERTIFICATIONSRegulatoryCE/FCC/ISED
SafetyEN62368, UL60950 (§)
VerticalE-Mark (SAE J1455 Factory Option)
EnvironmentalRoHS3 - REACH
Wi-Fi / BT RadioCE(RED)/FCC/ISED
Cellular-CE (RED)/FCC/ISED, PTCRB, AT&T, Verizon-CE(RED)/FCC/ISED, PTCRB, AT&T, Verizon
IngressIP54
MECHANICALEnclosureMaterial: Aluminium - Color: Black Anodized
Dimensions224 (W) x 128 (D) x 62 (H), mm (connectors excluded)
Weight1.6 Kg
SOFTWARE
SOFTWAREOSEurotech Everyware Linux
SDKYocto-based Eclipse Tooling, Azul Java
IoT FrameworkEveryware Software Framework (Java/OSGi)

(*) Cellular modem is certified in several countries, DYGATE-20-30 country specific certification upon request

§ UL, NRTL listing Factory Option.
