DynaPCN 10-20

Automatic Passenger Counter - Ethernet or PoE Interface

The DynaPCN 10-20 is a compact and autonomous device based on non-contact stereoscopic vision technology specifically designed for accurately counting passengers entering or leaving public transport vehicles such as trains, metros or buses.

Download Datasheet download

Choose a format

A4 letter

Features

Stereoscopic Cameras - Stereoscopic vision technology enables an accurate people bidirectional count, ideal for real-time optimization of resources and services
Reliable Operation - A built-in infrared illumination system allows a precise counting in any type of lighting condition
Lightweight and Robust - Extended operating temperature range, IP65 ingress protection, and sealed magnesium enclosure allow the DynaPCN 10-20 to work in a wide range of climatic conditions
EN50155 and Automotive - Certified for Rolling Stock and Automotive applications, where consistent performance and reliability are a must
Daisy Chainable - The DynaPCN 10-20 can be interfaced with one or more PCN-1001 in order to precise count people passing through wide doorways
Easy to Integrate - The DynaPCN 10-20 can be used stand-alone or in conjunction with an IoT Edge Gateway, that enables data transmission to different Cloud platforms
Easy to Install - The installation is easy and unobtrusive thanks to its flush mountable and compact design, adaptable to different roofs and door structures; moreover a user-friendly configuration software allows a quick and easy setup

Description

The DynaPCN 10-20 is a compact, low power, autonomous device based on non-contact stereoscopic vision technology. It has been specifically designed for passenger counting above the doorways in buses and trains; it can also be used to count people as they enter or leave buildings or any area with restricted access.
Stereoscopic cameras capture images of the area below the device. Thanks to the integrated high luminosity infrared LED indicators it can operate in any type of lighting condition. The extended temperature range capabilities allow integrators to use the device in a wide range of climatic conditions.
The DynaPCN 10-20 analyses the height, shape and direction of any object passing the field of view; if the object is recognized as a person entering or leaving, the incoming and outgoing counters are incremented accordingly, along with time and date information.
Data transfer is made via an Ethernet interface. The onboard insulated digital I/O interfaces can be used to directly communicate with intelligent doors or flow control systems, guaranteeing optimal functionality at all times: for example, stop counting when the doors are closed.

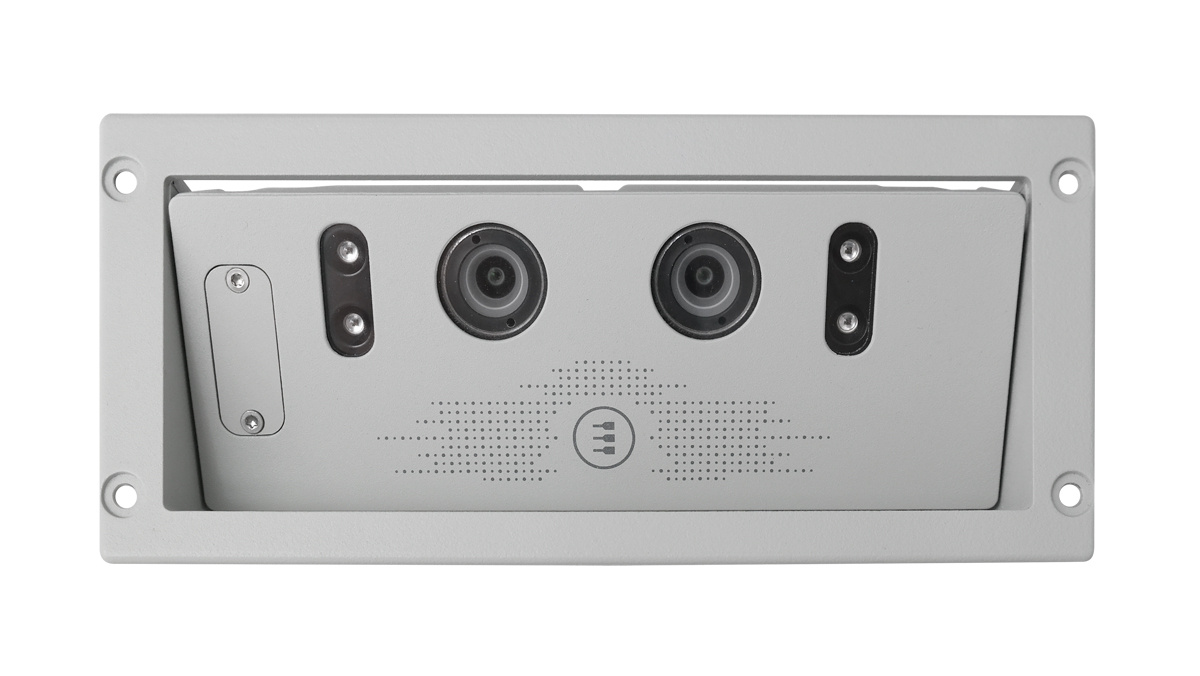

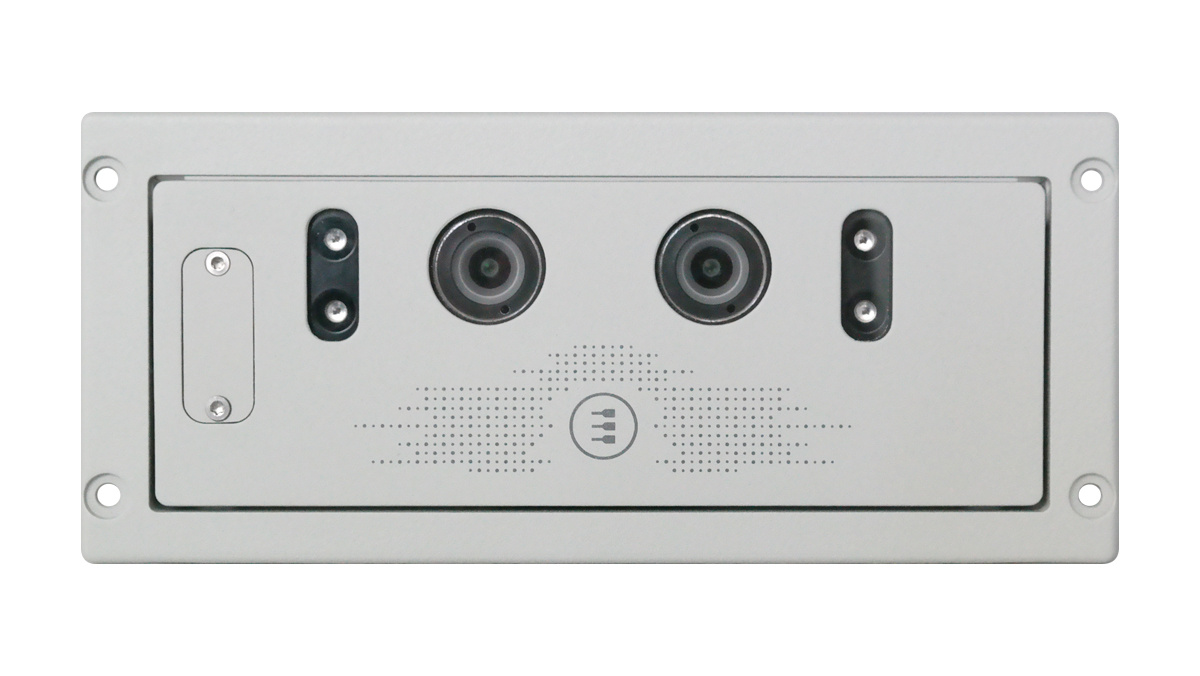

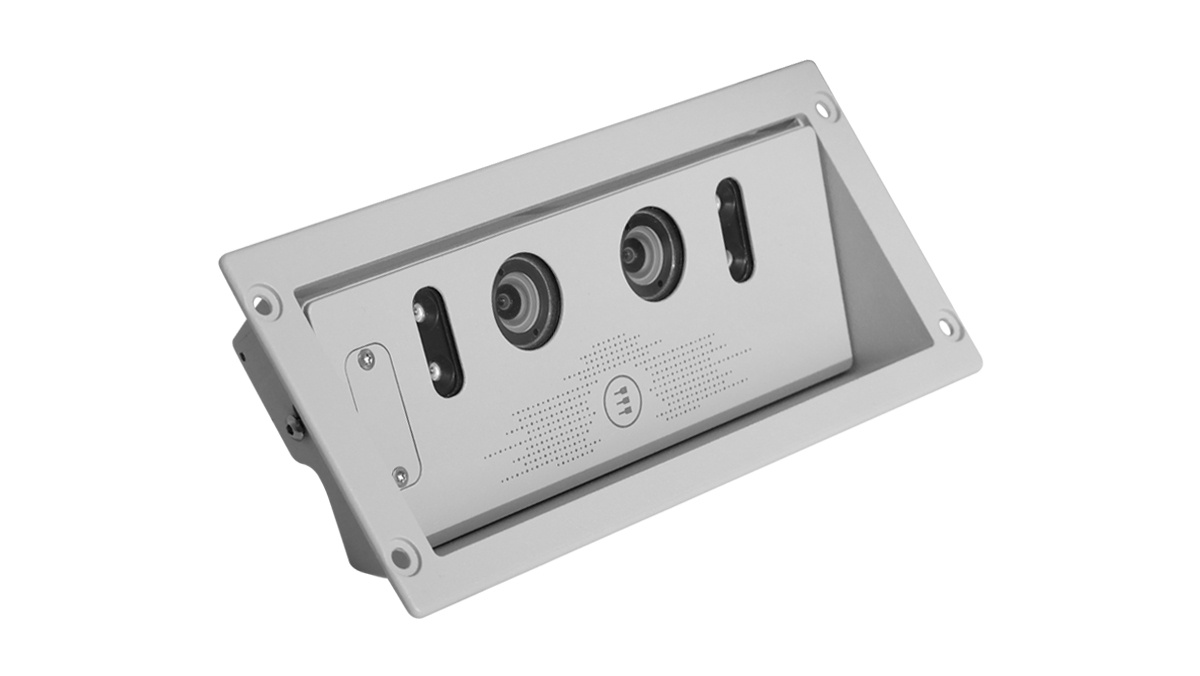

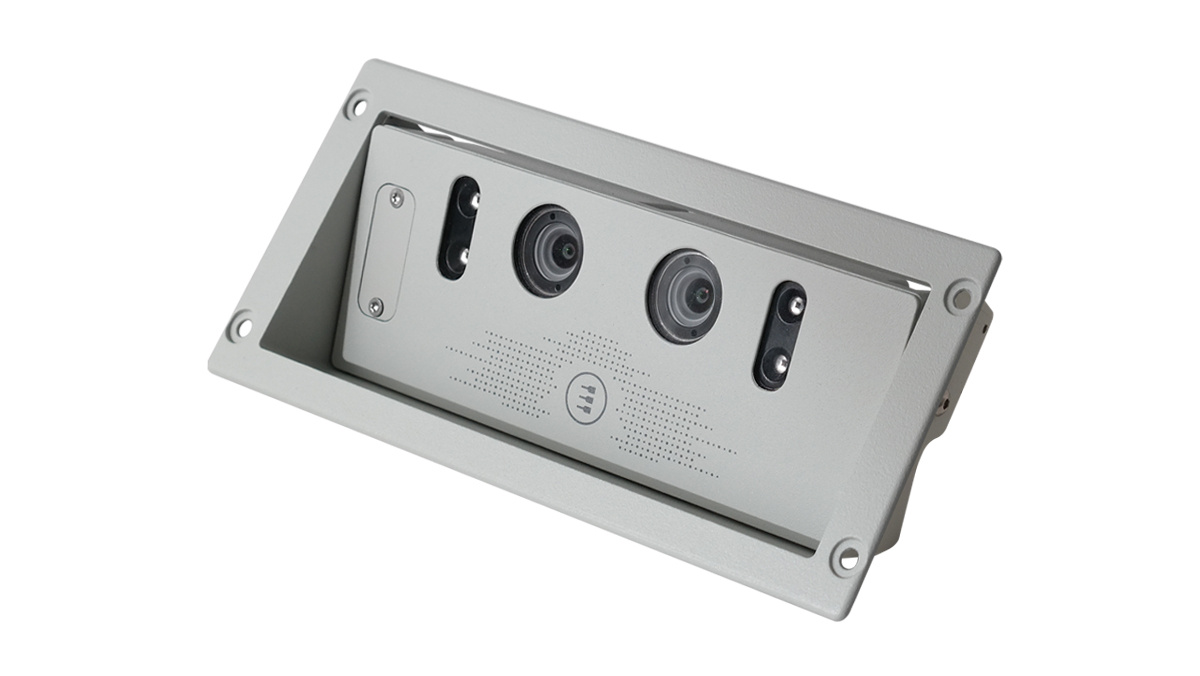

The DynaPCN 10-20 can be easily mounted in the ceiling space above a doorway becoming almost invisible. The angle of the optical panel can be adjusted from 0° to 45°; therefore, it can be placed in an ideal position even if the mounting surface is not horizontal.

Specifications
COUNTING Technology Stereoscopic Image Capturing
Accuracy 98%
Precision 99%

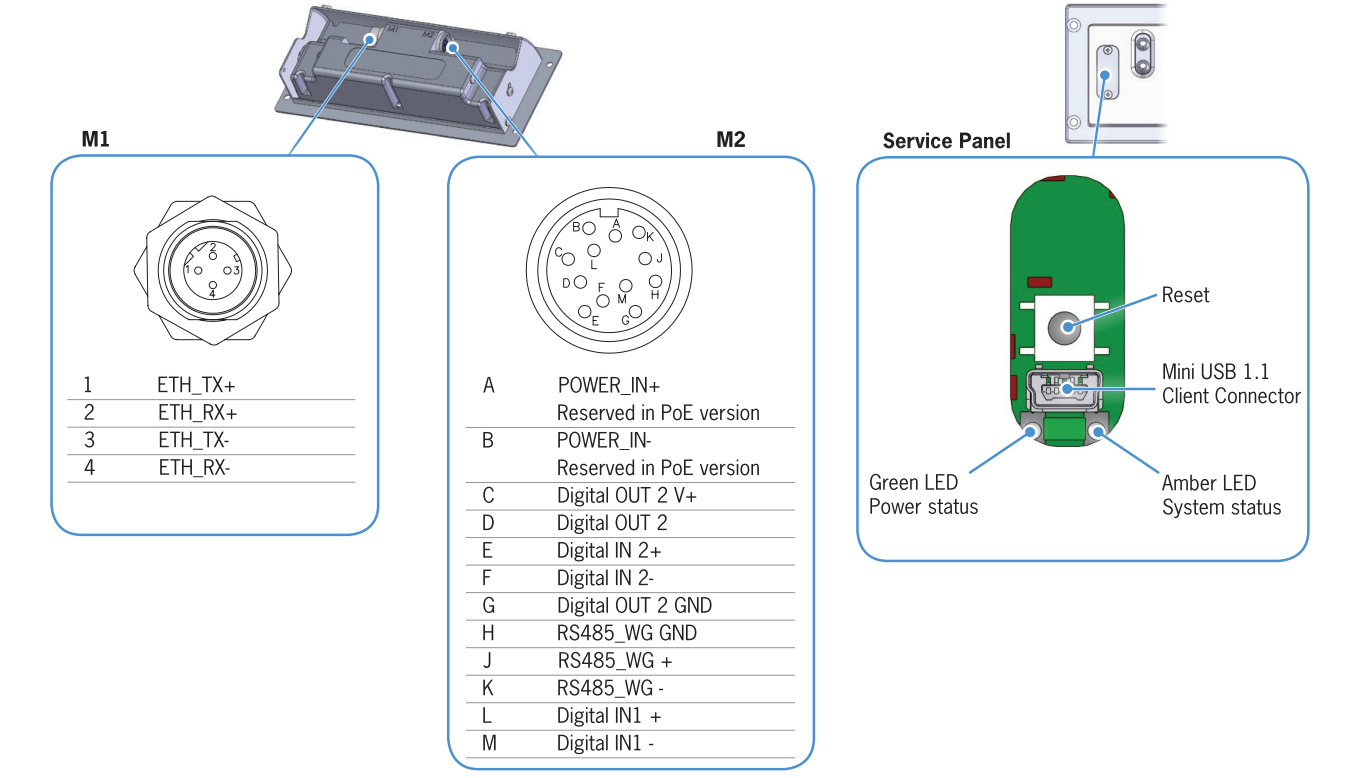

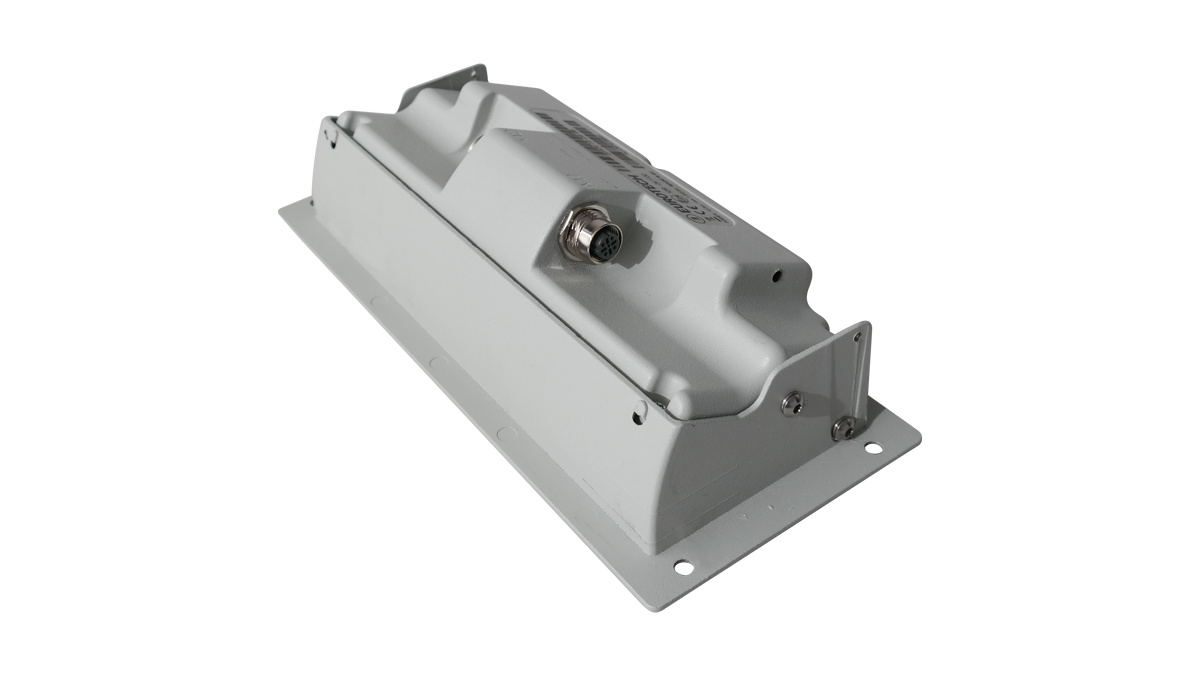

I/O INTERFACES Ethernet 1x 10/100Mbps or PoE Ethernet
USB 1x USB 1.1 Client (Service Panel) - Type B Mini
Serial 1x RS-485 for Daisy Chain (on 12pin Female Circular Connector)
Digital I/O 2x Insulated Digital Input, 1x Insulated Digital Output - on 12pin Female Circular Connectors
OTHER LEDs 1x Power (Green), 1x System Status (Amber)
Buttons 1x Reset (Service Panel)
POWER Input 9 - 36VDC or Power Over Ethernet IEEE 802.3at Mode A (4 wires) Class 0 Compliant
Consumption Max Power Consumption: 3.2W with Infrared Illuminators OFF, 7.8W with Infrared Illuminators 100% ON (Ethernet Version) – 3.5W with Infrared Illuminators OFF, 8.0W with Infrared Illuminators 100% ON (PoE Version)
ENVIRONMENT Operating Temp EN50155 Class T1 (Factory Option: EN50155 Class TX)
CERTIFICATIONS Compliance Automotive E24: ECE ONU Reg.10 (in PoE Version: Designed to Meet) – Fire Protection: EN45545 EMC Emissions: EN50155 / EN50121 / EN55011 – EMC Immunity: EN50155 / EN50121 / EN61000 – Environmental: EN50155 – Vibrations & Shocks: EN50155 / EN61373
Ingress IP65
MECHANICAL Enclosure Sealed Magnesium Alloy Enclosure
Dimensions FRAME: 100x230x3mm (Height x Width x Thickness) – REQUIRED CUT-OUT: from 82x209x42mm (Height x Width x Depth, frame at 0°) to 82x209x70mm (Height x Width x Depth, frame at 45°)
Weight 0.6Kg

Download

DynaPCN 10-20 Datasheet
PDF download

Choose a format

A4 letter
mail
request information
* required fields
I have read and understood the Privacy Policy *
I agree to receive marketing emails * - read
We would love to share with you our marketing communications. Keep updated on Eurotech latest products, events and newsletter giving us your consent to receive marketing e-mails. If you want to know more about how we manage your data and how to update your subscription preferences, take a look here at our Personal Data Use Informative
To confirm click on “SEND”. Click on “RESET” to start over

Highlights

  • • Autonomous Passenger Counting System
  • • Stereoscopic Vision Technology
  • • Lightweight and Robust
  • • EN50155 and Automotive
  • • Daisy Chainable
  • • Ethernet or PoE Interface
  • • Easy to Install
