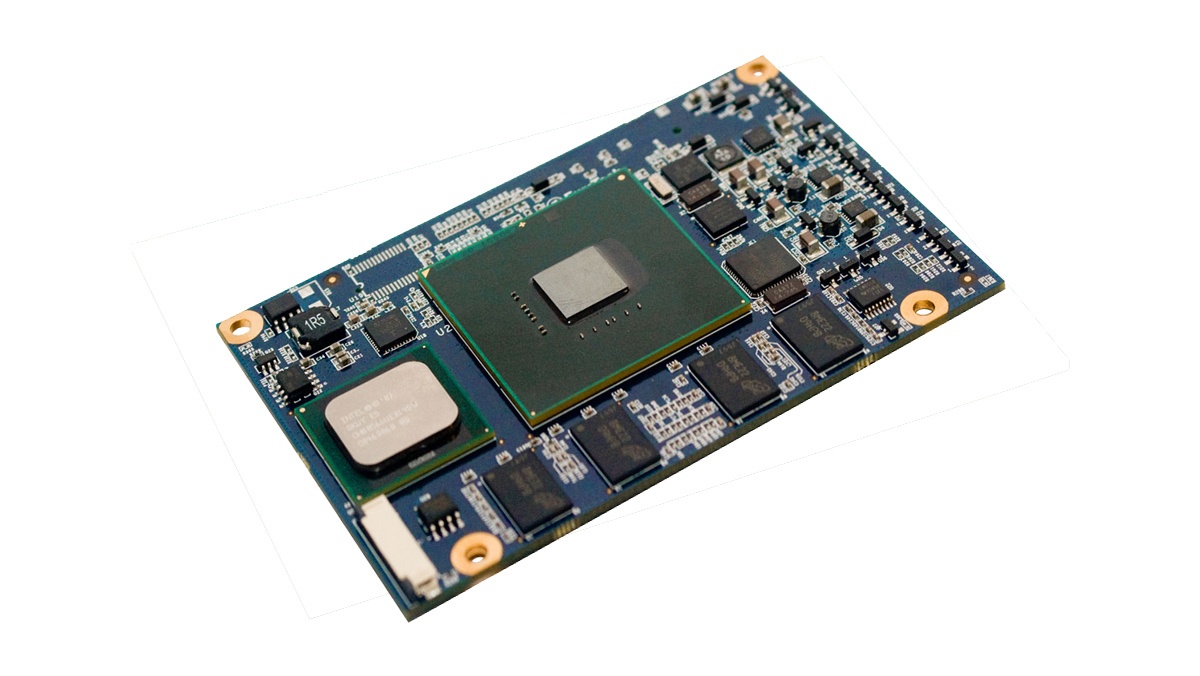

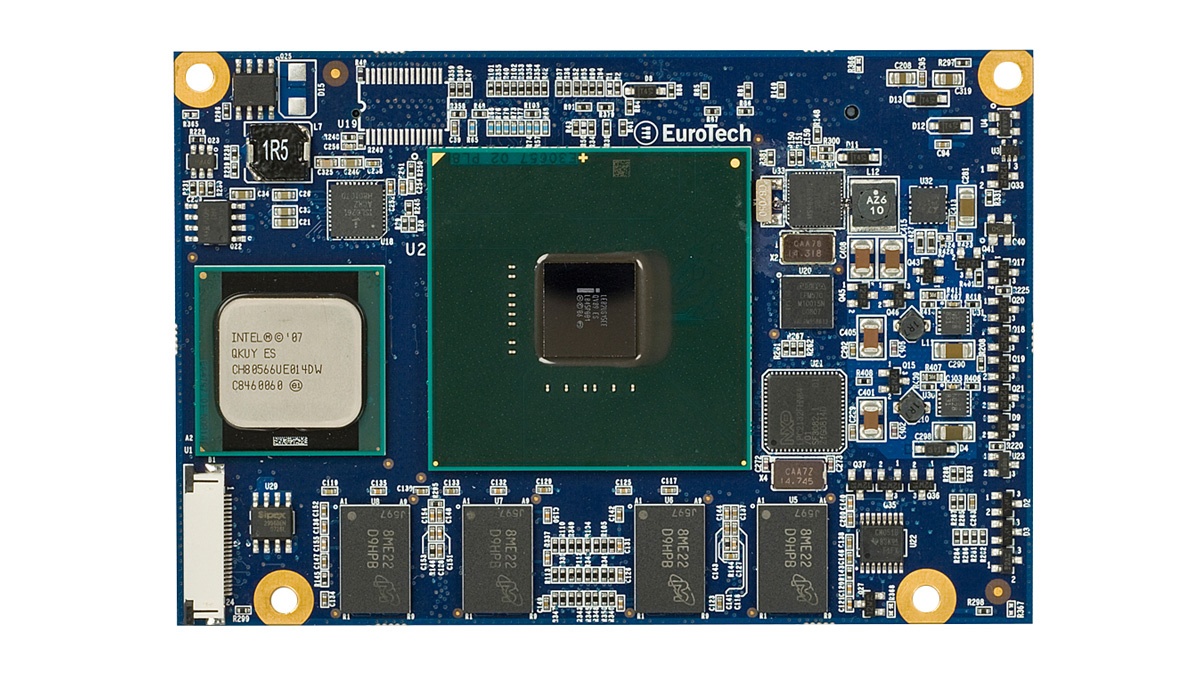

Catalyst XL

Catalyst Module - Intel Atom Z500

The Catalyst XL is a Small Form Factor Computer on Module that leverages the advantages of Intel technology to provide the precise embedded solution for high performance in low power applications. (NOT RECOMMENDED FOR NEW DESIGNS)

Download Datasheet download

Choose a format

A4 letter

Features

Powerful - Comes with Intel Atom Z500P processor together with Intel System Controller Hub US15WP, which integrated graphics, memory and I/O
Small - The Catalyst XL is part of the Catalyst line (67x100mm format) of CoM products for logical migration in next generation designs
Low Power - Very low power consumption (less than 5W), that enables fanless designs
Extended Temperature - Supports wide operating temperature (-40 to +85°C), conformal coating options, and soldered memory
Professional Services - Cuts Time-To-Market with Eurotech Professional Services, which include deep module customization, BIOS personalization, carrier board and system design and production

Description

The Catalyst XL is a Small Form Factor CoM, based on the Intel Atom Z500P processor and the Intel System Controller Hub US15WP (Intel SCH US15W). The Intel Atom processor is implemented using 45nm, High-K technology to offer high-end performance while reducing power consumption, and is validated with the Intel SCH US15W chipset which integrates graphics, memory, and I/O into a small package.
The Catalyst XL leverages the advantages of this Intel technology to provide the precise embedded solution for high performance in low power applications. The Catalyst XL comes in the 67x100mm small form factor and offers comprehensive I/O and multimedia capabilities while consuming less than 5W of power per system. The adapter board gives customers the option to either start with a standard version or design their own to meet unique application requirements while reducing time to market.
The Catalyst XL offers further flexibility by supporting several operating system options including Microsoft Windows Embedded Standard, CE, Wind River Linux 3.0, and targeted real time operating systems (RTOS).

Specifications
PROCESSOR CPU Atom Z500P/PT, up to 1.6GHz, 533MHz Front Side Bus – Intel System Controller Hub US15WP/PT (Intel SCH US15W)
MEMORY RAM Up to 2GB 533MHz (DDR2)
STORAGE Embedded Up to 3x SD/MMC Cards, up to 2x PATA Disk Drives
I/O INTERFACES Ethernet 1x 10/100/1000Mbps
USB Up to 8x USB 2.0
Serial 1x RS-232, 1x RS-485 Optoisolated
CAN bus Yes
Digital I/O Multiple GPIOs, Analog I/Os
SDIO 1x SDVO
Video Video Interfaces: UXGA, XGA, SXGA, HD – Codecs: H.264, MPEG-4/2/1, Windows Media-9, DivX – Dual Independent Display Output Capability
Audio Intel High Definition Audio (Microphone and Speaker Audio)
PCI Express 2x PCIe x1
LPC Yes
I2C Yes
SMBus Yes
Other 4/5wire Touch Screen Interface, IrDA Interface
OTHER RTC Yes
TPM Factory Option
POWER Consumption 2-3W Typ (Typical Sustained Power Consumption < 5W)
Management Advanced Power Control, System Health/Environmental Monitor, ACPI Power Management
ENVIRONMENT Operating Temp - 40 to +85°C or 0 to +70°C
Storage Temp - 40 to +85°C
MECHANICAL Dimensions 67x100mm (LxW) - Catalyst Form Factor
SOFTWARE OS Support for Microsoft Windows Embedded Standard, CE, Wind River Linux 3.0 – Specific RTOS Support (call for details)

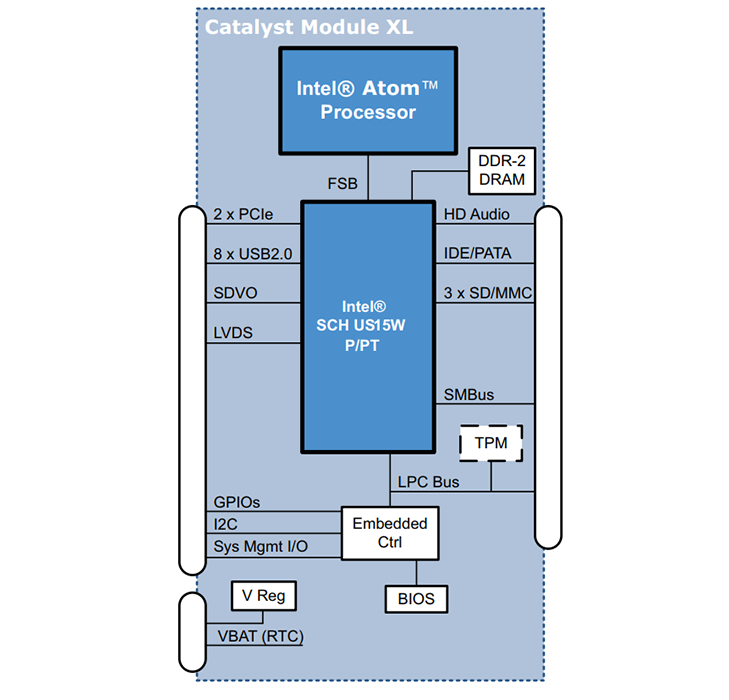

Block Diagram

Download

Catalyst XL Datasheet
PDF download

Choose a format

A4 letter
mail
request information
* required fields
I have read and understood the Privacy Policy *
I agree to receive marketing emails * - read
We would love to share with you our marketing communications. Keep updated on Eurotech latest products, events and newsletter giving us your consent to receive marketing e-mails. If you want to know more about how we manage your data and how to update your subscription preferences, take a look here at our Personal Data Use Informative
To confirm click on “SEND”. Click on “RESET” to start over

Highlights

  • • Intel® Atom™ Z500 Series
  • • Integrated System Controller Hub
  • • Small Form Factor
  • • Low Power
  • • Extended Temperature
  • • Customization Options
