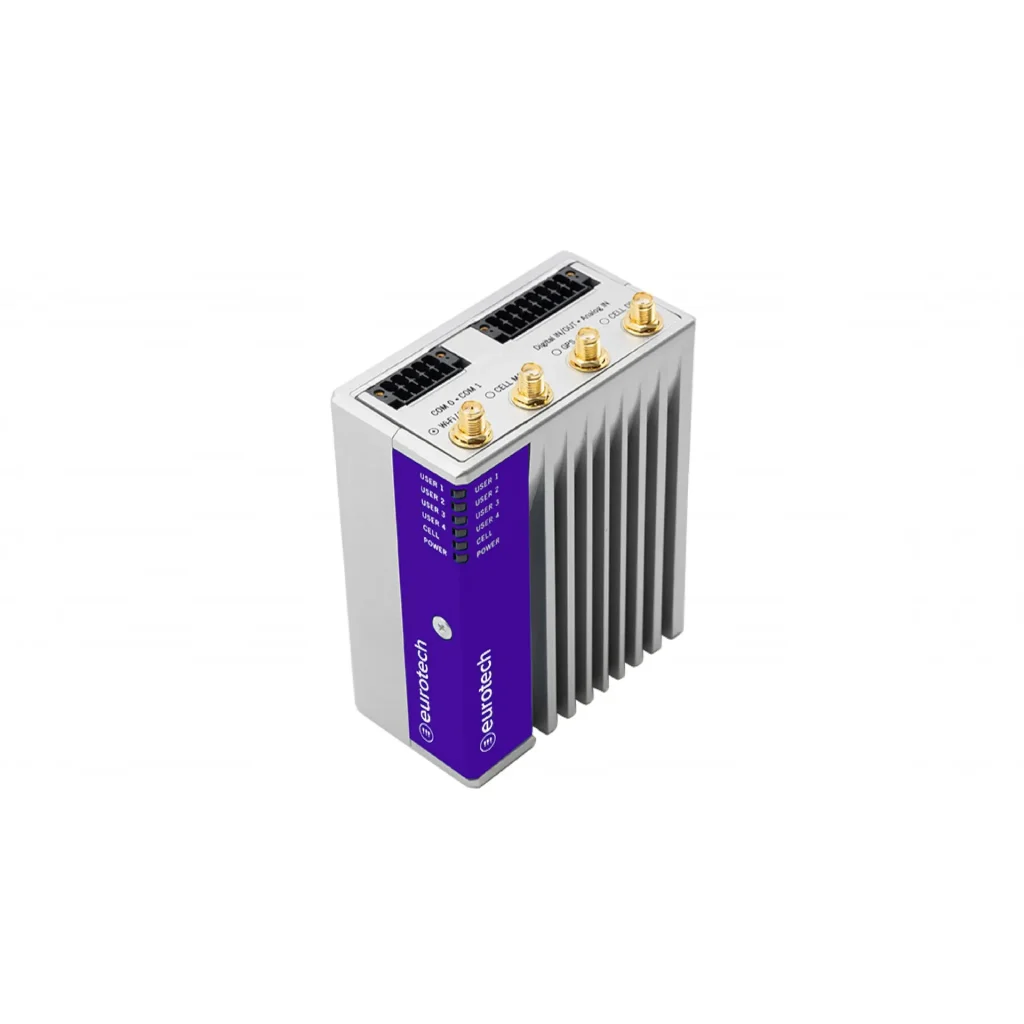

ReliaGATE 10-14

Multi-service IoT Edge GatewayNXP i.MX 8M, LTE Cat 1

The ReliaGATE 10-14 is a Multi-service IoT Gateway that has been designed to deliver LTE and 2G/3G connectivity to industrial and lightly rugged applications.

  • Quad Core, 64bit ARM
  • For Global Cellular Deployments
  • Best in Class Cybersecurity
  • Industrial Grade
  • Expandable
  • Easy to Program
  • Open, No Lock-in
  • Customizable
Industries
Industrial & Automation
Energy & Utilities
Medical & Healthcare
Communications
Ruggedization
Mild
Operating Temperature: -30 to +70°C
Security
IEC 62443
PSA Certified Level 1
TPM 2.0
Certified
IEC60601-1-2
E-Mark
Connection
EU
North America
Japan
Mainland China
Connection
Wi-Fi
Bluetooth
GNSS
LTE Cat 1
ARM Powered
Powered by NXP i.MX 8M Mini CPU: quad core Cortex A53 performance for intensive workloads
For Global Cellular Deployments
Carrier certified LTE and ready to deploy in most countries, Wi-Fi, BLE, Gigabit Ethernet and Fieldbus interfaces, supporting Modbus, S7, OPC UA, and many more protocols
Best in Class Cybersecurity
IEC 62443-4-1/-4-2 and PSA Level 1 certified, California SB-327 compliant, always on and power independent antitamper monitor and logger, TPM 2.0 and full hardware hardening
Industrial Grade
Extended operating temperature, wide range power supply with transient protection, optoisolated analog in and digital I/Os, protected USB, protected and isolated serial ports, DIN bar and wall mount
Expandable
Add LoRa, more DI/O, analog inputs, and custom peripherals with side expansion modules
Easy to Program
Full support for classic and visual programming, plus Everyware Software Framework (ESF), the IoT Java/OSGi based-middleware for IoT gateways that accelerates user application development
Open, No lock-in
Based on open standards and Cloud agnostic, it can be integrated with all major platform and service provides
Customizable
Can be personalized and even fully customized, with options ranging from branding ("skins" and color) to deep HW/SW changes

The ReliaGATE 10-14 is an industrial, highly secure Edge Gateway that is easy to program: it supports classic and visual programming and comes with a rich and expandable IoT programming Framework. It is open and supports all major Cloud providers and services. It is suitable for immediate deployment in most countries, thanks to carrier certified LTE with 2G/3G backup connectivity, with options to expand the geographic coverage to a truly global scale.

The ReliaGATE 10-14 offers best in class Cybersecurity: it leads the market with IEC 62443-4-1/-4-2 and PSA Level 1 certification; it is also compliant with California SB-327 password law. Protection starts at the hardware level, with full support for TPM 2.0, Secure Boot and an always-on physical antitampering monitor/logger that is active even when the system is removed from power. For most demanding customers, special production-only images can be configured with full hardware hardening (interface disabling) to further reduce the attack surface.

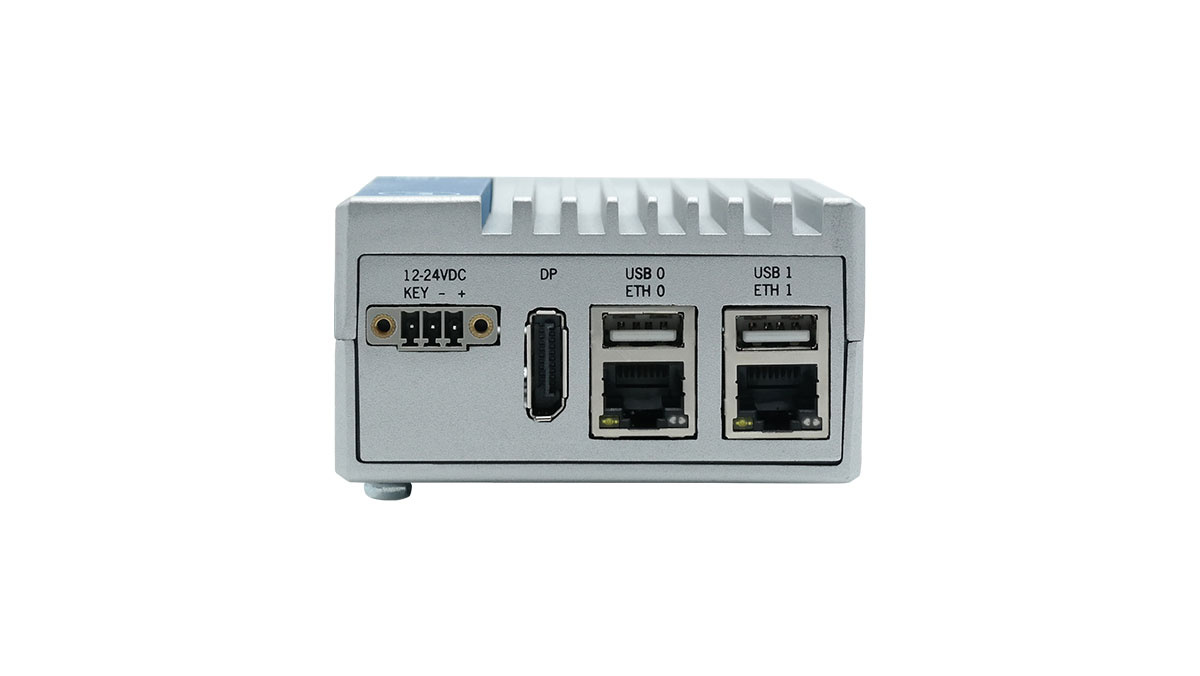

Based on the NXP i.MX 8M Mini Cortex-A53 quad core processor, with up to 4GB of RAM, up to 32GB of eMMC and a user-accessible microSD slot, the ReliaGATE 10-14 is a low power gateway suitable for lightly rugged use cases: it supports a 9 to 30VDC power supply with transient protection, Display Port video output, two protected and isolated RS-232/RS-422/RS-485 serial ports, two noise and surge protected USB ports, six optoisolated digital and two isolated analog interfaces.

The ReliaGATE 10-14 features a wide range of connectivity capabilities: it integrates a carrier certified LTE Cat 1 cellular modem with dual SIM support, Wi-Fi, Bluetooth 5/BLE, and two Gigabit Ethernet ports; an internal GNSS provides precise geolocation capabilities. Expansion options allow adding extra features with side modules, such as the ReliaWAN 10-12, a Lora Gateway unit, or the ReliaIO 10-12, which provides analog input and more DI/O ports.

The ReliaGATE 10-14 comes with Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT Edge Gateways. Distributed and supported by Eurotech, ESF supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration. ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.

Ordering code: REGATE-10-14-xx
XX-32-35-36-37
PROCESSORCPUi.MX 8M Mini Quad Cortex-A53 1.6 GHz
GPU2D and 3D Acceleration
MEMORYRAM2GB (Up to 4GB LPDDR4)
STORAGEEmbedded16GB (Up to 32GB eMMC)
AdditionalMicro SD Slot (User Accessible)
I/O INTERFACESEthernet2x 10/100/1000 - RJ45
USB 2.02x Host 2.0 (Noise and Surge Protected) - Type A
Serial2x RS-232/RS422/RS-485 protected and isolated (5 wires), 1x Serial Console TTL
Digital I/O4x Digital Inputs Optoisolated, 2x Digital Outputs Optoisolated
Analog I/O2x Analog Inputs Isolated (11-bit, 0-36VDC)
Video Out1x Video Output (Display Port)
RADIO INTERFACESInternal CellularNoLTE Cat 1 (NA)LTE Cat 1 (EU)LTE Cat 1 (AP)
GNSSNoGPS, Glonass, Beidou, Galileo, QZSS
Wi-Fi/BT802.11 a/b/g/n/ac (2.4GHz, 5GHz) - BLE5 (2.4GHz)

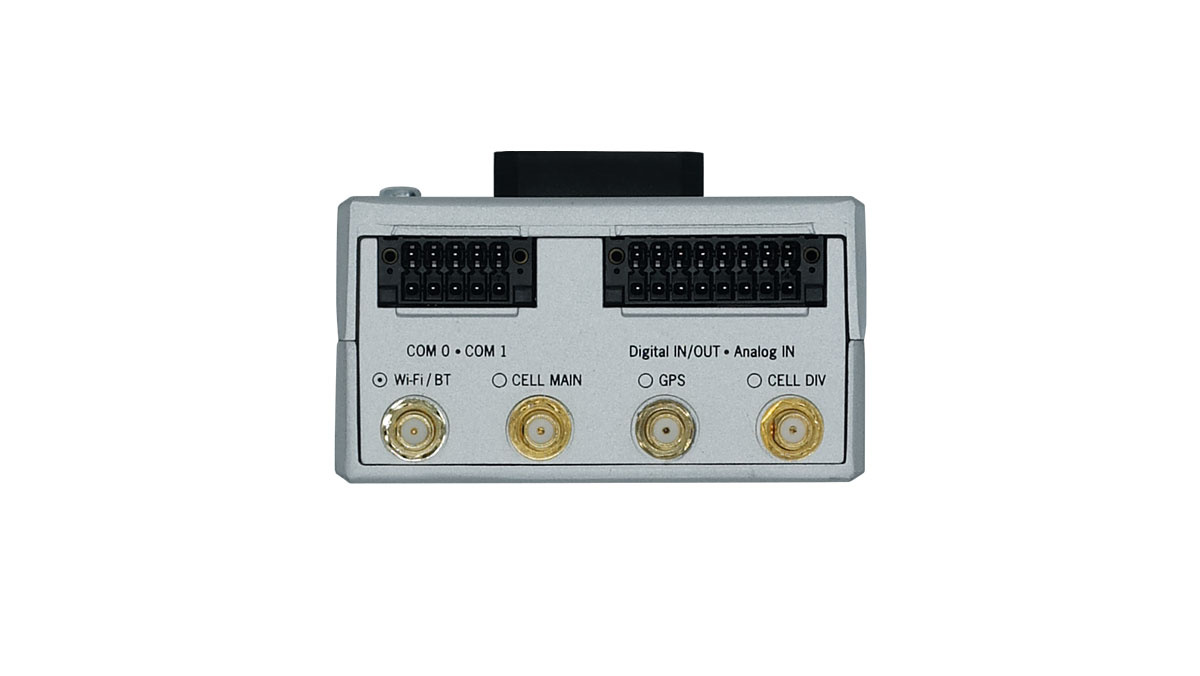

Ext. Antennas1x RP-SMA Wi-Fi/BT2x SMA Cellular, 1x RP-SMA Wi-Fi/Bluetooth, 1x SMA GNSS
OTHERRTCYes (SuperCAP Backup)
Ext. WatchdogYes
EEPROM256 Kbit
TPMTPM 2.0
Anti-TamperYes (2x Switches: Product Enclosure and Service Panel, Event Logging with Time Stamping)
Temp. SensorYes
Accelerometer3D Accelerometer / 3D Gyroscope
LED1x Power Blue, 1x Cellular activity Green, 4x User Configurable (2x Green, 2x Amber)
Buttons1x Reset Button and 1x Programmable Button
SIM SlotNo2x miniSIM (User Accessible)
EXPANSIONSConnectorExpansion Connector compatible with ReliaIO 10-12 and ReliaWAN 10-12
POWERInputNominal: 12 or 24 VDC; Range: 9 to 30 VDC with Transient Protection, Ignition Key Sense
Consumption2.5W Idle (5W Typ.)
ENVIRONMENTOperating Temp.-30 to +70 °C
Storage Temp.-40 to +85 °C
HumidityRH 5...95% Operating Non Condensing (40°C)
CERTIFICATIONSCybersecuritySecure Boot, TrustZone Architecture, PSA Level 1, California SB-327, Always-on Antitamper Monitor, TPM 2.0, IEC 62443-4-1/-4-2 - Hardened Production-only Images
IoT PlatformAzure IoT Certified, AWS Certified, Eurotech Everyware Cloud Native
RegulatoryCE, FCC, ISEDFCC, ISEDCEJATE, TELEC
SafetyEN 62368, UL 60950 (§)
VerticalE-Mark, IEC 60601-1-2
EnvironmentalROHS3, REACH
Wi-Fi/BLE RadioRED, FCC, ISEDFCC, ISEDREDJATE, TELEC
Cellular RadioNoPTCRB, AT&T, VerizonREDJATE, TELEC
IngressIP40
MECHANICALEnclosureMaterial: Aluminium/Magnesium Alloy - Color: Aluminium
Dimensions107x85x46mm (LxWxH) - Excluding Connectors, DIN Bar Mounting Bracket

 § UL, NRTL listing Factory Option.

SOFTWARE
SOFTWAREOSEurotech Everyware Linux
SDKYocto-based Eclipse Tooling, Azul Java
IoT FrameworkEveryware Software Framework (Java/OSGi)
