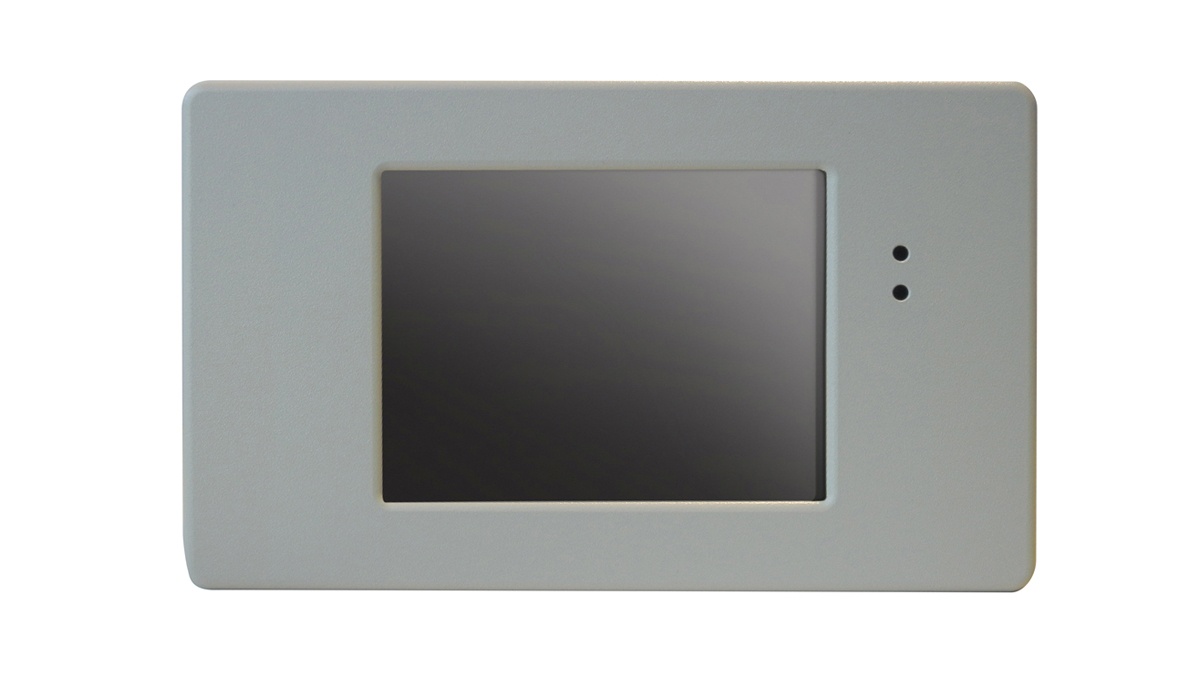

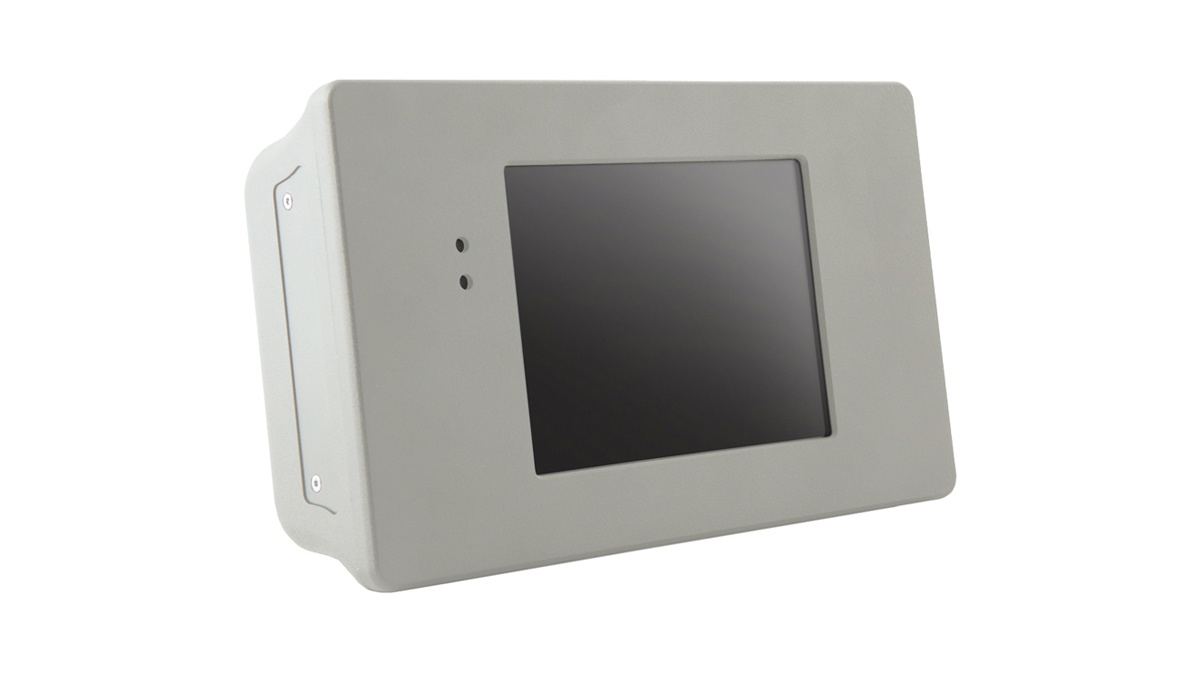

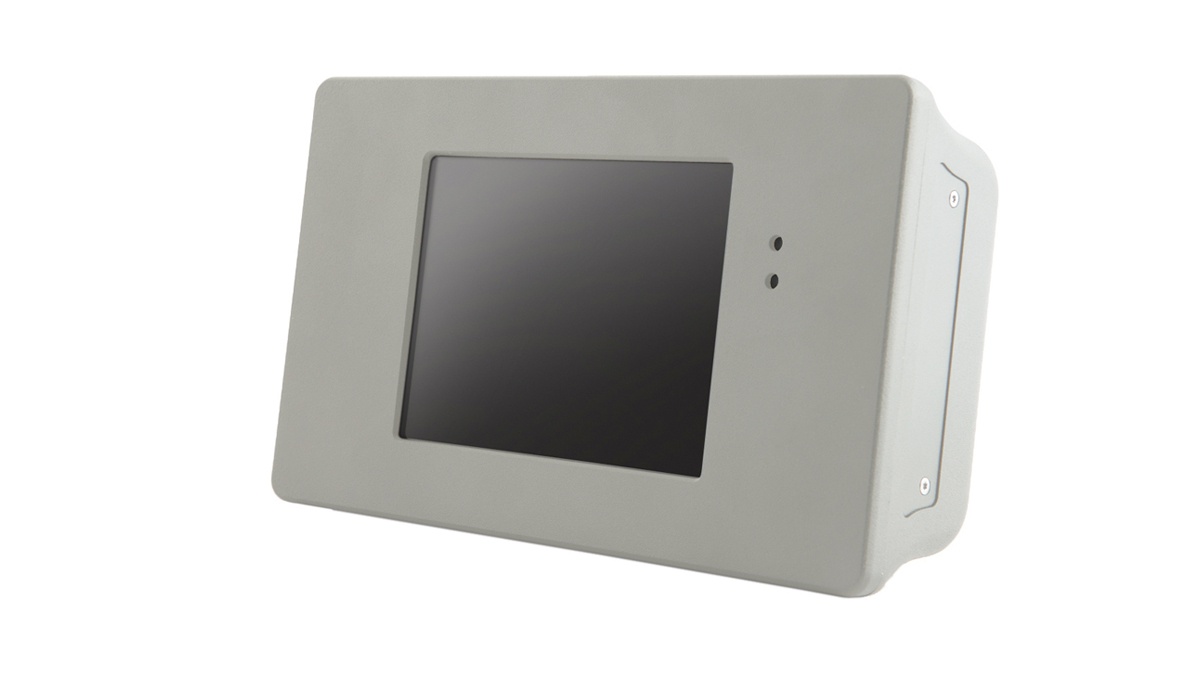

DynaVIS 10-00

Mobile Display Computer - 5.7'' Touchscreen Display

The DynaVIS 10-00 is a rugged mobile display computer platform that targets demanding vehicle installations such as those in rail networks, rolling stock, and buses. (NOT RECOMMENDED FOR NEW DESIGNS)

Download Datasheet download

Choose a format

A4 letter

Features

Rugged and Compact - The DynaVIS 10-00 is very powerful, yet compact. With extended temperature range and rugged circular connectors, it is the ideal platform for hash environments
Certified to Perform - Designed to the transportation market, the DynaVIS 10-00 is EN50155 compliant and supports features such as optoinsulation and wide range power supply
Connected - With a wide choices of wireless and wired communication interfaces, it is simple to integrate this platform in any vehicle
Low Power and Fanless - Design with high efficiency in mind, the DynaVIS 10-00 delivers exceptional performances and low power consumption
ESF Support - The DynaVIS 10-00 supports Everyware Software Framework (ESF), to speed up the application software development
EC Ready - Enjoy the benefits of the Everyware Cloud (EC): dramatically cut Time-to-Market when building scalable, robust applications that integrate devices to business applications

Description

The DynaVIS 10-00 is a rugged mobile display computer platform that targets demanding vehicle installations such as those in rail networks and rolling stock, buses, vessels etc. Thanks to the smart design and the high integration, the system is very compact and withstands the mechanical and temperature stresses commonly encountered in harsh environmental conditions while providing an outstanding set of communication options needed in today vehicle installations.
The DynaVIS 10-00 provides the computational power of the Intel Atom CPU, the connectivity through Wi-Fi and 3G cellular networks, Gigabit Ethernet, a 5,7” touchscreen panel, a high performance GPS and plenty of transportation specific features such as optoinsulated I/Os, serial ports, USBs and a wide range power supply section.

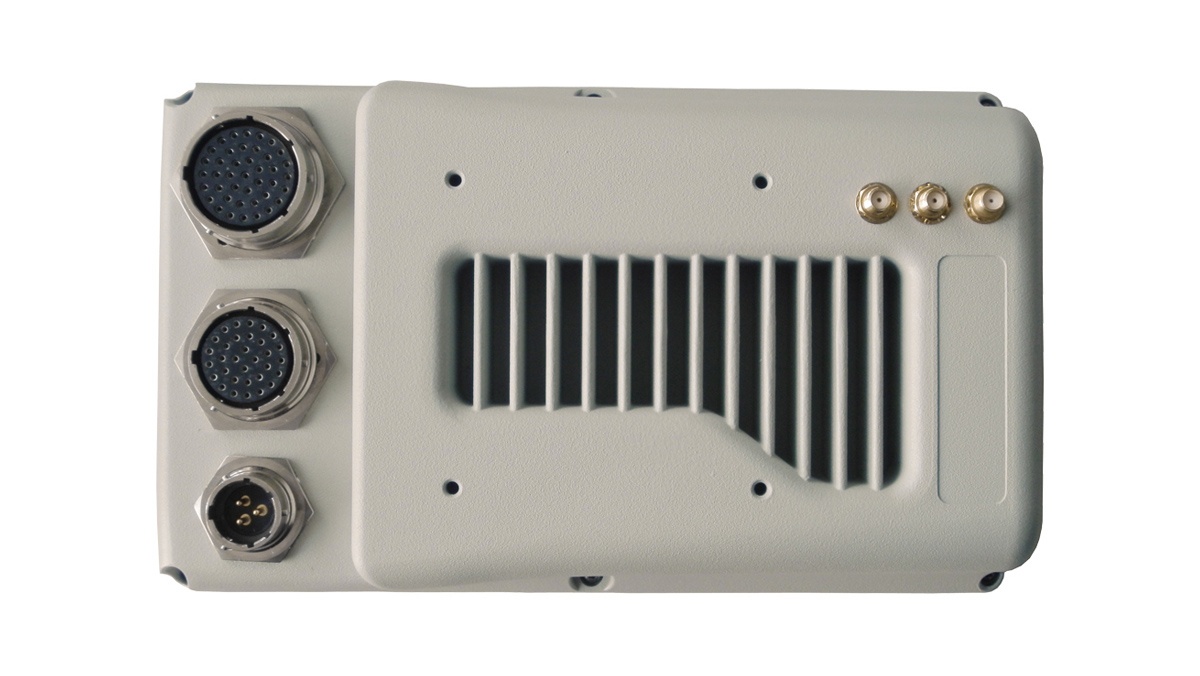

Being low power, fanless, very compact and EN50155 certified, the DynaVIS 10-00 can be integrated in railway, automotive and similar applications. Also the device is IP65 protected and features high-end rugged connectors that make the DynaVIS 10-00 suitable to be easily maintained and provide long-term reliability in harsh environments.
The DynaVIS 10-00 can leverage Everyware Software Framework (ESF) for fast device application development and Everyware Cloud (EC) that provides all the infrastructure needed to instantly integrate devices into the business application.

Specifications
PROCESSOR CPU Intel Atom, 1.1GHz
MEMORY RAM 512MB RAM Soldered on Board
STORAGE SSD 2GB Flash Disk SSD Soldered on Board
Other 1x Removable microSDHC Card Slot for Data Storage (4GB Card)
DISPLAY LCD 5.7” LCD Type Transmissive Color TFT; VGA 640X480 with Resistive Touch Screen, Backlighted – Colors: 262K; Brightness: 280 cd/m²; Contrast Ratio: 350:1, Viewing Angle: +/-70°; Antiglare Surface
I/O INTERFACES Ethernet 2x 10/100/1000Mbps
USB 1x USB 2.0, 1x USB 2.0 (Maintenance)
Serial 1x Opto-isolated RS-232, 1x Opto-isolated RS-485, 1x Serial Interface RS-232 (Maintanance)
CAN bus 1x CAN bus
Digital I/O 5x Opto-isolated Digital Output, 10x Opto-isolated Digital Input, 1x Opto-isolated Digital Input Odometer
Video 1x VGA (Maintenance)
Audio 1x Stereo Microphone Input, 1x Stereo Headphones Output, 1x Speakers Output
RADIO INTERFACES Cellular HSUPA/HSDPA/UMTS/GPRS Modem (Factory Option)
GPS 50 channels Galileo Ready
Wi-Fi a/b/g/n (Factory Option)
Antennas (External) 1x Cell, 1x GPS, 1x Wi-Fi
OTHER LEDs 1x PWRGOOD, 1x PWR On
Buttons 1x Reset
SIM Slot 1x SIM Card Slot
POWER Input 10.5 - 36 VDC (Nominal 24VDC), Ignition Key Input (Optionally 110 and 72 Nominal VDC)
Consumption 19W Typical
ENVIRONMENT Operating Temp - 25 to +55°C EN50155 Class T1 (70°C for 10 min)
Storage Temp - 30 to +80°C
Humidity 95% Relative Humidity at +25°C Non Condensing
CERTIFICATIONS Compliance EN50155 (Railway applications), EN61373 (Vibrations & Shocks), EN60950 (Safety), EN61000 (Burst Immunity test), EN60068 (Temperature test), DIN-5510-2 (German Fire and Smoke) and ISO-11170 (Italian Fire and Smoke), Load Dump (for 24V In): ISO 7637-2 (2004-06)
Ingress IP65
MECHANICAL Dimensions 230 x 140 x 61.7 mm
Weight 1.5Kg
Mounting Vesa 75 Standard Mounting Holes
SOFTWARE OS Wind River Linux Support

Download

DynaVIS 10-00 Datasheet
PDF download

Choose a format

A4 letter
mail
request information
* required fields
I have read and understood the Privacy Policy *
I agree to receive marketing emails * - read
We would love to share with you our marketing communications. Keep updated on Eurotech latest products, events and newsletter giving us your consent to receive marketing e-mails. If you want to know more about how we manage your data and how to update your subscription preferences, take a look here at our Personal Data Use Informative
To confirm click on “SEND”. Click on “RESET” to start over

Highlights

  • • EN50155 qualified
  • • Rugged and low power
  • • 5.7'' VGA Touchscreen Display
  • • Based on Intel® Atom™
  • • Built-in GPS
  • • Wi-Fi, 3G, Gigabit Ethernet
  • • Many power supply options
