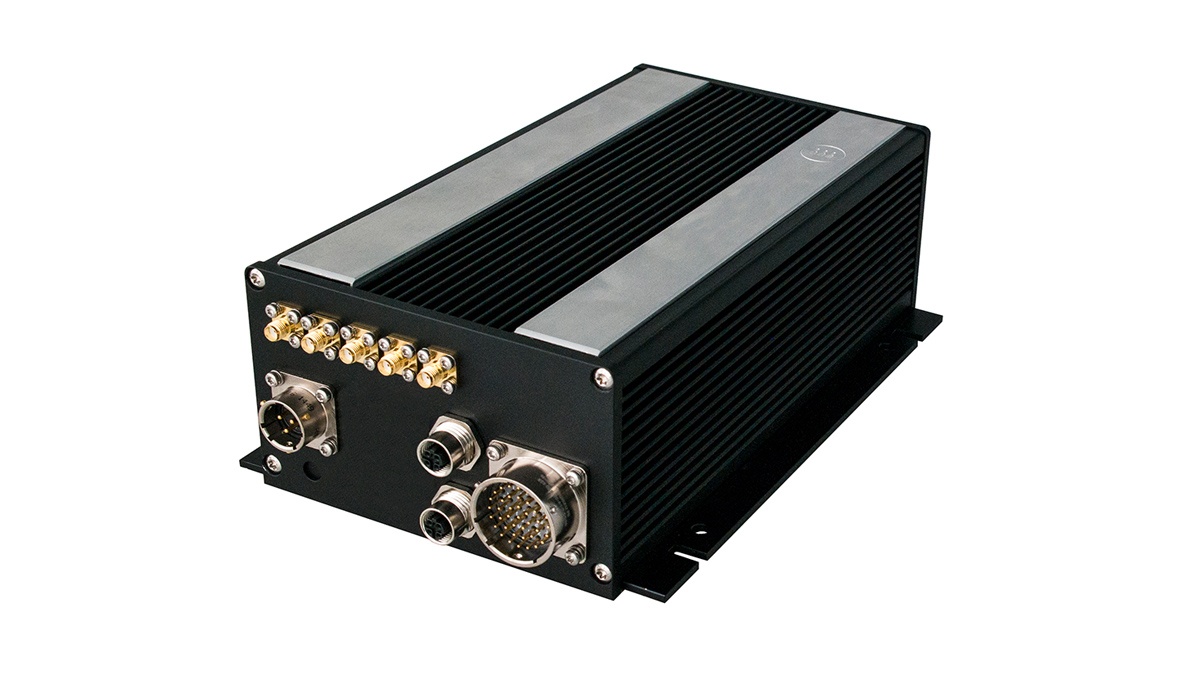

BoltMAR 20-28

Embedded Services Router - EN50155, Cisco 5921

The BoltMAR 20-28 delivers a Cisco 5921 Embedded Software Router in a rugged EN50155 device, enabling resilient radio connectivity on vehicles. It is the building block for on-demand networking in a wide range of applications, including commercial, industrial, homeland security, emergency response and mobile IoT.

Download datasheet download

Choose a format

A4 letter


Cisco IOS - Features the Cisco 5921 Embedded Services Router (ESR), the IOS Software router that provides reliable network routing in extreme enviroments
Certified - Provides multiple certifications, including EN50155 (Rolling Stock), EN45545 (Fire & Smoke), and for selected cellular carriers
Rugged - Operates in extended temperature (EN50155 TX Class) while completely fanless and IP66 rated
Extended Connectivity - Cellular connectivity with carrier pre-certifications, dual Gigabit Ethernet, Wi-Fi 2.4/5.0GHz, BLE, CAN bus and GPS with Dead Reckoning
Long-term Availability - Designed for markets and applications where long-term availability and support is a must have requirement
Highly Customizable - Modular design that can be tailored to the application, including interfaces, connectors, and wireless connectivity options


The BoltMAR 20-28 delivers a Cisco 5921 Embedded Software Router in a rugged EN50155 device, enabling resilient radio connectivity on vehicles. It is the building block for on-demand networking in a wide range of applications, including commercial, industrial, homeland security, emergency response and mobile IoT.
Features include WAN optimization for improved performance and radio-aware routing (RAR), to manage critical traffic under degraded conditions, such as when radio link quality is compromised.
Installed on a vehicle, the BoltMAR 20-28 enables self-forming and self-healing networks that support a wide range of traditional and IoT services, such as remote sensor management, vehicle to vehicle communications, passenger high speed networks, on-board and track-side crew communications and much more.
The BoltMAR 20-28 supports one LTE cellular modem with dual SIM, to provide better roaming coverage and multiple carriers; it also offers dual Gigabit Ethernet, 802.11 a/b/g/n Wi-Fi, Bluetooth Low Energy, CAN bus and GPS with Dead Reckoning.
Designed for harsh environments, the BoltMAR 20-28 ensures the highest level of physical resilience, by employing rugged circular connectors and a fanless IP66 design that allows operation in Class TX temperatures (-40° to +70°C). The Class S2 power supply is very reliable, supporting 9VDC to 137.5VDC and being able to cope with 10ms power outages, while isolation of serial and digital I/O ports adds extra protection to the system.
Professional Services are available for the BoltMAR 20-28, such as design personalization and inclusion of new features and technologies, additional certifications, system development and production.

ROUTING Software Router Cisco 5921 Embedded Services Router (ESR)
Routing Protocols Routing Information Protocol (RIP) Versions 1 and 2, Open Shortest Path First (OSPF) – Enhanced Interior Gateway Routing Protocol (EIGRP)-IP, Border Gateway Protocol (BGP) – Cisco Discovery Protocol, IP Policy Routing – IP Multicast Protocol Independent Multicast (PIM) Versions 1 and 2 – Internet Group Management Protocol (IGMP) Versions 1, 2, and 3 – IP Multicast Load Splitting, Cisco Group Management Protocol (GMP)
Radio-Aware Routing Optimizes IP routing over fixed or temporary radio networks, Factors radio link metrics into route calculations – Immediately recognizes and adapts to changes in network neighbor status – Supports Dynamic Link Exchange Protocol (DLEP), Supports Router Radio Control Protocol (R2CP) – Supports RFC 5578 (authored by Cisco)
Mobile Ad-Hoc Networks OSPFv3 enhancements for mobile ad-hoc networks
PROCESSOR CPU Atom E3845, 1.91GHz, Quad Core
Other 1x microSD Slot (User Accessible)
I/O INTERFACES Ethernet 2x 10/100/1000Mbps - M12 X-coded Connector
USB 2x USB 2.0 Noise and Surge Protected, 1x USB 2.0 (Service Panel)
Serial 1x RS-232/RS-422/RS-485 (9 Wires) Isolated, 1x TTL Console (Service Panel)
CAN 2.0B 1x CAN bus 100mA with 5V Power Out, Isolated
Digital I/O 4x Digital Input, 4x Digital Output, 1x Odometer, 1x Ignition Key (All DI/O EN50155 Isolated)
Video 1x Micro HDMI (Service Panel)
EXPANSION MiniPCIe Slots 3x Full/Half-Size Mini PCIe Slots (PCIe/USB, USB)
RADIO INTERFACES Cellular 1x LTE Cat 4 Modem
GPS GPS/QZSS/GLONASS/BeiDou/Galileo with Dead Reckoning
Wi-Fi / BT 802.11b/g/n, 4.0 BLE
Antennas (External) 2x SMA Cellular, 2x RP-SMA Wi-Fi/Bluetooth, 1x SMA GPS
OTHER RTC Yes, with SuperCAP (up to 2 Months Retain), Fast Reboot Support
System Watchdog Yes, Discrete Chip
TPM Factory Option: TPM 1.2/2.0
Sensors Accelerometer, Temperature
LEDs 1x Power, 3x MiniPCIe Slot, 2x Programmable (Dual Color Green/Amber)
Buttons 1x Reset, 1x Programmable (Service Panel)
SIM Slot 2x Single SIM, Switchable for Bandwidth Aggregation and Carrier/Cellular Backup (Service Panel)
POWER Input Wide Input Range EN50155 Class S2 (9V - 137.5V)
Consumption 30W Max
ENVIRONMENT Operating Temp. TX according to EN50155
Storage Temp. - 40 to +85°C
Safety EN 62368, UL 60950 (§)
Vertical EN50155, EN45545 (Fire and Smoke)
Environmental RoHS2, REACH
Wi-Fi / BT Radio CE (RED), FCC, ISED
Cellular Radio CE (RED), FCC, ISED, PTCRB, AT&T
Ingress IP66
MECHANICAL Enclosure Material: Aluminium - Color: Black Anodized
Dimensions 268x141x85mm (LxWxH), with Connectors

(§) UL, NRTL listing Factory Option.
