BoltMAR 20-11

Embedded Services Router - Cisco 5921

The BoltMAR 20-11 provides a mission-critical connectivity solution with flexible wireless networking support and Cisco 5921 Embedded Services Router (ESR) for mobile wireless infrastructures, supporting ubiquitous Cisco internetworking for industrial, transportation, public safety, and defense applications.

Download Datasheet download

Choose a format

A4 letter

Features

Cisco IOS - Features the Cisco 5921 Embedded Services Router (ESR), the IOS Software router that provides reliable network routing in extreme enviroments
Rugged - IP65-rated and extended operating temperature for premium performance in extreme environments
Modular Cellular Connectivity - ReliaCELL 10-20 Cellular Adapter Module provides multiple 4G/3G connectivity options for flexibility in multi-carrier and multinational deployments
High Power Wi-Fi - High transmit power dual band Wi-Fi for localized connectivity on-board and in the vehicle vicinity
Multiple Interfaces - Multiple Ethernet, serial I/O ports, optional CAN bus, plus embedded GPS for complete vehicular connectivity
Long-term Availability - Designed for markets and applications where long-term availability and support is a must have requirement

Description

The BoltMAR 20-11 provides a mission-critical connectivity solution with flexible wireless networking support and Cisco 5921 Embedded Services Router (ESR) for mobile wireless infrastructures, supporting ubiquitous Cisco internetworking for industrial, transportation, public safety, and defense applications.
The routing functionality allows enterprise-grade networking, multi-path routing, quality of service, security, and management to be extended to mobile assets, enabling self-forming and self-healing networks for remote sensor management, vehicle-to-vehicle and on-board communications, high-speed networking, and surveillance.
The BoltMAR 20-11 provides dual Ethernet (expandable), 802.11 a/b/g/n Wi-Fi, serial and USB ports, optional built-in GPS and CAN bus ports and a wide range power supply to support the most demanding vehicular requirements.
Cellular connectivity for BoltMAR 20-11 features Eurotech ReliaCELL 10-20 Modular Cellular Adapter, supporting a wide variety of cellular technologies including the latest LTE UE categories and is certified for multiple carriers and markets.
A ruggedized platform ideal for harsh vehicular environments, the BoltMAR 20- 11 provides a low power, fanless, and compact design with high-end rugged connectors, IP65 ingress protection, and extended operating temperatures to ensure long-term reliability.

Ordering code: BTMAR-20-11-01
ROUTING Software Router Cisco 5921 Embedded Services Router (ESR)
Routing Protocols RIP Versions 1 and 2, OSPF, EIGRP-IP, BGP, Cisco Discovery Protocol, IP Policy Routing, IP Multicast PIM Versions 1 and 2, IGMP Versions 1, 2, and 3. GMP
VLANs Up to 32 VLANS per Router
Radio-Aware Routing Radio-Aware Routing: optimizes IP routing over fixed or temporary radio networks, Factors radio link metrics into route calculations; Immediately recognizes and adapts to changes in network neighbor status Dynamic Link Exchange Protocol (DLEP), Router Radio Control Protocol (R2CP), RFC 5578
Security Cisco Suite B Support; PAP/CHAP Authentication; IPSec, SSL/TLS, 3DES, AES, IKE Protocol Support
QoS QoS, Traffic Shaping, Priority Queuing, RSVP
Management SNMP, RADIUS, TACACS+, NTP, TFTP, DHCP Client and Server, DHCP Relay, NAT/Multi-NAT
Mobile Ad-Hoc Networks Mobile IP - OSPFv3 Enhancements for Mobile ad-hoc Networks
PROCESSOR CPU Intel Atom Z510P, 1.1GHz
MEMORY RAM 1GB RAM Soldered on Board
STORAGE SSD 2GB Flash Disk SSD, 8GB DOM
Other 1x microSD Slot (Service Panel)
I/O INTERFACES Ethernet 2x 10/100/1000Mbps (Expandable)
USB 2x USB 2.0 (Service Panel), 1x USB 2.0 (Rear Panel M2 Connector)
Serial 1x RS-232 (Service Panel), 2x RS-232 (Rear Panel M2 Connector)
CAN 2.0B Factory Option
Digital I/O 2x Opto-isolated Digital Input, 1x Opto-isolated Digital Input Odometer
Video 1x VGA (Service Panel)
RADIO INTERFACES Cellular Optional Accessory: ReliaCELL 10-20 2G/3G/4G Modular Cellular Adapter, with Cable Harness
GPS Factory Option: 50 channels Galileo
Wi-Fi Dual Band 2.4/5.0GHz IEEE 802.11 a/b/g/n - High TX Output Power up to 25dBm @ a/g/n Bands

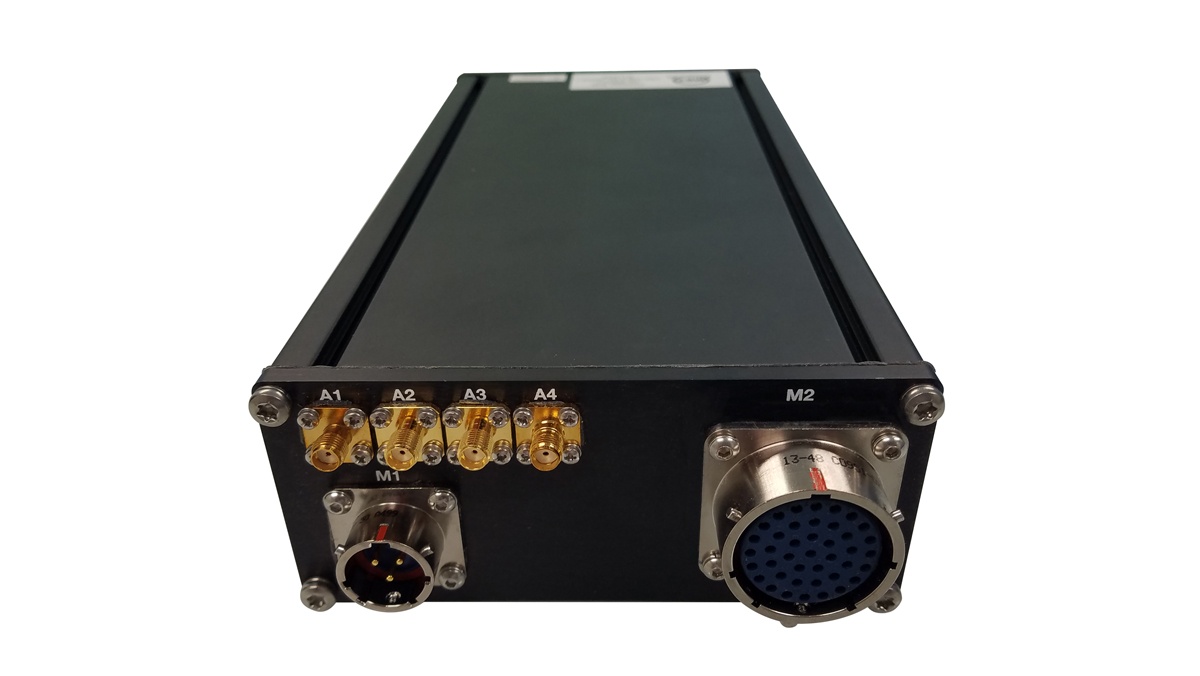

Antennas (External) 1x SMA GPS, 2x SMA Wi-Fi, 1x Reserved
OTHER LEDs 4x Green LEDs
Buttons 1x Reset
POWER Input 9 - 36VDC (Nominal 24VDC), Ignition Key Input
Consumption 19W Typical
ENVIRONMENT Operating Temp - 30 to +60°C EN50155 Class T1 (70°C for 10 min)
Storage Temp - 40 to +85°C
Humidity < 95% Relative Humidity at +45°C Non Condensing
CERTIFICATIONS Regulatory CE, FCC, ISED
Safety UL 60950-1 (§)
Vertical EN 50155, EN 45545 (Fire & Smoke), EN 61373 (Vibrations & Shocks)
Environmental RoHS2, REACH
Wi-Fi Radio RED, FCC
Ingress IP65
MECHANICAL Enclosure Extruded Aluminum (Black Anodize)
Dimensions 254x129x57mm / 10.0x5.08x2.24in (LxWxH)
Cooling Fanless Design (No Moving Parts)
Weight 3Kg

(§) UL, NRTL listing Factory Option.
