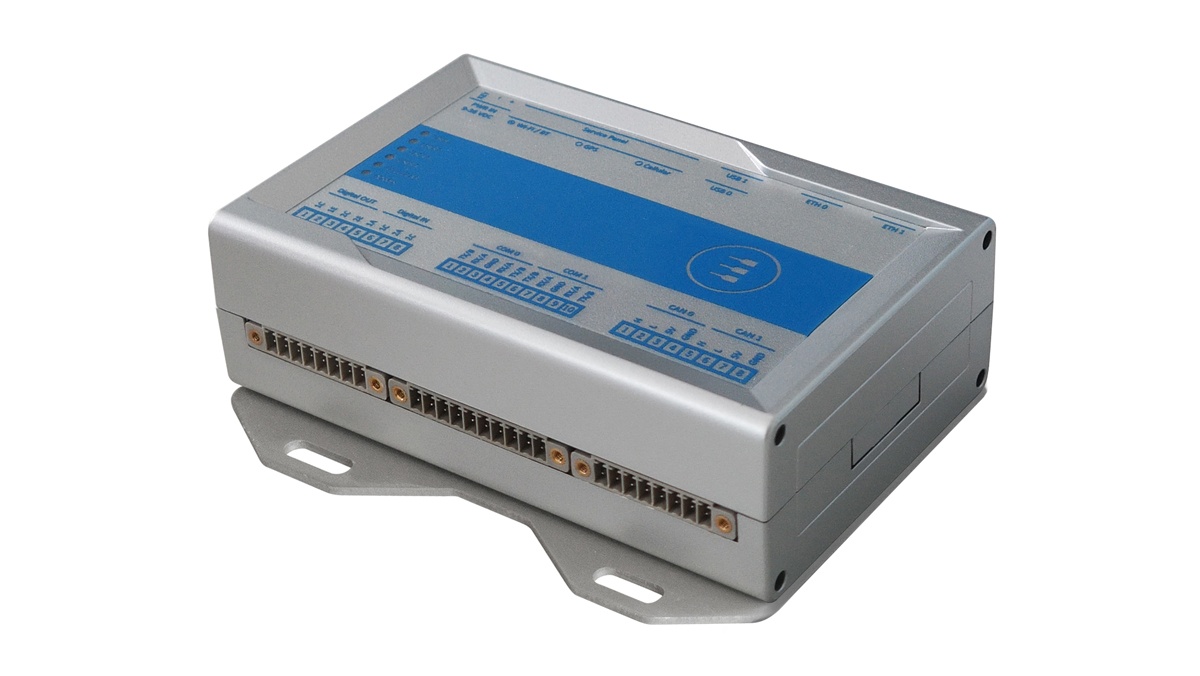

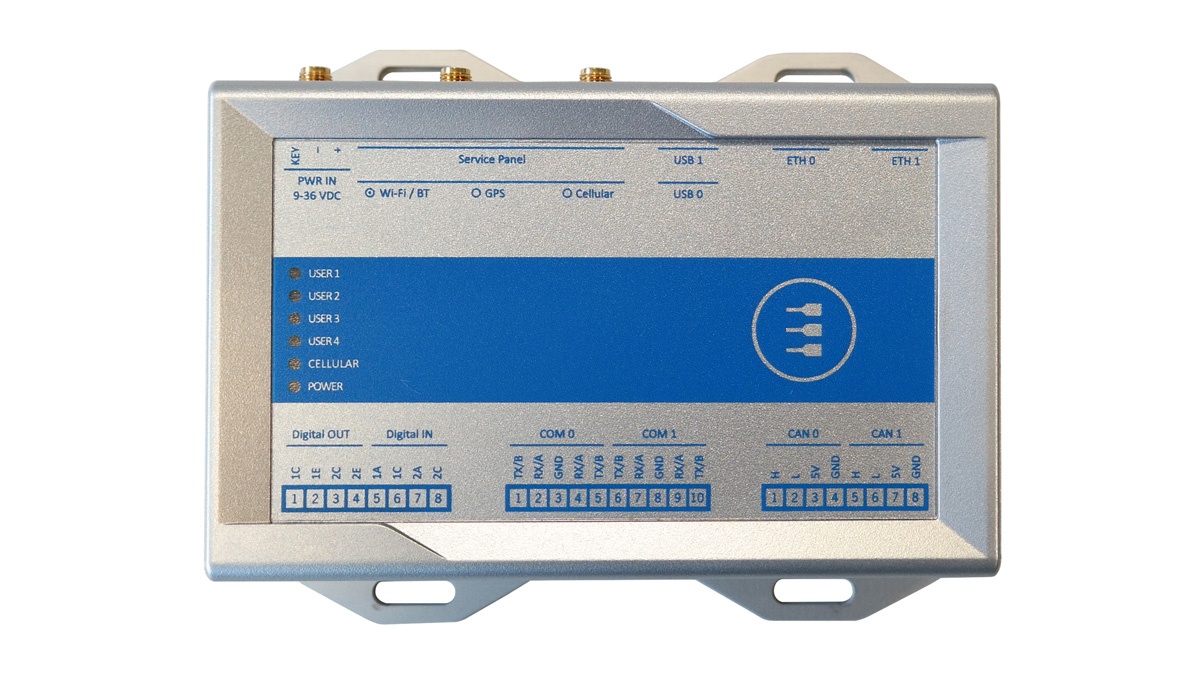

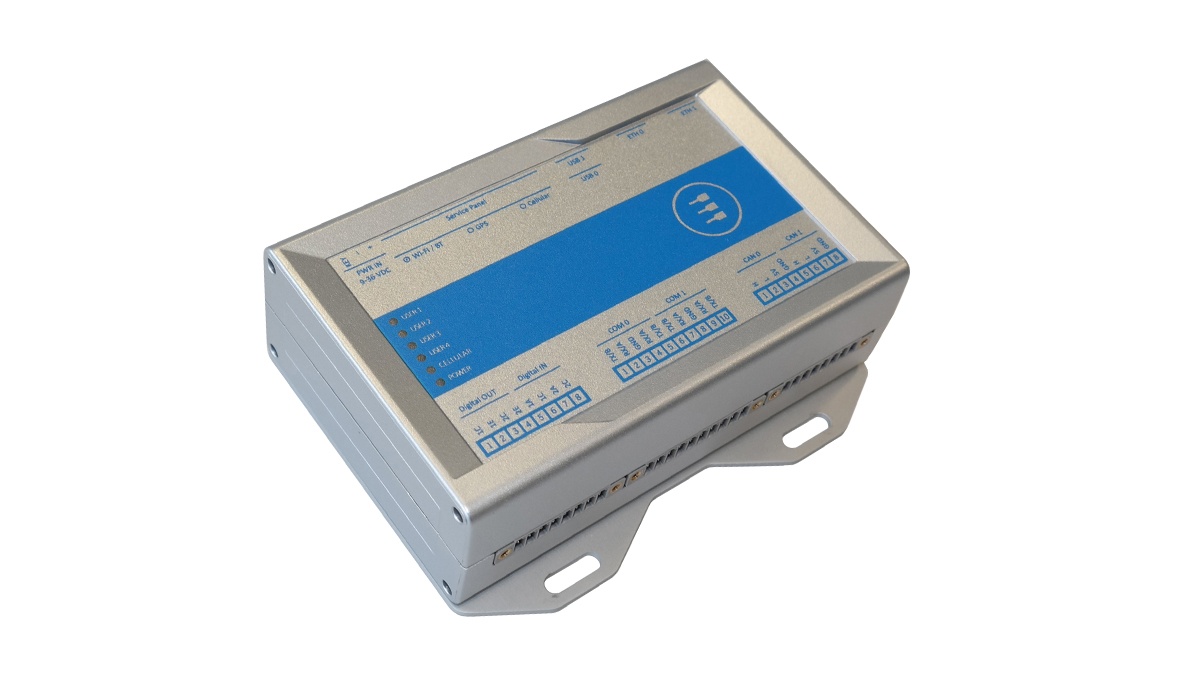

ReliaGATE 10-11

Multi-service IoT Edge Gateway - TI AM335x, Globally Certified

The ReliaGATE 10-11 is a Multi-service IoT Edge Gateway designed to comply with global certification requirements for industrial and lightly rugged applications.

Download datasheet download

Choose a format

A4 letter

Features

ARM Powered - Powered by TI AM335X CPU: optimum performance for intensive workloads at just 2W
IoT Ready - Breadth of connectivity options: 3G cellular modem, GPS, Wi-Fi, BLE, Fast Ethernet and Fieldbus interfaces, including CAN bus ports, optoisolated digital I/Os, protected USB and serial ports
Industrial and Automotive Grade - Wide operating temperature, wide range power supply with transient protection, and E-Mark certification
Field Protocol Support - Native support for Modbus, S7 and OPC UA, the extensible, secure, and platform-independent industrial interoperability standard
Cloud Certified - Seamless integration with Eurotech Everyware Cloud, Microsoft Azure, Amazon Web Services IoT and other Cloud services
Open Platform - Provides a Java/OSGi gateway middleware, to free the developer from proprietary solutions
Customizable - Flexible: personalization and full customization options are available, ranging from branding (“skin” and color) to deep HW/SW configurations

Description

The ReliaGATE 10-11 is an IoT Edge Gateway that has been designed to comply with global certification requirements for industrial and lightly rugged applications.
Based on the TI AM335X Cortex-A8 processor family, with 512MB of RAM and 4GB of eMMC, the ReliaGATE 10-11 is a low power gateway suitable for industrial and automotive applications: it supports a 9 to 36V power supply with transient protection and vehicle ignition sense, two protected RS-232/RS-485 serial ports, two CAN bus interfaces, and much more.
The ReliaGATE 10-11 features a wide range of connectivity capabilities: it integrates a global cellular modem with GPS, Wi-Fi, Bluetooth, and two Fast Ethernet ports. A dedicated internal GPS is also available as a factory option.
The ReliaGATE 10-11 comes with Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT Edge Gateways.
Distributed and supported by Eurotech, ESF supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration.
ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.

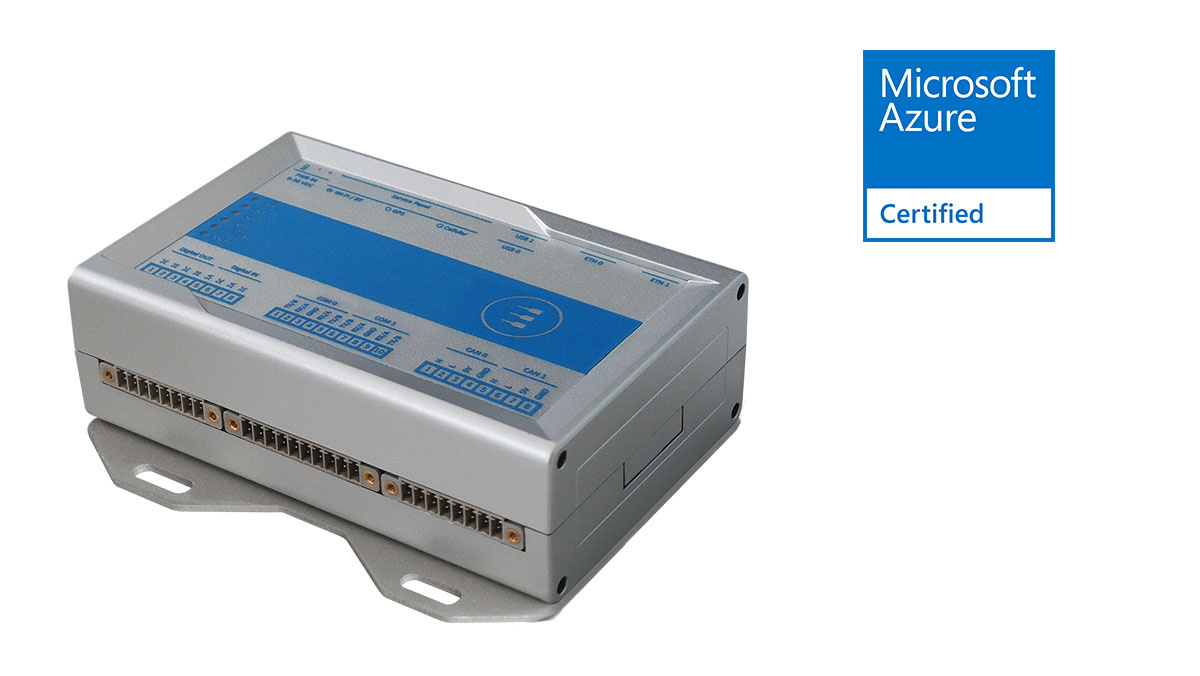

The ReliaGATE 10-11 is Microsoft Azure certified and can also be integrated with 3rd party cloud services such as Amazon Web Services IoT.

Ordering code: REGATE-10-11-XX
XX - 31 - 32 - 33 - 36 - 37
PROCESSOR CPU TI AM3352 800MHz, 1 Core
MEMORY RAM 512MB DDR3
STORAGE Embedded 4GB eMMC
Other 1x microSD Slot (User Accessible)
I/O INTERFACES Ethernet 1x 10/100Mbps - RJ45 2x 10/100Mbps - RJ45
USB 3x Host 2.0 (Noise and Surge Protected) - Type A 2x Host 2.0 (Noise and Surge Protected) - Type A 3x Host 2.0 (Noise and Surge Protected) - Type A 2x Host 2.0 (Noise and Surge Protected) - Type A
Serial 2x RS-232/RS-485 (Surge Protected, RS-485 Termination and Fail-safe Resistors), 1x Serial Console TTL
CAN 2.0B No 2x CAN bus with 5V (100mA) Power Out
Digital I/O 2x Digital Input 5V (TTL), 1KV Optoisolated – 2x Digital Output (40VDC), 30mA Sink
RADIO INTERFACES Cellular No 3G Global ReliaCELL Option 3G Japan Only
GPS No Integrated ReliaCELL Option Integrated
Wi-Fi / BT No 802.11b,g,n / 4.0 BLE
Antennas (External) No 2x SMA Cell/GPS 2x SMA Cell/GPS, 1x RSMA Wi-Fi/BT 1x RP-SMA Wi-Fi/BT 2x SMA Cell/GPS, 1x RP-SMA Wi-Fi/BT
OTHER RTC Yes (User Accessible Battery)
Ext. Watchdog Yes
EEPROM 256kbit
Sensors Temperature Temperature, Accelerometer
LEDs 1x Power, 4x Progr. 1x Power, 1x Cellular, 4x Programmable
Buttons 1x Reset, 1x Programmable
SIM Slot No 1x microSIM (User Accessible)
POWER Input 9-36VDC, with Transient Protection, Vehicle Ignition Sense
Consumption 2W Idle (15W Max)
ENVIRONMENT Operating Temp - 20 to +70°C
Storage Temp - 40 to +85°C
CERTIFICATIONS (*) Regulatory CE, FCC, ISED, JATE, TELEC, E-Mark
Safety EN 62368, UL 60950 (§)
Environmental RoHS3, REACH
Wi-Fi / BT Radio No RED, FCC, JATE, TELEC
Cellular Radio No RED, FCC, PTCRB, AT&T ReliaCELL Cert. JATE, TELEC
IoT Platform Microsoft Azure Certified
Ingress IP40
MECHANICAL Enclosure Material: ABS - Color: Aluminum
Dimensions 140x95x45mm (LxWxH) - with SMA Connectors
Software
SOFTWARE OS Eurotech Everyware Linux
SDK Yocto-based Eclipse Tooling, Azul Java
IoT Framework Everyware Software Framework (Java/OSGi)

(*) Additional Country Certifications for REGATE-10-11-33 are: NOM and IFETEL (Mexico), RCM (Australia / New Zealand), CCC (China), NCC (Taiwan), KC (South Korea).

(§) UL, NRTL listing Factory Option.
