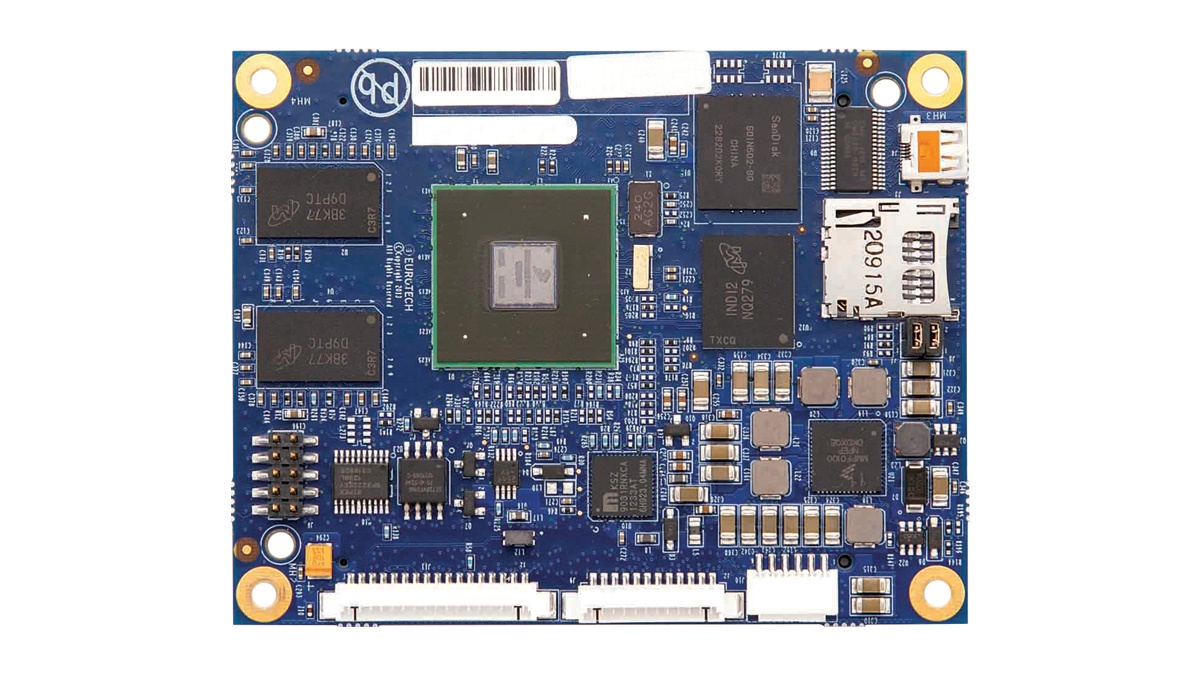

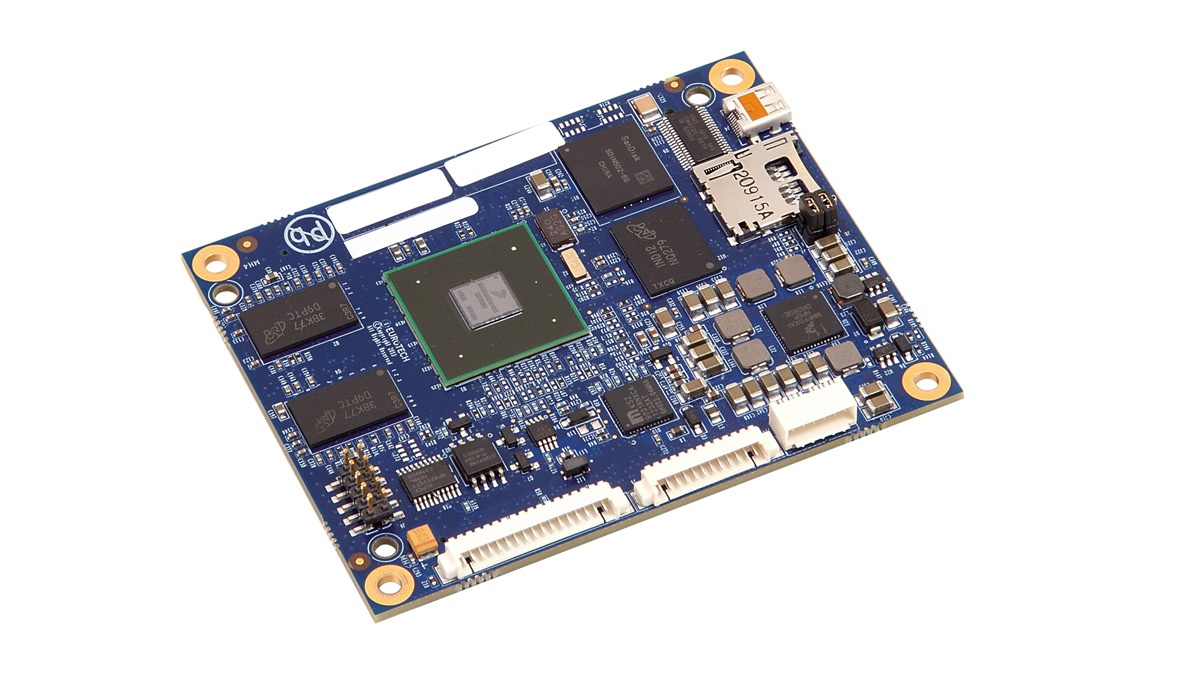

CPU-301-16

Ultra Low Power SBC/CoM - NXP i.MX6

The CPU-301-16 is an ultra low power, flexible CoM/SBC based on NXP i.MX6 that is suitable as an embedded platform for a wide range of applications, such as retail kiosk displays, medical equipment, and control panels for fitness equipment.

Download Datasheet download

Choose a format

A4 letter

Features

Multi-Core Configurations - The CPU-301-16 offers configurations using single core, dual core or quad core technology to give to device manufacturers the right amount of processing power for their application
CoM or SBC - The CPU-301-16 is available in two versions: as Computer on Module (CoM), to be coupled to a carrier board, and as a standalone Single Board Computer (SBC)
Ultra Low Power - Thanks to Eurotech proprietary power management, the CPU-301-16 can typically operate at 1-2W or less, making it ideal for battery-operated devices and power-constrained uses
HD Multimedia Playback - For applications like kiosk, digital signage, and point of sale, the CPU-301-16 can run up to four independent displays at 1080p
Rugged and Efficient - With optional support for industrial temperature range and enhanced vibration tolerance, at 67x85mm the CPU-301-16 fits into very small enclosures, with little or no need for heat dissipation in low power configurations
IoT Native - Provides native support for IoT, including IoT middleware and access to Eurotech IoT Integration Platform
Long Life-Cycle - With options for extended lifecycle, any design using the CPU-301-16 will have proven supply and support for many years to come

Description

Delivering a full range of capabilities in a low-power and compact design, the CPU-301-16 is the embedded platform of choice for a wide range of applications, such as retail kiosk displays, medical equipment, and control panels for fitness equipment.
The CPU-301-16 uses leading-edge NXP i.MX6 technology to deliver significant functionality into a form factor that allows for efficient packaging and design. Being extremely power efficient, the CPU-301-16 greatly simplifies heat management, allowing fanless designs for most applications.
The CPU-301-16 is available in two versions: as a stand-alone Single Board Computer (no need for a carrier board: just add a power source, the cables and an enclosure to make a smart device) and as a traditional Computer on Module, where the native interfaces are exposed and expanded through a carrier board.
The board support package (BSP) from Eurotech enables the capabilities of the i.MX6 processor, providing an application-ready embedded platform that makes it easy to exploit the full feature set of the module. The CPU-301-16 extends the Eurotech family of products that make IoT applications possible.
With Everyware Software Framework (ESF) and the Everyware Cloud Client loaded on the CPU-301-16, any device using this platform is Everyware Cloud-enabled and ready to be part of the Internet of Things. To learn how the CPU-301-16 can speed time to market and simplify development for sophisticated devices, contact the Eurotech sales team to order a development kit.

Specifications
PROCESSOR CPU NXP i.MX6Solo (Single Core ARM Cortex-A9, up to 1.0 GHz) – NXP i.MX6DualLite (Dual Core ARM Cortex-A9, up to 1.0GHz) – NXP i.MX6Dual (Dual Core ARM Cortex-A9, up to 1.2GHz) – NXP i.MX6Quad (Quad Core ARM Cortex-A9, up to 1.2GHz)
MEMORY RAM Up to 4GB DDR3L Soldered-down
STORAGE Embedded Up to 64GB eMMC Soldered-down
SATA 1x SATA 2.0 (i.MX6Dual and i.MX6Quad Only)
Other On Board Flash Expansion: 1x microSD slot, up to 64GB – Off Board Flash Expansion: 8bit SD port
STAND ALONE SBC I/O INTERFACES Ethernet 1x 10/100/1000Mbps, with Integrated PHY
USB 1x USB 2.0, OTG
Serial 1x RS-232 (2 wire)
Digital I/O 5x GPIO, 3.3V
Video 1x HDMI
I2C Yes
CoM MODE I/O INTERFACES Ethernet 1x 10/100/1000Mbps with Integrated PHY, IEEE1588 Support
USB 2x USB 2.0 (1x Host, 1x OTG)
Serial 4x UART
CAN bus 2x CAN bus 2.0
Digital I/O 21x GPIO, 3.3V (with support for an 8x8 keyboard matrix)
Video 2x LVDS, 1x RGB, 1x HDMI – Camera Interfaces: MIPI Camera, CMOS Camera (Optional)
Audio S/PDIF Audio CODEC Interface
PCI Express 1x PCIe x1
I2C 2x I2C bus
SPI 2x SPI bus
POWER Input 3.3VDC
Consumption 1-2W Typ. (5W Max)
Management Eurotech Power Management: Sleep/Run/Selective Power Down/Scaling
ENVIRONMENT Operating Temp Extended: - 40 to +85°C – Commercial: 0 to +70°C
Storage Temp - 40 to +85°C
CERTIFICATIONS Environmental RoHS2, REACH
MECHANICAL Dimensions 67x85mm (LxW)
CoM Connector 2x Tyco Series, 220 Pin
SOFTWARE OS Support for Linux Windows Embedded Compact 7
