Modular Social Distancing Solution

Eurotech's Answer to Social Distancing Requirements

Eurotech's Modular Social Distancing Solution is an integrated set of hardware and software components to enable safe access to areas where mass gatherings may occur.

Caratteristiche

Scalable - The kit can be configured with just a few basic components to track the number of people inside a specific area or fully featured with more advanced sensors to detect body temperatures, give air quality readings, and much more
Durable - The kit is suitable for indoor and outdoor deployments and consists of specialized modules that can be easily integrated into a complete system by the customer, depending on their particular environment
Sophisticated - One key capability of the kit is to cross-map different parameters and process data in real time, enabling the implementation of sophisticated detection schemes, indexing specific data sets, and providing metrics on the kit’s usage
Remote Management - Data collected by the kit can be monitored and analyzed remotely by designated administrators thanks to its integration with cloud platforms
Robust and Secure - This integrated solution proposed by Eurotech has the added value of melding the most advanced hardware modules with the benefits of Everyware IoT modular Edge and cloud software. Everyware IoT software also assure that the most stringent security st
Customizable - This integrated infrastructure allows for the development of dedicated applications tailored to specific event needs. Real-time data can be incorporated into dashboards to allow device status monitoring and precise mapping of the collected parameters

Descrizione

Eurotech's Modular Social Distancing Solution is an integrated set of hardware and software components to enable safe access to areas where mass gatherings may occur.

Through the accurate and precise screening of specific key criteria, it is possible to guarantee the correct flowing of people in accordance with safety regulations.

The kit is suitable for indoor and outdoor deployments and consists of specialized modules that can be easily integrated in a complete system by the customer.

One key capability of the kit is to cross-map different parameters and process data in real-time, enabling the implementation of sophisticated detection schemes and providing metrics on usage. Data collected by the kit can be monitored and analyzed remotely thanks to the integration with a cloud platform.

Components

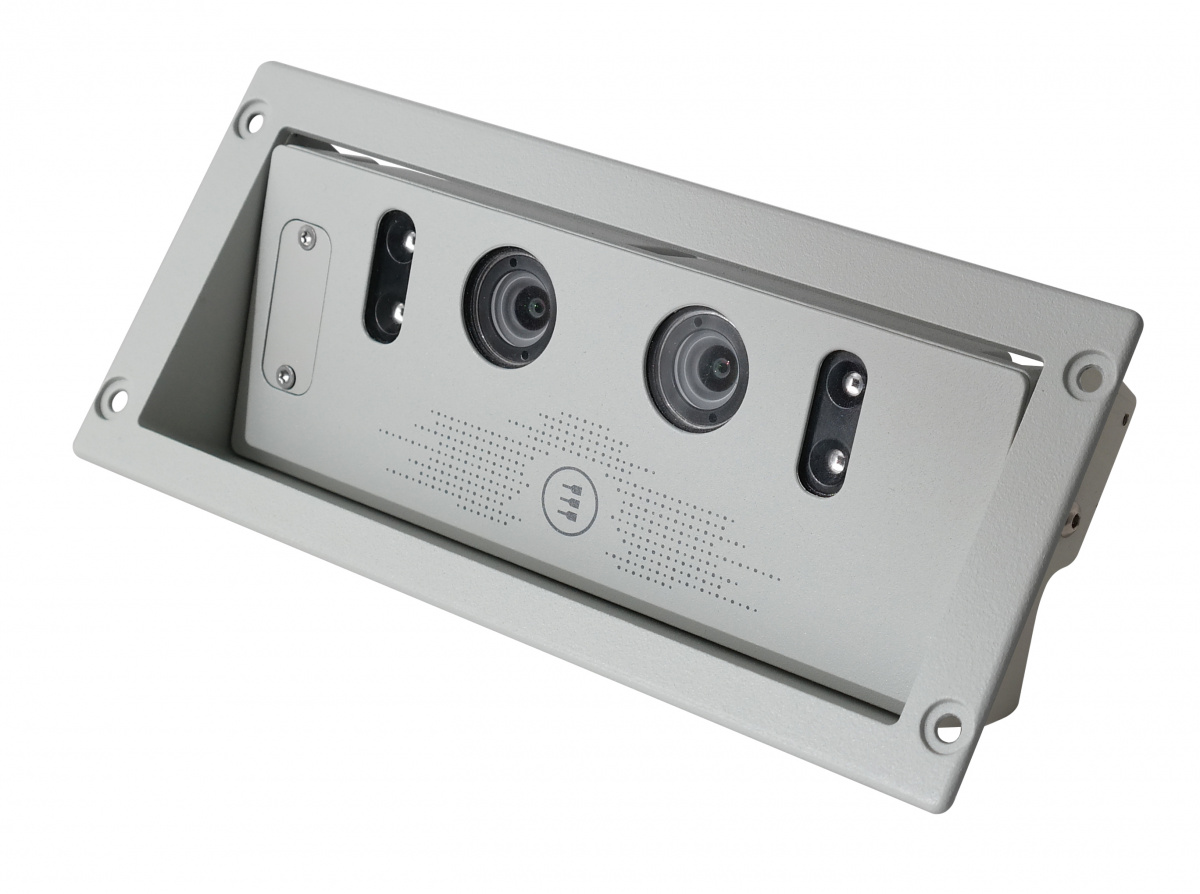

People Counter

The DynaPCN 10-20 is an accurate and precise automatic people counting sensor to count the number of entries and exits across the monitored area.

DynaPCN 10-20 People Counter

Multi-service IoT Edge Gateway

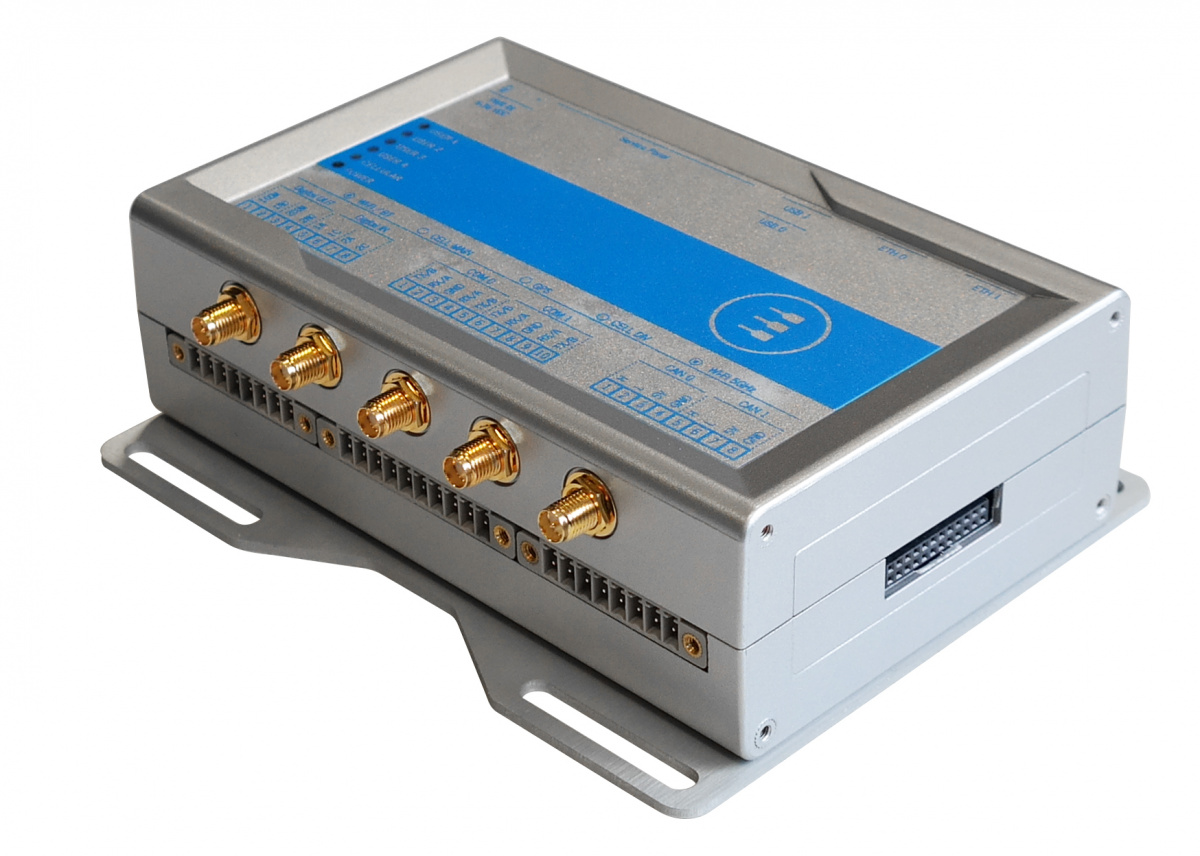

The ReliaGATE 10-12 provides the edge processing platform to manage the data collected by people counters, and cloud connectivity for remote device configuration and data integration with dashboards and applications.

ReliaGATE 10-12 ulti-service IoT Edge Gateway

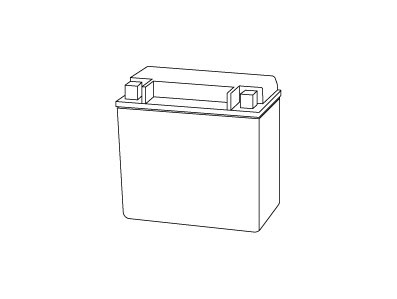

Power Supply

A portable battery to power the kit components. The structure can alternatively be connected to the main power line.

Power supply

Movable/Portable Options

The system can be mounted on a movable structure than can fit any customer reconfiguration needs.

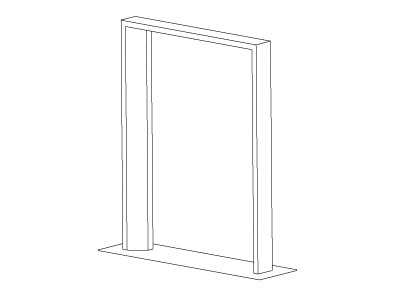

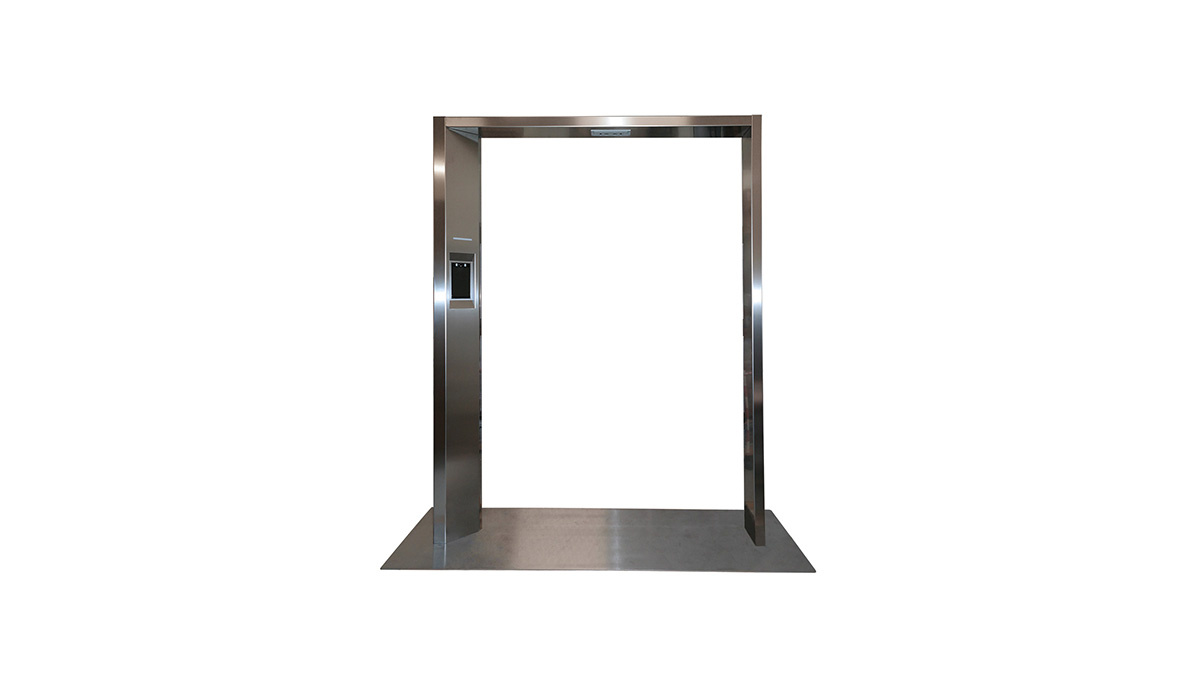

Gate

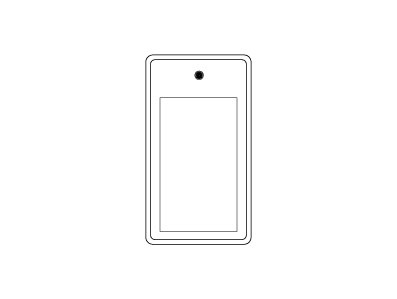

Display with integrated thermal imaging camera

Provides real-time temperature detection and can provide a visual feedback. It integrates a thermal imaging camera that can detect abnormal face temperature and if the subject is wearing the mask.

Display

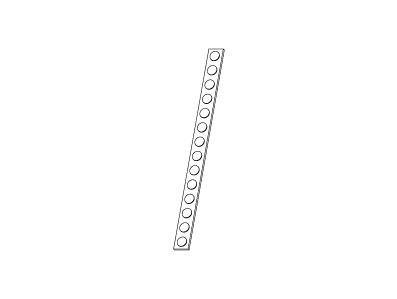

Signaling

Frontal and rear green and red led lights indicate if a person is allowed to enter a defined area, according to the number of people already in the area, the detection of a mask on the person's face or abnormal temperature.

Signaling

Application Areas

The integrated solution proposed by Eurotech allows the flexibility to support different kinds of use cases.

The kit can be easily placed in outdoor environments, such as concerts and sport events, or indoor environments, such as museums, cinemas, and theaters. Its hardware and software modularity maximizes the benefits for the system integrator, accelerating time to market and delivering significant savings.

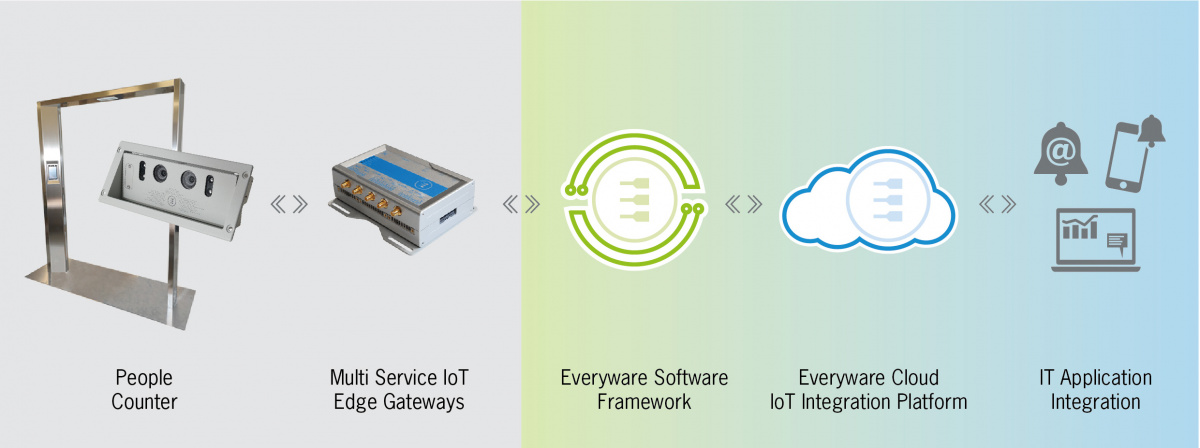

IoT Solution

The integrated solution proposed by Eurotech has the added value of intersecting the performance of the hardware modules of the kit with the benefits of the Everyware IoT architecture.

This integrated infrastructure allows the development of dedicated applications tailored to the specific event needs. Real-time data can be integrated into dashboards to allow device status monitoring and precise mapping of the collected parameters.

Gateway
XX -62 -63 -64 -65 -66 -67
PROCESSOR CPU TI AM3352 1GHz, 1 Core
MEMORY RAM 1GB DDR3
STORAGE Embedded 8GB eMMC
Other 1x microSD Slot (User Accessible)
I/O INTERFACES Ethernet 2x 10/100Mbps - RJ45
USB 3x Host 2.0 (Noise and Surge Protected) - Type A
Serial 1x RS-422/RS-485 protected and isolated, 1x RS-232/RS-485 (Surge Protected, RS-485 Termination and Fail-safe Resistors), 1x TTL Serial Console
CAN 2.0B 2x CAN bus with 5V (100mA) Power Out
Digital I/O 2x Digital Input 36V, 1KV Optoisolated – 2x Digital Output (40VAC/DC), 500mA Sink, 1KHz Max Switching
Exp. Connector Yes, for Eurotech Side Expansion Modules (ReliaIO 10-12, ReliaWAN 10-12)
RADIO INTERFACES Internal Cellular No LTE Cat 1 (NA), 3G Fallback LTE Cat 1 (EU), 2G/3G Fallback LTE Cat 1 (NA), 3G Fallback LTE Cat 1 (EU), 2G/3G Fallback LTE Cat 1 (JP)
External Cellular Optional Accessory: ReliaCELL 10-20 (3G/4G)
GPS Factory Option: Internal (72 channels GPS, Galileo, GLONASS, BeiDou) – Optional Accessory: ReliaCELL 10-20 3G
Wi-Fi / BT a/b/g/n, BLE 4.2 No a/b/g/n, BLE 4.2
Antennas (Ext.) 2x RSMA Wi-Fi/BT 2x SMA Cellular 2x SMA Cellular, 2x RSMA Wi-Fi/BT
OTHER RTC Yes (User Accessible Battery)
Ext. Watchdog Yes
TPM TPM 2.0
Sensors Temperature, 3-axis digital Accelerometer, 3-axis digital Gyroscope
LEDs 1x Power, 1x Cellular, 4x Programmable
Buttons 1x Reset, 1x Programmable
SIM Slot No 2x microSIM (User Accessible)
POWER Input Nominal: 12 or 24 VDC; Range: 9 to 30 VDC with transient protection
Consumption 2W Idle (15W Max)
ENVIRONMENT Operating Temp - 40 to +70°C
Storage Temp - 40 to +85°C
Humidity 5 to 95% Relative Humidity (non condensing) at +40°C
CERTIFICATIONS Regulatory CE, FCC, ISED FCC, ISED CE FCC CE JATE, TELEC
Medical Designed to be compliant with IEC60601-1-2
Safety EN 62368-1, UL 60950 (§)
Environmental RoHS3, REACH
Wi-Fi / BT Radio RED, FCC, ISED FCC, ISED RED FCC RED JATE, TELEC
Cellular Radio No FCC, ISED, PTCRB, AT&T, Verizon RED FCC, ISED, PTCRB, AT&T, Verizon RED JATE, TELEC
Ingress IP40
MECHANICAL Enclosure Material: ABS - Color: Aluminum
Dimensions 139x115x46 (LxWxH) - with SMA Connectors and Mounting Bracket
SOFTWARE OS Eurotech Everyware Linux
SDK Yocto-based Eclipse Tooling, Azul Java
IoT Framework Everyware Software Framework (Java/OSGi)
IoT platform AWS IoT Core Qualified, Microsoft Azure Certified, Everyware Cloud Native

§ UL, NRTL listing Factory Option.

PCN - ordering code: DYPCN-10-20-XX
XX -00 -01
COUNTING Technology Stereoscopic Image Capturing
Accuracy 98%
Precision 99%
I/O INTERFACES Ethernet 1x 10/100Mbps 1x 10/100Mbps PoE Ethernet
USB 1x USB 1.1 Client (Service Panel) - Type B Mini
Serial 1x RS-485 for Daisy Chain (on 12pin Female Circular Connector)
Digital I/O 2x Insulated Digital Input, 1x Insulated Digital Output - on 12pin Female Circular Connectors
OTHER LEDs 1x Power (Green), 1x System Status (Amber)
Buttons 1x Reset (Service Panel)
POWER Input 9 - 36VDC Power Over Ethernet IEEE 802.3at Mode A (4 wires) Class 0 Compliant
Consumption 3.2W with Infrared Illuminators OFF, 7.8W with Infrared Illuminators 100% ON 3.5W with Infrared Illuminators OFF, 8.0W with Infrared Illuminators 100% ON
ENVIRONMENT Operating Temp EN50155 Class T1 (Factory Option: EN50155 Class TX)
CERTIFICATIONS Compliance Automotive E24: ECE ONU Reg.10 (in PoE Version: Designed to Meet) – Fire Protection: EN45545 EMC Emissions: EN50155 / EN50121 / EN55011 – EMC Immunity: EN50155 / EN50121 / EN61000 – Environmental: EN50155 – Vibrations & Shocks: EN50155 / EN61373
Ingress IP65
MECHANICAL Enclosure Sealed Magnesium Alloy Enclosure
Dimensions Frame: 100x230x3mm (Height x Width x Thickness) – Cut-Out: from 82x209x42mm (Height x Width x Depth, frame at 0°) to 82x209x70mm (Height x Width x Depth, frame at 45°)
Weight 0.6Kg
Thermal and Mask Unit
TEMP. DETECTION Range Range: 35~42°C Precision:±0.1°C
Distance 10cm-50cm, optimal:10cm
FACE DETECTION Recognition Speed <100ms
Live Detection Supported
Mask Detection Supported
VISUAL FEEDBACK Screen 7” LCD
POWER Input 12VDC Nominal
Consumption 5W Typical
ENVIRONMENT Operating Temp 10°C ~50°C

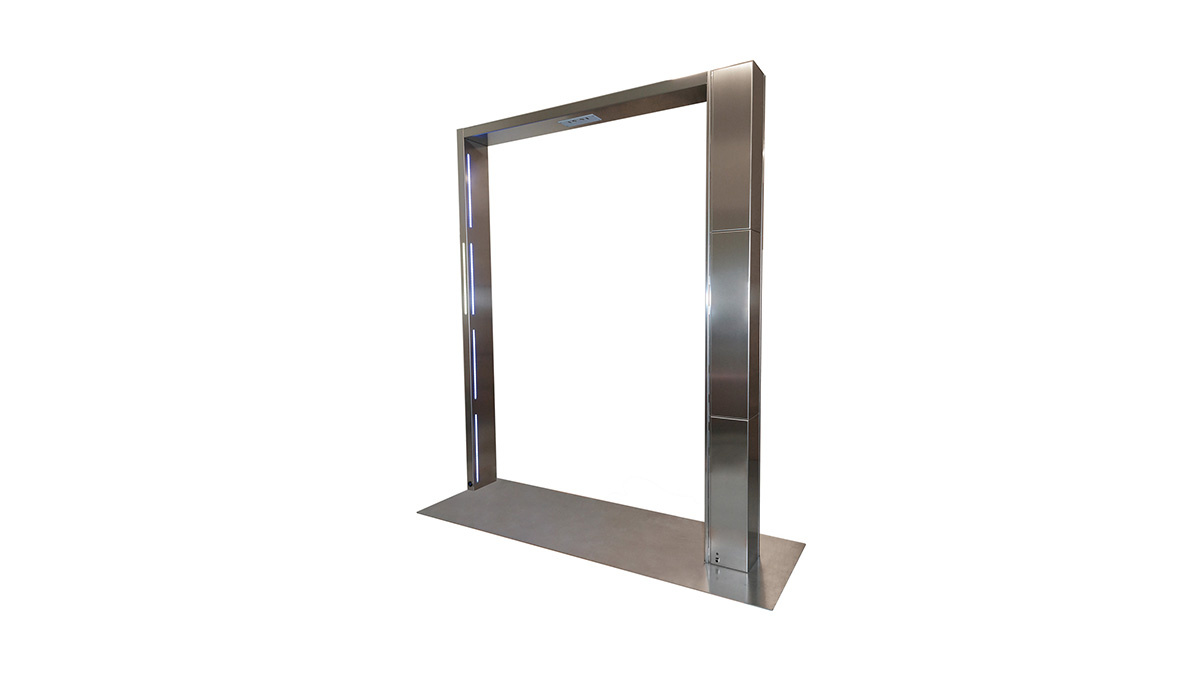

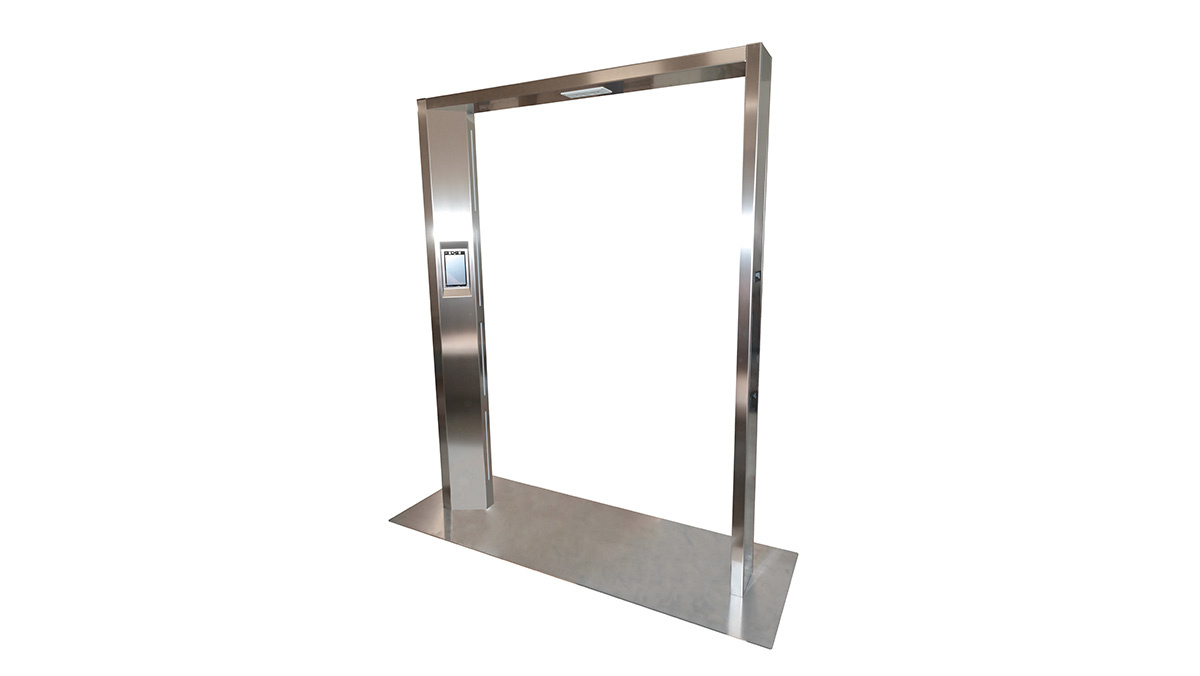

Portal
DIMENSIONS Height Total: 2400mm (Approx) - Internal Passage: 2340mm (Approx.)
Width Total (Portal): 1850mm (Approx) - Internal Passage: 1570mm (Approx.) - Including Base: 2210mm (Approx.)
Depth Total (Portal): 220mm (Approx.) - Including Base: 740mm (Approx)
Weight 140Kg (Approx)
MATERIAL Structure Metal
Signaling
ALARM Type LED Bar
Color Red/Green
Battery Pack
Battery Factory Option; Contact Us for more Information

Note: The information in this document is subject to change without notice and should not be construed as a commitment by EUROTECH. While reasonable precautions have been taken, EUROTECH assumes no responsibility for any error that may appear in this document. All trademarks or registered trademarks are the properties of their respective companies.
