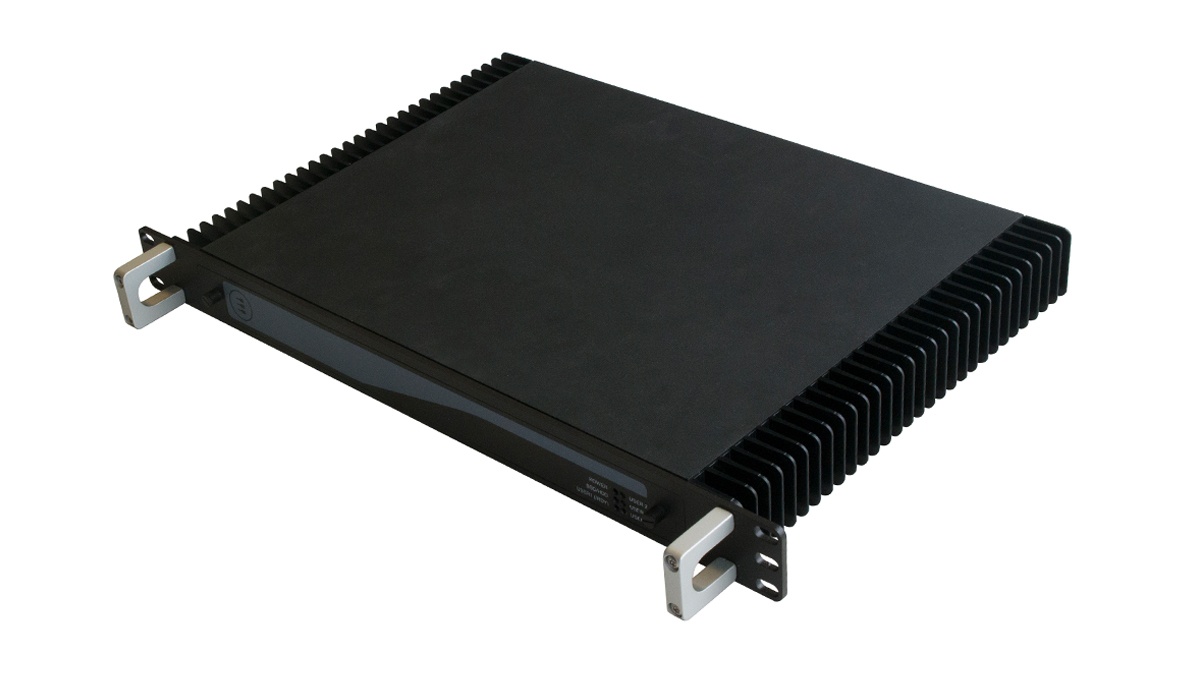

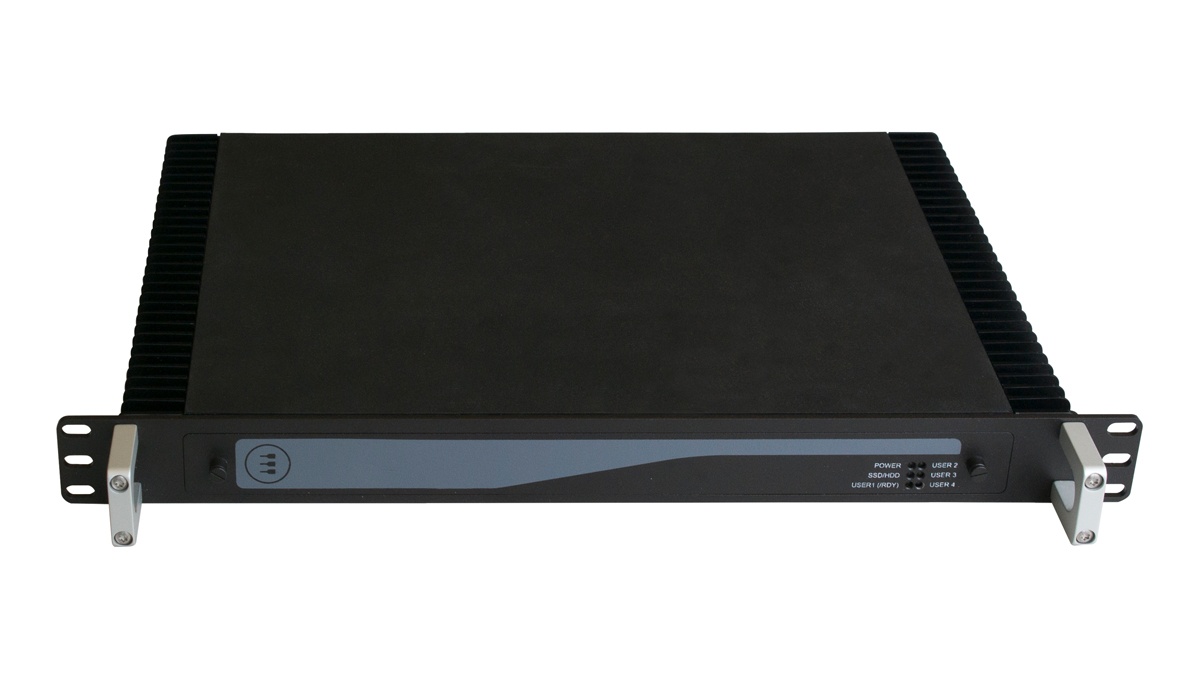

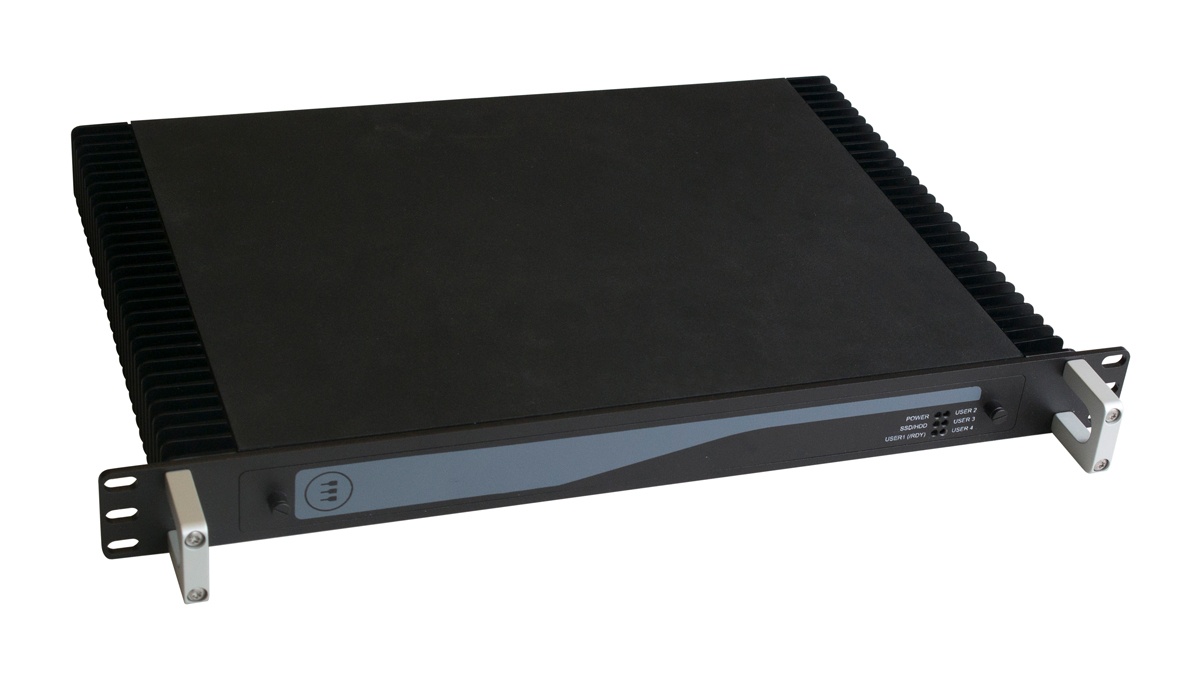

The BoltCOR 30-17 is a fanless, 1U high, short-depth, EN50155 certified server that is designed to exceed the requirements of rolling stock applications in the TX temperature class.
The BoltCOR 30-17 is a fanless EN50155 certified server that is designed to exceed the requirements of rolling stock applications in the TX temperature class; it is extremely rugged and suitable for any project where consistent performance and reliability are a must.
With up to 32GB of DDR4 RAM (ECC option), soldered down CPUs, mSATA storage and a S2 class power supply, the BoltCOR 30-17 is extremely resilient; high reliability components, conformal coating, a vent-free design and a sturdy build add extra protection to a compact, 295mm deep, 1U rack-mount chassis.
Based on standard COM Express, it is available in a range of high performance configurations, including Intel 6th Gen. Core i7, i5, Celeron, Xeon D-1500, and Xeon E3-1500 CPUs, with a selection of cores (2 to 8) and frequencies (up to 2.8GHz).
Expandability options include two HDD/SSD drives, key-locked swappable storage bays, internal mSATA, a user-accessible SD slot and RAID levels 0, 1; additional peripherals can be added via four miniPCIe and one x16 PCIe slots.
The BoltCOR 30-17 features a wide range of radio and wireless capabilities, including cellular carrier pre-certified system configurations. Customization options include internal global cellular modems, multiple modem and SIM configurations, MIMO Wi-Fi, Bluetooth Low Energy, and GNSS with Untethered Dead Reckoning.
The BoltCOR 30-17 affords unprecedented system configurability: off-the-shelf configurations and build-to-order variants out of a palette of CPU, power supply, memory, storage and I/O subsystems options.
Designed for rolling stock applications, the BoltCOR 30-17 offers long term availability and support programs that ensure continuity of supply and customer service.
|Ordering Code: BTCOR-30-17-XX|
|PROCESSOR||CPU||Pentium D-1519 1.5 GHz (2.1GHz), Quad Core, 25W TDP||Xeon E3-1505L v6 2.2GHz (3.0GHz), Quad Core, 25W TDP|
|MEMORY||RAM||24GB DDR4 ECC||24GB DDR4||16GB DDR4 ECC Factory Option: up to 32GB DDR4 ECC or non-ECC|
|STORAGE||SATA||2x 512GB SSD||2x 512GB SSD Factory Option: up to 2 x 1TB SSD|
|Embedded||1x 64GB mSATA||-||1x 64GB mSATA Factory Option: up to 128GB mSATA|
|Drive Bay||1x Removable Drive Bay for up to 2x 2.5" SATA Drives with key-lock mechanism||-||1x Removable Drive Bay for up to 2x 2.5" SATA Drives with key-lock mechanism|
|RAID||Software RAID 0, 1 (Factory Option: HW RAID Controller)|
|Other||1x SDHC/SDXC Card Slot (UHS-1 50MB/s max) (Service Panel)|
|I/O INTERFACES||Ethernet||2x 10/100/1000Mbps Auto Sensing IEEE 1588; M12 X-coded Connector||2x 10/100/1000Mbps Auto Sensing IEEE 1588; M12 X-coded Connector Factory Option: up to 3x 10/100/1000Mbps|
|USB||2x Host 2.0 Noise and Surge Protected (Service Panel)|
|Serial||1x Serial Console TTL (Service Panel)|
|Video||-||MiniDisplayPort (Service Panel)|
|RADIO INTERFACES||Cellular||LTE Cat 4 EU Modem Factory Option: 3x Modems||LTE Cat 4 Global Modem Factory Option: 3x Modems|
|GNSS||Factory Option||Yes, Factory Option: Untethered GNSS|
|Wi-Fi / BT||802.11 a/b/g/n, BLE 4.0||Factory Option|
|Antenna (External)||2x SMA Cellular, 2x RP-SMA Wi-Fi/BT||2x SMA Cellular, 1x SMA GNSS|
|EXPANSION||miniPCIe||Up to 4x Full/Half Size Mini PCIe Slots (PCIe/USB/mSATA)|
|OTHER||RTC||Yes, with SuperCAP (2 Months Retention @25°C)|
|TPM||Factory Option: TPM 2.0|
|Sensors||Temperature (Inside the product); Factory Option: Accelerometer|
|LEDs||1x Power, 1x SATA Activity, 4x Programmable|
|SIM Slot||Up to 3x 2FF (Mini) Dual-SIM Support for up to 3x Modems|
|POWER||Input||Nominal: 24Vdc isolated (EN 50155 S2) Range: 16.8 to 31.2Vdc (EN 50155 S2) Factory Option: 110Vdc||Nominal: 110Vdc isolated (EN 50155 S2) Range: 77 to 143Vdc (EN 50155 S2) Factory Options: 24, 48, 72Vdc|
|Consumption||100W Max||80W Max|
|ENVIRONMENT||Operating Temp||EN 50155: Class TX (-40 to +70°C, 10 minutes at +85°C)||EN 50155 Class OT4 (-40 to +70°C), ST1 (10 minutes at +85°C)|
|Storage Temp||- 40 to +85°C|
|CERTIFICATIONS (*)||Regulatory||CE; Factory Option: FCC|
|Vertical||EN50155, EN45545 (Fire and Smoke)|
|Wi-Fi / BT Radio||RED; Factory Option: FCC||Factory Option|
|Cellular Radio||RED; Factory Option: FCC|
|SOFTWARE||OS||CentOS 7.5||Ubuntu 18.04 LTS||Windows 10 IoT Enterprise|
|IoT Framework||ESF on Docker|
Contact Eurotech Sales for availability and custom configurations.
