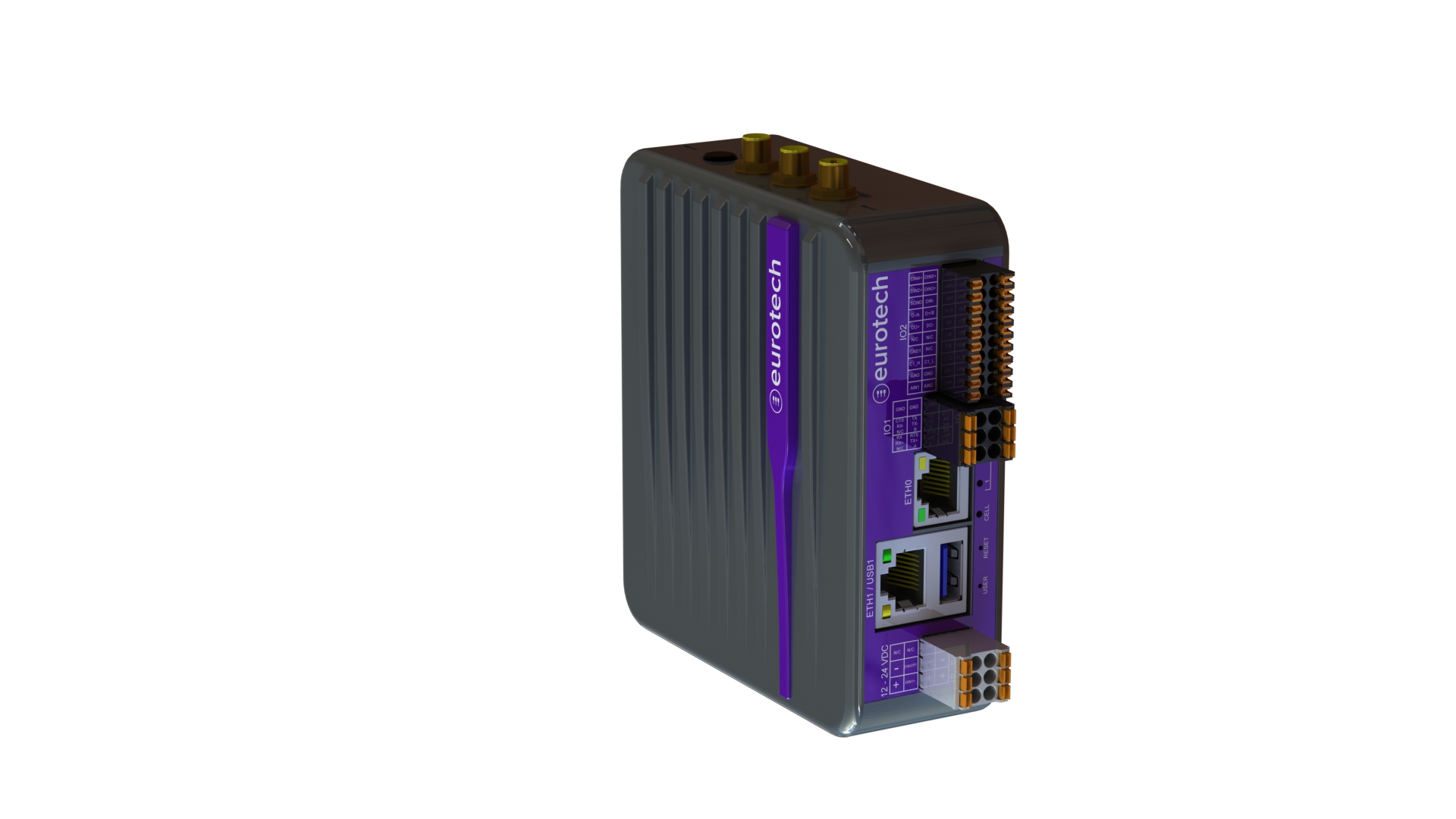

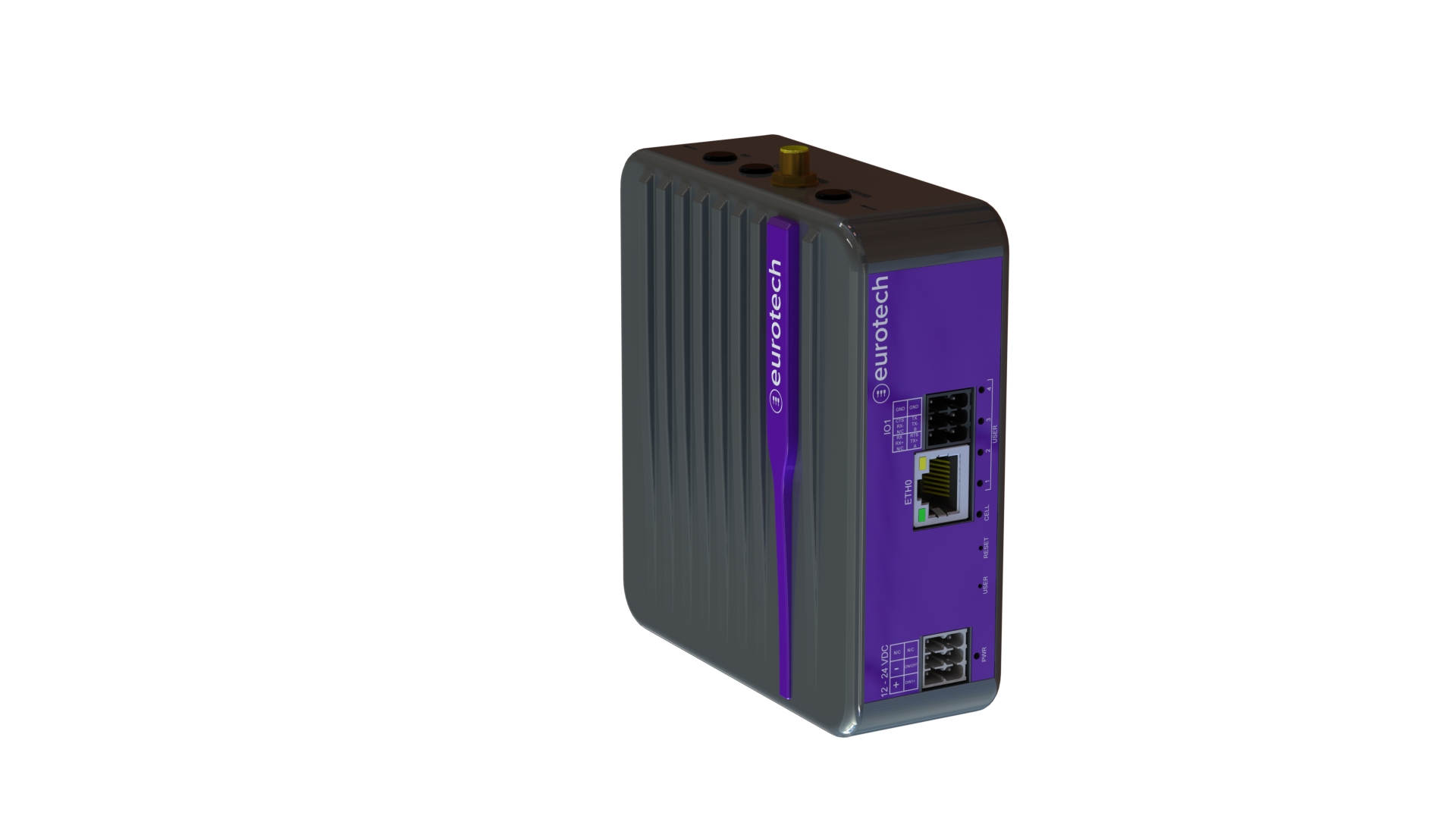

ReliaGATE 15A-12
BUDGET GATEWAYi.MX9 - LTE - Carrier Certified - Wi-Fi/BT - IEC 62443-4-2
The ReliaGate 15A-12 is purpose-built for industrial environments, powered by NXP i.MX91/93 single/dual core. It provides the ability to seamlessly connect to global LTE networks and is 5G Ready.
The device can be optionally configured with Everyware GreenEdge (EGE), IoT edge software solution qualified for AWS IoT Greengrass V2. EGE reduces onboarding time with just a few clicks, provides factory-generated trusted identity, seamless southbound connectivity, easy cloud integration and device management while consolidating IoT costs into one AWS bill.
- Industrial IoT ARM Gateway
- IEC 62443-4-2 Cybersecurity certified
- Intuitive Cloud Provisioning and Device Management
- Global cellular deployment for worldwide connectivity
- Open Platform and cloud certified
- Compact, Fanless, DIN Rail optimised
Energy & Utilities
Medical & Pharmaceutical
Communications
ISA/ IEC 62443-4-1/-4-2 SL2
TPM 2.0 and Antitampering
CE/RED (EU), FCC/PTCRB (US), ISED (CA), JATE/TELEC (JP)
Carrier Certifications: Verizon, AT&T, T-Mobile
North America
Japan
Bluetooth
LTE Cat 1-bis Global, 5G Ready
The ReliaGate 15A-12 is purpose-built for industrial environments. It is powered by NXP i.MX91/93 single/dual core and has the ability to seamlessly connect to global LTE networks (5G Ready).
The ReliaGATE 15A-12 offers best in class Cybersecurity: it leads the market with ISA/IEC 62443-4-1/4-2 SL2. Protection starts at the hardware level, with support for EdgeLock, Secure Boot and an always-on physical antitampering monitor/logger that is active even when the system is removed from the power. For most demanding customers, special production-only images can be configured with full hardware hardening (interface disabling) to further reduce the attack surface.
Based on the NXP i.MX 91/93 Cortex-A55 processor, with up to 2GB of RAM, 32GB of eMMC, the ReliaGATE 15A-12 is a low power, compact gateway suitable for lightly rugged use cases; it supports a 9 to 30VDC power supply with transient protection, up to two serial ports, one noise and surge protected USB port, up to two CAN-FD/2.0B protected and isolated interfaces and three analog inputs. The ReliaGATE 15A-12 features a wide range of connectivity capabilities: it integrates a carrier certified global LTE Cat 1-bis modem, dual SIM support (1x SIM and 1x eSIM), Wi-Fi 5/BLE 5.0, and up two Gigabit Ethernet ports.
The ReliaGATE 15A-12 comes with Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT Edge Gateways. Distributed and supported by Eurotech, ESF offers ready-to-use field protocols, MQTT connectivity, web-based visual data flow programming and deep configuration. ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.
The ReliaGATE 15A-12 can be configured with Everyware GreenEdge, making it a fully integrated industrial IoT Gateway.
The ReliaGATE 15A-12 offers Zero-Touch provisioning and a fully trusted chain from manufacturing to deployment, AWS IoT Greengrass v2, and ESF+EC, providing a few-clicks onboarding experience and immediate deployment in most countries, transforming device management and IoT operations into a smooth workflow.
In addition to its technical advantages, Everyware GreenEdge comes with a unified billing system for all software and services related costs through the Amazon Marketplace. This simplifies the procurement process, making it easier for customers to access and manage the solution while also benefiting from AWS’s trusted billing infrastructure.
| Ordering Code: REGATE-15A-12-xx-yy | ||||
|---|---|---|---|---|
| Hardware Configuration (-xx) | -02 | -04 | -08 | |
| PROCESSOR | CPU | i.MX 91; Cortex-A55 @ 1.4GHz | i.MX 93; 2 x Cortex-A55 @ 1.7GHz + 1x Cortex-M33 @ 250MHz | |
| MEMORY | RAM | 2GB LPDDR4 | ||
| STORAGE | Embedded | 32GB eMMC | ||
| I/O INTERFACES | Ethernet | 1x 10/100/1000 Mbps; RJ-45 (1x TSN) | 2x 10/100/1000 Mbps RJ-45 (1x TSN) | |
| USB | - | 1x Host 2.0 Type A (Noise and Surge Protected) | ||
| Serial | 1x RS-232/RS-422/RS-485 Protected (5-wire), Software-selectable Mode and Termination | 1x RS-232 (5-wire)/RS-422 (Full/Half Duplex)/RS-485 (Full/Half Duplex) Protected + 1x RS-485/RS-422 (Half Duplex) Isolated and Protected (3-wire); Software-selectable Mode and Termination | ||
| CANBus | - | 1x CAN-FD, Protected and Isolated, with SW Termination and Fail-safe Resistors | ||
| Digital Input | 1x Remote Power Control IN, Contact Closure + 1x Digital IN, Isolated, 0-36VDC | 1x Remote Power Control IN, Contact Closure + 1x Digital IN, Isolated, 0-36VDC + 4x Digital IN, Isolated, IEC 61131-2 Type 2 | ||
| Digital Output | - | 1x Isolated Output, 40VAC/DC, 500mA Sink | ||
| Analog I/O | - | 3x Analog Inputs non-Isolated (12-bit, 0-36VDC) | ||
| RADIO INTERFACES | Cellular | Global 4G LTE Cat 1-bis; Factory Options: 4G LTE Cat 4; 5G RedCap | ||
| SIM/eSIM | 1x SIM and 1x eSIM | |||
| GNSS | - | Yes (Via Cellular) | ||
| Wi-Fi/BT | - | Wi-Fi 5 / BT 5.0 | ||
| Antennas | 1x SMA (LTE) | 1x SMA (LTE), 1x SMA (GNSS), 1x RP-SMA (Wi-Fi/BT) | ||
| OTHER | RTC | Supercap-backed RTC | ||
| Ext. Watchdog | Discrete External Watchdog | |||
| EEPROM | 256Kbit EEPROM | |||
| Sensors | Temperature Sensor | |||
| LED | 1x Power (Blue), 1x Cellular (Green), 4x User Configurable (2x Green, 1x Amber, 1x Red) | |||
| Buttons | 1x Reset Button and 1x Programmable Button | |||
| CYBER (HW) | Secure Element | EdgeLock; Factory Option: TPM 2.0 | ||
| Anti-Tamper | Always-on Physical Tamper Monitoring, Reporting & Event Logging with Time-stamping | |||
| Architecture | Secure Boot; ARM TrustZone Architecture; ISA/IEC 62443-4-2 SL2* | |||
| POWER | Input | Nominal: 12 or 24 VDC; Range: 9-30 Vdc with Transient Protection | ||
| Consumption | <1W Idle (2W Typical) | <1.5W Idle (2.5W Typical) | <2W Idle (3W Typical) | |
| ENVIRONMENT | Operating Temp. | -40 to +75°C, Fanless, Vent-free | ||
| Storage Temp. | -40 to +85°C | |||
| Humidity | RH 5...95% Operating Non-Condensing (40°C). Factory Option: Coating Options | |||
| CERTIFICATIONS | Regulatory | CE, FCC*, ISED/IC*, RCM Mark*; Designed for Compliance with ENACOM, ACMA, ANATEL, IFETEL, WPC/TECC | ||
| Safety | CB, IEC/ANSI-UL 62368-1, c-UL-us Listed* | |||
| Cybersecurity | EN 18031-1 (RED-DA) - Off-the-shelf Compliance | |||
| Radio | RED, FCC*, GCF*, PTCRB* | |||
| Cellular Carriers | AT&T*, Verizon*, T-Mobile (§), Bell*, Telus*, Rogers | |||
| Environmental | ROHS3, REACH | |||
| Ingress | IP40 | |||
| MECHANICAL | Enclosure | Material: ABS - Color: Dark Grey | ||
| Dimensions | 100 x 38 x 110 mm (D x W x H) - Excluding Connectors, DIN Bar Mounting Bracket | |||
* Certification ongoing or planned
§ Contact Eurotech
| Ordering Code: REGATE-15A-12-xx-yy | |||
|---|---|---|---|
| Software Configuration (-yy) | -09 | -10 | |
| OS | Eurotech Everyware Linux | Yes | |
| IOT FRAMEWORK | Everyware Software Framework (ESF) | Yes | |
| SUITE AND SERVICES | Everyware GreenEdge (EGE) | - | Yes |
| SOFTWARE HARDENING | Hardening | Yes | |
| CERTIFICATIONS | Cybersecurity | ISASecure/IEC 62443-4-1/-4-2 SL2 Host* | |
* additional Professional Service might be required depending on customer requirements
Non-hardened versions are available – Contact Eurotech
