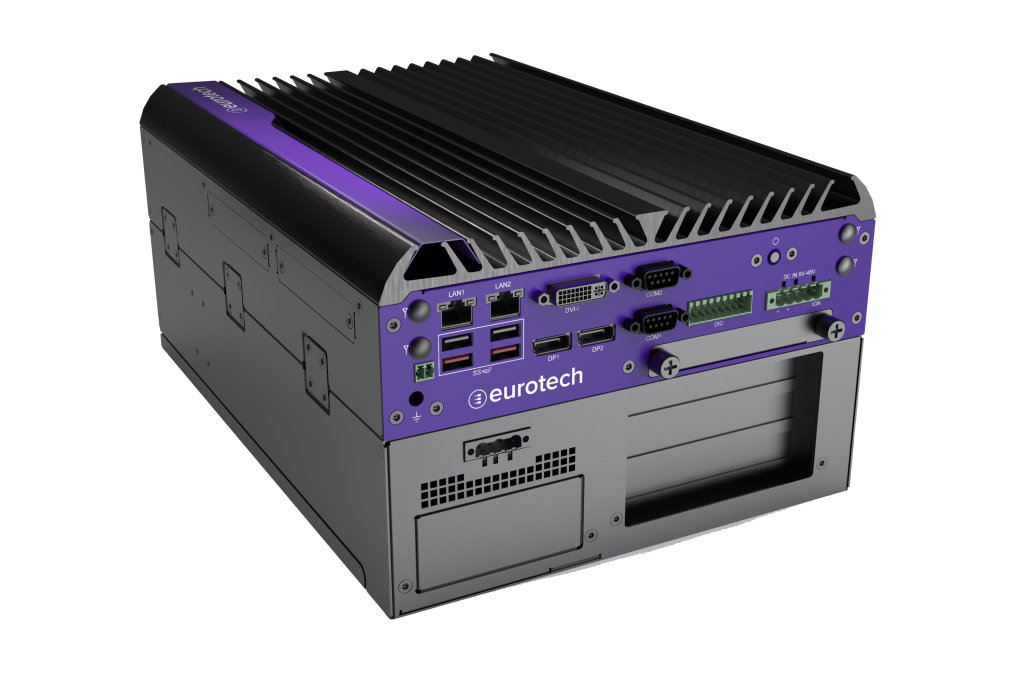

ReliaCOR 54-13

Versatile AI Server for Industrial Applications1 GPU, Removable Storage, Expandable

The ReliaCOR 54-13 is a versatile platform that offers a very balanced combination of computational performance, storage capacity and network bandwidth for workloads that include data acquisition and fusion, AI inference and data logging.

  • Versatile Vision and Inference
  • Industrial Grade
  • Up to 13th Gen Intel Core i9
  • Designed to support 1x NVIDIA RTX-4000 ADA or 1x NVIDIA L4
  • Removable Storage Bay, Many Expansion Options
  • Configuration Service
Industries
INDUSTRIAL & AUTOMATION
Ruggedization
OPERATING TEMPERATURE:
-25° TO 70°C
Security
TPM 2.0
ISA/IEC 62443-4-1/-4-2 SL2
Connection
EUROPE
NORTH AMERICA
JAPAN
ZERO TOUCH PROVISIONING, NO-CODE ASSET-TO-CLOUD CONFIGURATION AND FULL DEVICE LIFECYCLE MANAGEMENT
1x NVIDIA RTX-2000 ADA
1x NVIDIA RTX-4000 ADA SFF
1x NVIDIA L4
Data Vision and Inference
Designed for data acquisition and processing, with support for AI workloads and a range of factory options, such as Field buses (CAN, etc.), frame grabbers, etc.
Designed for Industrial Environments
Meets the most demanding requirements of Industrial environments: select components and rigorous testing to ensure reliable operation; DC, industrial grade power supply for seamless deployment
Powerful Data Aggregation and Accelerated AI
With an Intel Core 13th Gen CPU, one NVIDIA L4 GPU or 1x NVIDIA RTX-4000 ADA or 1x NVIDIA RTX-2000 ADA and many expansion options, supports a large variety of workloads, including general purpose computing, data logging, data acquisition, fusion and filtering
Removable Storage
One storage bay for 2.5" SATA drives that offer the convenience of easy access and removal
Many Expansion Options
Provides support for up to 3 PCIe cards (2x PCIe x16 Slot Gen4 + 1x PCIe x4 Gen3)
Best in Class Cybersecurity
ISA/IEC 62443-4-1/-4-2 SL2 (Hardware plus Software), always on and power independent antitampering monitor and logger, TPM 2.0 and full hardware hardening
Simple to Deploy
Extremely compact to fit easily in dense installations; with user accessible filters to protect the system from airborne pollutants; custom mounting options to simplify the development
Configuration Service
Highly modular design, allows for personalized configurations, ranging from personalization (branding, color) to deeper customization, to match complex project requirements

The ReliaCOR 54-13 is a versatile platform that offers a very balanced combination of computational performance, storage capacity and network bandwidth for workloads that include data acquisition and fusion, AI inference and data logging.

Designed for Industrial use cases, it offers reliable operation thanks to industrial grade ruggedization and a robust power supply. Very compact and power efficient, the ReliaCOR 54-13 can be deployed in dense installations; an optional mounting accessory further increases its versatility.

The ReliaCOR 54-13 features a 13th Generation Intel Core i9 CPU, to deliver power efficient computational crunch, and provides AI acceleration thanks to a high-end NVIDIA L4 GPU or one NVIDIA RTX-4000 ADA or NVIDIA RTX-2000 ADA (depending on the configuration). Connection to the factory floor IP network and sensors is enabled by two 2.5 GbE interfaces that support TSN for deterministic Ethernet; use cases requiring Fieldbus interfaces towards assets (such as CAN/CAN-FD, isolated RS-232/422/485) are optionally available as a Professional Service.

With three PCIe slots (availability depends on starting configuration), the ReliaCOR 54-13 allows great flexibility in adding features to meet any use case.

The ReliaCOR 54-13 is also a capable storage server, supporting one removable bay for 2.5” SATA drives in RAID 0/1 configurations to provide high speed data recording and to offer extra protection to valuable information.

The ReliaCOR 54-13 offers best in class Cybersecurity: it leads the market with IEC 62443-4-1/-4-2 SL2. Protection starts at the hardware level, with full support for TPM 2.0, Secure Boot and an always-on physical antitampering monitor/logger that is active even when the system is removed from power. For most demanding customers, special production-only images can be configured with full hardware hardening (interface disabling) to further reduce the attack surface.

Eurotech configuration management service allows fine tuning the ReliaCOR 54-13 to meet and exceed your project requirements; examples of personalized configurations include customer branding (with logo and custom colors) and can go to deep customization with a range of options for project specific requirements (such as frame grabbers, choice of internal components, etc.): call us for more information on configuration management options.

The ReliaCOR 54-13 comes with Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT Edge Gateways. Distributed and supported by Eurotech, ESF supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration. ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.

The device can be optionally configured with Everyware GreenEdge (EGE), IoT edge software solution qualified for AWS IoT Greengrass V2. EGE reduces onboarding time with just a few clicks, provides factory-generated trusted identity, seamless southbound connectivity, easy cloud integration and device management while consolidating IoT costs into one AWS bill.

Ordering Code: RECOR-54-13-xx-yy
Hardware Configuration (-xx)-21-23-25-15
PROCESSORCPUIntel Core i5-13500TE, 35WIntel Core i7-13700TE, 35WIntel Core i9-13900TE, 35WIntel Core i9-13900T, 35W
Cores14 Cores: 6 P-cores + 8 E-Cores16 Cores: 8 P-cores + 8 E-Cores24 Cores: 8 P-cores + 16 E-Cores
Threads20 Threads24 Threads32 Threads
Frequency1.30GHz/ 4.50GHz1.10GHz/ 4.80GHz1.10GHz/ 5.00GHz
MEMORYRAM8GB DDR5 32GB DDR564GB DDR5
AI ACCELERATIONGPU1x NVIDIA RTX-2000 ADA1x NVIDIA RTX-4000 ADA SFF1x NVIDIA L4
Number of GPUs1x
RAM16GB GDDR620GB GDDR624GB GDDR6
TDP70W72W
Video Output4x mini DisplayPort outputs-
STORAGEOS Storage512GB, M.2 2242 Key B-M, MLC
Data Storage (Removable)-1x 960GB, 2.5" SATA, TLC1x 1920GB, 2.5" SATA, TLC
Internal DiskOptional (1x Internal 2.5" SATA MLC or TLC)
I/O INTERFACES1GbE4x 1GbE (RJ-45)-
2.5GbE2x 2.5GbE (RJ45, i226) – with TSN, WoL, PXE
10GbE-4x 10GbE (RJ-45)-
USB 2.02x USB 2.0 (internal)
USB 3.04x USB 3.2 Gen2 (10 Gbps), 5x USB 3.2 Gen1 (5Gbps, Internal), 1x USB 3.2 Gen1 header (5 Gbps, internal)
Serial2x RS-232/422/485 (DB9)
CANFactory Option: 2x CANBus
Digital Output 8x Digital OUT (isolated)
Digital Input8x Digital IN (isolated)
VIDEO OUTPUTDisplayPort2x DisplayPort
DVI1x DVI-I, support resolution 1920 x 1200
RADIOS5GFactory Option
LTE 4GFactory Option
GNSSFactory Option
Wi-Fi/BTFactory Option
CYBERSECURITY (HW)TPMTPM 2.0
COOLINGTechnologyActive Air Cooling
POWERInput9 ~ 48VDC (24VDC), Ignition Key
ENVIRONMENTALOperating Temperature-20°C to +70*C without GPU; 0°C to +50°C with GPU
Storage Temperature-30°C to +85°C
Relative Humidity (Non-considering)10 to 95%
CERTIFICATIONSRegulatoryCE, FCC, ISED
CybersecuritySecure Boot, Always-on Antitamper Monitor, TPM 2.0, ISA/IEC 62443-4-1*/-4-2 SL2*
SafetyUL 62368-1 (UL-Mark)
CellularFactory Option
EnvironmentalRoHS3 & REACH
IngressIP20
MECHANICALEnclosureMaterial: Extruded Aluminum with Heavy Duty Metal; Color: Black
Dimensions (WxHxD) 177 (W) x 340 (D) x 240 (H) mm; Excluding connectors and mounting brackets

* ongoing

Ordering Code: RECOR-54-13-xx-yy
Software Configuration (-yy)-05-07-08-10-12
OSUbuntuUbuntu LTS 22.04 or later-Ubuntu LTS 22.04 or later
Windows-Windows 10 IoT Enterprise LTSC or later-
IOT FRAMEWORKEveryware Software Framework (Java/OSGi)-Yes-Yes
SUITE AND SERVICESEveryware GreenEdge (EGE)-Yes-Yes
Ignition Ready (IPCs)**Yes-Yes
SOFTWARE HARDENINGHardening-Yes

** Not certified
