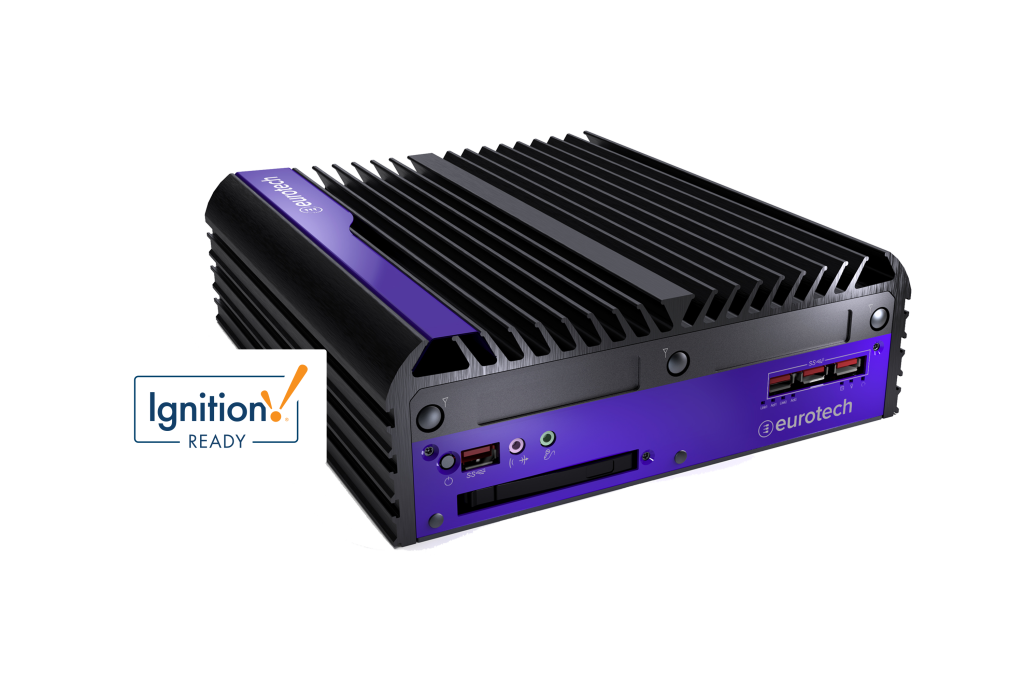

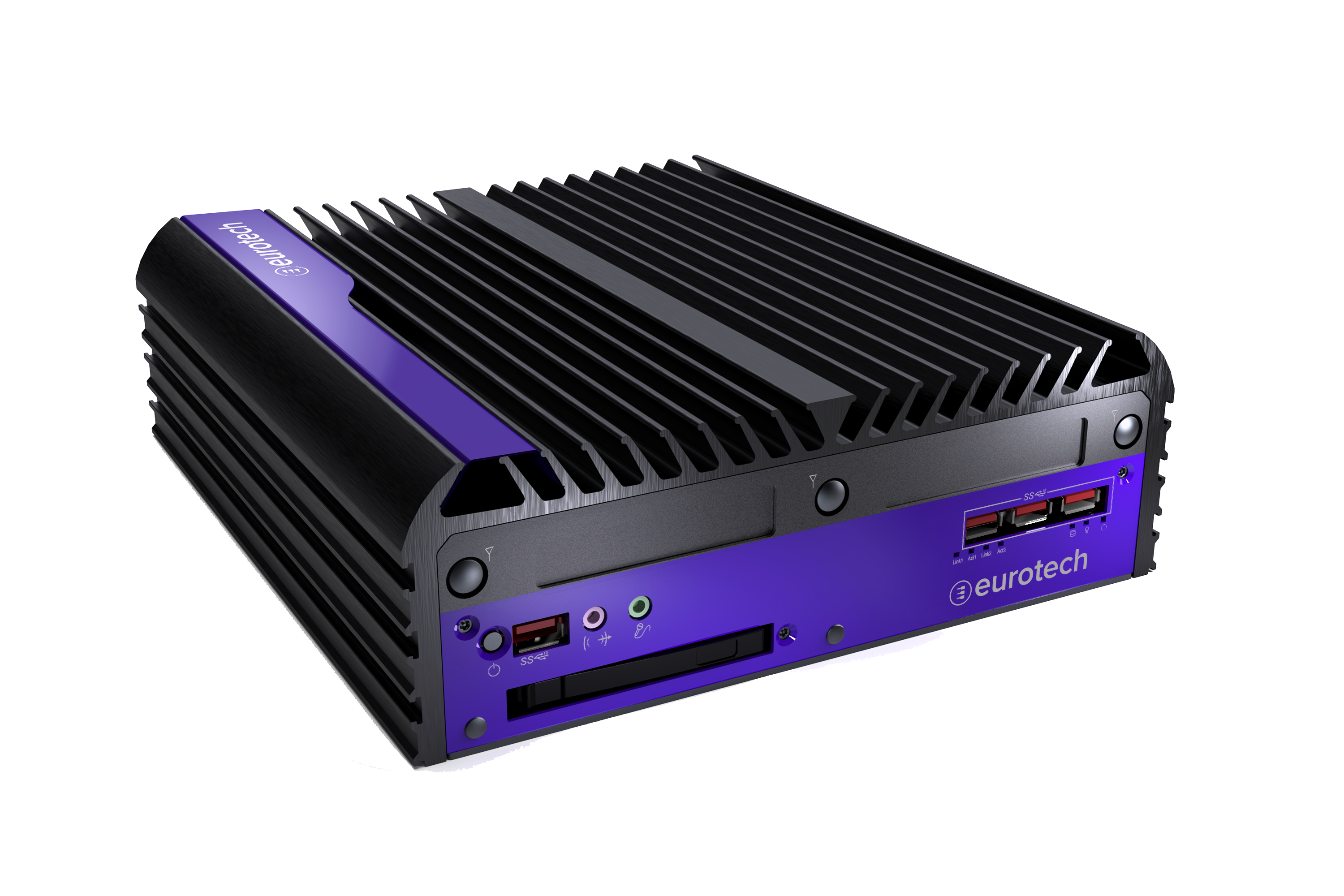

ReliaCOR 40-13

Fanless Edge IPC for Industrial ApplicationsUp to 13th Intel Core i9

The ReliaCOR 40-13 is a compact, fanless platform that supports a wide range of workloads at the Edge.

  • Compact and Fanless
  • Up to 13th Gen Intel Core i9
  • Best in Class Cybersecurity
  • Ignition Ready
  • Industrial Grade
  • Configuration Service
Industrial & Automation
Operating Temperature:
-25° to 70°C
ANSI/ISA 62443-4-1/-4-2 SL2
TPM 2.0
Sicurezza end-to-end
Compact and Fanless
Offering great reliability thanks to no moving parts; no ventilation grids to prevent dust accumulation inside the unit
Designed for Industrial Environments
Meets the most demanding requirements of Industrial environments: select components and rigorous testing to ensure reliable operation; DC, industrial grade power supply for seamless deployment
Capable CPU
With an Intel Core 13th Gen CPU, it supports a large variety of workloads, including general purpose computing, data logging, HMI
Large Storage
One internal bay and one removable bay for 2.5” SATA drives supporting a wide range of storage capacity to support applications such as Edge Databases, NVR, data logging
Best in Class Cybersecurity
ISA/IEC 62443-4-1/-4-2 SL2 (Hardware plus Software), always on and power independent antitampering monitor and logger, TPM 2.0 and full hardware hardening
Simple to Deploy
Extremely compact to fit easily in dense installations; with wall mount and custom mounting options to simplify the deployment
Configuration Service
Highly modular design, allows for personalized configurations, ranging from personalization (branding, color) to deeper customization, to match complex project requirements

The ReliaCOR 40-13 is a compact, fanless platform that supports a wide range of workloads at the Edge.

Designed for industrial use cases, it offers reliable operation thanks to industrial grade ruggedization and a robust power supply. Very compact and power efficient, the ReliaCOR 40-13 can be deployed in dense installations; an optional mounting accessory further increases its versatility. Completely fanless and without ventilation grids, it offers great resilience and reliability even under extreme load.

The ReliaCOR 40-13 features a top-of-line 13th Gen Intel Core i9 CPU, to deliver power efficient computational crunch, with plenty of RAM thanks to a dual SO-DIMM. It offers a very complete set of interfaces, including dual 2.5Gbps Ethernet with TSN support, eight USB3.2 ports (10Gbps each, great for camera input) and two serial ports; thanks to dual universal bays, additional interfaces and devices can be added (such as 4G/5G cellular modules, 2x 10GbE ports, 4x GbE on RJ45 or M12, with optional PoE, more USB ports). The ReliaCOR 40-13 is also rich in Fieldbus interfaces, with CAN, RS-232/422/485 and isolated Digital I/O.

The ReliaCOR 40-13 offers best in class Cybersecurity: it leads the market with ISA/IEC 62443-4-1/-4-2 SL2. Protection starts at the hardware level, with full support for TPM 2.0, Secure Boot and an always-on physical antitampering monitor/logger that is active even when the system is removed from power. For most demanding customers, special production-only images can be configured with full hardware hardening (interface disabling) to further reduce the attack surface.

Eurotech configuration management service offers a simple and fast way to fine tune the ReliaCOR 40-13 to your project requirements; examples of personalized configurations include custom branding (with logo and custom colors) and can go to deep customization with a range of options such as frame grabbers, choice of internal components, etc.: call us for more information on how to take advantage of the ReliaCOR 40-13 flexibility.

The ReliaCOR 40-13 comes with Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGivmiddleware for IoT Edge Gateways. Distributed and supported by Eurotech, ESF supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration. ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.

The device can be optionally configurated with Everyware GreenEdge (EGE), IoT edge software solution qualified for AWS IoT Greengrass V2. EGE reduces onboarding time with just a few clicks, provides factory-generated trusted identity, seamless southbound connectivity, easy cloud integration and device management while consolidating IoT costs into one AWS bill.

Ordering Code: RECOR-40-13-xx-yy
Hardware Configuration (-xx)-11-13-15
PROCESSORCPUIntel Core i5-13500T, 35WIntel Core i7-13700TE, 35WIntel Core i9-13900TE, 35W
Cores14 Cores: 6 P-cores + 8 E-Cores16 Cores: 8 P-cores + 8 E-Cores24 Cores: 8 P-cores + 16 E-Cores
Threads20 Threads24 Threads32 Threads
Frequency1.30GHz/ 4.50GHz1.10GHz/ 4.80GHz1.10GHz/ 5.00GHz
STORAGEOS Storage512GB, M.2 2242 Key B-M, MLC
Internal DiskFactory Optional (2.5" SATA MLC or TLC)
Data Storage (Removable) -1x 960GB, 2.5" SATA, TLC1x 1920GB, 2.5" SATA, TLC
I/O INTERFACES1 GbE-4x 1GbE RJ-45; PoE or M12 Factory Option
2.5GbE2x 2.5GbE (RJ45, i226) – with TSN, WoL, PXE
10GbEFactory option: 2x 10GbE RJ-452x 10GbE RJ-45 (EDGEBoost Bay #2)
USB 2.02x USB 2.0 (internal)
USB 3.08x USB 3.2 Gen2 (10 Gbps) 1x USB 3.2 Gen1 (5 Gbps, Internal)
Serial2x RS-232/422/485 (DB9)
CAN2x CANBus (DB9)
Digital Output 8x Digital OUT (isolated)
Digital Input 8x Digital IN (isolated)
Audio1x Mic-in, 1x Line-out
Expansion ModulesI/O Module Bay #1Factory OptionStandard: 4x 1GbE [RJ45]; Factory Option: 4x 1GbE PoE or 4x 1GbE M12
I/O Module Bay #2Factory OptionStandard: 2x 10GbE [RJ45]
VIDEO OUTPUTDisplayPort2x DisplayPort
RADIOS5GFactory Option
LTE 4GFactory Option
GNSSFactory Option
Wi-Fi/BTFactory Option
COOLINGTechnologyFanless and Ventless
POWERPower Input9 to 48VDC (24VDC Nominal), Ignition Key
ENVIRONMENTALOperating Temperature-25 to +50°C without external air flow, +65°C with mild external air flow
Storage Temperature-30°C to +85°C
Relative Humidity (Non-considering)10 to 95%
CybersecuritySecure Boot, Always-on Antitamper Monitor, TPM 2.0, ISA/IEC 62443-4-1*/-4-2* SL2
IoT PlatformGreenEdge*, AWS IoT GreenGrass qualified*, AWS IoT Core qualified*
SafetyUL 62368-1 (UL-Mark)
CellularFactory Option
EnvironmentalRoHS3 & REACH
MECHANICALEnclosureMaterial: Metal; Color: Black
Dimensions (WxHxD)240 x 79 x 261 mm (WxHxD); Excluding connectors and mounting brackets

* ongoing

Ordering Code: RECOR-40-13-xx-yy
Software Configuration (-yy)-05-07-08-10-12
OSUbuntu LinuxUbuntu LTS 22.04 or later-Ubuntu LTS 22.04 or later
Windows-Windows 10 IoT Enterprise LTSC or later-
IOT FRAMEWORKEveryware Software Framework (Java/OSGi)-Yes-Yes
SUITE AND SERVICESEveryware GreenEdge (EGE)-Yes-Yes
Ignition Ready (IPCs)Yes-Yes
Software HardeningHardening-Yes
