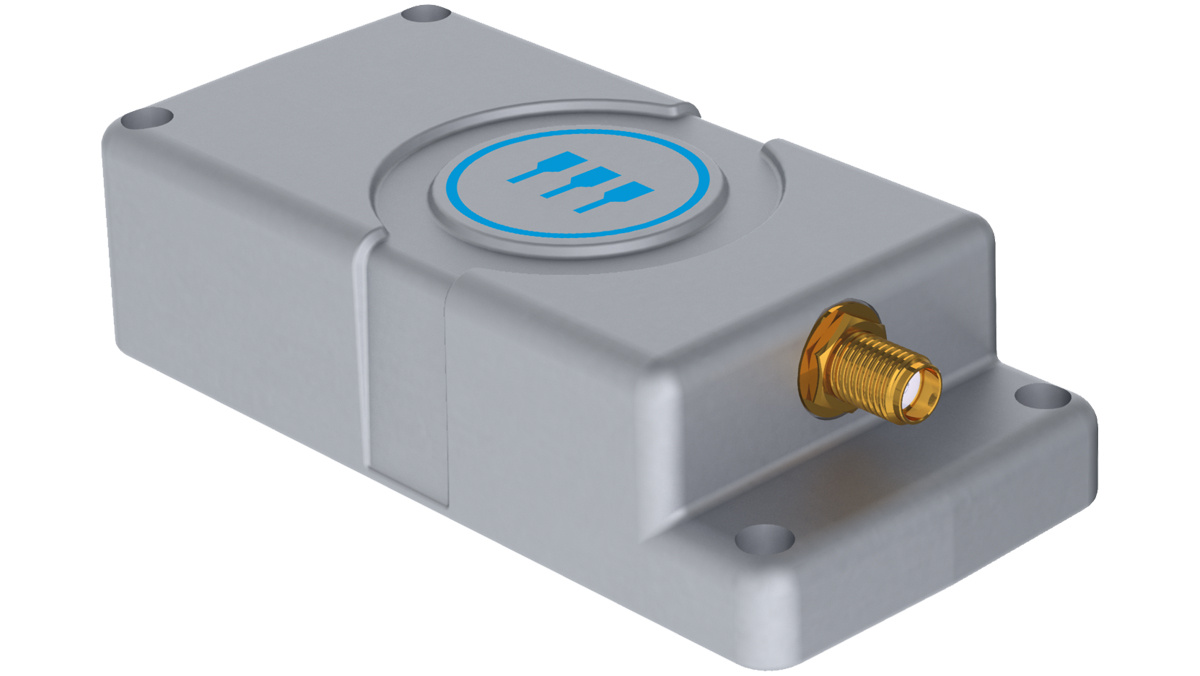

ReliaWAN 10-12

Gateway Expansion Module for Long Range Private Networks

The ReliaWAN 10-12 is an expansion module that makes it possible to create long range, LoRa-compatible private networks with the ReliaGATE 10-12.

Download datasheet download

Seleziona un formato

A4 letter


Expansion Module for Long Range Private Networks - Add to the ReliaGate/DynaGATE 10-12 to create private/personal long range networks that are compatible with LoRa end-points
Infrastructure-Less and Cloud Connected - No need to connect to a public LoRaWAN. It bridges LoRa end-points with the Cloud via Cellular, Wi-Fi and Ethernet
EU and NA Bands - Supports global deployment with European 868MHz (863-870MHz) and North American 915MHz (902- 928MHz) bands
Long Range - Covers long distances: high power radio with 15km / 10miles line of sight range (2km / 1.5miles in urban conditions); European ISM transmit power / duty-cycle limitations are supported
ISM Band Scan - Provides optimal performance allows end node frequency change to improve interference rejection and dynamic link rate adaptation
Industrial Grade - Compact and sturdy, with reliable terminal block interfaces and a wide operating temperature range
Open Platform - Supported by Everyware Software Framework (ESF), the IoT Java/OSGi based-middleware for IoT Edge Gateways that accelerates gateway development and enables remote management


The ReliaWAN 10-12 is an expansion module that allows connecting LoRa end points to the Cloud without the need to join a public LoRaWAN network: this allows substantial savings and brings control back to the user.

The ReliaWAN 10-12 is an expansion module for the ReliaGATE 10-12 and DynaGATE 10-12; it is a concentrator for LoRa-based endpoints which creates a private/personal long range network. The data packets generated by or directed to any standard LoRa compatible end point are managed by the seamless combination of ReliaWAN 10-12 and one Eurotech IoT Edge Gateway which can then forward them to the Cloud via any standard channel (Wi-Fi, Ethernet and Cellular).

Based on the Semtech SX1301 data concentrator, a multi-channel high performance transmitter/receiver, the ReliaWAN 10-12 is the fastest way to bridge a LoRa-based device with any Cloud application.; it comes in an industrial grade device that supports wide temperature range (-20 to +70°C) and features an impact-resistant ABS enclosure. Its compact design ensures simple deployment even in the most space-constraint applications.

The ReliaWAN 10-12 is a global device that supports European and North American ISM bands; its long range radio reaches up to 15km / 10miles in unobstructed applications. In difficult environments, such as urban areas with multiple building its penetration reaches a radius of 2km / 1.5miles.

Robust interference rejection and dynamic link rate adaptation dramatically improve performance in crowded networks; further efficiency is provided by the Listen Before Talk protocol, which allows multiple users on the same channel.

The ReliaWAN 10-12 is supported by Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT gateways.

Distributed and supported by Eurotech, ESF adds advanced security, diagnostics, provisioning, remote access and full integration with Everyware Cloud (EC), Eurotech’s IoT Integration Platform (separately available).

Ordering code: REWAN-10-12-xx
XX - 01 - 02
PROCESSOR Data Concentrator Semtech SX1301
I/O INTERFACES Exp. Connector Yes, for Side Expansion Modules
RADIO INTERFACES LoRa Bands European 868MHz (863-870MHz) North American 915MHz (902-928MHz)
Transmission Power - 6 to 25 dBm - 6 to 27 dBm
Receiver Sensitivity -140 dBm Max -137 dBm Max
Antennas (External) 1x RP-SMA
POWER Consumption 3W Max
ENVIRONMENT Operating Temp -20 to +70°C
Storage Temp -40 to +85°C
Safety EN 62368, UL 60950 (§)
Environmental RoHS3, REACH
Ingress IP40
MECHANICAL Enclosure Material: ABS - Color: Aluminum
Dimensions 96x21x45mm (LxWxH) - With Connectors
SOFTWARE IoT Framework Everyware Software Framework (Java/OSGi)

(§) UL, NRTL listing Factory Option.
