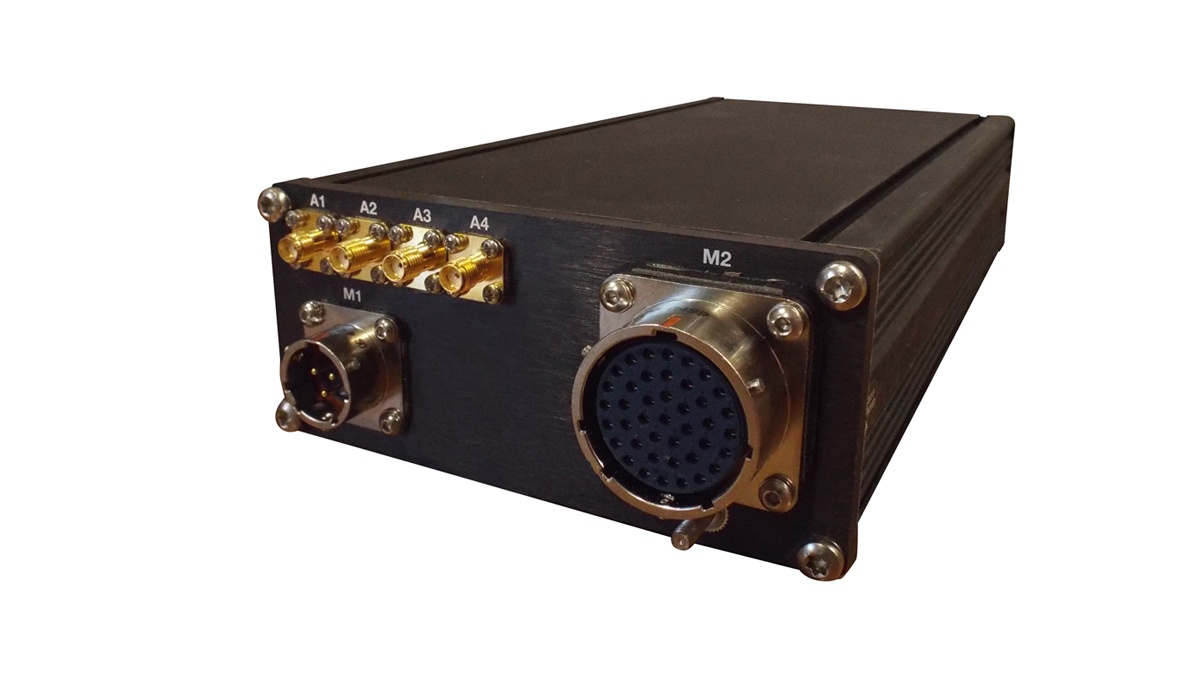

The BoltCOR 20-11 is a rugged mobile computer platform that targets demanding vehicle and industrial installations such as those in heavy industry machinery, rail networks and rolling stock.
The BoltCOR 20-11 is a rugged mobile computer platform that targets demanding vehicle and industrial installations such as those in heavy industry machinery, rail networks and rolling stock, buses, etc. Thanks to the very compact yet rugged design and integration, the system withstands the mechanical and temperature stresses encountered in harsh environmental conditions while providing an exceptional set of communication options needed in diverse use cases.
The BoltCOR 20-11 provides the computational power of the Intel Atom processor, connectivity through a specialized high transmit power Wi-Fi (standard) and 3G cellular (optional) networks, dual Gigabit Ethernet, a high performance GPS, and plenty of transportation-specific features such as optoisolated I/Os, serial ports, USBs and a wide range power supply.
Being low power, fanless, and compact, the BoltCOR 20-11 is off-the-shelf ready for integration in industrial, railway, automotive and similar applications. In addition, the device is IP65 protected and features high-end rugged connectors making the BoltCOR 20-11 easy to maintain and providing long term reliability in harsh environments.
The BoltCOR 20-11 can leverage Everyware Software Framework (ESF) for fast and reliable device application development and the Everyware Cloud (EC) that provides the entire infrastructure to instantly integrate devices and data into the business enterprise.
PROCESSOR | CPU | Intel Atom Z510P, 1.1GHz | ||||
MEMORY | RAM | 1GB RAM Soldered on Board | ||||
STORAGE | SSD | 2GB Flash Disk SSD, 8GB DOM | ||||
Other | 1x microSDHC Slot (Maintenance) | |||||
I/O INTERFACES | Ethernet | 2x 10/100/1000Mbps | ||||
USB | 3x USB 2.0 (Maintenance) | |||||
Serial | 1x RS-232 (Full-Duplex) – 1x RS-232/RS-422/RS-485 (RS-232/RS-422 Full-Duplex, RS-485 Configurable) – 1x RS-232 (Maintanance) | |||||
CAN | 2x CAN bus | |||||
Digital I/O | 2x Opto-isolated Digital Input – 1x Opto-isolated Digital Input Odometer | |||||
Video | 1x VGA (Maintenance) | |||||
RADIO INTERFACES | Cellular | GPRS, CDMA 1xRTT, EV-DO Rev. A, LTE (Consult Factory) | ||||
GPS | 50 channels Galileo | |||||
Wi-Fi | Dual Band 2.4/5.0GHz IEEE 802.11 a/b/g/n - High TX Output Power up to 25dBm @ a/g/n Bands | |||||
Antennas (External) | 1x SMA GPS, 2x SMA Wi-Fi, 1x Reserved | |||||
OTHER | RTC | Yes (24 Hours at 25°C Typical) | ||||
LEDs | 4x Green LEDs | |||||
Buttons | 1x Reset | |||||
SIM Slot | 1x SIM Card Slot | |||||
POWER | Input | 9 - 36VDC (Nominal 24VDC), Ignition Key Input | ||||
Consumption | 19W Typical | |||||
ENVIRONMENT | Operating Temp | - 30 to +60°C EN50155 Class T1 (70°C for 10 min) | ||||
Storage Temp | - 40 to +85°C | |||||
Humidity | < 95% Relative Humidity at +45°C Non Condensing | |||||
CERTIFICATIONS | Compliance | Design Qualified to the Following Certifications: EN 50155 (Railway Applications) – EN 61373 (Vibrations & Shocks) – EN 60950 (Safety) – EN 61000 (Burst Immunity Test) – EN 60068 (Temperature Test) – DIN-5510-2 (German Fire and Smoke) and ISO-11170 (Italian Fire and Smoke) – Load Dump (for 24V In): ISO 7637-2 (2004-06) – AREMA Class C Operating Temperature requirements – UL 60950-1, CSA C22.2 No. 60950-1 | ||||
Ingress | IP65 | |||||
MECHANICAL | Enclosure | Black Ultra-light Extruded Aluminum Alloy Enclosure | ||||
Dimensions | 254x129x57mm / 10.0x5.08x2.24 in (LxWxH) | |||||
Cooling | Fanless Design (No Moving Parts) | |||||
Weight | 1.5Kg | |||||
SOFTWARE | OS | Windows Embedded Standard 2009 Support |
