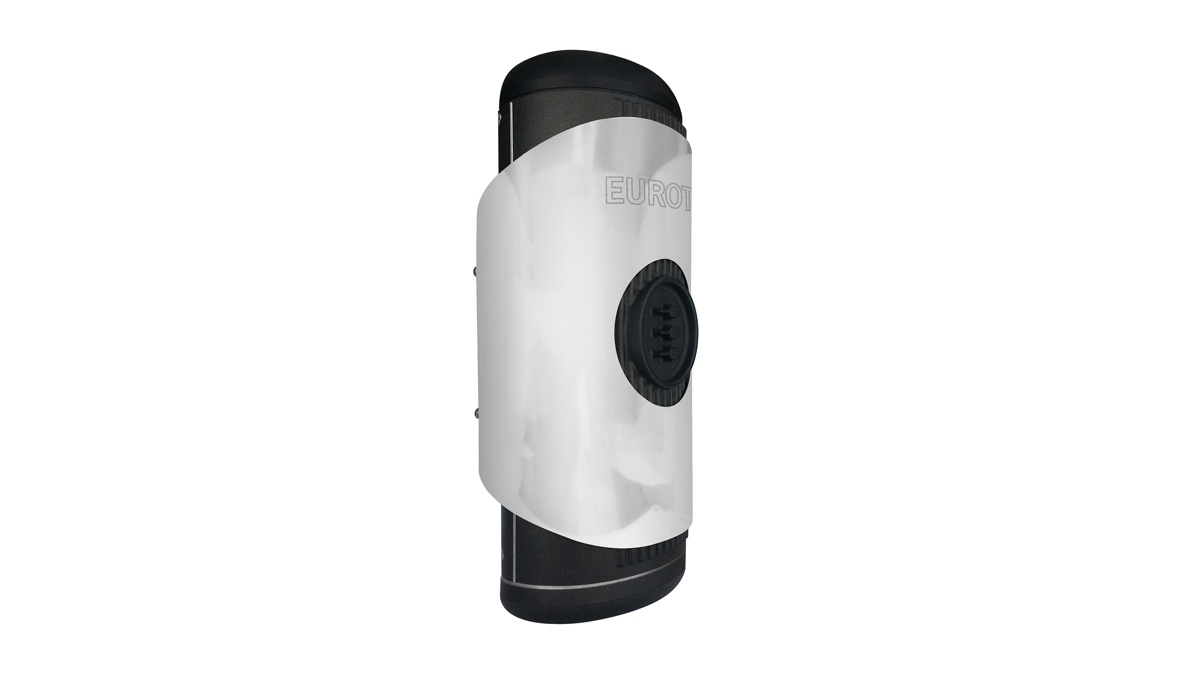

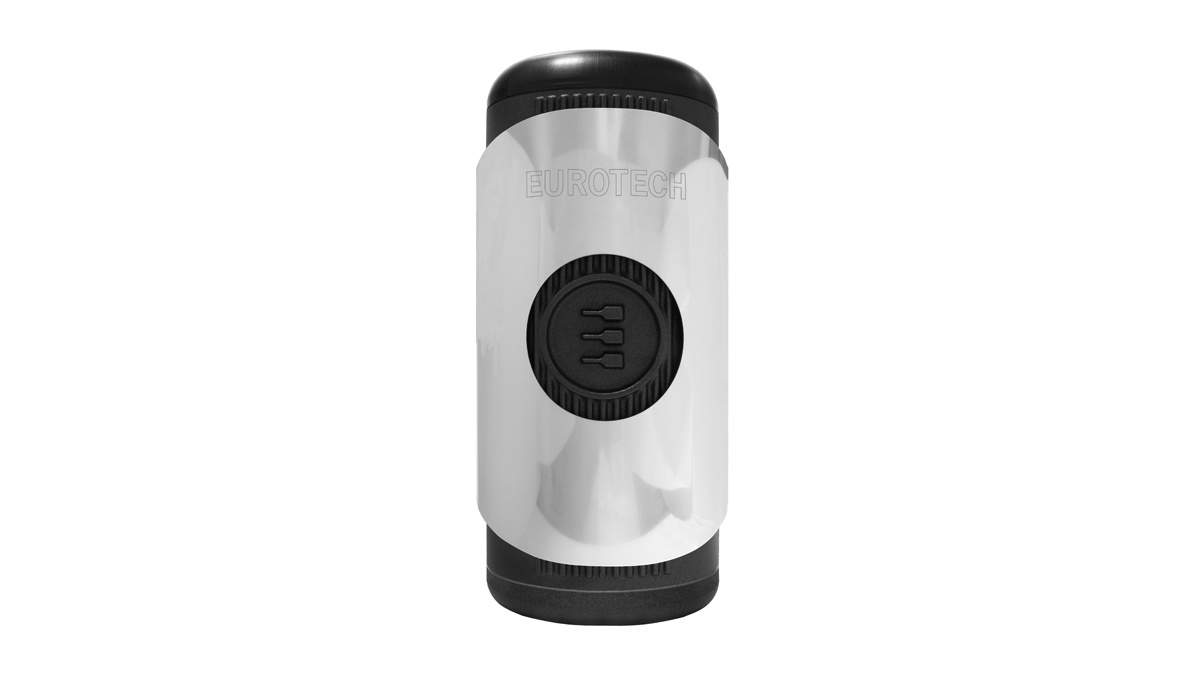

ReliaSENS 19-15

Environmental Monitoring System -

The ReliaSENS 19-15 is a compact, easy to install environment monitor system that allows to collect and analyze air quality parameters, electromagnetic fields, and ionizing radiation.

Download datasheet download

Seleziona un formato

A4 letter

Caratteristiche

Air Pollution Monitoring System - Provides reliable measures of gaseous pollutants, PM1/PM2.5/PM10 particulates, EM fields, radioactivity (α, β, γ), temperature, pressure and humidity, thanks to high precision and accuracy pre-calibrated sensors
Compact and Lightweight - The small size and lightness makes the ReliaSENS 19-15 ideal for fixed (e.g. light poles) and mobile installations (e.g. construction sites)
Real Time Data - Cellular and Wi-Fi connectivities allow to connect the device to the Cloud, send data and read sensors measures in real time, 24/7
EC Ready - The Eurotech Everyware Cloud web interface enables remote device management and data access

Descrizione

The ReliaSENS 19-15 is a compact and easy to install environment monitoring system that collects air quality parameters, electromagnetic fields, ionizing radiation levels, in order to enable trend and outlier analysis . It is an indicative instrument to get the AQI (Air Quality Index), which is a synthetic computed value that can indicate how polluted the air is, or it is forecast to become.

The ReliaSENS 19-15 is the ideal solution for private and public agencies that need to get real-time 24/7 data, scaling from a single device to a large monitoring network.

The ReliaSENS 19-15 supports the Eurotech Everyware Cloud (EC) platform: data can be displayed in real-time, and thresholds on the collected metrics can be set, in order to enable the generation of automatic alert messages. System-generated metrics, graphics and charts are also available on EC.

Data can be easily exported and integrated with existing IT systems to perform statistical analyses, and to identify spatial and time patterns related to pollutant generation and propagation.

Specifications
SENSORS Gaseous Pollutants CO, CO2, NO, NO2, O3, SO2, H2S and VOC (see table below for more details)
Particulate Matter Option 1: Sensor for PM10 Only – Option 2: Sensor for PM1, PM2.5, and PM10 (PM Accuracy includes assumptions about particle density and refractive index which will vary with application)
Ionizing Radiations α, β, γ Counts Range 10 - 10^6 Bq (10Bq = Natural Radiation Background - Sea Level)
Non-ionizing Radiations Low Frequencies: 30Hz - 300Hz (Range: 1 to 400μT, Resolution: 1μT) – High Frequencies: 0.5MHz to 8GHz – Response to Typical Bands: 900MHz (Range: 0.01 to 10V/m, Resolution: 0.01V/m), 1.8GHz (Range: 0.05 to 10V/m, Resolution: 0.05V/m), 2.1GHz (Range: 1 to 10V/m, Resolution: 1V/m), 2.4GHz (Range: 0.1 to 10V/m, Resolution: 0.1V/m)
Other Temperature, Pressure, Humidity
I/O INTERFACES Ethernet 1x 10/100/1000Mbps
RADIO INTERFACES Cellular GPRS/3G Integrated
GPS Integrated GPS
Wi-Fi / BT b/g/n, BLE
POWER Input 12 - 24VDC
Consumption 4.5W (Suitable for Battery and Photovoltaic Sources)
ENVIRONMENT Operating Temp External Air Temperature: -20 to +50°C
MECHANICAL Dimensions 160x410x140mm (WxHxD)
Weight 6kg
DATA ACCESS IoT Integration Platform Everyware Cloud Ready
Sensors Features
Features Max Range (1) Uncertainty (2)
Gaseous Pollutants CO (Carbon Monixide) 50 ppm 9.2% @ 10 ppm of Sampling Gas
CO2 (Carbon Dioxide) 5000 ppm 7.8% @ 3500 ppm of Sampling Gas
NO (Nitrogen Oxide) 20 ppm 7.1% @ 4.5 ppm of Sampling Gas
NO2 (Nitrogen Dioxide) 20 ppm 16.6% @ 1 ppm of Sampling Gas
O3 (Ozone) 20 ppm 16.6% @ 1 ppm of Sampling Gas
SO2 (Sulfur Dioxide) 20 ppm 3.5 ppb Mean Value @ 0 ppb of Sampling Gas
H2S (Hydrogen Sulfide) 25 ppm 10.5 ppb Mean Value @ 0 ppb of Sampling Gas
VOC (Volatile Organic Compounds; includes: Benzene, Toluene, Xylene) 20 ppm 6.0% @ 2.2 ppm of Sampling Gas

(1) Depending on conditioning settings.

(2) Extended uncertainty. It includes reference instrumentation error (2%) and sampling gas error (2%), both multiplied by a coverage factor (= 2).
