CPU-71-16

VMEbus SBC - Intel Core i7

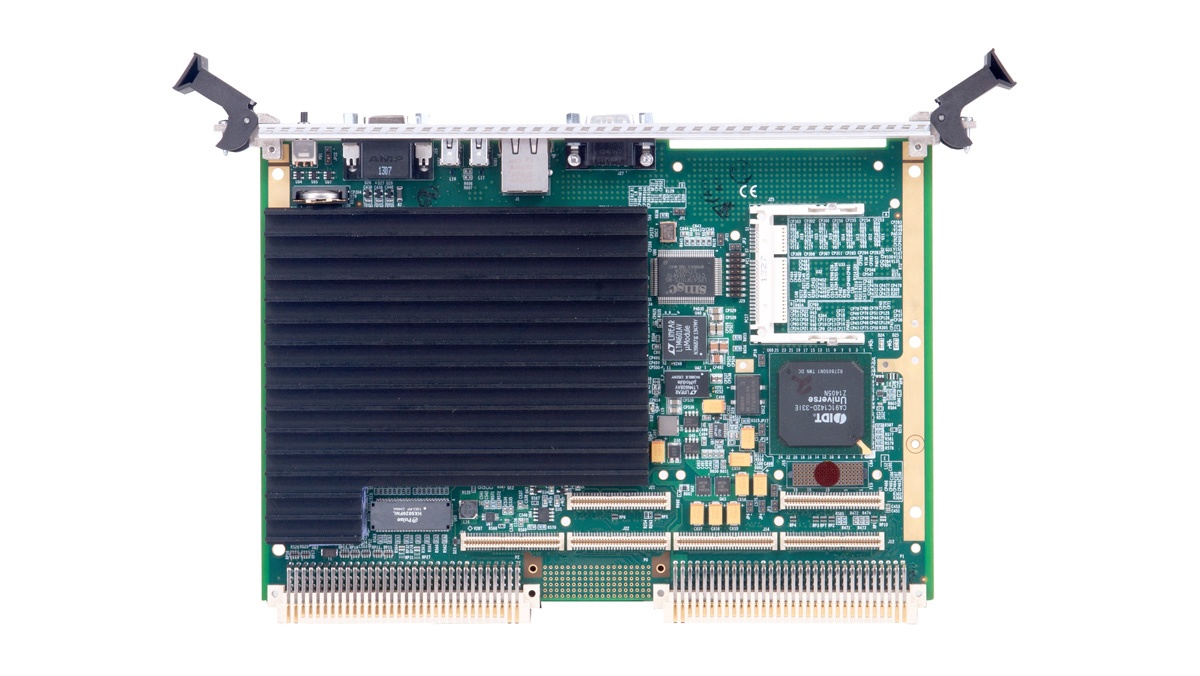

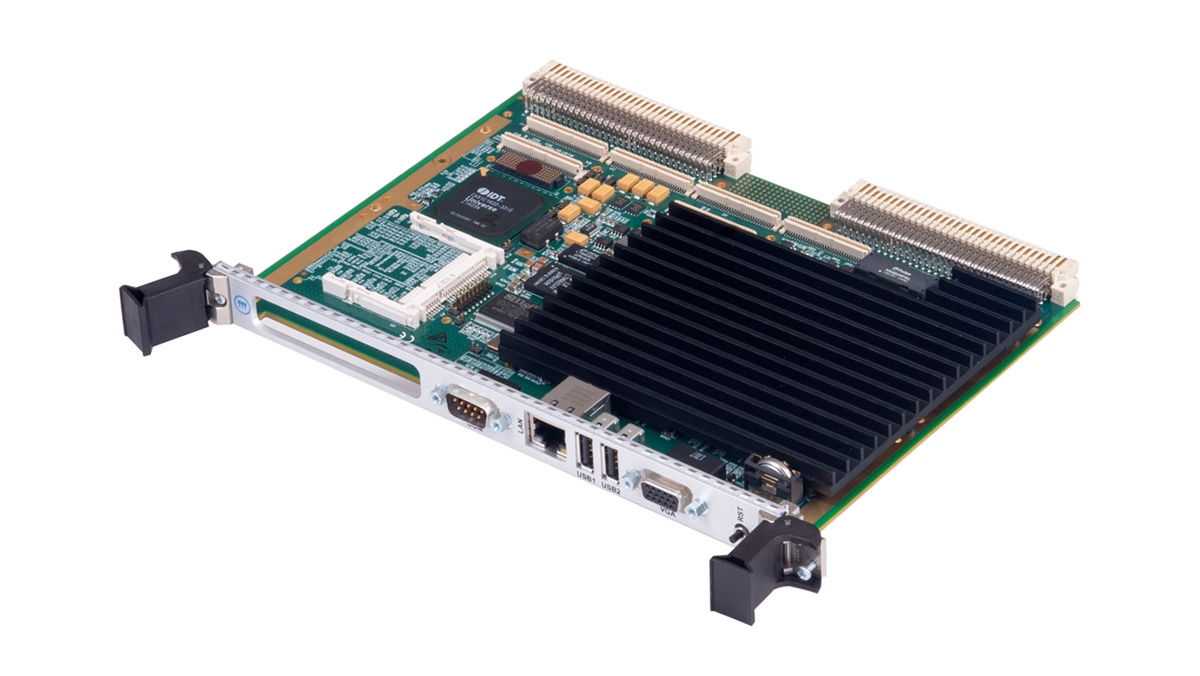

The CPU-71-16 is a high performance Single Board Computer (SBC) based on the VMEbus 6U form factor.

Download datasheet download

Seleziona un formato

A4 letter

Caratteristiche

VME Compatible - Tundra Universe IID PCI-VMEbus interface provides VME64 compatibility and backward compatibility with older VME backplanes
High Perfomance and Low Power - Dual core processing at less than 25W typical power consumption enables cool operation at extended temperature
Gigabit Ethernet - Three Gigabit Ethernet ports are provided, one on the front and two on the rear, VITA 31.1 compatible
MIL-STD Versions - The CPU-71-16 is offered in versions that support wedge locks for high shock and vibration immunity, and conduction-cooling. Conformal coating is available for all versions

Descrizione

The CPU-71-16 is a high performance Single Board Computer (SBC) based on the VMEbus 6U form factor. The CPU-71-16 is offered in both convection cooled and ruggedized conduction cooled variants, meeting the needs of numerous commercial and military applications requiring maximum processing power, low power consumption, and small physical footprint.

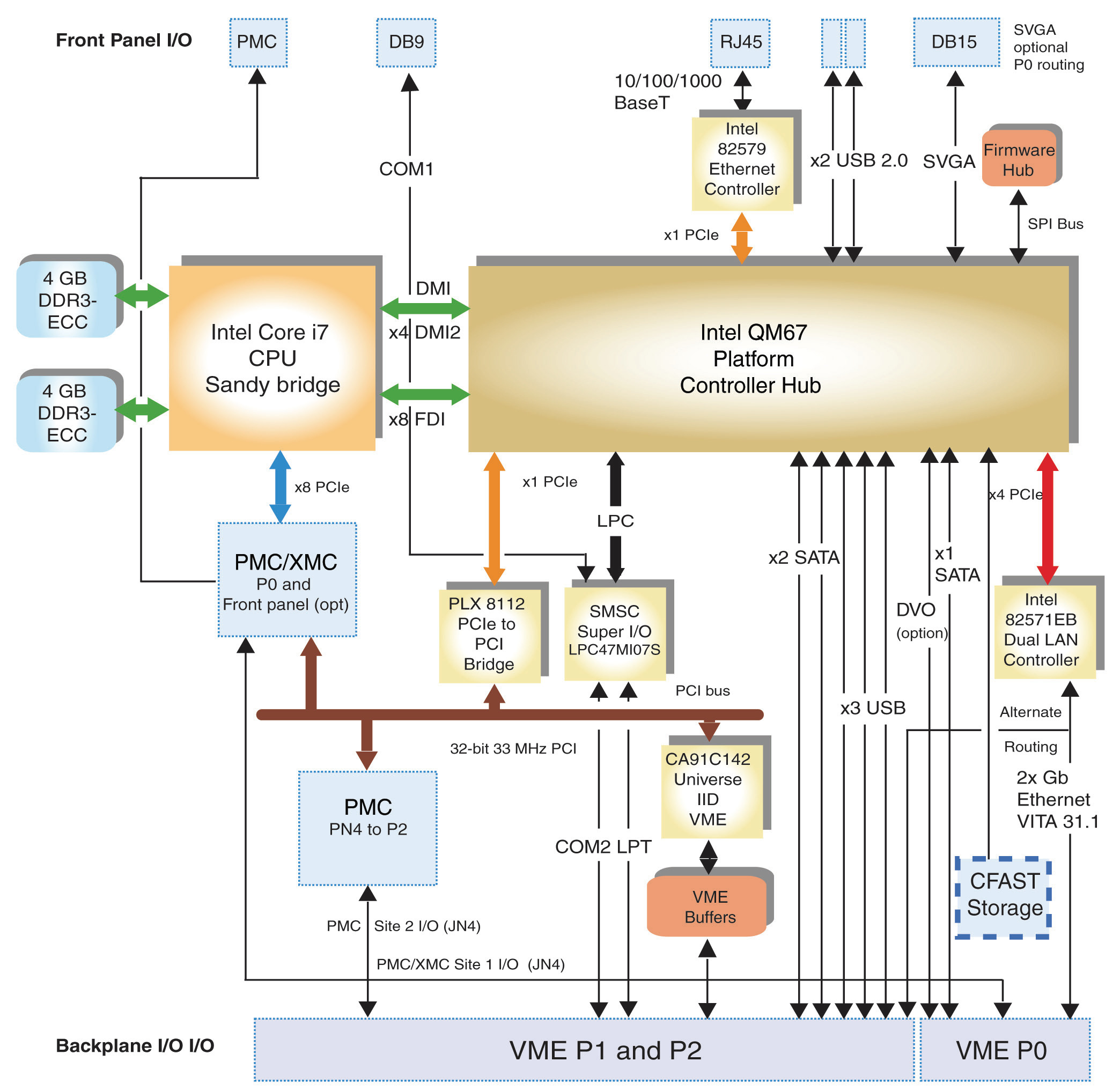

At the heart of the CPU-71-16 there is an Intel 2nd Generation Core i7 ULV Sandy Bridge Processor and a QM67 Cougar Point Platform Controller Hub (PCH). These two devices form the central processing backbone of the design. With a dual-channel memory controller integrated in the processor, the CPU-71-16 supports up to 8 GB of DDR3 SDRAM running at up to 1333MHz.
The CPU-71-16 supports two PMC and one optional XMC sites: the on-board XMC site is connected to the Core i7 CPU by one PCIe x8 (Gen 2); the two PMC sites are implemented with a PCIe to PCI bridge connected to the QM67 PCH with a PCIe x1 link. The VME interface to the backplane is implemented with the Universe IID PCI-VMEbus interface controller.
The CPU-71-16 offers both front panel and P2/P0 Ethernet ports: an Intel 82579 10/100/1000BaseT Ethernet controller is routed to an RJ45 interface on the front panel access, while an 82571EB dual 10/100/1000 BaseT, provides two additional Gigabit Ethernet ports routed to either P2 or P0 in compliance with the VITA 31.1 Ethernet backplane network. Three RS-232 ports and an LPT1 port are also routed to P2.
The CPU-71-16 supports on board CFast (SATA) card for bootable storage. Extended temperature and conduction cooled versions are also available.

Specifications
PROCESSOR CPU Intel Core i7-2610UE / 1.5GHz, 17W
Chipset Mobile Intel QM67
BIOS Type Phoenix SecureCore Tiano UEFI
Platform Controller Hub (PCH) Platform Controller Hub (PCH) Intel Cougar Point QM67 Platform Controller Hub – PCI Express Base Specification, Revision 2.0 – Enhanced DMA controller, interrupt controller, and timer functions – Integrated 3G Serial ATA host controllers with independent DMA – USB host interface with support for eight USB ports – System Management Bus (SMBus) Specification, Version 2.0 with additional support for on-board I2C devices – Supports Intel Rapid Storage Technology – Supports Intel Virtualization Technology for Directed I/O – Supports buffered mode generating extra clocks from a clock chip – Analog Display port (VGA) – Firmware Hub (FWH) interface
MEMORY RAM 4GB DDR3-ECC Soldered Memory
STORAGE CFAST On-board connector for bootable high-spped CFAST
EEPROM 64Mbit EEPROM on SPI bus for BIOS
I/O INTERFACES Ethernet 82579 BaseT single channel via x4 PCIe from PCH – 82571EB BaseT dual channel via x4 PCIe from PCH
Super I/O SMSC LPC4M10S7 Super I/O: 2x COM Ports Support RS-232, 1x LPT interface
PMC/XMC PCI x8 Express Bus from Processor to XMC site 1 (JN4 I/O to P2) – 32-bit, 33MHz PCI bus available to both PMC sites
VME Rear I/O P0 VITA TA 31.1 compatible dual Gb Ethernet, PMC/XMC site 1 I/O, 1x SATA 3G, Digital Video Output (optional), optional routing of SVGA – P2 COM2, LPT, 3x USB 2.0, 2x SATA 3G, 2x 10/100/1000Base-T (if P0 not populated), PMC site 2 I/O
Front Panel I/O 10/100/1000 BaseT (RJ45 connnector), 2x USB 2.0, COM1 (DB9 connector), and high density DB15 VGA connector (alternate routing to P0 available) – Optional PMC/XMC site 1 I/O access
OTHER Sensors On-board temperature monitoring via SMBus
POWER Consumption Estimated +5V @5A (typ) – Total Power: 25W (typ) based upon 2610UE processor – Actual power depends on CPU-71-16 product configuration and XMC and USB loads (Power consumption values subject to change without notice)
ENVIRONMENT Operating Temp 0 to +70˚C (-40 to +85˚ C versions available)
Storage Temp - 50 to +85˚C
Operating Humidity 20 to 95% non-condensing
Storage Humidity 0 to 100% non-condensing
MECHANICAL Compliance 6U VMEbus Form Factor
Cooling Rugged/Conduction-Cooled: Available in conduction-cooled versions – Optional wedge locks provide high shock and vibration immunity per 1101.2 – Convection and Conduction-cooled versions have conformal coating as an option – Available in standard and extended operating tempearture range
SOFTWARE OS Support for Windows 7, Windows 10
