CPU-351-13

Low Power SBC - NXP i.MX6

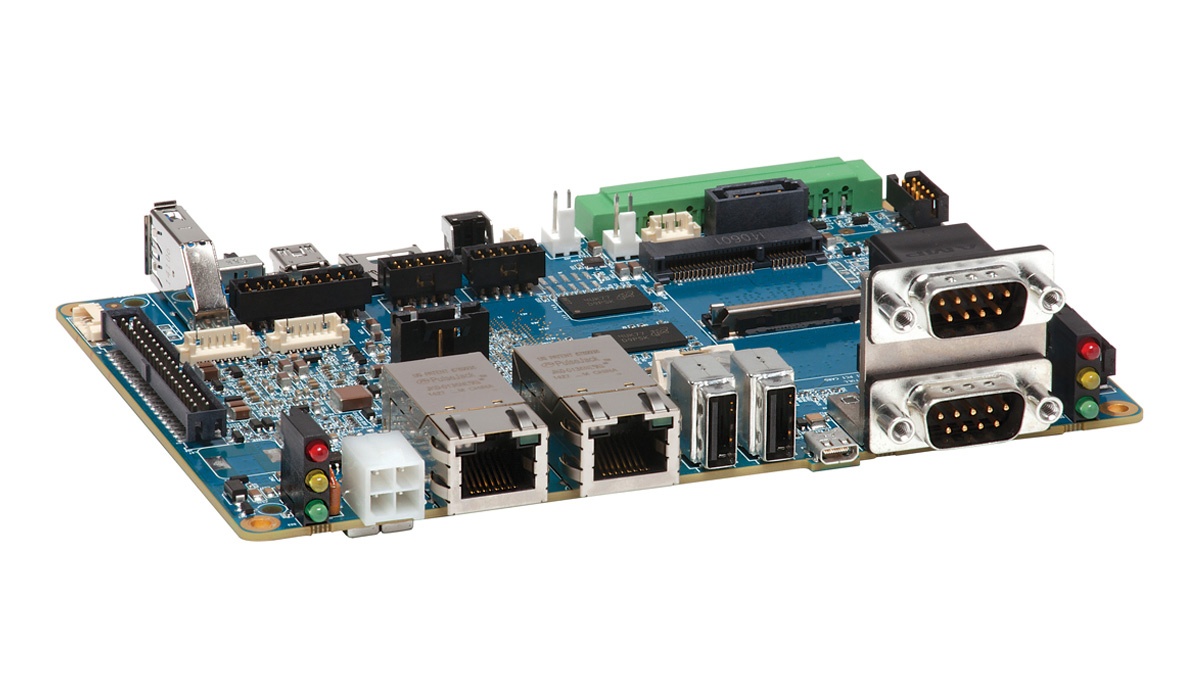

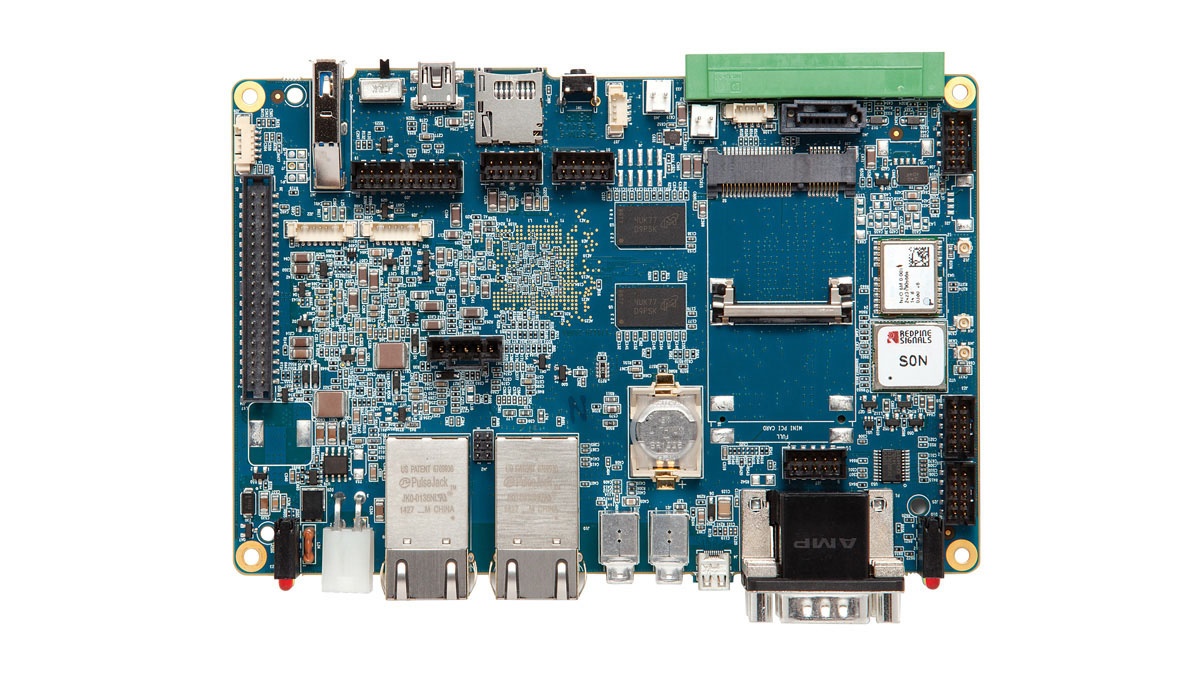

The CPU-351-13 is an iMX.6 Single Board Computer board that is designed for low power applications that require high reliability and extended temperature operating range.

Download datasheet download

Seleziona un formato

A4 letter

Caratteristiche

Multicore i.MX6 SBC - The CPU-351-13 offers configurations using single core, dual core or quad core technology to give to device manufacturers the right amount of processing power for their application
Low Power - The CPU-351-13 provides a large number of interfaces with a low power consumption in the order of 4W
Connection-oriented - Global cellular options, GNSS, Wi-Fi, Zigbee, Bluetooth 4.0 (with LE), and dual Gb Ethernet
Natively Industrial - Extended operating temperature, CAN bus interfaces, 3-axis accelerometer, integrated GNSS, and protected wide range power-in make the CPU-351-13 ideal for transportation and industrial applications
Multiple Graphics - The CPU-351-13 provides two video ports: LVDS and HDMI with integrated 4/5 wire resistive touch controller
Power Management - A on-board multi-chemistry battery charger simplifies the design of battery powered applications, and a smart power monitor allows to keep the power consumption beyond specified thresholds
IoT Native - The CPU-351-13 provides native support for IoT, including IoT middleware and access to Eurotech IoT Integration Platform

Descrizione

The CPU-351-13 is an iMX.6 Single Board Computer that delivers a large number of interfaces and peripherals while keeping the overall power consumption at a low 4W for typical applications.
Designed to be employed in a wide range of industrial and transportation applications, the CPU-351-13 provides key features such as 6-36VDC protected power in, CAN bus with optional J1939(CAN)/J1979(OBDII)/J1708 support and extended operating temperature.
With an on-board multi-chemistry charger, the CPU-351-13 simplifies the design of battery powered applications; an additional benefit comes from the integrated Smart Power Monitor, which can be used to keep the board within a user-defined power profile.
Support for cellular communications is available both on board and through the external Eurotech ReliaCELL 10-20 expansion module, which provides pre-certified, worldwide coverage.
The CPU-351-13 accelerates the development and deployment of IoT applications: it supports EC, the Eurotech Integration Platform for embedded devices. EC is a complete offering consisting of open field protocols, cloud-based resources like databases and brokers, and REST APIs.
The CPU-351-13 also supports ESF, Eurotech Java-based framework for embedded devices. With ESF it is possible to develop portable applications in a fraction of the time thanks to high level, industry specific APIs.
To kickstart your projects and accelerate time to market, contact the Eurotech sales team to order a development kit.

Specifications
PROCESSOR CPU NXP i.MX6, 1 to 4 cores, up to 1.2GHz
MEMORY RAM Up to 4GB DDR3 Soldered-down
STORAGE Embedded Up to 64GB eMMC Soldered Down (4GB Standard Version)
SATA 1x SATA 2.0 (i.MX6Dual and i.MX6Quad Only)
Other 1x microSD Slot
I/O INTERFACES Ethernet 2x 10/100/1000Mbps
USB 3x USB 2.0 (Type A), 1x USB 2.0 (Internal Header)
Serial 2x RS-232/RS-422/RS-485 (DB9), 2x RS-232 (Optional)
CAN bus 1x CAN bus – J1939(CAN)/J1979(OBDII)/J1708 (Contact Factory)
Digital I/O 8x Isolated GPIO (with support for a 4x4 Key Pad)
Analog I/O 2x Analog Voltage In
Video 1x LVDS, 1x RGB, 1x HDMI (Optional) – 4/5 Wire Resistive Touch Controller: 3x Analog Video Inputs (Contact Factory)
Audio Analog Audio In/Out
PCI Express 1x Mini PCIe Slot
I2C Yes
SPI Yes
OTHER Battery Multi Chemistry Battery Charger: Li-ion/Polymer, LiFePO4 – Factory Option: Lead Acid
Sensors 3-axis Accelerometer
POWER Input 6 to 36VDC Power In (5VDC Optional)
Consumption 4W Typ.
Management Smart Power Monitor
ENVIRONMENT Operating Temp - 20 to +85°C or - 40 to +85°C (Depending on Specific CPU Version)
Storage Temp - 40 to +85°C
Humidity 95% Relative at + 45°C Non-condensing
CERTIFICATIONS Environmental RoHS2, REACH
MECHANICAL Dimensions 102x153mm (LxW)
SOFTWARE OS Support for Linux (Yocto), WEC2013
Iot Framework Everyware Software Framework, Everyware Cloud Ready
