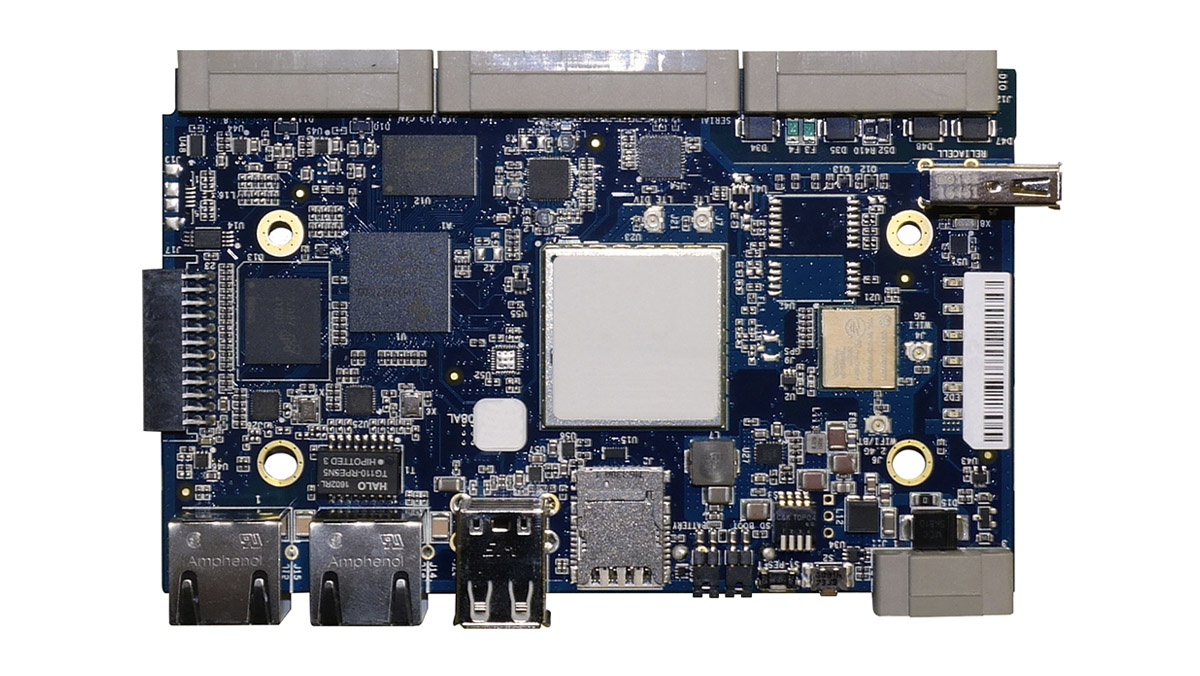

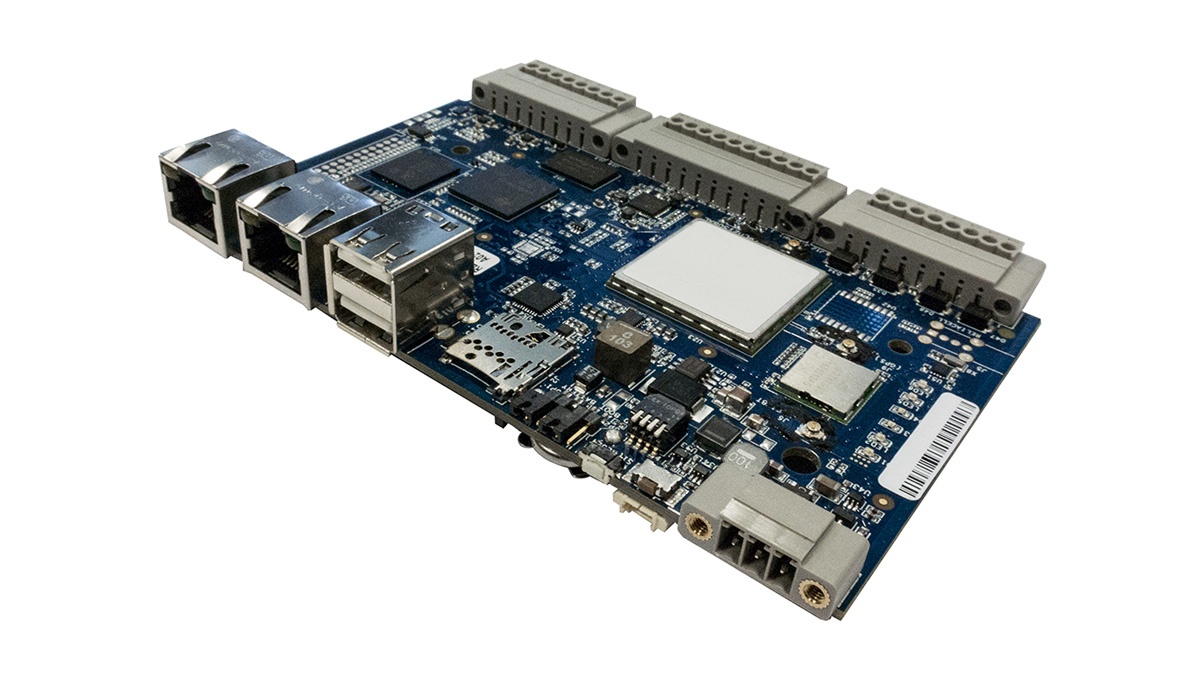

CPU-310-12

Embeddable SBC - TI AM335x, LTE Cat 1

The CPU-310-12 is a Single Board Computer that provides an IoT Edge Gateway with LTE connectivity. It is designed to be deeply embedded in industrial and lightly rugged applications.

Download datasheet download

Seleziona un formato

A4 letter

Caratteristiche

Embeddable SBC - Single Board Computer version of the ReliaGATE 10-12: the same HW and SW features in an easy to integrate compact board
ARM Powered - Powered by TI AM335X CPU: optimum performance for intensive workloads at just 2W
IoT Ready - Breadth of connectivity options: carrier certified LTE Cat 1 cellular modems for multiple geographies, Wi-Fi, BLE, Fast Ethernet and Fieldbus interfaces, including CAN bus ports, optoisolated digital I/Os, protected USB and serial ports
Industrial Grade - Wide operating temperature, wide range power supply with transient protection
Field Protocol Support - Native support for Modbus, S7 and OPC UA, the extensible, secure, and platform-independent industrial interoperability standard
Open Platform - Provides a Java/OSGi gateway middleware, to free the developer from proprietary solutions
Customizable - Personalization and full customization options are available, ranging from custom SW image pre-installation to deep HW/SW configurations

Descrizione

The CPU-310-12 is a Single Board Computer that implements an IoT Edge Gateway with LTE connectivity (and 3G fallback). It is designed to be deeply embedded in industrial and lightly rugged applications.
Based on the TI AM335X Cortex-A8 (Sitara) processor family, with 1GB of RAM, 8GB of eMMC and user-accessible MicroSD slot and dual Micro-SIM slots, the CPU-310-12 is a low power embeddable SBC suitable for demanding use cases: it supports a 9 to 36V power supply with transient protection and ignition sense, two protected RS-232/RS-485 serial ports, two CAN bus interfaces, three noise and surge protected USB ports, and four isolated digital interfaces.
The CPU-310-12 features a wide range of connectivity capabilities: it integrates an on-board LTE Cat 1 cellular modem with dual Micro-SIM support, Wi-Fi, Bluetooth Low Energy, and two Fast Ethernet ports and three Sensors: Temperature, 3-axis Gyroscope and a 3-axis Accelerometer; an optional on-board GPS provides precise geolocation capabilities.
The CPU-310-12 is equipped with a TPM 2.0 technology which provides standard cutting-edge security features that protect the system integrity and authenticity against unauthorized manipulations.
The CPU-310-12 comes with Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT Edge Gateways.
Distributed and supported by Eurotech, ESF supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration.
ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.
Used stand-alone, or in conjunction with EC, the CPU-310-12 provides a fast go-to-market solution for IoT projects of any size.

Ordering code: CPU-310-12-XX
XX - 62 - 63 - 64 - 65 - 66 - 67
PROCESSOR CPU TI AM3352 1GHz, 1 Core
MEMORY RAM 1GB DDR3
STORAGE Embedded 8GB eMMC
Other 1x microSD Slot
I/O INTERFACES Ethernet 2x 10/100Mbps - RJ45
USB 3x Host 2.0 (Noise and Surge Protected) - Type A
Serial 1x RS-485 protected and isolated, 1x RS-232/RS-485 (Surge Protected, RS-485 Termination and Fail-safe Resistors), 1x Serial Console TTL
CAN 2.0B 2x CAN bus with 5V (100mA) Power Out
Digital I/O 2x Digital Input 36V, 1KV Optoisolated – 2x Digital Output (40VAC/DC), 500mA Sink, 1KHz Max Switching
RADIO INTERFACES Cellular No LTE Cat 1 (NA), 3G Fallback LTE Cat 1 (EU), 2G/3G Fallback LTE Cat 1 (NA), 3G Fallback LTE Cat 1 (EU), 2G/3G Fallback LTE Cat 1 (JP)
GPS Factory Option: Internal (72 channels GPS, Galileo, GLONASS, BeiDou)
Wi-Fi / BT a/b/g/n, BLE 4.2 No a/b/g/n, BLE 4.2
Antennas (Internal) 2x U.FL (M) Wi-Fi/BT 2x U.FL (M) Cellular 2x U.FL (M) Cellular, 2x U.FL (M) Wi-Fi/BT
OTHER RTC Yes
Ext. Watchdog Yes
EEPROM 256kbit
TPM TPM 2.0
Sensors Temperature, 3-axis digital Accelerometer, 3-axis digital Gyroscope
LEDs 1x Power, 1x Cellular, 4x Programmable
Buttons 1x Reset, 1x Programmable
SIM Slot No 2x microSIM
POWER Input 6-36VDC, with Transient Protection, Ignition Sense
Consumption 2W Idle (15W Max)
ENVIRONMENT Operating Temp - 30 to +70°C
Storage Temp - 40 to +85°C
Humidity 5 to 95% Relative Humidity (non condensing) at +40°C
CERTIFICATIONS Regulatory (§) CE, FCC, ISED FCC, ISED CE FCC, ISED CE JATE, TELEC
Safety (§) EN 62368, UL 60950
Environmental RoHS3, REACH
Wi-Fi / BT Radio (§) RED, FCC, ISED FCC, ISED RED FCC, ISED RED JATE, TELEC
Cellular Radio (§) No FCC, ISED, PTCRB, AT&T, Verizon RED FCC, ISED, PTCRB, AT&T, Verizon RED JATE, TELEC, NTT DoCoMo
IoT Platform Microsoft Azure Certified
MECHANICAL Dimensions 138x85x24mm (LxWxH)

§: Designed to meet.

Software
SOFTWARE OS Eurotech Everyware Linux
SDK Yocto-based Eclipse Tooling, Azul Java
IoT Framework Everyware Software Framework (Java/OSGi)
