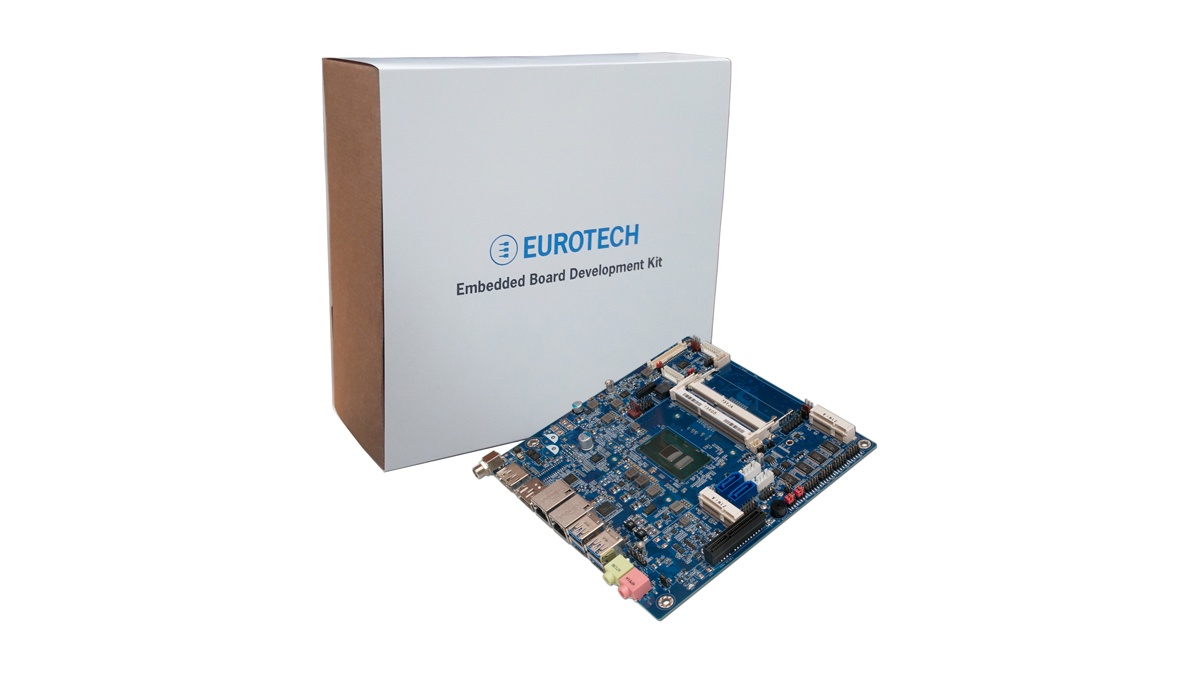

The CPU-521-17 Development Kit allows a quick development and prototyping of embedded applications on a pre-validated platform which brings out a rich set of the chipset functionalities. The kit targets all aspects of an embedded application from hardware interfacing to development of on-board software.
The CPU-521-17 Development Kit allows a quick development and prototyping of embedded applications on a pre-validated platform which brings out a rich set of the chipset functionalities. The kit targets all aspects of an embedded application from hardware interfacing to development of on-board software.
Low-profile at just 16.5mm, the CPU-521-17 offers the 6th Generation Intel Core processor family (i7, i5, i3 and Celeron), with two cores and up to 16GB SO-DIMM RAM.
Other features include high speed interfaces: two Gbit Ethernet, two SATA 3.0 with RAID support, four USB 3.0 and four USB 2.0, two full-size Mini PCIe sockets, four PCIe Gen 3 lanes, and three independent video ports (LVDS, DP++ and HDMI supporting up to 4096x2304@60Hz).
The CPU-521-17 is a solid building block for projects where reliability in harsh conditions is mandatory, thanks to an operating temperature of -20 to +70°C, a soldered-down CPU, support for RAID 0/1, optional conformal coating and long term support/lifecycle programs.
Professional Services are available for the CPU-521-17, starting from BIOS personalization and including board design, system development and production.
Ordering code: CPU-521-17-XX-DK01 | |||
---|---|---|---|
XX | - 01 | - 03 | |
PROCESSOR | CPU | Celeron 3955U 2.0GHz, 2 Cores | Core i7 6600U 2.6GHz (3.4GHz), 2 Cores |
MEMORY | RAM | 2x SODIMM Sockets - up to 16GB DDR3L 1600MHz - Dual Channel | |
STORAGE | SATA | 2x SATA 3.0 (up to 6Gb/s), 1x Mini SATA Slot (Shared with PCIe/USB) | |
I/O INTERFACES | Ethernet | 2x 10/100/1000Mbps - RJ45 | |
USB | 4x USB 3.0 (Type A), 4x USB 2.0 (Header) | ||
Serial | 2x RS-232 (Header), 2x RS-232/RS-422/RS-485 (Header) | ||
Video | Triple Independent Displays: 1x LVDS* (Header), 1x HDMI, 1x DisplayPort++ | ||
Audio | HD Audio: 1x Line-out, 1x Mic-in (3.5mm Jack), 1x S/PDIF (Header) | ||
PCI Express | 1x PCIe x4 (Gen 3) Slot – 1x Full/Half Size Mini PCIe Slot (PCIe/USB/mSATA Signals) – 1x Full/Half Size Mini PCIe Slot (PCIe/USB/SIM Signals) | ||
OTHER | RTC | Yes (Lithium 3V 210mAh Battery) | |
Fan Conn. | 2x System Fan | ||
LEDs | 1x SATA Activity | ||
Buttons | 1x Power-on, 1x Reset | ||
POWER | Input | 12V (DC-in, Screw-lock Jack) |
For more specifications and certifications, please check the CPU-521-17 datasheet.
SOFTWARE | OS | CentOS 7 |
MEMORY | RAM | 2x 2GB DDR3L SODIMM Modules | |
STORAGE | SSD | 1x 64GB mSATA SSD MLC | |
I/O INTERFACES | SATA | 2x SATA Data and Power Cable | |
USB | 2x Dual USB 2.0 Female Cables | ||
Serial | 4x Serial DB9 Male Cables | ||
Video | 1x DP Male to HDMI Female Adapter | ||
POWER SUPPLY | AC-DC PSU | 1x 100W 100/240VAC-in 12VDC-out (Jack Conn. with Screw) Level VI Power Supply Unit | |
Cables | 3x Power Cables (US, JP, EU, UK) | ||
OTHER | Heatsink | 1x Heatsink |
(*) LVDS Support requires BIOS customization.
