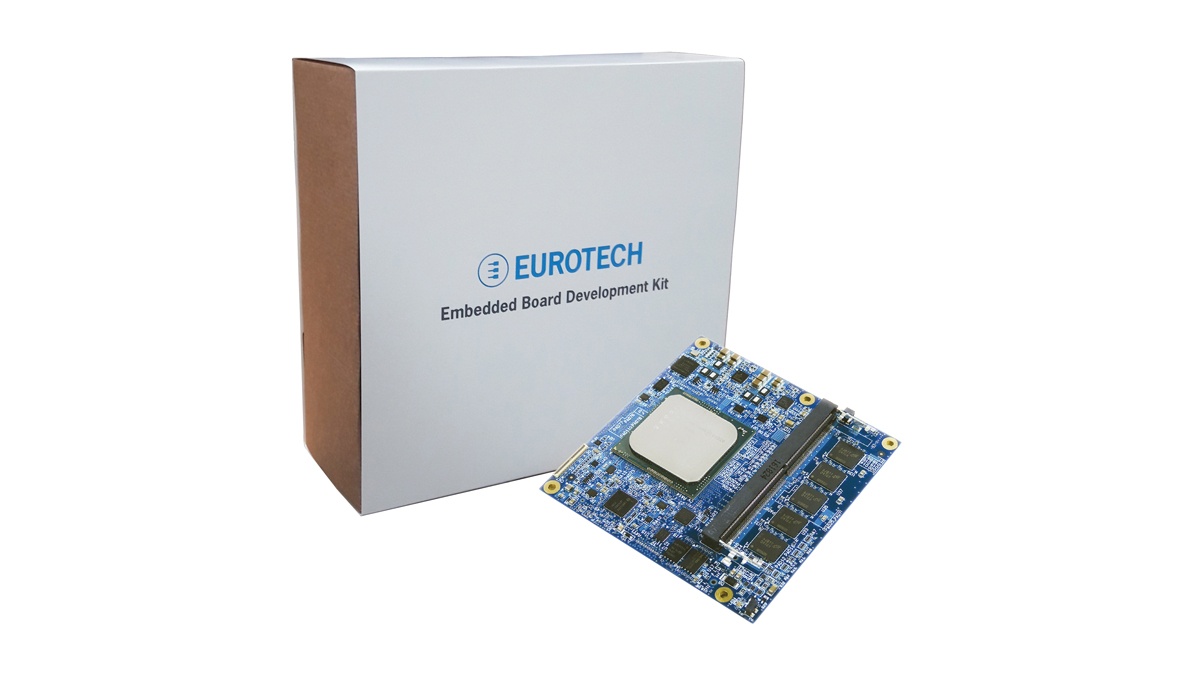

The CPU-161-18 Development Kit allows a quick development and prototyping of embedded applications on a pre-validated platform which brings out a rich set of the module functionalities. The kit targets all aspects of an embedded application from hardware interfacing to development of on-board software.
The CPU-161-18 Development Kit allows a quick development and prototyping of embedded applications on a pre-validated platform which brings out a rich set of the module functionalities. The kit targets all aspects of an embedded application from hardware interfacing to development of on-board software.
The CPU-161-18 combines a high performance and truly embedded CPU with an innovative hybrid RAM architecture that offers the ruggedness of soldered memory and the expandability of SO-DIMMs. The standard configuration provides 8GB of memory soldered directly on the PCB and supports up to 24GB DDR4 RAM with ECC error correction through a SO-DIMM slot.
The CPU-161-18 can be configured with any member of the Xeon/Pentium D-1500 family; standard versions support extended temperature CPUs, closing the gap between traditional embedded applications and servers.
The CPU-161-18 is a headless unit that provides a fast upgrade path to existing projects and that allows the creation of new high-performance ones: a notable feature of this Compact size module is the availability of a x16 PCIe Gen 3 port in addition to the x8 one, a characteristic that is more commonly found only on larger modules.
Ordering code: CPU-161-18-XX-DK01 | |||
---|---|---|---|
XX | - 05 | - 07 | |
PROCESSOR | CPU | Pentium D1519 1.50GHz, 4 Cores | Xeon D-1539 1.60GHz, 8 Cores |
MEMORY | On-board | 8GB DDR4 ECC Memory Down | |
On-socket | 1x DDR4 ECC SODIMM up to 16GB | ||
STORAGE | SATA | 4x SATA 3.0 (up to 6Gb/s) | |
I/O INTERFACES | Ethernet | 1x 10/100/1000Mbps - RJ45 | |
USB | 4x USB 3.0, 3x USB 2.0 - Type A | ||
Serial | 2x UART (TX/RX) - Header | ||
Video | Mini PCIe Graphic Card: 2x VGA (up to 1920x1080 @75Hz Vertical Rate) | ||
PCI Express | 1x PCIe x16 (Gen 3) Slot – 6x PCIe x1 (Gen 2) Slots – 2x Full/Half Size Mini PCIe Slots (PCIe Signal Only) | ||
OTHER | RTC | Yes (Lithium 3V 210mAh Battery) | |
Sensors | Temperature Sensor | ||
LEDs | 1x SATA Activity, 1x Debug | ||
Buttons | 1x Power-on, 1x Reset | ||
POWER | Input | 12V (DC-in, Screw-lock Jack) |
For more specifications and certifications, please check the CPU-161-18 datasheet.
SOFTWARE | OS | CentOS 7 |
BASEBOARD | CARRIER BOARD | CAR-363-13 microATX COM Express Carrier Board | |
STORAGE | SSD | 1x 2.5'' 64GB SATA SSD MLC | |
I/O INTERFACES | SATA | 3x SATA 3.0 Data Cables, 1x SATA Power Cable | |
Video | 1x Mini PCIe Graphic Card, 1x Dual VGA Cable | ||
POWER SUPPLY | DC-DC PSU | 1x 150W DC-DC ATX Power Supply Unit | |
AC-DC PSU | 1x 100W 100/240VAC-in 12VDC-out (Jack Conn. with Screw) Level VI Power Supply Unit | ||
Cables | 3x Power Cables (US, JP, EU, UK) | ||
OTHER | Heatsink | 1x Heatsink |
