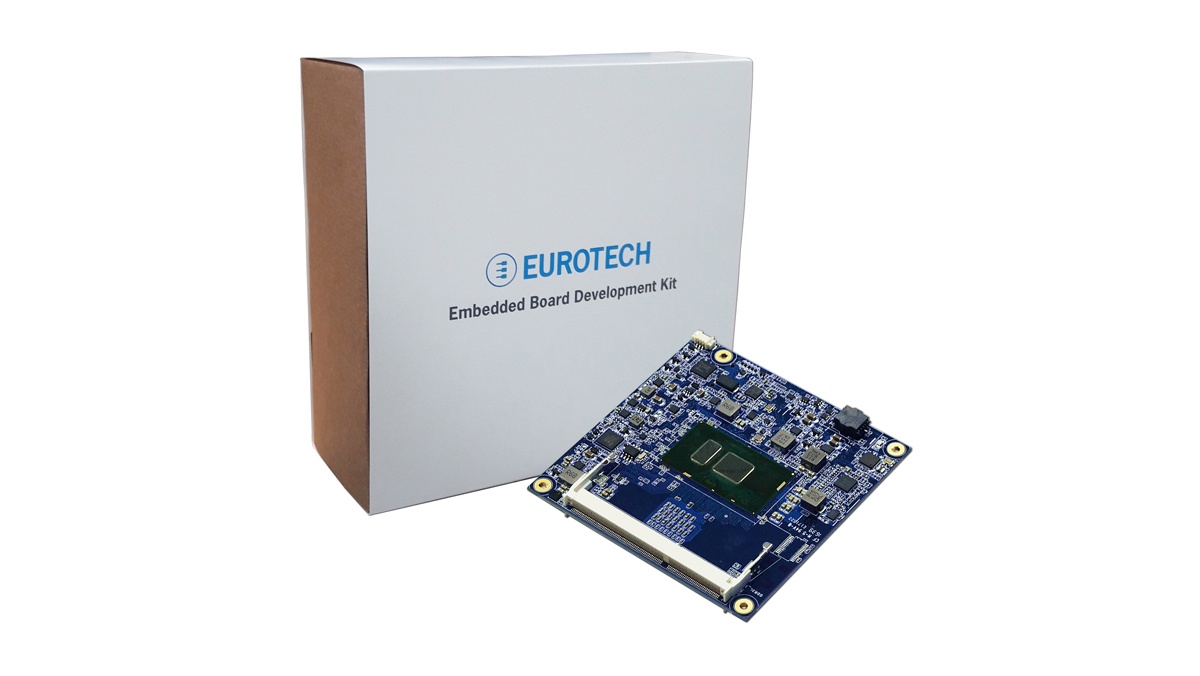

The CPU-161-17 Development Kit allows a quick development and prototyping of embedded applications on a pre-validated platform which brings out a rich set of the module functionalities. The kit targets all aspects of an embedded application from hardware interfacing to development of on-board software.
The CPU-161-17 Development Kit allows a quick development and prototyping of embedded applications on a pre-validated platform which brings out a rich set of the module functionalities. The kit targets all aspects of an embedded application from hardware interfacing to development of on-board software.
Compliant with PICMG COM Express R2.1, Type 6, the CPU-161-17 is a 95x95mm (Compact) form factor module based on the 6th Generation Intel Core processor family (i7, i5, i3 and Celeron), with two cores and up to 16GB SO-DIMM RAM.
Other features include high speed interfaces: one Gbit Ethernet, three SATA 3.0 with RAID support, four USB 3.0 and eight USB 2.0, eight PCIe Gen 3 lanes, and three independent video ports (LVDS, VGA and DDI supporting up to 4096x2304@60Hz).
The CPU-161-17 is a solid building block for projects where reliability in harsh conditions is mandatory, and long term availability is a must, thanks to an operating temperature of - 40 to +85°C, support for RAID 0/1/5, optional conformal coating and long term support/lifecycle programs.
Ordering code: CPU-161-17-XX-DK01 | |||
---|---|---|---|
XX | - 01 | - 03 | |
PROCESSOR | CPU | Celeron 3955U 2.0GHz, 2 Cores | Core i7 6600U 2.6GHz (3.4GHz), 2 Cores |
MEMORY | RAM | 2x SODIMM Sockets - up to 16GB DDR3L 1600MHz - Dual Channel | |
STORAGE | SATA | 2x SATA 3.0 (up to 6Gb/s) | 3x SATA 3.0 (up to 6Gb/s) |
I/O INTERFACES | Ethernet | 1x 10/100/1000Mbps - RJ45 | |
USB | 4x USB 3.0, 4x USB 2.0 - Type A | ||
Serial | 2x UART TX/RX (Header), 4x RS-232 9-wires (Header) | ||
Video | Triple Independent Displays: 1x LVDS* (Header), 1x VGA (Header), 1x DisplayPort | ||
Audio | HD Audio: 1x Line-In, 1x Line-out, 1x Mic-in (3.5mm Jack), 1x Front Audio (Header), 1x S/PDIF (Header) | ||
PCI Express | 3x PCIe x1 (Gen 3) Slots – 2x Full/Half Size Mini PCIe Slots (PCIe Signal Only) | ||
OTHER | RTC | Yes (Lithium 3V 210mAh Battery) | |
Fan Conn. | 1x CPU Fan, 1x System Fan | ||
LEDs | 1x SATA Activity, 1x Debug | ||
Buttons | 1x Power-on, 1x Reset | ||
POWER | Input | 12V (DC-in, Screw-lock Jack) |
For more specifications and certifications, please check the CPU-161-17 datasheet.
SOFTWARE | OS | CentOS 7 |
BASEBOARD | CARRIER BOARD | CAR-363-13 microATX COM Express Carrier Board | |
MEMORY | RAM | 2x 2GB DDR3L SODIMM Modules | |
STORAGE | SSD | 1x 2.5'' 64GB SATA SSD MLC | |
I/O INTERFACES | SATA | 3x SATA 3.0 Data Cables, 1x SATA Power Cable | |
Serial | 1x LPC to Serial RS-232 Expansion Module – 4x Serial DB9 Male Cables | ||
Video | 1x DP Male to HDMI Female Adapter, 1x VGA Cable | ||
POWER SUPPLY | DC-DC PSU | 1x 150W DC-DC ATX Power Supply Unit | |
AC-DC PSU | 1x 100W 100/240VAC-in 12VDC-out (Jack Conn. with Screw) Level VI Power Supply Unit | ||
Cables | 3x Power Cables (US, JP, EU, UK) | ||
OTHER | Heatsink | 1x Heatsink |
(*) LVDS Support requires BIOS customization.
