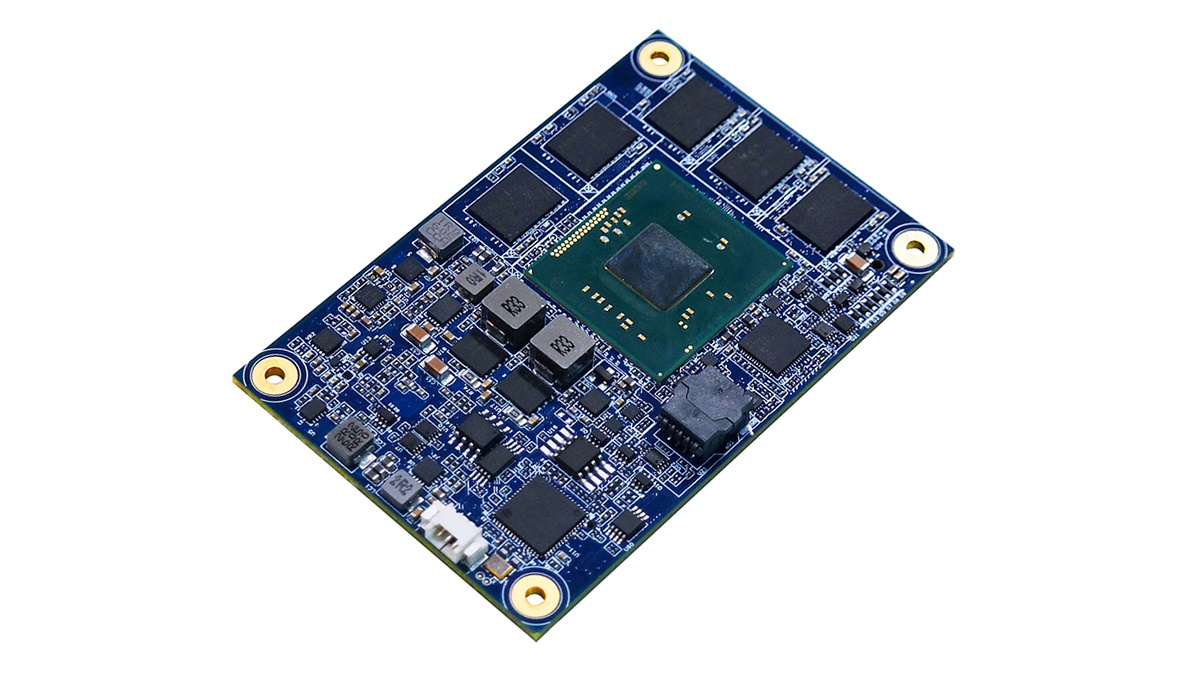

CPU-163-15

COM Express Mini Type 10 - Intel Atom, ECC Memory

The CPU-163-15 is a rugged COM Express module designed to meet the requirements for industrial and rugged fanless applications.

Download datasheet download

Seleziona un formato

A4 letter

Caratteristiche

Powerful - Comes with Intel Atom E3800 CPU: one, two and four core configurations, up to 1.91GHz
Mini - Complies with PICMG COM Express R2.1, with a 84x55mm (Mini) form factor and a Type 10 pinout
Reliable - Offers memory configurations up to 4GB with ECC
Rugged - Supports wide operating temperature (-40 to +85°C), conformal coating options, soldered memory and flash storage
Low Power - Enables fanless designs with a CPU TDP starting from 5W
Professional Services - Cuts Time-To-Market with Eurotech Professional Services, which include deep module customization, BIOS personalization, carrier board and system design and production
IoT Native - Provides native support for IoT, including IoT middleware and access to Eurotech IoT Integration Platform

Descrizione

The CPU-163-15 is a rugged COM Express module designed to meet the requirements for industrial and rugged fanless applications.
Compliant with PICMG COM Express R2.1, Type 10, the CPU-163-15 is a 84x55mm (Mini) form factor module based on the Intel Atom E3800 processor family, with 1 to 4 cores, up to 4GB ECC RAM and up to 32GB eMMC.
With ECC soldered down memory and flash storage, the CPU-163-15 is the ideal hardware platform for applications requiring long life cycle, resistance to vibration and reliable data storage, even in extended temperature.
Supported operating systems include Windows 10 IoT Enterprise and Linux; moreover, the CPU-163-15 supports Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/ OSGi middleware for IoT Edge Gateways.
Professional Services are available for the CPU-163-15, starting from BIOS personalization and including carrier board design, system development and production. Deep module customization, such as feature changes are also available.

Ordering code: CPU-163-15-XX
XX - 01 - 02 - 03
PROCESSOR CPU Atom E3815 1.46GHz, 1 Core Atom E3827 1.75GHz, 2 Cores Atom E3845 1.91GHz, 4 Cores
BIOS Type AMI BIOS
Size 64Mbit SPI BIOS
MEMORY RAM 2GB 1067MHz (DDR3L-ECC) 2GB 1333MHz (DDR3L-ECC) 4GB 1333MHz (DDR3L-ECC)
STORAGE Embedded 8GB eMMC
SATA 2x SATA 2.0
I/O INTERFACES Ethernet 1x 10/100/1000Mbps with Integrated Transceiver
USB 1x USB 3.0, 8x USB 2.0 (4x Native, 4x via USB HSIC)
Serial 2x Serial (TX/RX)
Digital I/O 8x DI/O
Video 1x LVDS (18/24bit, Single Channel, Resolution up to 1366x768@60Hz), 1x DDI (HDMI, DVI: Resolution up to 1920x1080@60Hz, DP Resolution up to 2560x1600@60Hz) – Hardware Acceleration for DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8
Audio High Definition Audio Interface
PCI Express 3x PCIe x1 (Gen 2)
LPC Yes
I2C Yes
SMBus Yes
OTHER RTC Yes
Watchdog Software Programmable (From 1 to 255s)
POWER Input 4.75V~20V, 5VSB, VCC_RTC (ATX Mode) – 4.75V~20V, VCC_RTC (AT Mode)
Consumption 5W (CPU TDP) 8W (CPU TDP) 10W (CPU TDP)
ENVIRONMENT Operating Temp - 20 to +70°C - 40 to +85°C
Storage Temp - 40 to +85°C
CERTIFICATIONS Environmental RoHS2, REACH
Compliance PICMG COM Express R2.1, Type 10
MECHANICAL Dimensions 84x55mm (LxW) - COM Express Mini
Supported Software
SOFTWARE OS Eurotech Everyware Linux, CentOS 7 (Professional Services: Windows 10 IoT Enterprise, Fedora, Other Linux and RTOS)
IoT Framework Everyware Software Framework (Java/OSGi)
