COM Express Basic Type 6 - Rugged Intel Xeon E3-1500 v6 with high performance graphics

The CPU-162-24 enables high-end performance and RAM capacity in fanless applications at the Edge. It supports extended temperature range (-40 to +85°C) and ECC memory to operate reliably in industrial and rugged applications

Download datasheet download

Seleziona un formato

A4 letter


Powerful - Supports server-class, power efficient Xeon E3-1500 v6 CPUs
High Performance Graphics - Features Intel HD Graphics, with VGA, LVDS and two HDMI/DP++/DVI displays, and HW accelerated video encoding and decoding
Rugged and Fanless - Operates from - 40 to +85°C, with error correcting code memory and soldered CPU for reliable, fanless design
Customizable - Comes with optional personalization and full customization services, ranging from factory options to deep HW/SW configuration changes
Professional Services - Provides the foundation for Eurotech Professional Services that span from carrier board development to complete system design, certification and manufacturing

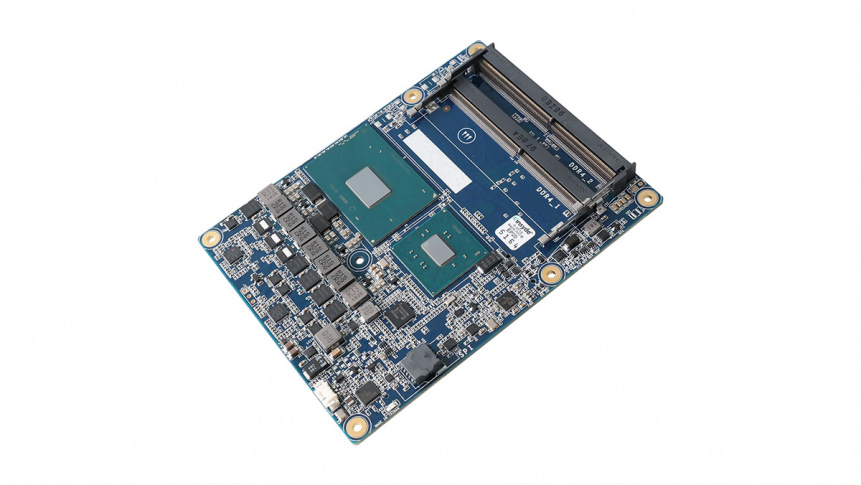

The CPU-162-24 is a COM Express Type 6 Basic (125x95mm) module based on the Intel® Xeon® E3-1505L v6 and 1505M v6 processors and supports up to 2 DDR4 SO-DIMMs with ECC, for a total capacity of 32GB.

Ideal for high performance graphics applications, the CPU-162-24 features Intel HD graphics, an integrated GPU that provides up to three simultaneous video outputs, with VGA, LVDS and HDMI/DP++/DVI (eDP also available as a factory option). It also features one PCIe x16 and one PCIe x8 links, to enable discrete GPUs, RAID controllers and other high performance peripheral expansions.

With a long-life cycle, optional conformal coating and a soldered down CPU, the CPU-162-24 is a reliable building block for fanless Edge devices that need to perform consistently in harsh environmental conditions.

Eurotech Professional Services are offered as an option and include BIOS personalization, carrier board design, system development and production. Deep module customization, such as feature changes are also available.

The CPU-162-24 supports Eurotech Everyware Linux and Windows 10 Enterprise; customer carrier board enablement and RTOS are available through Eurotech Professional Services, just like the full integration with Eurotech's IoT Edge Framework Everyware Software Framework (ESF), that provides native connectivity with many IoT Cloud services and among them, Everyware Cloud (EC – separately available), Eurotech's IoT Integration Platform, which allows remote device and data management and integration with analytics and IT applications.

Ordering code: CPU-162-24-XX
XX -01 -03
PROCESSOR CPU Xeon E3-1505L v6 2.20GHz (3.00GHz), 4 Cores Xeon E3-1505M v6 3.00GHz (4.00GHz), 4 Cores
MEMORY RAM 2x DDR4-ECC SODIMM for up to 32GB, Dual Channel
BIOS Size 128Mbit SPI BIOS
STORAGE SATA 4x SATA 3.0 (up to 6Gb/s); Support for RAID 0/1/5/10
I/O INTERFACES Ethernet 1x 10/100/1000Mbps
USB 4x USB 3.0, 8x USB 2.0
Serial 2x UART (TX/RX)
Digital I/O 1x 8bit Digital I/O
Video Ports 1x VGA (DDI3 Factory Option), 1x LVDS/eDP (eDP Factory Option), 2x DDI (HDMI/DVI/DP++), Triple Display: VGA+LVDS+DDI or VGA+DDI1+DDI2 or eDP + 2x DDI
Video Resolution VGA Resolution: 1920x1200@60Hz; LVDS Resolution: 1920x1200@60Hz, Dual Channel, 24bit; HDMI Resolution: 4096x2160@30Hz, 24bpp; DVI Resolution: 1920x1200@60Hz; DP++/eDP Resolution: 4096x2304@60Hz, 24bpp
Video Acceleration HW Encode: HEVC/H.265, VP8, M/JPEG, MPEG2; HW Decode: HEVC/H.265, H.264, VP8 (8bit), VP9 (10 bit), VC1/WMV9, M/JPEG, MPEG2
Audio High Definition Audio Interface
PCI Express 1x PCIe x16 or 2x PCIe x8 (Gen 3), 8x PCIe x1 or 2x PCIe x4 or 4x PCIe x3 (Gen 3)
I2C Yes
SMBus Yes
Watchdog Yes, Dedicated Chip
TPM Factory Option
Sensors Temperature
POWER Input 12V, 5VSBY, 3V_RTC (ATX Mode) 12V, VCC_RTC (AT Mode)
Consumption 25W (CPU TDP) 35-45W (CPU TDP)
ENVIRONMENT Operating Temp - 40 to + 85°C
Storage Temp - 40 to + 85°C
Humidity 5% to 90% RH
Environmental RoHS3, REACH
Compliance PICMG COM Express R2.1, Type 6
MECHANICAL Dimensions 125x95mm (LxW) - COM Express Basic

§: Designed to Meet

SOFTWARE OS Eurotech Everyware Linux,(Professional Services: Windows 10 IoT Enterprise, Other Linux and RTOS)
IoT Framework Everyware Software Framework (Java/OSGi)
