ReliaCELL 10-20

Ruggedized Cellular Adapter - 2G/3G/LTE and GPS

The ReliaCELL 10-20 is a rugged cellular adapter easily mountable to flat surfaces, providing 2G, 3G and LTE cellular connectivity for new and already existing projects of any size.

Download datasheet download

Seleziona un formato

A4 letter

Caratteristiche

Global 2G/3G/LTE Cellular - The ReliaCELL 10-20 is the ready-to-go solution to provide cellular connectivity for new and already existing projects of any size
Easy Cellular Technology Migration - Mix and match any ReliaCELL 10-20 model: 2G/3G/LTE variants share the same design allowing plug-in migration between cellular technologies
Certified and Carrier Approved - Instantly add at no extra cost cellular certifications and carrier approvals to any system

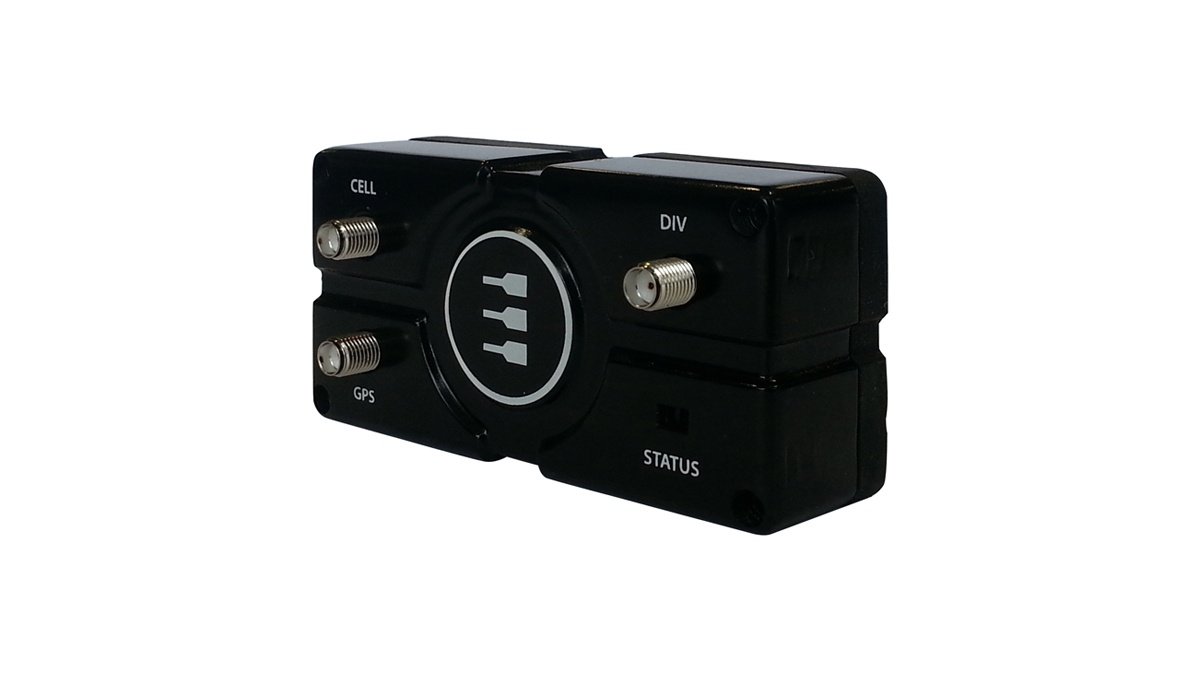

Rugged and Compact - Ideally suited for harsh environments with an impact-resistant and sealed IP67 enclosure
Easy Installation - Ready for deployment with standard Linux and Windows software drivers, and compatible with any device with a USB 2.0 interface
ESF Ready - Natively supported by Everyware Software Framework (ESF), the Eurotech OSGi middleware for IoT Edge Gateways

Descrizione

The ReliaCELL 10-20 is a pre-certified, rugged cellular adapter that is easily mountable to flat surfaces. Deployable for products sold globally, this device modularizes the cellular component of embedded product development to allow it to be added to any system without incurring additional cellular certifications costs.
With its sealed and flexible design, the ReliaCELL 10-20 improves Time-to-Market and costs associated with the implementation of a cellular solution. It becomes an easy addition to existing or new applications with a simple USB 2.0 connection and SMA connectors for antennas.
The ReliaCELL 10-20 is offered in several cellular technologies, including the latest 4G LTE categories, providing the flexibility to upgrade any IoT application as the requirements evolve from 2G to 3G to 4G. It is possible to simply switch from a 3G to a 4G ReliaCELL 10-20 solution without changing the key components of the appliance and incurring significant hardware replacement costs.
The ReliaCELL 10-20 is supported by Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT Edge Gateways. Distributed and supported by Eurotech, ESF adds advanced security, diagnostics, provisioning and remote access. It supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration.

Ordering Code: RECELL-10-20-XX
XX -20 -25, -26 -30, -32 -34(GPS), -35(no GPS), -36, -37 -42 -43 -44
CELLULAR Technology 2G Quad Band GPRS 3G Dual Band CDMA 1xRTT 3G Dual Band EV-DO Rev.A 3G Penta Band HSPA+ 4G LTE Cat 3 (UMTS Fallback) 4G LTE Cat 4 (UMTS/GSM Fallback)
Upload 16-24Kbps Up to 153Kbps Up to 1.8Mbps Up to 5.76Mbps Up to 50Mbps
Download 32-4 Kbps Up to 153Kbps Up to 3.1Mbps Up to 21Mbps Up to 100Mbps Up to 150Mbps
Bands/Frequencies GSM/GPRS: Band 2,3,5,8 800/1900MHz UMTS: Bands 1,2,5,6,8,10; GSM/GPRS/EDGE: Bands 2,3,5,8 LTE: Bands 2,4,5,17; UMTS: Bands 2,5 LTE: Bands 2,4,5,12,13; UMTS: Bands 2,5 LTE: Bands 1,3,7,8,20; UMTS: Bands 1,8; GSM: Bands 3,8
GNSS Constellation GPS, Galileo, GLONASS No GPS, Galileo, GLONASS, BeiDou No
Accuracy 1.5 meters No 3 meters 0.4 meters No
Tracking Sens -162dBm No -166dBm -161dBm No
Time to First Fix (TIFF) 1 sec hot / 35 sec cold No 1.8 sec hot / 30 sec warm / 42 sec cold No
Data Output NMEA, RTCM No NMEA 0183 No
ENVIRONMENT Operating Temp - 40 to +85°C
APPROVALS Regulatory CE FCC Part 15 B -34: CE, FCC Part 15 B, ISED, PTCRB, MX regulatory | -35: CE, FCC Part 15 B, ISED, PTCRB | -36: KR Regulatory | -37: JP Regulatory CE, FCC Part 15 B, PTCRB FCC Part 15 B, PTCRB CE
Safety UL 60950-1/CSA-22.2 UL 60950-1 -34/-36/-37: UL 60950-1/CSA-22.2, IEC-60950-2 | -35: UL 60950-1/CSA-22.2 UL 60950-1
Shock and Vibration SAE/J1455
Environmental RoHS2, REACH
Market EU US -34/-35: US,CA,EU | -36: KR | -37: JP US EU
Carrier Any -25: Verizon | -26: Sprint -34/-35: AT&T, T-Mobile, Bell, Rogers AT&T AT&T, Verizon Any

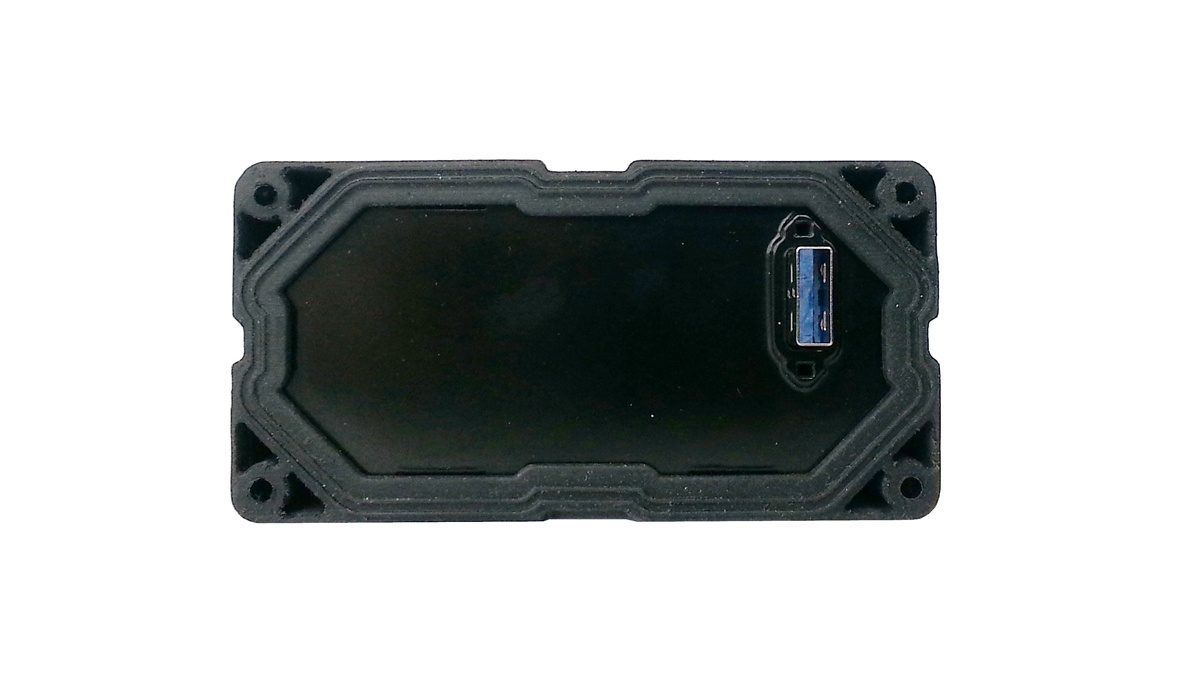

INTERFACES USB 1x USB 2.0 Type A Compatible for Cellular Only
Dual SIM Yes N/A Yes

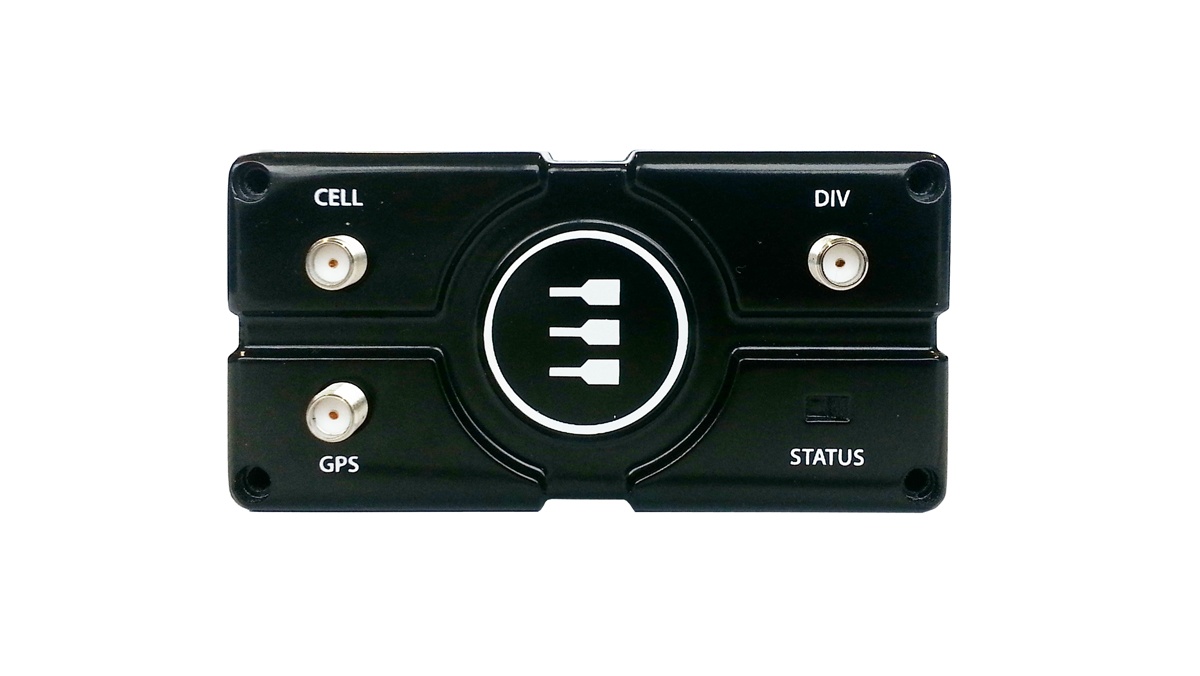

ANTENNAS Cellular SMA (Main & Diversity, where applicable)
GPS SMA (Optional - not on all modules)
POWER Input 5VDC@500mA Typical
PHYSICAL Enclosure Black Polycarbonate Gray Polycarbonate
Ingress IP67
Mounting 4x M2.5 screws, metric
