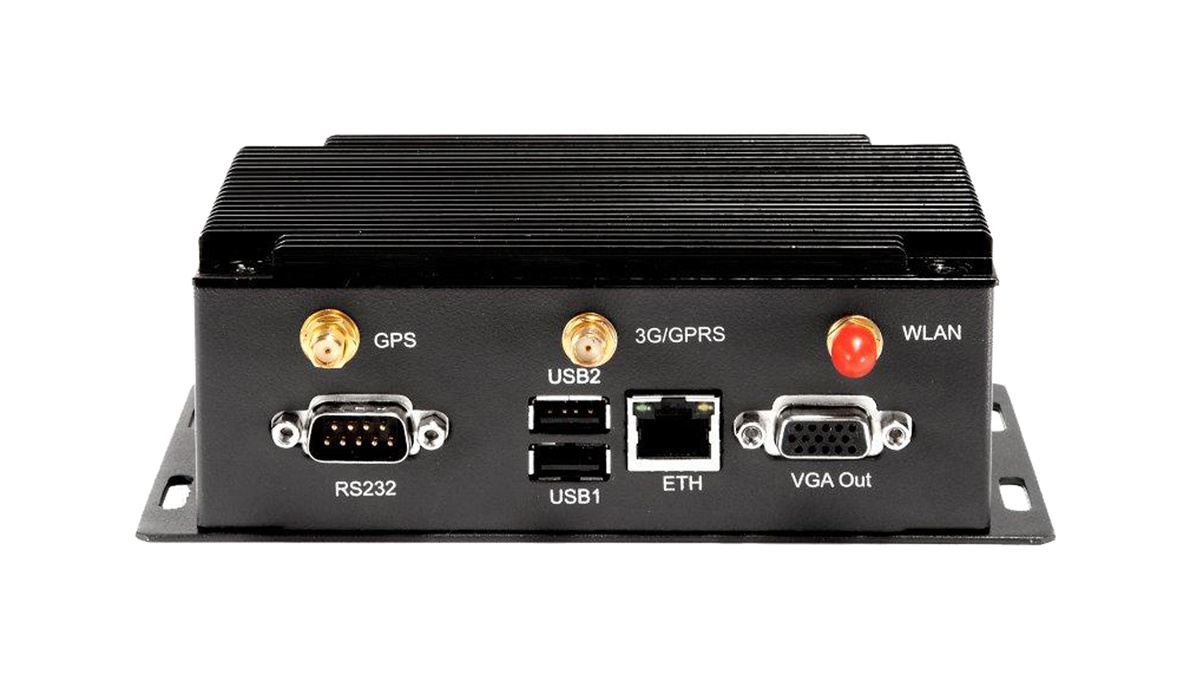

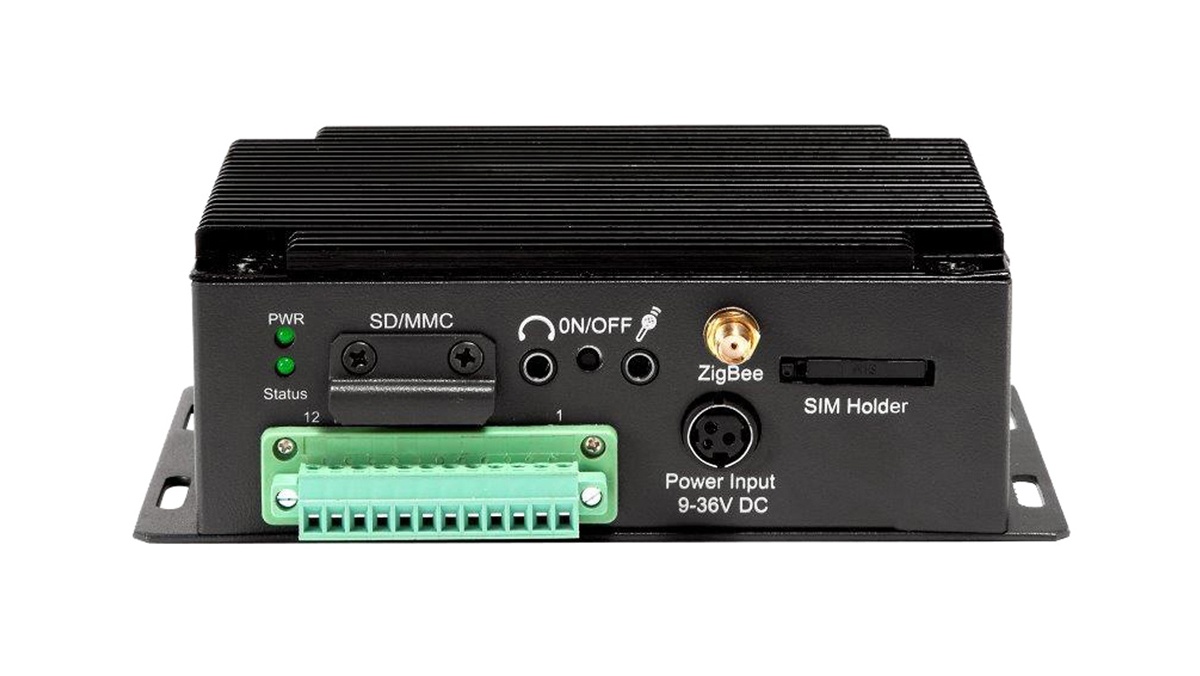

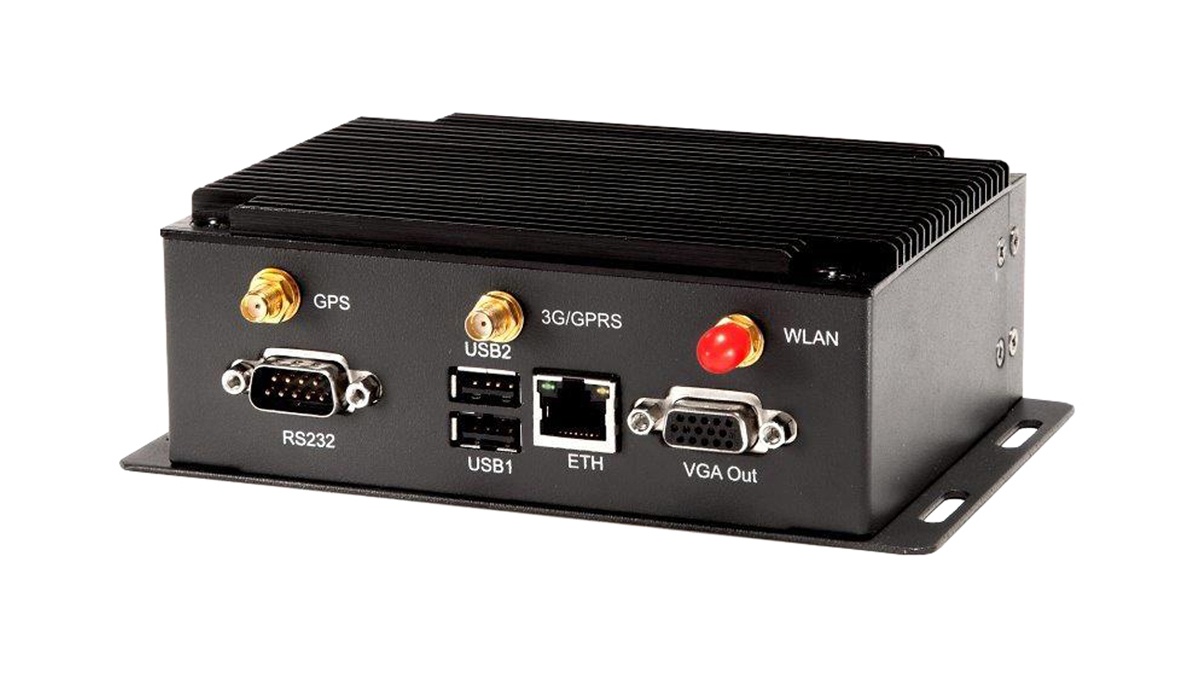

ReliaGATE 20-11

Multi-service IoT Edge Gateway - Intel Atom, Integrated 3G

The ReliaGATE 20-11 is a ready-to-deploy industrial grade Multi-service IoT Edge Gateway that enables communications, computation power, simplified application deployment and IoT platform integration. (NOT RECOMMENDED FOR NEW DESIGNS)

Download datasheet download

Seleziona un formato

A4 letter

Caratteristiche

Connected - With integrated support for Cellular, Wi-Fi, GPS, and 802.15.4/Zigbee, the ReliaGATE 20-11 provides a powerful combination of interfaces for a broad range of communication connectivity applications.
Truly Industrial - Extended temperature operation and protected power supply give industrial strength to the ReliaGATE 20-11.
IoT Ready - Ideally suited for IoT applications to connect sensors, actuators and devices to the business enterprise.
Ready to Deploy - Includes a powerful network routing software application that provides simple web based configuration tool to deploy for IoT and network applications.
Open Platform - Provides a Java/OSGi gateway middleware, to free the developer from proprietary solutions
Cloud Ready - Enjoy the benefits of the Everyware Cloud (EC) end-to-end solution by collecting, controlling, transporting, and analyzing data from the field, regardless of how big your domain is; whether it is a building, a campus, a city, a country or the world.

Descrizione

The ReliaGATE 20-11 is a ready-to-deploy industrial grade Multi-service IoT Edge Gateway that enables communications, computation power, simplified application deployment and IoT platform integration.
The ReliaGATE 20-11 provides a flexible communication architecture that includes a 2G/3G cellular, Wi-Fi, 802.15.4/Zigbee and GPS interfaces. It offers connectivity to a wide range of sensors and edge devices and makes it easy to deliver the data to business applications. The ReliaGATE 20-11 also includes interfaces for wired connectivity such as Gigabit Ethernet, up to two serial ports and two USB ports.
The ReliaGATE 20-11 is simple to manage and delivers out-of-the-box connectivity and intuitive configuration of the routing parameters thanks to a web GUI and over-the-air options.
The ReliaGATE 20-11 is Everyware Software Framework (ESF) ready. ESF is a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/ OSGi middleware for IoT gateways.
Distributed and supported by Eurotech, ESF adds advanced security, diagnostics, provisioning and remote access. It supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration.
ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.

Specifications
PROCESSOR CPU Atom E620 (T) 600MHz – E640(T) 1GHz – E660(T) 1.3GHz – E680(T) 1.6GHz
MEMORY RAM 512MB 800MHz DDR (up to 2GB Optional)
STORAGE SATA 8GB Half SATA SSD (up to 256GB Optional) or SD/MMC Extended Memory
I/O INTERFACES Ethernet 1x 10/100/1000Mbps - RJ45
USB 2x Host 2.0 - Type A
Serial 1x RS-232/422/485 – 1x RS-232/485
CAN 1x CAN bus
Digital I/O 6x GPIO and Alarm Buzzer
Video 1x VGA – 1x LVDS (Optional Internal)
Audio 1x Headphone, 1 x MIC
RADIO INTERFACES Cellular Internal UMTS/HDPA+ or CDMA/EvDO Modem
GPS Yes, Integrated
Wi-Fi a/b/g/n/- Access Point & Client
802.15.4 / Zigbee Factory Option
OTHER LEDs 1x Power, 3x miniPCIe Slot, 2x Programmable (Dual Color Green/Amber)
Buttons 1x Reset, 1x Programmable
POWER Input 9 - 36VDC (Nominal 12 or 24VDC)
Consumption 6W (Pulse 8W), Sleep 2W (without 3G, GPS, Zigbee, WLAN)
ENVIRONMENT Operating Temp - 20 to +70°C (Option: - 40 to +80°C)
Storage Temp - 40 to +85°C
Humidity 5-95% RH @25-35°C Non-condensing
CERTIFICATIONS Regulatory CE, FCC Class A, ISED
Safety UL 60950 Carrier Approved
Environmental RoHS2, REACH
Wi-Fi / BT Radio CE, FCC Class A, ISED
Cellular Radio Verizon
MECHANICAL Dimensions 5.44”x4”x2” / 138x102x52mm (Box) – With Installed Brackets: 6.3”x4”x2” / 160x102x52mm
SOFTWARE OS Linux and Windows Support
Routing Static Routes, DHCP, DNS Client, Firewalling, SECURITY AES, 3DES, SSH, Ipsec, NAT (Network Address Translation), Terminal Server & Client, Port Forwarding
