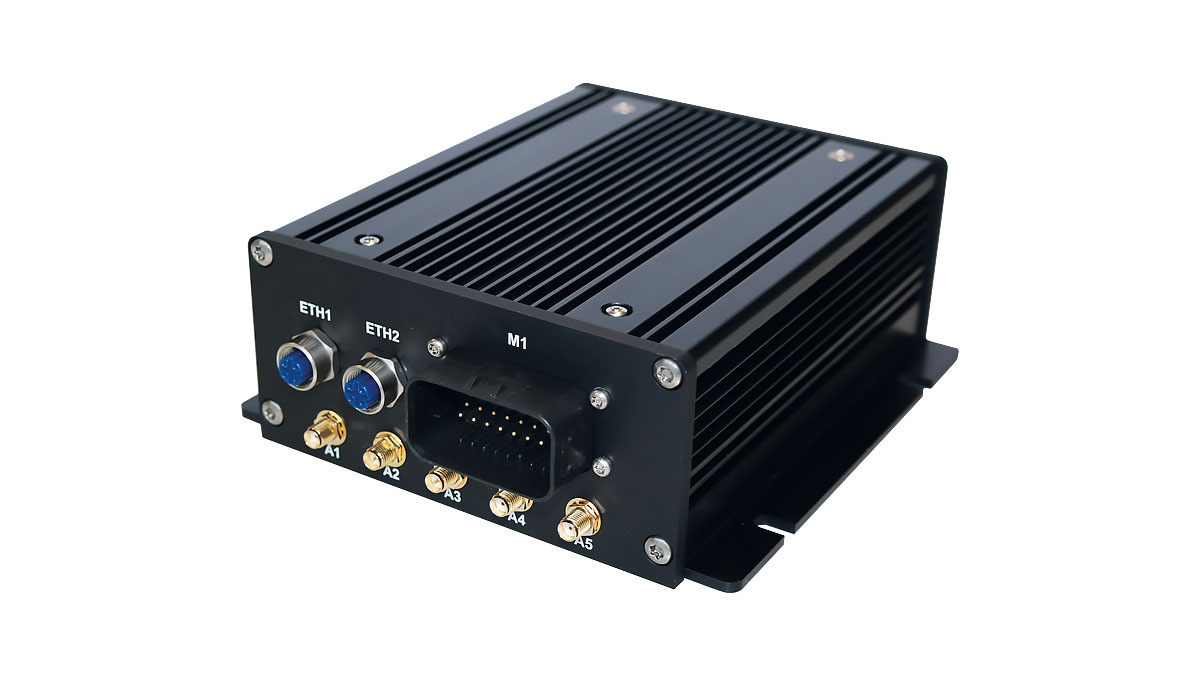

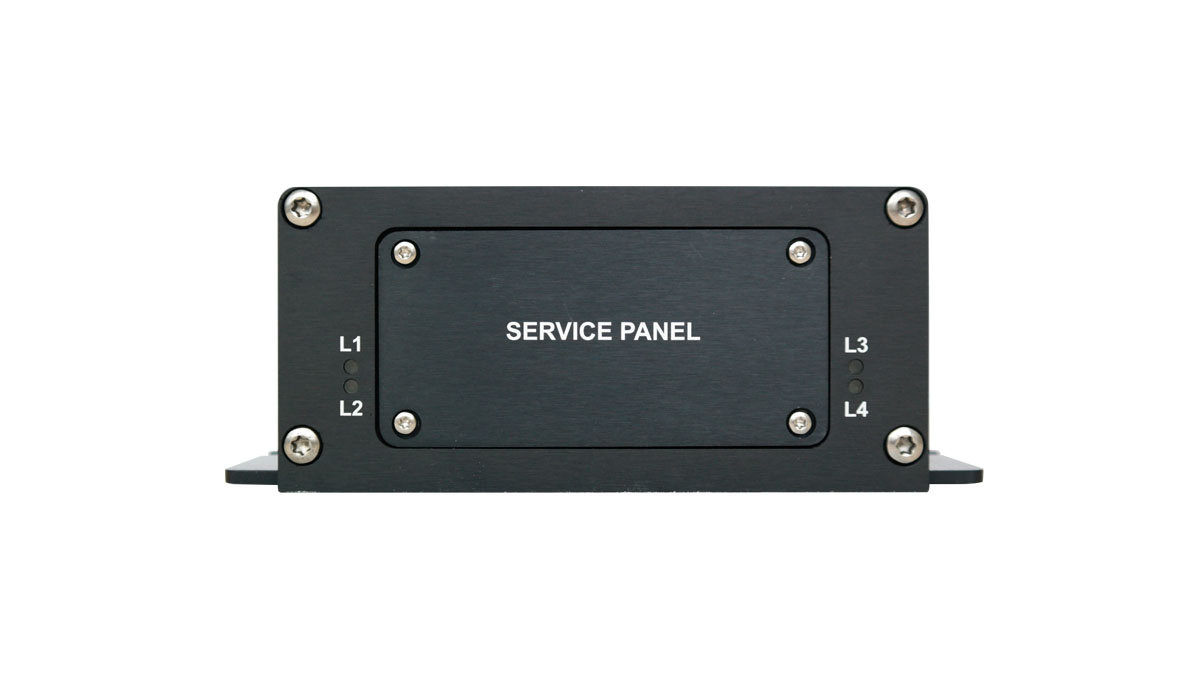

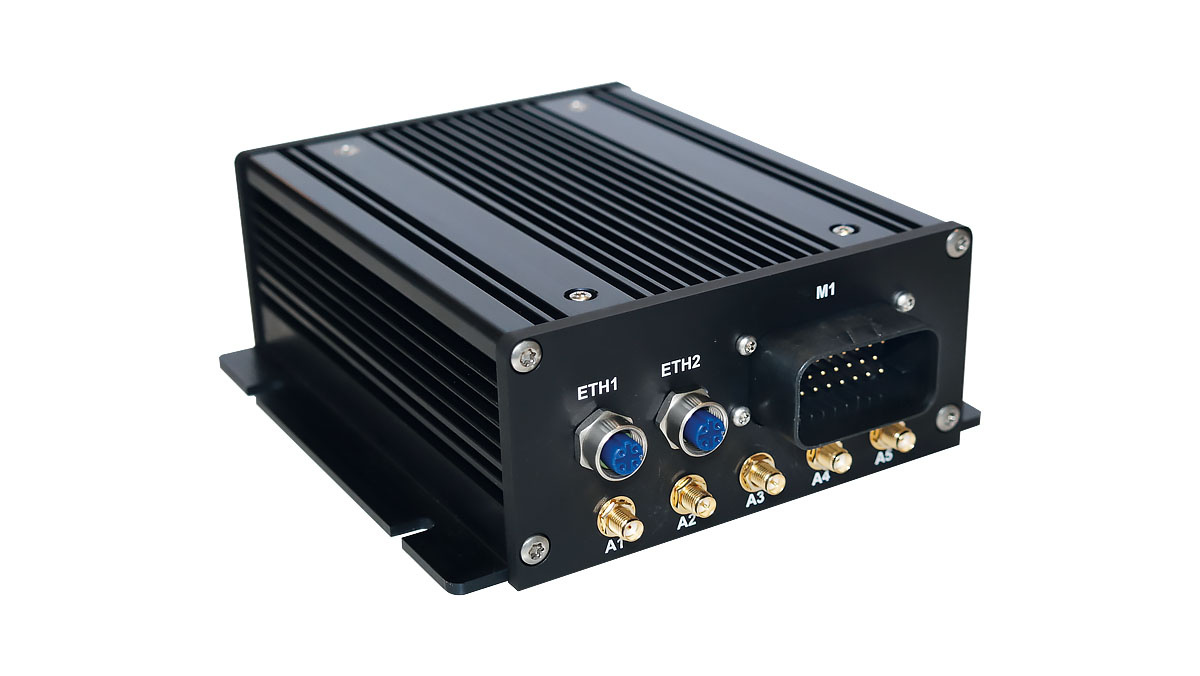

DynaGATE 10-06
Automotive Edge Computer
- LTE Cat 1 and IP67
The DynaGATE 10-06 is an Edge Computer that has been designed to deliver LTE connectivity with 2G/3G fallback to automotive and rugged applications.
Download datasheet
Seleziona un formato
Caratteristiche
Automotive Grade - E-Mark and SAE/J1455 certifications, GPS with Dead Reckoning, 6-32V power supply with ignition sense, surge, noise, reverse polarity, overvoltage and short protection
Internal LTE Cat 1 (NA, EU, JP) - Carrier certified LTE Cat 1 cellular modem with European, North American and Japanese variants, ready for immediate deployment
Rugged - IP67 ingress protection with rugged connectors, wide operating temperature range and a sturdy metal enclosure
Internal UPS - Includes a rechargeable internal 2000mA/h UPS to provide up to 5 minutes of operation and safe shutdown
ARM Powered - Powered by NXP i.MX 6UltraLite CPU to deliver performance and power efficiency
Customizable - Personalization and full customization options are available, ranging from branding (“skins” and color) to deep HW/SW configurations
Descrizione
The DynaGATE 10-06 is a Multi-service IoT Edge Gateway that has been designed to deliver LTE connectivity with 2/3G fallback to automotive and rugged applications.
Based on the NXP i.MX 6UltraLite Cortex-A7 processor family, with 512MB of RAM, 4GB of eMMC and a user-accessible microSD slot, the DynaGATE 10-06 is a low power gateway suitable for demanding use cases: it supports a 6 to 36V power supply with protections and vehicle ignition sense, two protected RS-232/RS-485 serial ports, two CAN bus interfaces, one noise and surge protected USB port, and two protected digital interfaces.
The DynaGATE 10-06 features a wide range of connectivity capabilities: it integrates an internal LTE Cat 1 cellular modem with dual Micro-SIM support, Wi-Fi, Bluetooth Low Energy, a dedicated GPS with Dead Reckoning and two Fast Ethernet ports.
A rechargeable internal 2000mA/h battery provides uninterrupted operation for up to 5 minutes in the event of power failure and permits a safe shutdown.

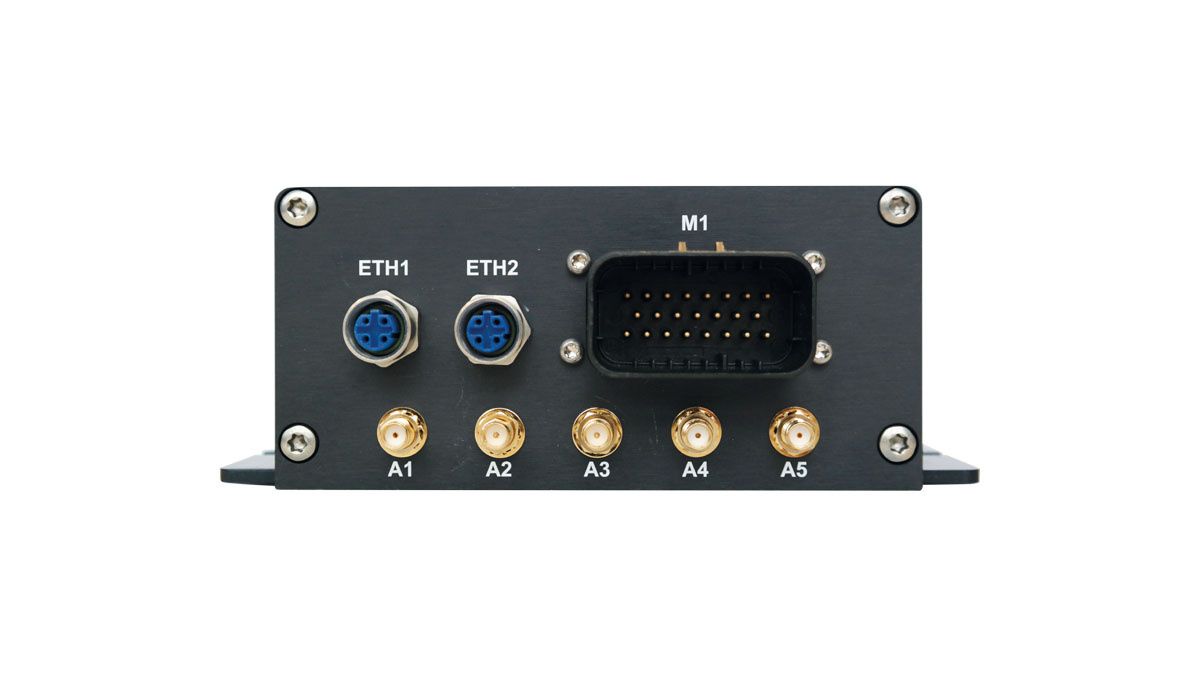

The unit complies with popular automotive certifications, such as E-Mark, and optionally SAE/J1455 ensuring reliable operation even in the harshest conditions with IP67 ingress protection, wide operating temperature range and rugged connectors (AMPSEAL and M12).
| Ordering code: DYGATE-10-06-XX | ||||||||
|---|---|---|---|---|---|---|---|---|
| XX | - 21 | - 22 | - 23 | - 24 | - 25 | - 26 | - 27 | |
| PROCESSOR | CPU | i.MX 6Ultralite, 696MHz, Single Core | ||||||
| MEMORY | RAM | 512MB DDR3L | ||||||
| STORAGE | Embedded | 4GB eMMC | ||||||
| Other | 1x microSD Slot (User Accessible) | |||||||
| I/O INTERFACES | Ethernet | 2x 10/100Mbps on M12 | ||||||
| USB | 1x Host 2.0 (Noise and Surge Protected) - Type A (User Accessible), 1x Host 2.0 OTG (Noise and Surge Protected) - Micro AB (User Accessible) | |||||||
| Serial | 1x RS-232, 1x RS-485 (Three-wire, Non-isolated, Surge Protected, RS-485 Termination and Fail-safe Resistors) – 1x Serial Console TTL (User Accessible) | |||||||
| CAN 2.0B | 2x CAN bus (Non-isolated) | |||||||
| Digital I/O | 1x Ignition Key Input, Surge Protected, 1x Isolated Digital Input, 1x Isolated Digital Output, 1x Odometer Input, 1x Isolate Forward Input | |||||||
| RADIO INTERFACES | Cellular | No | LTE Cat 1 (NA) | LTE Cat 1 (NA) 3G Fallback | LTE Cat 1 (EU) 2G Fallback | LTE Cat 1 (JP) | ||
| GPS | No | 72 channels (GPS, Galileo, GLONASS, BeiDou), with Dead Reckoning | ||||||
| Wi-Fi / BLE | No | 802.11a/b/g/n, BLE 4.2 | ||||||
| Antennas (External) | No | 1x SMA GNSS | 1x SMA GNSS, 2x RP-SMA Wi-Fi/BT | 1x SMA GNSS, 2x SMA Cellular, 2x RP-SMA Wi-Fi/BT | ||||
| OTHER | UPS | No | Internal Battery: 2000mA/h, Ni-MH (Factory Option: Li-ion) | |||||
| RTC | Yes (Supercap) | |||||||
| Watchdog | Yes - Dedicated Chip | |||||||
| EEPROM | 256kbit | |||||||
| TPM | TPM 2.0 | |||||||
| Sensors | Temperature, Accelerometer | |||||||
| LEDs | 1x Power, 1x Cellular, 2x Programmable | |||||||
| SIM Slot | No | 2x Micro-SIM (User Accessible) | ||||||
| POWER | Input | 6-36VDC, with Surge, Noise, Reverse Polarity, Overvoltage and Short Protection, Vehicle Ignition Sense – Factory Option: Load Dump | ||||||
| ENVIRONMENT | Operating Temp | - 40 to +85 °C | ||||||
| Storage Temp | - 40 to +85 °C | |||||||
| CERTIFICATIONS | Regulatory | FCC, ISED, CE, JATE/TELEC | FCC, ISED | CE | JATE/TELEC | |||
| Safety | EN 62368, UL 60950 (§) | |||||||
| Vertical | E-Mark, SAE/J1455 (*) | |||||||
| Environmental | RoHS3, REACH | |||||||
| Wi-Fi / BT Radio | No | FCC, ISED, CE (RED) | FCC, ISED | CE (RED) | JATE/TELEC | |||
| Cellular Radio | No | FCC, ISED, PTCRB, Verizon | FCC, ISED, PTCRB, AT&T | CE (RED) | JATE/TELEC | |||
| Ingress | IP67 | |||||||
| MECHANICAL | Enclosure | Aluminum | ||||||
| Dimensions | 178x183x62mm (WxDxH) - With Mounting Flange and Connectors | |||||||
Software
| SOFTWARE | OS | Eurotech Everyware Linux | ||||||
(§) UL, NRTL listing Factory Option.
* Factory Option
Download
DynaGATE 10-06 Datasheet
PDF
Seleziona un formato
Highlights
- • Automotive Grade (E-Mark, SAE/J1455)
- • Internal LTE Cat 1 (NA, EU, JP)
- • Rugged
- • Internal UPS
- • ARM® Powered
- • Customizable
