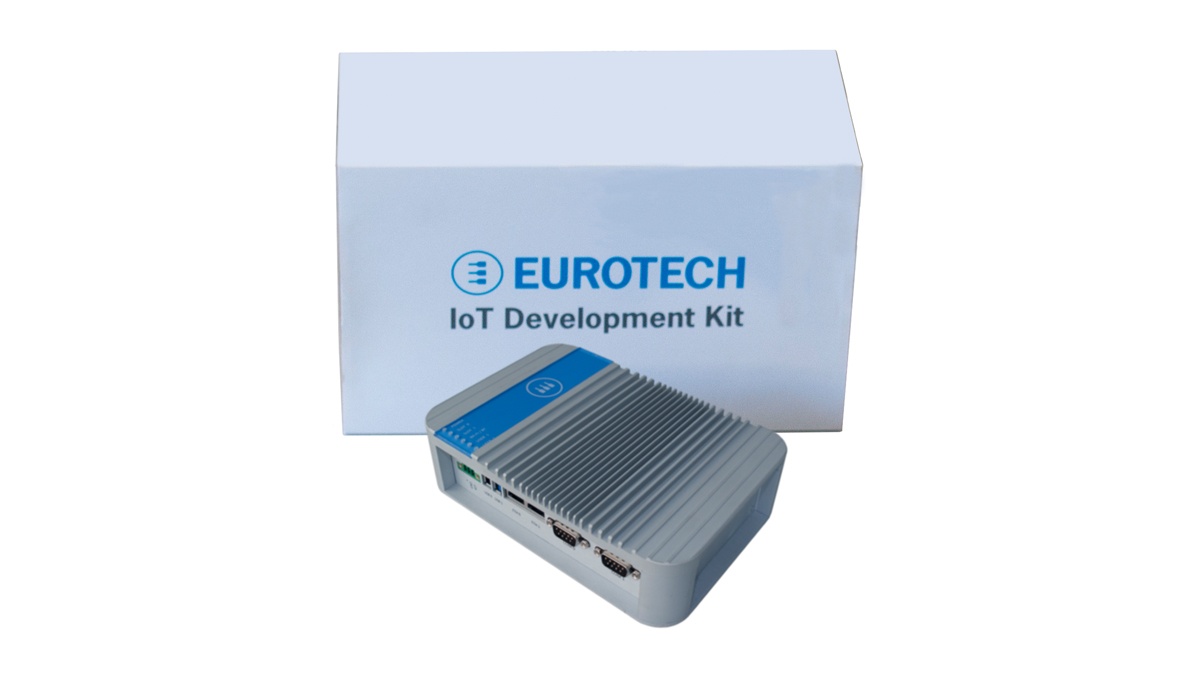

ReliaGATE 20-25 Development Kit

Multi-service IoT Edge Gateway - Intel Atom E3800

The ReliaGATE 20-25 Development Kit allows quick development and prototyping of IoT applications on an industrial grade platform.

Download datasheet download

Seleziona un formato

A4 letter

Caratteristiche

Ready to Plug - Contains all the hardware needed to get started, including one ReliaGATE 20-25 and a complete set of cables and accessories
Ready to Code - Features Everyware Software Framework (ESF), the Java/OSGi based-middleware for IoT Edge Gateways that accelerates gateway application development
Ready to Connect - Includes a free trial account for Everyware Cloud (EC), the Eurotech IoT Integration Platform for device connectivity, data collection, and remote device management
Ready to Deploy - Designed to comply with global certification requirements and to quickly move IoT applications solutions from prototype to global deployment

Descrizione

The ReliaGATE 20-25 Development Kit allows quick development and prototyping of IoT applications on an industrial grade platform which is precertified for global deployment. The kit targets all aspects of an IoT application from hardware interfacing, to development of on-board software and cloud connectivity.
The ReliaGATE 20-25 is a high-performance, globally certified, Multi-service IoT Edge Gateway for industrial and lightly rugged applications. It features up to four cores, soldered down ECC RAM and storage, extended operating temperature support, wide range power supply, isolated and protected I/O interfaces, Wi-Fi / Bluetooth and a range of cellular options.
The ReliaGATE 20-25 comes with Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/ OSGi middleware for IoT gateways. Distributed and supported by Eurotech, ESF adds advanced security, diagnostics, provisioning and remote access. It supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration.
ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.
The ReliaGATE 20-25 is Microsoft Azure certified and can also be integrated with 3rd party cloud services such as Amazon Web Services IoT.

Ordering code: REGTW-D2025-B00xy
HARDWARE CONFIGURATION x3 x5
PROCESSOR CPU E3827, 1.75GHz, Dual Core E3845, 1.91GHz, Quad Core
MEMORY RAM 2GB, 1333MHz (DDR3L-ECC) 4GB, 1333MHz (DDR3L-ECC)
STORAGE Embedded 8GB eMMC
SATA 1x SATA 2.0 (Internal Connector) – 1x 32GB mSATA (Included on -4y Variants)
Other 1x microSD Slot (User Accessible)
I/O INTERFACES Ethernet 2x 10/100/1000Mbps - RJ45
USB 1x Host 3.0, 1x Host 2.0, 1x ReliaCELL (Noise and Surge Protected) - Type A
Serial 2x RS-232/RS-422/RS-485 (9 Wires, Noise and Surge Protected) - DB9, 1x Serial Console TTL
CAN 2.0B 2x CAN Bus With 5V (100mA) Power Out
Digital I/O 3x Digital Input 7 - 35VDC, 1KV Optoisolated – 3x Digital Output (40VDC), 20mA Sink
Video 1x Mini DisplayPort (Service Panel)
EXPANSION miniPCIe Slots Up to 3x Full/Half Size Mini PCIe (PCIe/USB/mSATA)
RADIO INTERFACES Cellular Eurotech ReliaCELL 10-20 Option (Not Included)
GPS Eurotech ReliaCELL 10-20 Option (Not Included)
Wi-Fi / BT b/g/n, BLE
OTHER Sensors Temperature, Accelerometer
LEDs 1x Power, 3x miniPCIe Slot, 2x Programmable (Dual Color Green/Amber)
Buttons 1x Reset, 1x Programmable
POWER Input 7 - 35VDC (Nominal 24VDC), Surge and Sag Protection, Vehicle Ignition Input
Consumption 10W Idle 12W Idle

For more specifications and certifications, please check the ReliaGATE 20-25 datasheet.

Ordering code: REGTW-D2025-B00xy
SOFTWARE CONFIGURATION 2y 3y 4y
SOFTWARE OS Eurotech Everyware Linux Windows 10 IoT Enterprise
SDK Yocto-based Eclipse Tooling, Azul Java -
IoT Framework - Everyware Software Framework (Java -
Ordering code: REGTW-D2025-B00xy
INCLUDED ACCESSORIES 3y 4y
I/O INTERFACES Ethernet 1x RJ45 Male Cable
Serial 2x Serial Cable (RS-232/RS-422/RS-485 - 9 Wires - RS-232 Null Modem Default Pinout) with DB9 Screw Terminal Female Connector (for Fast Pinout Switching: RS-232/RS-422/RS-485) – 1x USB to Serial TTL Cable Converter (Debug Port)
CAN 2.0B 1x CAN Bus Cable with DB9 Male Connector wired on a 16 P Terminal Block -
Digital I/O 1x Digital I/O Cable (3x Digital IN + 3x Digital OUT) wired on a 16 P Terminal Block -
RADIO Wi-Fi / BT 1x Dipole Wi-Fi / Bluetooth (2.4/5GHz) Antenna with RP-SMA Connector
OTHER Adapter 1x DB9 Male to Male Gender Changer, 1x DB9 Female to Female Gender Changer, 1x Breakaway Male to Male Pin Strip (40P) - Gender Changer for Digital I/O Cable
Documentation 1x Quick Start Guide, 1x Everyware Cloud Setup Guide -
POWER AC-DC PSU 1x 24VDC (40W) Power Supply Unit with Terminal Block
Blades 3x Power Blades for Wall Mount Adapter (US, JP, EU, UK)
