EDCK 4001

Everyware Cloud Development Kit

The EDCK 4001 is a Development Kit for Everyware Cloud that provides a learning enviroment and a testbed for Industrial IoT applications.

Download datasheet download

Seleziona un formato

A4 letter

Caratteristiche

Production Grade - Leverages production-grade hardware, software and services to provide a familiar development environment to Embedded, IT and OT developers
Hands-on Learning - Shows every building block of a sophisticated industrial IoT application, how to create a bidirectional connection with the Cloud and how to do remote management
Preinstalled IoT Application - Provides a real-world example where a IoT Edge Gateway and a PLC are used to create a link between the Cloud and the Field
Simulation of Industrial Use Cases - Includes support for ModBus and a PLC, it is designed to be expandable beyond the included example, and to interface with other user devices
Ready to Go - Packages HW, SW, a Cloud license and accessories to get started immediately

Descrizione

The EDCK 4001 is a Development Kit for Everyware Cloud that provides a learning environment and a testbed for industrial IoT applications; it targets professional developers with an Embedded, IT or OT background.

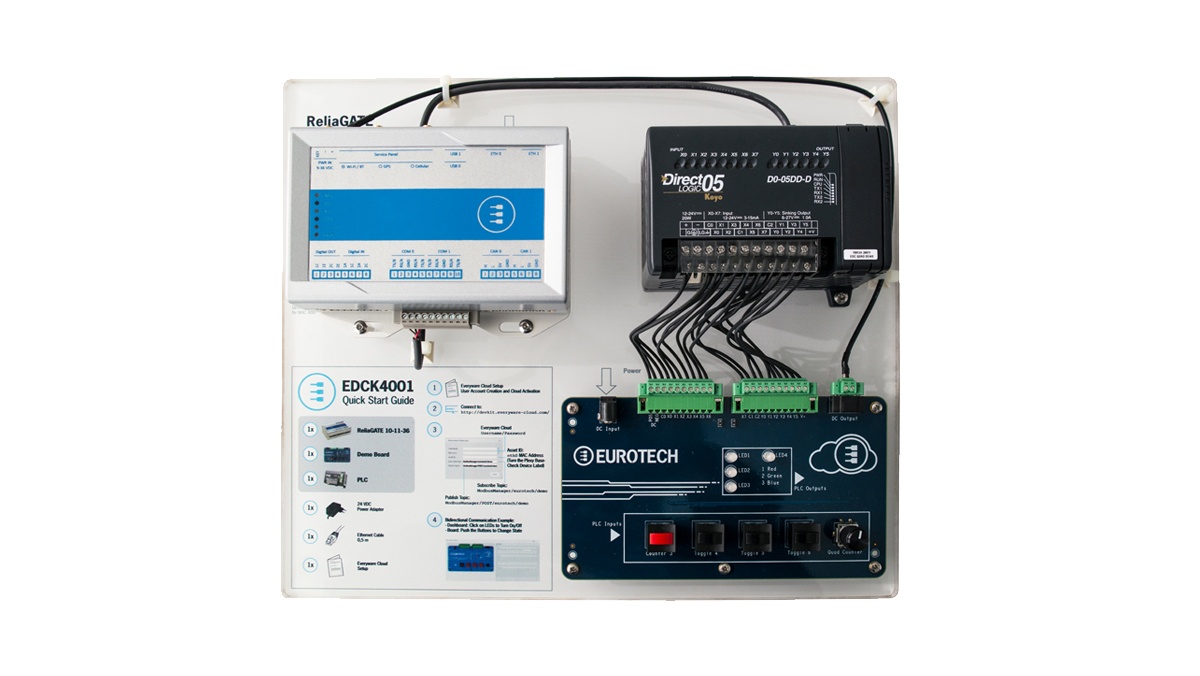

Creating an End-to-End solution typically requires bridging Field devices with Cloud-based services; the EDCK 4001 replicates a complete scenario, in which the field devices are simulated by a panel that provides some data sources and receivers (buttons, LEDs, etc). The bidirectional data and command flow between the Cloud and the Field is managed by a Gateway, which is connected to a PLC that controls the panel.
The preinstalled IoT application shows how to implement a complete solution, including remote device management and OTA package deployment. The EDCK 4001 includes a ReliaGATE 10-11, a Eurotech Multi-service IoT Edge Gateway for industrial applications based on the TI AM335X Cortex-A8 (Sitara) processor family, with 512MB of RAM, 4GB of eMMC and a user-accessible microSD slot.
The ReliaGATE 10-11 comes with a genuine Oracle Java SE Embedded 8 Virtual Machine and Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT Edge Gateways.
Distributed and supported by Eurotech, ESF adds advanced security, diagnostics, provisioning, remote access and full integration with Everyware Cloud (EC), Eurotech IoT Integration Platform.
A trial EC license is also included, providing advanced services like data retention and retrieval, analytics, dashboarding, VPN and device management, including OTA updating.
EDCK 4001 also includes a professional Reactive Blocks™ by Bitreactive trial license, a visual tool for developing reactive or event driven applications for IoT or other embedded systems.

Ordering code: REGATE-10-11-36-DK00
PROCESSOR CPU TI AM3352 800MHz, 1 Core
MEMORY RAM 512MB DDR3
STORAGE Embedded 4GB eMMC
Other 1x microSD Slot (User Accessible)
I/O INTERFACES Ethernet 2x 10/100Mbps - RJ45
USB 2x Host 2.0 (Noise and Surge Protected) - Type A
Serial 2x RS-232/RS-485 (Surge Protected, RS-485 Termination and Fail-safe Resistors) – 1x Serial Console TTL
CAN 2.0B 2x CAN bus With 5V (100mA) Power Out
Digital I/O 2x Digital Input 5V (TTL), 1KV Optoisolated – 2x Digital Output (40VDC), 30mA Sink
RADIO INTERFACES Cellular Optional Accessory: ReliaCELL 10-20
GPS Optional Accessory: ReliaCELL 10-20
Wi-Fi / BT b/g/n, BLE
OTHER LEDs 1x Power, 1x Cellular, 4x Programmable
Buttons 1x Reset, 1x Programmable
POWER Input 9-36VDC, with Transient Protection, Vehicle Ignition Sense

For more specifications and certifications, please check the ReliaGATE 10-11 datasheet.

Included Software
SOFTWARE OS Eurotech Everyware Linux
SDK Yocto-based Eclipse Tooling
IoT Framework Oracle Java SE Embedded Version 8 - Everyware Software Framework (Java/OSGi)
Trial Licenses
LICENSE Cloud Everyware Cloud Trial License
SDK Reactive Blocks by Bitreactive Trial License
Included Accessories
PLC PLC 1x DirectLOGIC DL05 PLC
DEMO BOARD Demo Board 1x Demo Board with: 1x Momentary Button, 3 ON/OFF Buttons, 3x LEDs, 1x RGB LED, 1x Quad Counter
I/O INTERFACES Ethernet 1x RJ45 Male Cable
Serial 1x RJ12 Male to Terminal Block 10p Serial Cable – 1x USB to Serial TTL Cable Converter (Debug Port)
RADIO Wi-Fi / BT 1x Dipole Wi-Fi / Bluetooth (2.4/5GHz) Antenna with RP-SMA Connector
OTHER Documentation 1x Reactive Blocks Setup Guide, 1x Everyware Cloud Setup Guide
POWER AC-DC PSU 1x 24VDC (24W) Power Supply Unit with Terminal Block
Blades 3x Power Blades for Wall Mount Adapter (US, JP, EU, UK)
MECHANICAL Mounting 1x Aluminum Wall Mount Bracket
