DynaCOR 50-35

Automotive HPEC Server - Dual 14-core Intel Xeon, Liquid Cooled

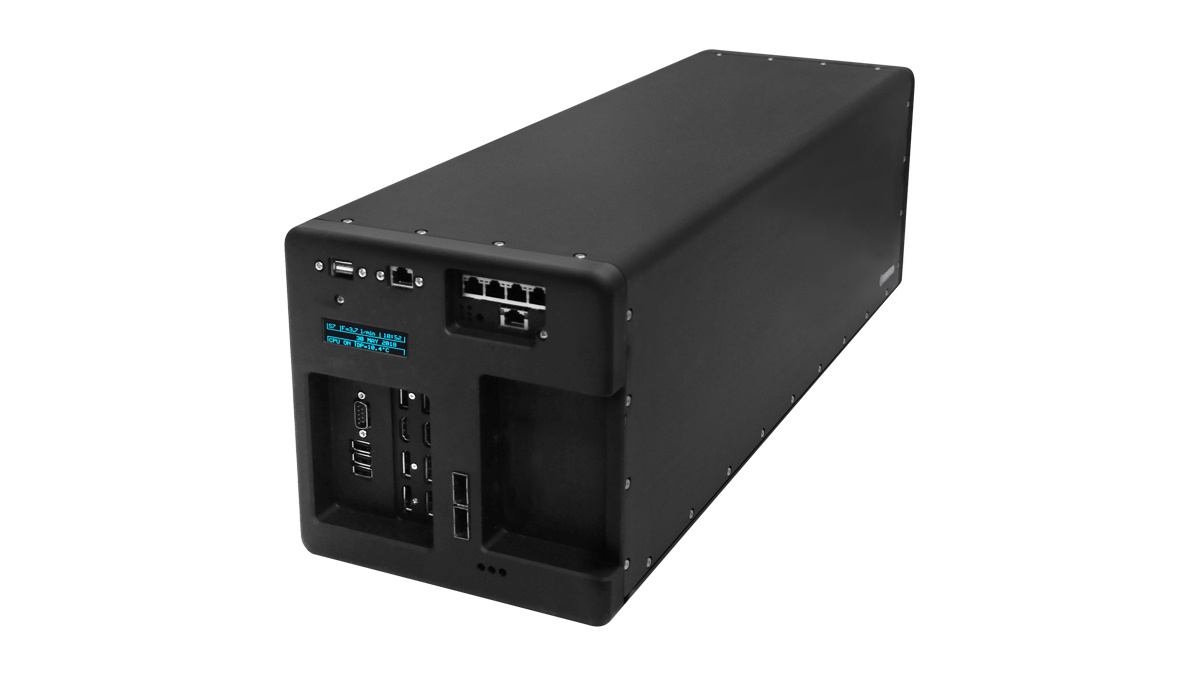

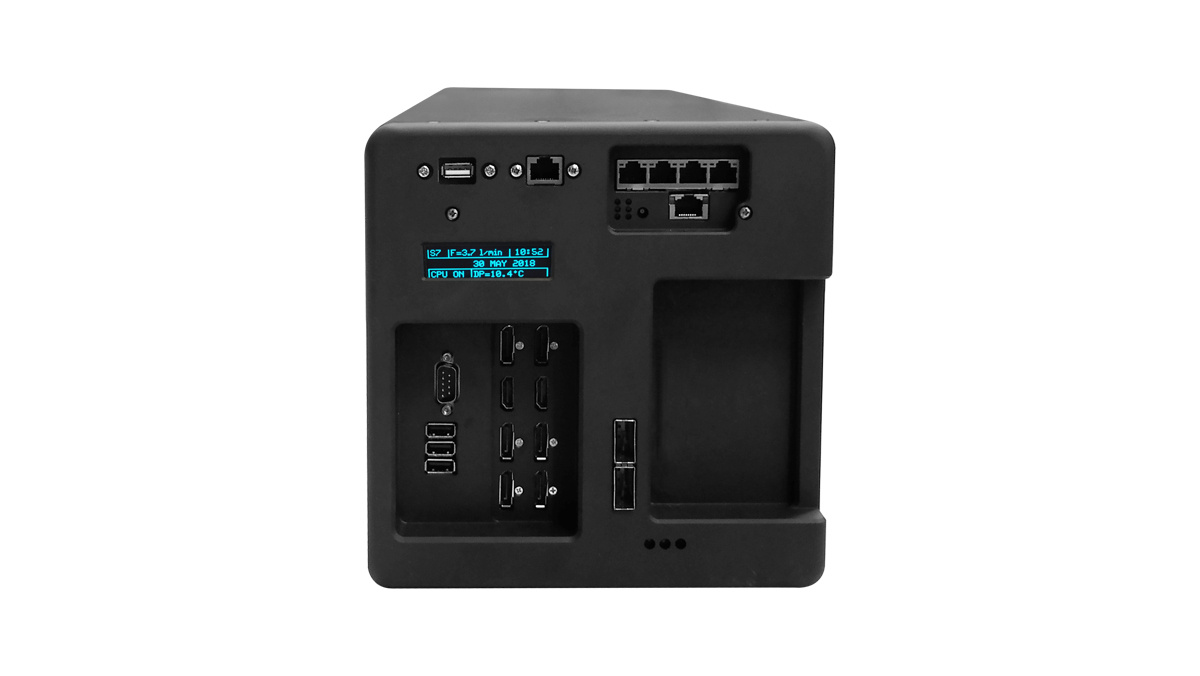

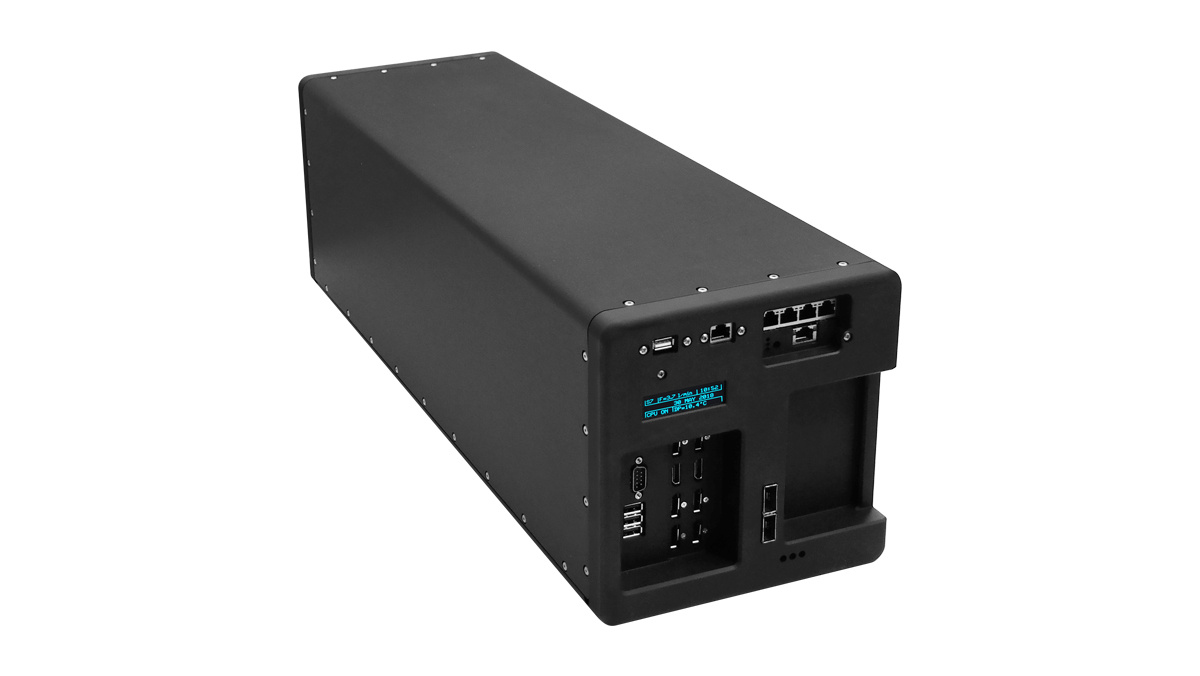

The DynaCOR 50-35 is a compact, liquid-cooled, HPEC cluster that can be customized with several PCIe expansion cards to fulfill specific use-cases. The system is designed for automotive and rugged applications, and it can feature two Intel Xeon E5-2600 CPUs with up to 14 cores and 2.60GHz clock speed.

Download datasheet download

Seleziona un formato

A4 letter


In-vehicle Deep Learning Enabler - In-vehicle supercomputing platform that allows both inference and training with TensorFlow, Caffe and other DL frameworks
Automotive Certified - E-Mark and Shock & Vibe certifications for reliable operation in Autonomous Driving and other rugged applications
In-vehicle HPEC Platform - The DynaCOR 50-35 is designed to substain massive workloads thanks to dual 14-cores Intel Xeon CPUs and multiple high-performance accelerators, networking cards and storage modules
Liquid Cooled - The extremely compact, fanless and ventless unit dissipates up to 1kW with an integrated direct exchange technology that interfaces the vehicle liquid cooling system
Professional Services - The modular design allows further customization through Eurotech Professional Services, including the integration of user selected accelerators, storage and networking modules


The DynaCOR 50-35 is a compact, liquid-cooled, HPEC cluster that can be customized with several PCIe expansion cards to fulfill specific use-cases. The system is designed for automotive and lightly rugged applications, and it can feature two Intel Xeon E5-2600 CPUs with up to 14 cores and 2.60GHz clock speed.
The DynaCOR 50-35 mounts 64GB of soldered-down RAM and it is highly configurable thanks to up to five expansion bays for additional GPUs, NVMe and networking modules. All these expansion modules can be fitted on an active midplane PCIe switch that provides up to 96 PCIe lanes (Gen. 3).
Pre-validated PCIe expansion cards include: NVIDIA GTX 1050/1070 Graphic Processing Unit, NVMe SSD Cards capable to provide multiple terabytes of storage, Network Interface Controller (NIC) cards that can enable multiple 1/10/40/56 Gigabit Ethernet interfaces. Other expansion modules can be fitted and supported by exploiting Eurotech Professional Services.

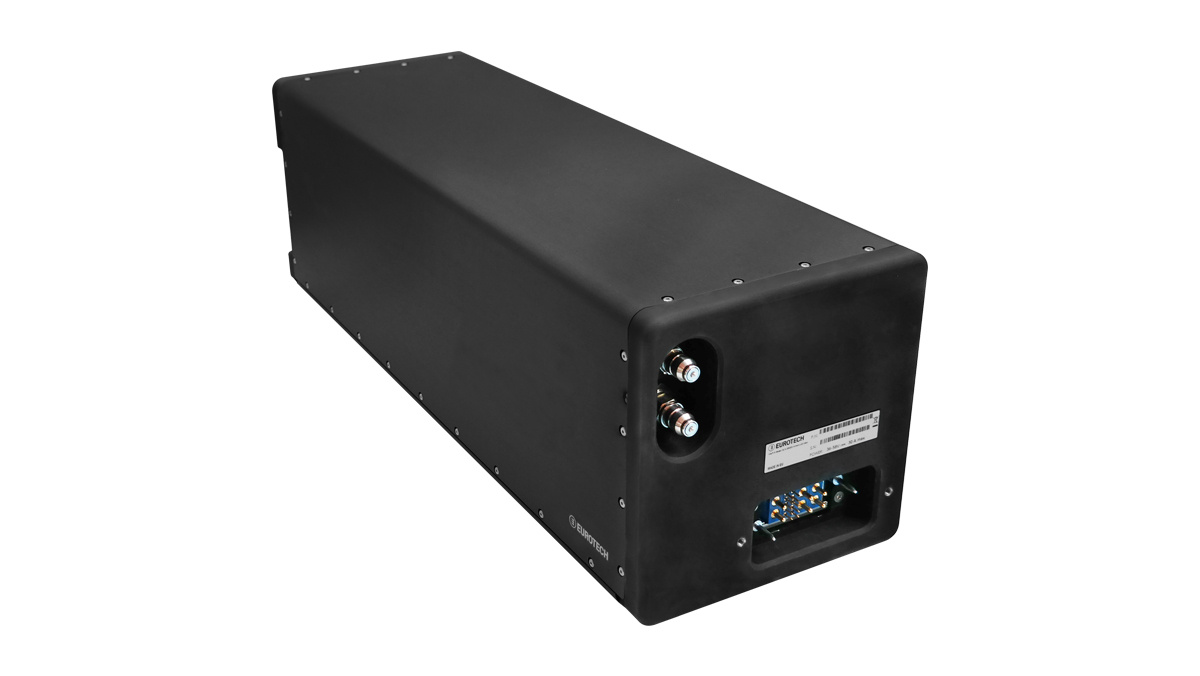

The DynaCOR 50-35 dissipates its power by means of an innovative hot liquid heating dissipation mechanism, able to manage several hundred Watts of system energy consumption. The liquid circulates inside the chassis inside metallic plates that are finely coupled with the expansion boards, providing efficient heating dissipation. The liquid can be delivered from the coolant distribution system of the vehicle through two quick-disconnect receptacles placed on the rear side of the system.
Professional Services are available for the DynaCOR 50-35, that range from design personalization and inclusion of new expansion modules, additional certifications, till complete system redesign and production.

Expansion Modules Specifications
CPU Module CPU Dual Xeon E5-2690v4 2.60GHz (3.50GHz), 14 Cores – Dual Xeon E5-2640v4 2.40GHz (3.40GHz), 10 Cores
RAM 64GB DDR4-ECC High Reliability Soldered-down
Ethernet 2x 10/100/1000Mbps (RJ45), 4x 10/100/1000Mbps (RJ45)
USB 3x USB 2.0 (100mA, Type A), 1x USB 2.0 (500mA, Type A)
Serial 1x Configurable Serial (RS-232 Default, DB9)
Consumption 270W (Dual CPU TDP)
GPU Model NVIDIA GeForce GTX 1070 Ti
I/O Interfaces 1x HDMI, 3x DisplayPort 1.4 – 7680x4320@60Hz Max Resolution
Consumption 180W Typ.
NVMe Type High Performance NVMe (8 Lanes PCIe Gen 3, High Endurance)
Capacity 7.68TB (Max 6100MB/s Sequential Read, Max 2200MB/s Sequential Write)
Consumption 25W Typ. (9W Idle)
40/56 GbE NIC I/O Interfaces Dual 40/56 GbE QSFP28 (QSFP+ Compatible)
Consumption 25W Max
GbE NIC I/O Interfaces 4x 10/100/1000Mbps - RJ45
Consumption 5W Typ.
Ordering code: DYCOR-50-35-XX
XX - 01 - 02 - 03 - 04 - 05 - 06
CPU Module Model Dual Intel Xeon E5-2640 Dual Intel Xeon E5-2690
GPU NVIDIA GeForce GTX 1070 Ti 1x 2x 1x 1x 2x 1x
NIC Dual 40/56 GbE 1x 1x 1x 1x 1x 1x
GbE 1x 1x 1x 1x 1x 1x
NVMe High Performance NVMe - - 1x - - 1x
Superset Specifications
EXP MODULES Format 5x Expansion Bays compatible with PCIe Gen 3 Expansion Cards – 1x PCIe Expansion slot (directly connected to CPU)
MIDPLANE PCIe Switch PCIe Switch Providing 96 PCIe Gen 3 Lanes
MANAGEMENT Supervisor Independent Controller Board for System Level Environment Management
BMC Baseboard Management Controller for Out-of-band Management (IPMI Tool Support)
I/O INTERFACES Display 1x Display OLED (Integrated)
OTHER LEDs 6x LED Indicators
POWER Input 36-58VDC (48VDC Nominal)
Consumption 1kW Max
ENVIRONMENT Operating Temp 0 to +50°C (Factory Option: Wider Ranges)
Storage Temp - 20 to +70°C (Without Liquid Coolant, Depending on Configuration)
MECHANICAL Dimensions 210 x 210 x 650 mm (H x W x D)
Weight < 20kg
Cooling Direct Hot Water Cooling (Car Cooling System or Independent Cooling Unit can be used)
