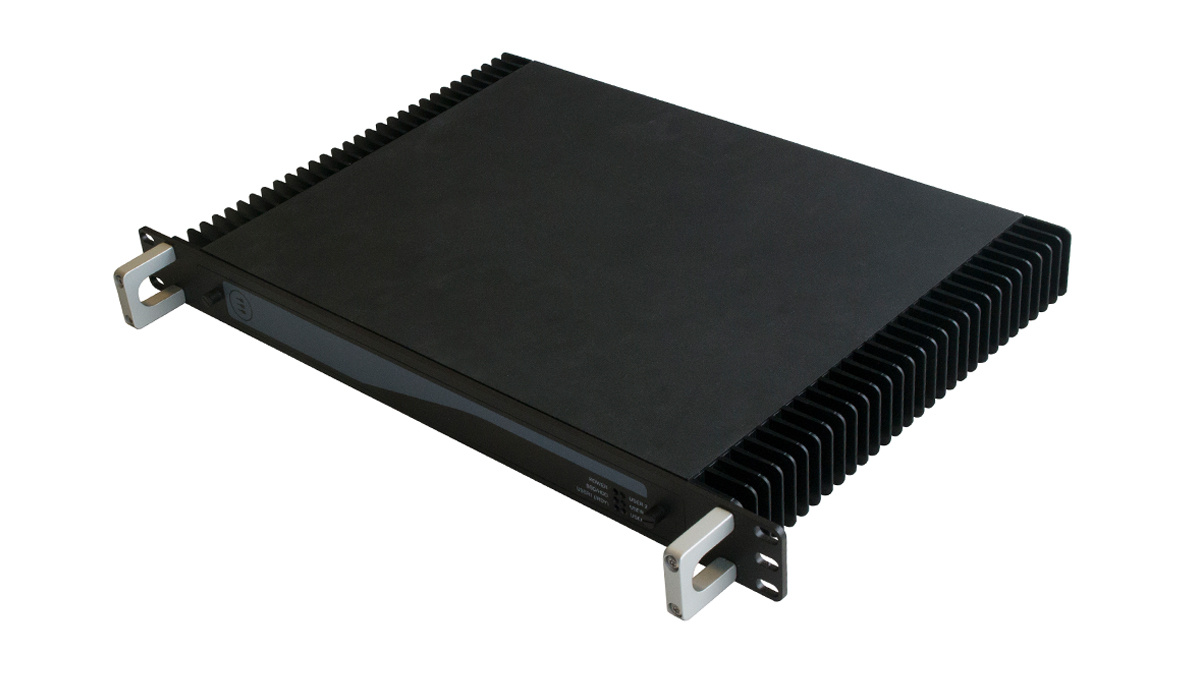

BoltCOR 30-17 Virtualization Edition

Rugged Hyperconverged Server - 1U Fanless Edge Server, Certified for VMware vSphere

The BoltCOR 30-17 Virtualization Edition (VE) is a VMware ESXi/vSphere certified version of the BoltCOR 30-17, a fanless, 1U high, short-depth, EN50155 server. It is an extension of the Data Center to the Field, delivering the typical IT environment and user experience in a very rugged and compact form factor that is designed to exceed the requirements of heavy-duty applications, like Rolling Stock.

Download datasheet download

Seleziona un formato

A4 letter

Caratteristiche

Virtualization - Official compatibility with VMware vSphere for seamless integration in a software-defined hyperconverged IT infrastructure
Fanless EN50155 - Fanless, vent-free enclosure, certified for EN50155 (Rolling Stock) in the TX temperature class (up to +85°C) with an S2 power supply, suitable for any heavy-duty application
Compact Form Factor - 19” 1U rack-mount with short-depth form factor to fit in most space-constrained deployments
Resilient Performance - Supports intensive computation of data, network and storage-oriented workloads, with a truly embedded, server-class CPU
Long-term Availability - Designed for markets and use cases where long-term availability and support is a must have requirement
Professional Services - The modular design allows further customization through Eurotech Professional Services, including the integration of user selected accelerators, storage and networking modules

Descrizione

The BoltCOR 30-17 Virtualization Edition (VE) is a rugged Edge server that bridges IT and OT at the Edge by delivering highly efficient virtualization even in harsh operating conditions.

The BoltCOR 30-17 VE is officially listed in the VMware Hardware Compatibility List (HCL) and is extremely rugged, with no fans nor vents, to ensure reliable operation even under EN50155 TX temperature conditions (up to +85°C) while delivering the same benefits of a typical virtualized Data Center to the Field.

With 24GB of DDR4 ECC RAM, a soldered down Pentium D1519 CPU, dual high reliability 512GB SSDs and an EN50155 S2 class power supply, the BoltCOR 30-17 VE is extremely resilient; truly embedded components, conformal coating, a vent-free design and a sturdy build add extra protection to a compact, 295mm deep, 1U rack-mount chassis.

The BoltCOR 30-17 VE features Wi-Fi, Bluetooth and dual GbE interfaces. Factory customization options include internal global cellular modems, up to three modem configurations, and GPS with Untethered Dead Reckoning.

The BoltCOR 30-17 VE offers long term availability and support programs that ensure continuity of supply and customer service

Eurotech Professional Services allow for further personalization, including validation and integration of user-selected expansion modules, with a choice of power supply, memory, storage and I/O subsystems options.

Ordering code: BTCOR-30-17-XX
Ordering Code -10
PROCESSOR CPU Pentium D1519 - 1.50GHz (2.10GHz), 4 Cores
MEMORY RAM 24GB, 2133MHz ECC DDR4
STORAGE Main Storage 2x 512GB SATA SSD
SSD Bay Fixed 2x 2.5’’ SATA SSD Bay
mSATA Factory Option
SD Slot (Service Panel) 1x SDHC/SDXC, 16GB SD Included
I/O INTERFACES Ethernet 2x 10/100/1000Mbps Auto Sensing IEEE 1588 - M12 X-coded Connector
USB 2x Host 2.0 Noise and Surge Protected (Service Panel)
Serial 1x Serial Console TTL (Service Panel)
RADIO INTERFACES Internal Cellular 1x LTE Cat 4 EU(Factory Option: 3x Modems)
Internal GPS Factory Option
Wi-Fi b/g/n
Bluetooth BLE
Antennas (external) Up to 4x SMA Cellular (LTE Diversity: 2x Tx, 2x Rx), 1x SMA GPS, Up to 2x RSMA Wi-Fi/BT (Wi-Fi Diversity: 1x Tx, 1x Rx)
OTHER miniPCIe Up to 4x Full/Half Size Mini PCIe Slots (PCIe/USB/mSATA) - Availability Depends on Configuration
RTC Yes, with SuperCAP (2 Months Retention @25°C)
External watchdog Yes
EEPROM 32KByte
TPM Factory Option: TPM 2.0
Sensors Temperature (Factory Option: Accelerometer)
LED 1x Power, 1x SATA Activity, 4x Programmable
SIM Slot Up to 3x 2FF (Mini) Dual-SIM Support for up to 3x Modems
POWER Power Input 24VDC Isolated EN50155 Class S2 (Factory Option: 110VDC)
Power Consumption 80W Max
ENVIRONMENT Operating Temperature EN50155 Class TX
Storage Temperature - 40 to +85°C
CERTIFICATIONS Regulatory CE
Vertical EN50155, EN45545 (Fire and Smoke)
Safety UL 60950 (§)
Environmental RoHS3, REACH
Wi-Fi/BLE Radio RED
Cellular Radio RED
Ingress Protection IP40
MECHANICAL Dimensions 483x313x44mm (WxDxH)
Weight < 7Kg
SOFTWARE OS VMware ESXi (License not Included)
IoT Framework Everyware Software Framework (Java/OSGi) Ready
