ReliaCOR 55-20

The ReliaCOR 55-20 is a GPU accelerated server that offers exceptional computational performance, storage capacity and network bandwidth for workloads that include data acquisition and fusion, AI inference, video processing and data logging.

Designed for Industrial use cases, it offers full extreme reliability thanks to redundant power supplies, fans and removable disks. Very compact at only 2U and with a shallow chassis depth, the ReliaGATE 55-20 can be deployed in in very small recesses and cabinets.

The ReliaCOR 55-20 features an AMD EPYC 4005/4004 Series CPU, to deliver great computational crunch, and provides AI acceleration thanks to one high-end NVIDIA RTX PRO Blackwell GPU. The flexibility in configuration options allows to tune the capabilities of the ReliaCOR 55-20 to meet the needs of AI execution modes that include training, simulation and inference workloads.

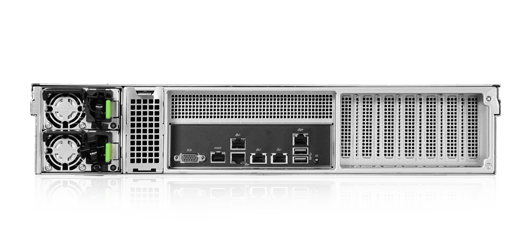

Video and data ingestion and streaming is powered by two 10GbE interfaces; other network configurations are available as a professional service.

The ReliaCOR 55-20 is a great platform for third party AI and Vision software applications, supporting both Windows and Linux.

With three PCIe slots (availability depends on starting configuration), the ReliaCOR 55-20 allows great flexibility in adding features to meet any use case.

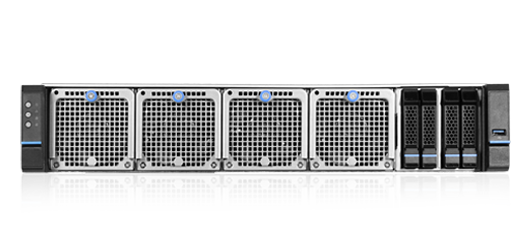

The ReliaCOR 55-20 is also a capable storage server, supporting up to six removable bays for 2.5” SATA drives to provide high sustained speed data recording.

Eurotech configuration management service allows fine tuning the ReliaCOR 55-20 to meet and exceed your project requirements; examples of personalized configurations include customer branding (with logo and custom colors) and can go to deep customization with a range of options for project specific requirements (such as frame grabbers, choice of internal components, etc.): call us for more information on configuration management options.

The ReliaCOR 55-20 optionally supports Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT Edge Gateways. Distributed and supported by Eurotech, ESF provides ready-to-use field protocols (including Modbus, OPC- UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration. ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.
