BoltGATE 20-25

EN50155 Multi-service IoT Edge GatewayIntel Atom, LTE Cat 4, IP66

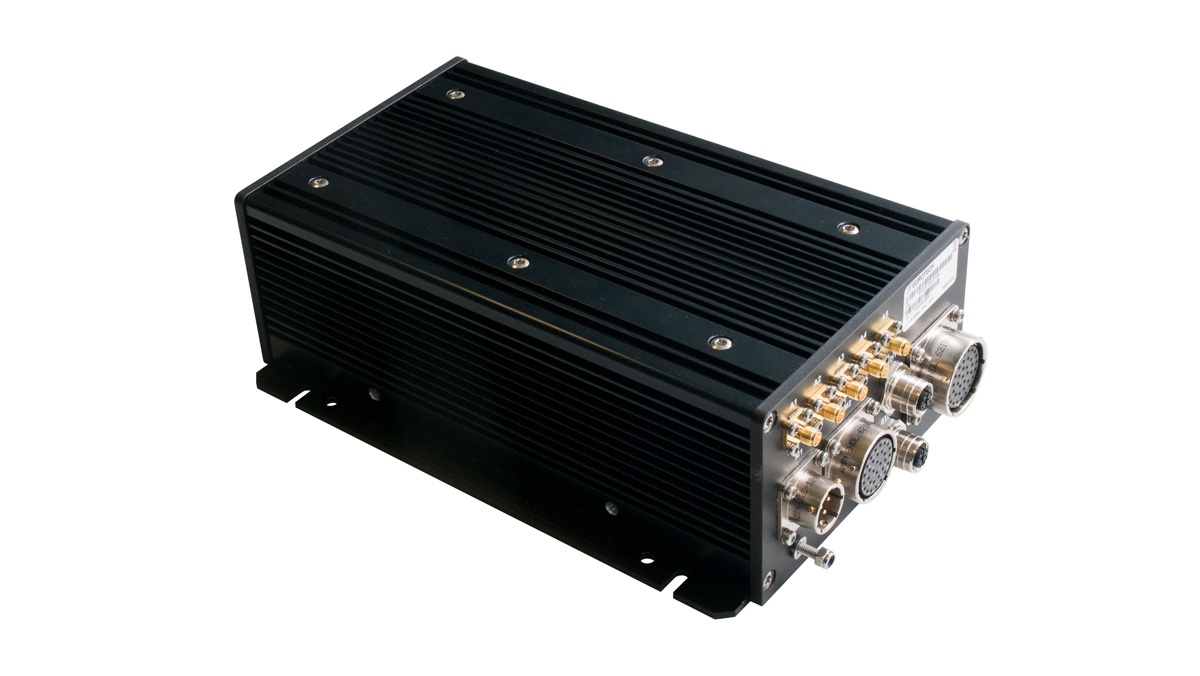

The BoltGATE 20-25 is a Multi-service IoT Edge Gateway, EN50155 and IP66 certified, designed to exceed the requirements of rolling stock in the TX temperature class.

  • EN50155 Class TX with IP66
  • Fanless Performance
  • LTE, Wi-Fi/BLE, GNSS and Video
  • Isolated I/O, CAN bus, Optional MVB
  • Open Platform
  • Highly Customizable
  • Long-term Availability
  • Cloud Certified
Transportation & Off-road
Ruggedization
Heavy-duty
Operating Temperature: -40 to +70°C, -40 to +85°C for 10 Minutes
Connection
EN50155
EN45545
Certified
EU
Connection
Wi-Fi
Bluetooth
GNSS
LTE Cat 4
Rolling Stock Certified
Certified for EN50155 (TX Temperature Class, EN50155 Class S2 wide range power supply) and EN45545 (Fire and Smoke). Suitable for any heavy duty, rugged application where long-term availability and support is a must have requirement
Integrated Stack
Visually compose powerful data flows for bus data acquisition, edge analysis and cloud communication
Fanless Performance
Low power performance, with single, dual and quad core Intel Atom E3800 options in a fanless and ventless package
Highly Connected
Carrier pre-certified LTE cellular connectivity, 2.4/5.0GHz Wi-Fi, BLE, and Dead Reckoning GPS
Open Platform
Provides an integrated open IoT Edge Framework to free the developer from proprietary solutions
Highly Customizable
Modular design for application customizations, ranging from factory options to custom front panel connectors and software builds
Long-term Availability
Designed for markets and use cases where long-term availability and support is a must have requirement
Cloud Certified
Seamless integration with Eurotech Everyware Cloud, Microsoft Azure, AWS IoT Core and other Cloud services

The BoltGATE 20-25 is a Multi-service IoT Edge Gateway, EN50155 certified, and designed to exceed the requirements of rolling stock in the TX temperature class. With IP66 rating, it is extremely rugged and suitable for any application where consistent performance and reliability are a must.

Based on the Intel Atom E3800 processor family, with up to 4GB of RAM and 8GB of eMMC, the BoltGATE 20-25 offers extra storage expansions through optional internal or removable 2.5” SATA SSD/HDD, mSATA, and a user-accessible microSD slot.

At 30W max, the BoltGATE 20-25 is a fanless, compact unit that provides a large number of communication and I/O interfaces: two Gbit Ethernet, protected USB 2.0, four isolated serial interfaces, eight isolated DI/O plus odometer and key signals, CAN bus, video, and optional MVB. It also features a wide range of connectivity capabilities including one cellular modem, Wi-Fi, Bluetooth Low Energy, and a dedicated internal GNSS with Untethered Dead Reckoning.

As a result of its modular design, the BoltGATE 20-25 can easily be customized for the requirements of the target application. With three full miniPCIe slots, it can accommodate additional connectivity or communication options and, through Eurotech Professional Services, it can offer custom front panel configuration and connectors or customized software images.

The BoltGATE 20-25 comes with Linux and Windows operating systems. It offers Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT EdgeGateways. Distributed and supported by Eurotech, ESF supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration. ESF is also integrated with Everyware Cloud (EC), Eurotech’s IoT Edge Management Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.

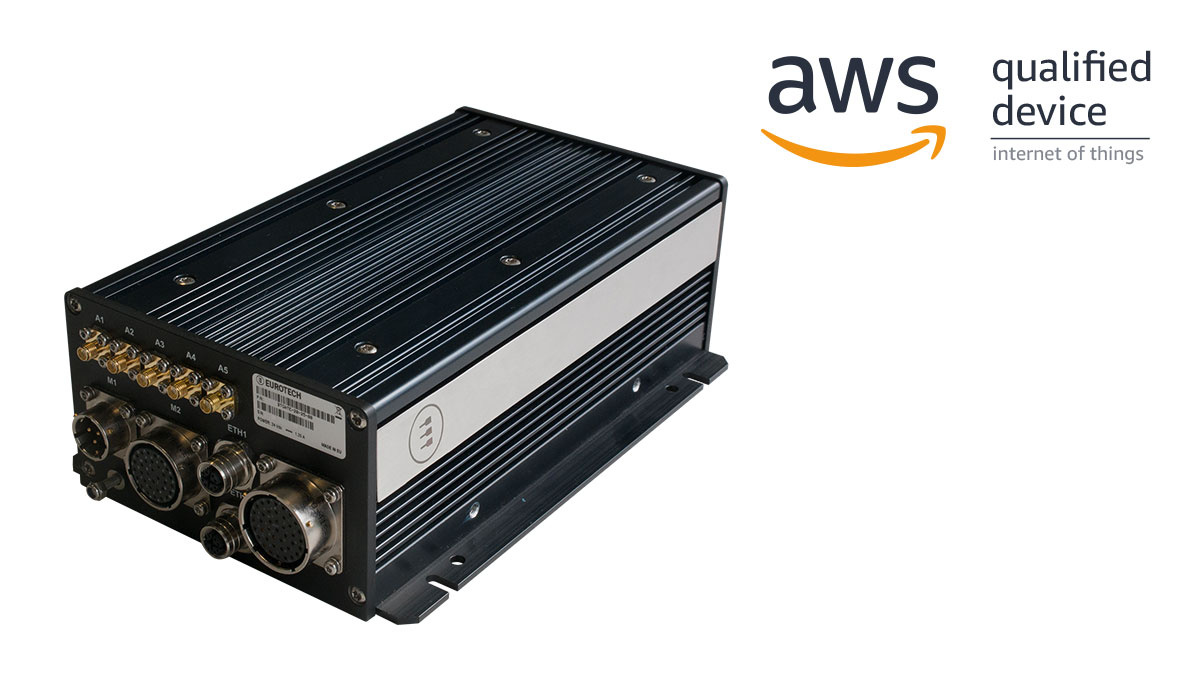

The BoltGATE 20-25 is AWS IoT Core Qualified and can be integrated with 3rd party cloud services.

General Specifications
PROCESSORCPUE3845, 1.91GHz, Quad Core - E3827, 1.75GHz, Dual Core - E3815, 1.46GHz, Single Core
MEMORYRAMUp to 4GB 1333MHz (DDR3L-ECC)
STORAGEEmbedded8GB eMMC – Optional mSATA Module

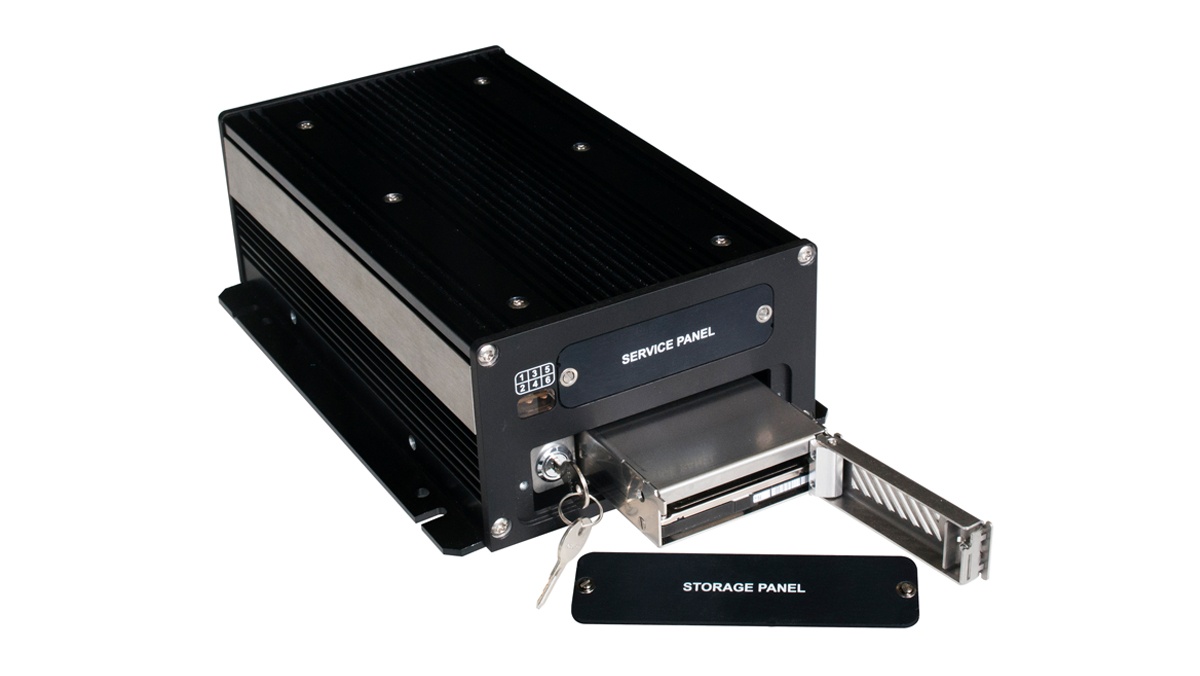

Drive Bay1x Removable Drive Bay for up to 2x 2.5” Drives (with Key Lock)
Other1x microSD Slot (Service Panel)

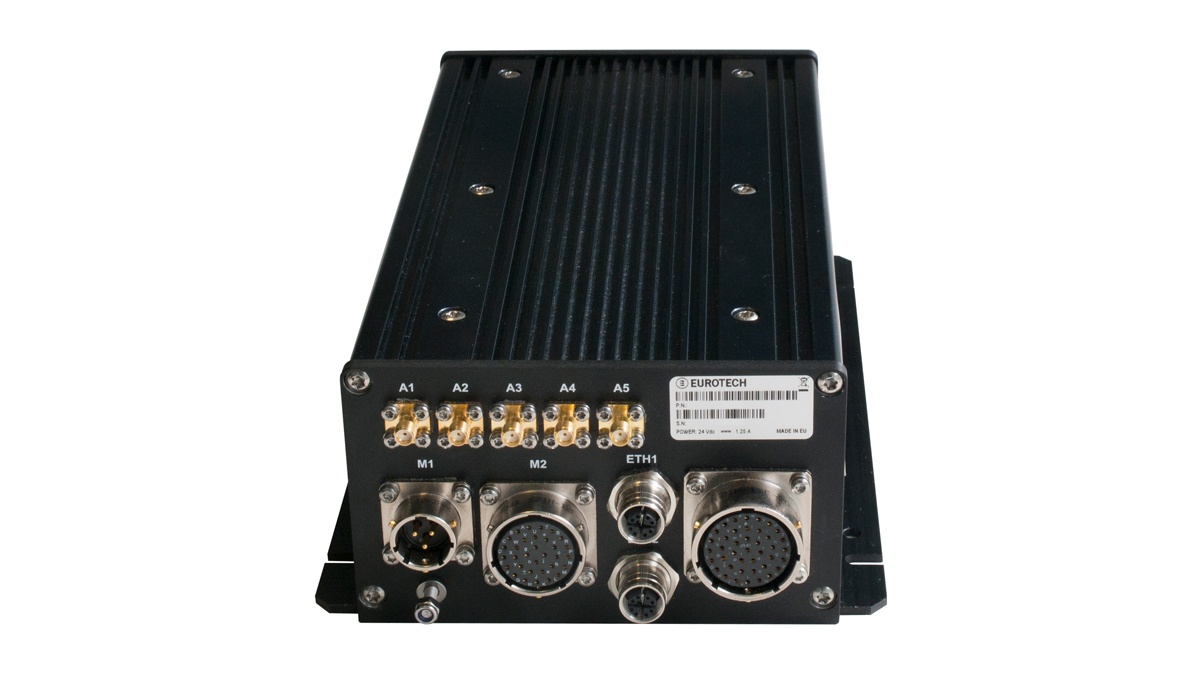

I/O INTERFACESEthernet2x 10/100/1000Mbps, M12 X-coded Connector
USB2x USB 2.0 Noise and Surge Protected, 1x USB 2.0 (Service Panel)
Serial2x RS-232/422/485 (9-wire) Isolated, 2x RS-485/RS-422 (5-wire), 1x TTL Console (Service Panel)
CAN 2.0B2x CAN bus 100mA with 5V Power Out, Isolated
Digital I/O4x Digital Input, 4x Digital Output, 1x Odometer, 1x Ignition Key (All DI/O Isolated, EN50155), 24V
Video1x Micro HDMI (Service Panel) – Optional: 1x HDMI (Circular Connector)
Audio1x Line IN, 1x 2W Class D Stereo OUT – Factory Option: 1x Stereo Mic In, 1x Line OUT
EXPANSIONMiniPCIe Slots3x Full/Half-Size Mini PCIe Slots (USB/mSATA, USB/PCIe, USB)
RADIO INTERFACESCellular1x LTE Cat 4 Modem
GPSGPS/QZSS/GLONASS/BeiDou/Galileo with Dead Reckoning
Wi-Fi / BT802.11 a/b/g/n, BLE 4.0
Antennas (External)2x SMA Cellular, 2x RSMA Wi-Fi/BT, 1x SMA GPS
OTHERRTCYes, with SuperCAP (up to 2 Months Retain)
Ext. WatchdogYes
EEPROM32KB
TPMFactory Option: TPM 1.2/2.0
SensorsTemperature, Accelerometer
LEDs1x Power, 3x Activity (MiniPCIe Slots), 2x Programmable
Buttons1x Reset, 1x Programmable (Service Panel)
SIM Slot2x Single SIM, Switchable for Bandwidth Aggregation and Carrier/Cellular Backup (Service Panel)
POWERInput9 - 137.5VDC Wide Input Range, EN50155 Class S2 for 24VDC and 110VDC Nominal Voltage Inputs
Consumption15W Typ, 30W Max
ENVIRONMENTOperating Temp.TX according to EN50155 (-40 to +70°C, -40 to +85°C for 10 Minutes)
Storage Temp.- 40 to +85°C
CERTIFICATIONSRegulatoryCE
SafetyEN 62368
VerticalEN50155, EN45545 (Fire and Smoke)
EnvironmentalRoHS3, REACH
Wi-Fi / BT RadioCE (RED)
Cellular RadioCE (RED)
IngressIP66
MECHANICALEnclosureMaterial: Aluminium - Color: Black Anodized
Dimensions268x141x85mm (LxWxH) – With Connectors
Weight3.7Kg
SOFTWAREOSEurotech Everyware Linux or Windows 10 IoT Enterprise
SDKYocto-based Eclipse Tooling, Azul Java
IoT FrameworkEveryware Software Framework (Java/OSGi)
IoT PlatformAWS IoT Core Qualified, Everyware Cloud Native

§ UL, NRTL listing Factory Option

Standard Variants
Ordering codesCPURAMDrive BayIncluded DrivesCellularSoftware
BTGATE-20-25-01E3815, Single Core2GB 1067MHz ECCYesNoYocto
02E3827, Dual Core2GB 1333MHz ECCYesNoYocto
03E3827, Dual Core2GB 1333MHz ECCYes1x 512GB SSD MLC High ReliabilityNoYocto
04E3845, Quad Core4GB 1333MHz ECCYes1x 512GB SSD MLC High ReliabilityNoYocto
Video-oriented Variants
Ordering codesCPURAMDrive BayIncluded DrivesVideo on Rear PanelCellularSoftware
BTGATE-20-25-11E3845, Quad Core4GB 1333MHz ECCYes1x 512GB SSD MLC High Reliability1x HDMI (circular connector)1x LTE Cat 4 (EU)Yocto
15E3845, Quad Core4GB 1333MHz ECCYes1x 64GB mSATA – 1x 512GB SSD MLC High Reliability1x HDMI (circular connector)1x LTE Cat 4 (EU)Windows 10 IoT ETP
