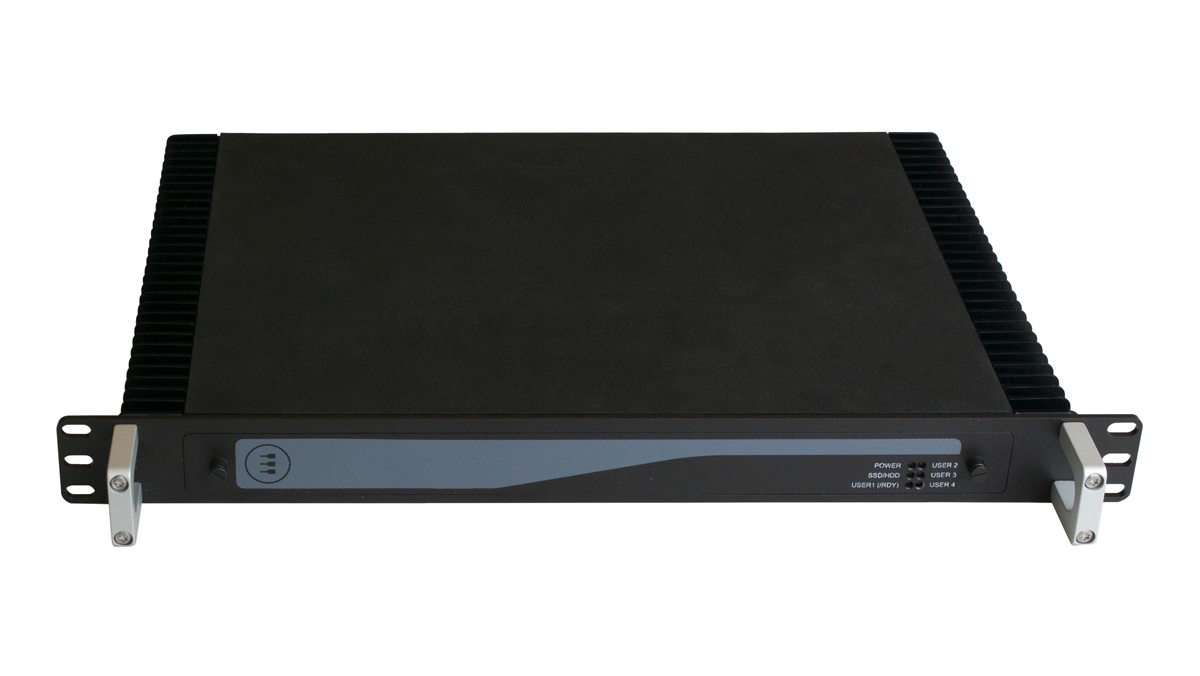

BoltCOR 30-17

EN50155 Fanless 1U ServerIntel Xeon E

The BoltCOR 30-17 is a fanless, 1U high, short-depth, EN50155 certified server that is designed to exceed the requirements of rolling stock applications in the TX temperature class.

  • Fanless EN50155 TX Class
  • 19" 1U Rack-Mount Short-Depth
  • Intel Xeon® E
  • Internal, Removable and RAID Storage
  • Gb Ethernet and LTE Cellular
  • Configurable and Future-Proof
  • Long-term Availability
Industries
Transportation & Off-road
Ruggedization
Heavy-duty
Operating Temperature: -40 to +70°C, -40 to +85°C for 10 Minutes
Certified
EN50155
EN45545
Connection
EU
US (Optional)
Connection
GNSS
Wi-Fi/BT
LTE Cat 4
Fanless EN50155 TX Class
Fanless, vent-free enclosure, certified for rolling stock in the TX temperature class with S2 power supply, suitable for any heavy duty application
Compact
19” 1U rack-mount with short-depth form factor to fit in most space-constrained on-board and track-side installations
Scalable Performance
Supports the intensive computation of media, data, network and storage-oriented workloads, through CPU options
Flexible Storage
Provides internal mSATA, fixed or removable 2.5” SSD/HDD disks with a rugged and locking tray design and RAID levels 0, 1
Extended Connectivity
Configurable with multiple simultaneous cellular modules, multiple SIMs, dual Gb Ethernet, Wi-Fi 2.4/5.0GHz, BLE, and GNSS with Untethered Dead Reckoning
Configurable and Future-Proof
Based on a modular architecture compliant with industry standards, like COM Express, PCIe and miniPCIe, enables fast customizations and compatibility to future technologies
Long-term Availability
Designed for markets and use cases where long-term availability and support is a must have requirement

The BoltCOR 30-17 is a fanless EN50155 certified server that is designed to exceed the requirements of rolling stock applications in the TX temperature class; it is extremely rugged and suitable for any project where consistent performance and reliability are a must.

With up to 32GB of DDR4 RAM (ECC option), soldered down CPUs, mSATA storage and a S2 class power supply, the BoltCOR 30-17 is extremely resilient; high reliability components, conformal coating, a vent-free design and a sturdy build add extra protection to a compact, 295mm deep, 1U rack-mount chassis.

Expandability options include two HDD/SSD drives, key-locked swappable storage bays, internal mSATA, a user-accessible SD slot and RAID levels 0, 1; additional peripherals can be added via four miniPCIe and one x16 PCIe slots.

The BoltCOR 30-17 features a wide range of radio and wireless capabilities, including cellular carrier pre-certified system configurations. Customization options include internal global cellular modems, multiple modem and SIM configurations, MIMO Wi-Fi, Bluetooth Low Energy, and GNSS with Untethered Dead Reckoning.

The BoltCOR 30-17 affords unprecedented system configurability: off-the-shelf configurations and build-to-order variants out of a palette of CPU, power supply, memory, storage and I/O subsystems options.

Designed for rolling stock applications, the BoltCOR 30-17 offers long term availability and support programs that ensure continuity of supply and customer service.

Ordering Code: BTCOR-30-17-XX
XX-31*-41*
PROCESSORCPUXeon E3-1505L v6 2.2GHz (3.0GHz), Quad Core, 25W TDP
MEMORYRAM16GB DDR4 ECC Factory Option: up to 32GB DDR4 ECC or non-ECC
STORAGESATA2x 512GB SSD Factory Option: up to 2 x 1TB SSD
Embedded1x 64GB mSATA Factory Option: up to 128GB mSATA
Drive Bay1x Removable Drive Bay for up to 2x 2.5" SATA Drives with key-lock mechanism
RAIDSoftware RAID 0, 1 (Factory Option: HW RAID Controller)
Other1x SDHC/SDXC Card Slot (UHS-1 50MB/s max) (Service Panel)
I/O INTERFACESEthernet2x 10/100/1000Mbps Auto Sensing IEEE 1588; M12 Xcoded Connector Factory Option: up to 3x 10/100/1000Mbps
USB2x Host 2.0 Noise and Surge Protected (Service Panel)
Serial1x Serial Console TTL (Service Panel)
Video1x MiniDisplayPort (Service Panel)
RADIO INTERFACESCellularLTE Cat 4 Global Modem Factory Option: 3x Modems
GNSSFactory Option
Wi-Fi / BTFactory Option (802.11 a/b/g/n, BLE 4.0)
Antenna (External)2x SMA Cellular, 2x RP-SMA Wi-Fi/BT
EXPANSIONminiPCIeUp to 4x Full/Half Size Mini PCIe Slots (PCIe/USB/mSATA)
OTHERRTCYes, with SuperCAP (2 Months Retention @25°C)
WatchdogYes
EEPROM32KByte
TPMFactory Option: TPM 2.0
SensorsTemperature (Inside the product); Factory Option: Accelerometer
LEDs1x Power, 1x SATA Activity, 4x Programmable
SIM SlotUp to 3x 2FF (Mini) Dual-SIM Support for up to 3x Modems
POWERInputNominal: 110Vdc isolated (EN 50155 S2) Range: 77 to 143Vdc (EN 50155 S2) Factory Options: 24, 48, 72Vdc
Consumption80W Max
ENVIRONMENTOperating TempEN 50155 Class OT4 (-40 to +70°C), ST1 (10 minutes at +85°C)
Storage Temp- 40 to +85°C
CERTIFICATIONS (*)RegulatoryCE; Factory Option: FCC
VerticalEN50155, EN45545 (Fire and Smoke)
SafetyIEC/UL 62368-1
EnvironmentalRoHS3, REACH
Wi-Fi / BT RadioRED; Factory Option: FCC
Cellular RadioRED; Factory Option: FCC
IngressIP40
MECHANICALEnclosureSteel
Dimensions483x313x44mm (WxDxH)
Weight< 7Kg
SOFTWAREOSUbuntu 18.04 LTSWindows 10 IoT Enterprise
IoT FrameworkESF on Docker

(§) UL, NRTL listing Factory Option.

* Contact Eurotech for availability and other configurations
