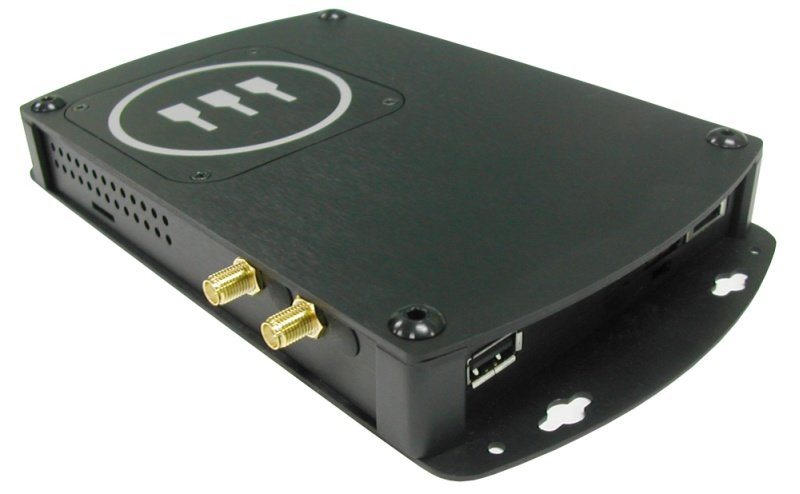

The PROTEUS ICE is an industrial enclosure optimized for the PROTEUS SBC designed to enable easy installation into wired and wireless, net-centric multimedia applications, especially in situations where low power, high performance but minimum space usage is required.
PROTEUS ICE is compatible with all major desktop operating systems including Windows XP, XP Embedded, CE 6.0 and Linux.
The PROTEUS ICE is optimized for the PROTEUS embedded SBC. The enclosure is designed to enable easy installation into wired and wireless, net-centric multimedia applications, especially in situations where low power, high performance but minimum space usage is required.
Interfaces
In addition to a full range of standard PC peripherals, the PROTEUS ICE is able to interface directly to LVDS displays and has an integral touch screen controller. Options exist for onboard GPS, Bluetooth and ZigBee support and the provision of two sites for PCI Express Mini Cards via an easy access removable panel allows flexible expansion for applications requiring wireless local and wide area networking. Further non-volatile storage may be added either using MicroSD Flash or via the SATA interface provided by the board, and the provision of two independent display interfaces allows deployment in applications requiring different content to be served to different users.
Operating Systems
PROTEUS ICE is compatible with all major desktop operating systems, and is also available with pre-installed, ready to run, embedded operating systems including Windows XP, XP Embedded, CE 6.0 and Linux.
Applications
Having all this performance in such a small good looking and easily installed package is a truly compelling offering that makes the PROTEUS ICE ideally suited to a wide range of applications including infotainment, interactive kiosks, access control, HMI, medical and industrial control.
CPU:
- Intel® Atom™ Processor options:
- Z530 Processor 1.6GHz (2.3W)
- Z510 Processor 1.1GHz (2W)
Chipset:
- System Controller Hub US15W (2.3W)
RAM:
- up to 1GB DDR2 SDRAM (400/533 MHz)
FLASH (optional):
- Up to 4GB parallel ATA Flash on board
IDE:
- Supports 1 x serial ATA 300
- 1 x SATA connector
- 1 x power connector for 2.5” SATA drive
USB:
- USB 2.0 supporting low/full/high speed modes
- 2 x user accessible ports (Pin header, one client configurable)
- 2 x ports connected to PCI Express MiniCard sockets
- 1 x port connected to board edge Type A connector
Network:
- Gigabit Ethernet port supporting 10/100/1000 BaseT
- Output to board edge RJ-45 connector
PCI Express:
- 1 x PCI Express to PCIe MiniCard socket
- 1 x PCI Express switch to:
- 1 x PCIe Gigabit Ethernet controller
- 1 x PCIe serial ATA controller
- 1 x PCIe MiniCard socket
Serial Ports:
- 1 x serial port used for general purpose RS232 TX/RX port
Video Controllers:
- Ultra low power integrated 3D Graphics
- 2 x single-channel LVDS 24-bit interface to Board to Board connector
- 1 x backlight connector
- Touchsreen: 4, 5 and 8 wire resistive touch screen interface
Audio:
- HD Audio CODEC and 2W audio amplifier supporting mic in, line in, speakers out and headphones
TPM
- Atmel Trusted Platform Module Device, TCG v1.2 compatible
- SMBUS interface
Other Interfaces:
- SDIO/MMC: 1 x MicroSD socket
- Test Support: JTAG Interface (Intel XDP)
- Optional:
- 20-channel GPS receiver SirFStar III chipset module (optional)
- Bluetooth or ZigBee wireless comms provided by onboard modules (optional)
Power Supply:
- 8.5 to 25 VDC (12V nominal)
Mechanical:
- Dimensions: 200 x 120 x 25mm (7.87” x 4.72” x 0.98”)
- Weight: 570g
Operating Temperature:
OS Supported:
- Windows XP®, XP Embedded®, CE 6.0® and Wind River Linux 3.0®
