8 opto-isolated inputs and 8 opto-isolated outputs PC104 module

AIM104-OPTO-IN8/OUT8 is a low cost add-on PC/104 module providing eight optoisolated inputs and eight opto-isolated outputs. AC opto-isolators are used to allow each input channel to detect either rising or falling edges through jumper configuration. 10ms RC debounce filters are also link selectable on each input channel.


  • Eight opto-isolated inputs and eight opto-isolated outputs
  • 10 ms debounce filters
  • External power source or on-board isolated +24V DC power supply
  • MOSFET drivers on power-up and reset

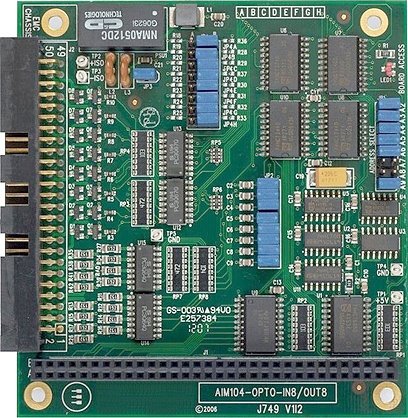

AIM104-OPTO-IN8-OUT8 img
