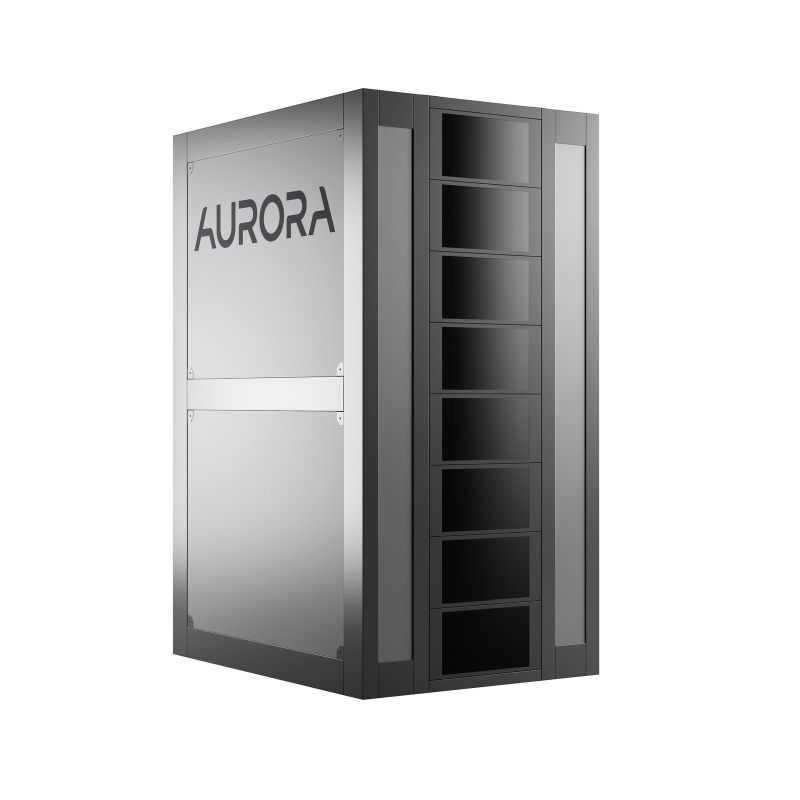

Tigons are powerful hybrid animals, a cross breed between lions and tigers. Powerful yet versatile, the Eurotech Aurora Tigon breaks all performance barriers, maintaining very high energy efficiency. Based on x86 Intel processors, the Tigon nodes have additional 2 accelerators that can be Nvidia GPUs or Intel Phi coprocessors.
The Tigon architecture ensures extreme scalability and the flexibility that guarantees user to configure the supercomputer to meet their today requirements yet providing the possibility to upgrade and adapt to future needs.
Cooled by the proven Aurora Direct Hot Water Cooling, the Tigon unveils very high densities and it leverages both Infiniband and 3D torus connectivity, providing low latency and scalability.
Performance – up to 430 Tflop/s per rack - 84% Rmax/Rpeak
Save space – 2560 CPU processor cores, 256 accelerators, up to 430 Tflop/s in just 1.5 m2
Save energy– 3.2 Gflop/s per Watt – data center PUE of 1.05, no need for air conditioning, up to 50% less energy consumed
No compatibility issues– Tigon architecture is based on standard off the shelf components
Flexible Liquid Cooling– All components are cooled by water, temperature from 18°C to 52°C and variable flow rates
Reliability– 2 independent sensor networks, soldered memory, no moving parts
CONFIGURATION
2 CPUs per node + 2 Accelerators per node
16 nodes per chassis
16 chassis per rack
256 CPUs and 256 accelerators per rack
PERFORMANCE
Up to 430 TFlop/s per rack (peak)
CPU
Xeon E5 26xx v2 series
ACCELERATORS
2 x Nvidia Kepler K20 - K20x - K40 per node OR
2 x Intel Xeon Phi 5120D per node
MEMORY
Up to 128GB per node
ECC DDR3 SDRAM 1600 MT/s
Bandwidth: 85.3 GB/s per compute node
Soldered on board
INTERFACES PER NODE
1 x Infiniband QDR/FDR port (40/56 Gb/s)
1x Gigabit Ethernet port
6 (3+3) x 3D Torus interconnects (240+240 Gb/s), ~1us latency
INTERFACES (I/O) PER CHASSIS
20 x Infiniband QDR/FDR ports
17 x Gigabit Ethernet ports
LOCAL STORAGE PER NODE
1 X 4 TB GB 2,5" Sata Disk
1 X 512 GB 1,8" microSATA SSD
Option for additional 2 x 2TB SATA spinning disks
Option for additional 2X PCIe connected SSD
OPERATING SYSTEM
Cent OS, RedHat or Suse
POWER AND COOLING
Aurora Direct Hot Water Cooling
Power per rack: 100 kW
SOFTWARE
Bright Cluster Manager, ParTec Parastation, PBS Professional, Intel Cluster Studio, Lustre Parallel File System, Cuda, Allinea, NICE
