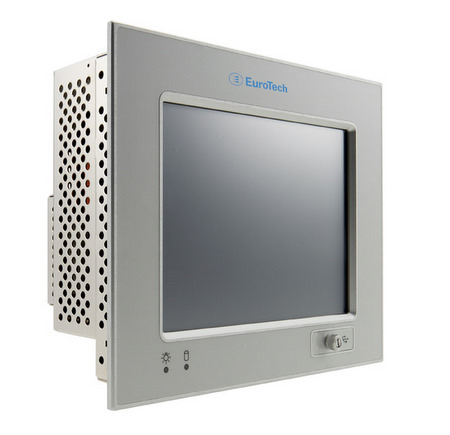

VX-60F-N270
Panel PC FANLESS with display TFT 6.5" touchscreen
The VX-60F is a fanless Panel PC with the CPU board specifically designed for industrial needs and with availability guaranteed overtime. In the compact design you will find serial ports, LPT, Ethernet, PS/2 and the increasingly used USB ports.
HIGHLIGHTS- LCD LED backlight TFT 6.5”
VGA (640 x 480) - 700cd/sm
- Intel® Atom™ N270 1.6GHz
- 3x serial ports RS-232
- 2x Gigabit Ethernet
|
|
|
SpecificationsAccessories
Processor:
- Intel Atom N270 1.6GHz - FSB 533 MHz
Memory:
Display LCD:
- LED Backlight - 6.5” VGA (640 x 480) - 700 cd/sm
- Touchscreen: 4 wires resistive
Interfaces:
- K/M PS2, 3x RS-232, 3x USB 2.0 (one on front), 2x Ethernet 10/100/1000, VGA
Slot:
- PC104 PCI (n.a. with HD), mini PCIe
SSD FlashDisk:
Hard Disk:
Frontal Protection:
Mounting:
Power Supply:
Dimension WxHxD:
- 217 x 176 x 75 mm (8.54” x 6.93” x 2.95”)
Operating Systems Supported:
- Windows XP for Embedded Systems, Windows XP Embedded
Operating Temperature:
Relative Humidity:
- 10% to 90% Non condensing
