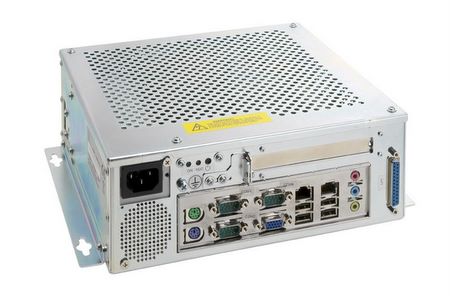

BX-400F

Box PC FANLESS with wall or DIN mounting

The BX-400F is an extremely compact and completely fanless box computer, which may be connected to an external LCD monitor, keyboard and mouse.
Thanks to a mechanical kit, the BX-400F can be fixed on a DIN rail.

Not recommended for New Design.
Please refer to the Bx-400F-N270 for new programs.

HIGHLIGHTS

  • Intel® Celeron™ M 600 MHz / 512 KB cache (FANLESS)
  • 2x Ethernet 10/100
  • 3x RS-232
  • 4x USB 2.0
  • 256 MB to 1 GB
  • HD 2,5” optonally CompactFlash

APPLICATIONS

  • Industrial
FeaturesSpecificationsAccessories

The BX-400F is an extremely compact and completely fanless box computer, which may be connected to an external LCD monitor, keyboard and mouse.
Thanks to a mechanical kit, the BX-400F can be fixed on a DIN rail.
Interfaces
4 USB (2.0) interfaces and 2 Ethernet 10/100Mb ports allow the connection of a vast range of devices.
There can be either 3 RS232 serial ports or 4 if the parallel port is not required.
For embedded applications the BX-400F can be equipped with an optional Compact Flash and the support for operating systems such as Windows XPE®.
