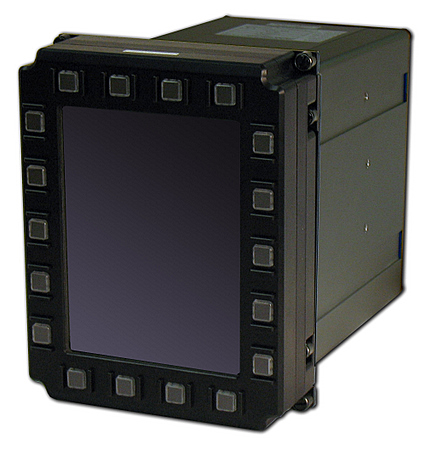

DuraVIS 4300 Hide

Rugged Military / Avionics Multi-Function Display (MFD)

The DuraVIS® 4300 represents Parvus' 4th generation Commercial-Off-the-Shelf (COTS) Multi-Function Display (MFD) - an ideal solution for presenting flight, sensor, mapping, advisory and other information for civil and military aircraft retrofit/upgrade programs. This rugged control panel incorporates LED backlighting and upgraded processing performance over legacy Parvus MFDs onboard the QF-4, P-3, C-130 and other airframes.

HIGHLIGHTS

  • Smart 6.5” Multi-Function Display
  • 2x PC/104+ Expansion Slots
  • Linux® or Windows XPe® OS
  • 18 Backlit Keys for OSD/App
  • MIL-STD-810F Qualified
  • MIL-C-38999 Connectors
  • MIL-STD-704E Power Supply

APPLICATIONS

  • 28V Civil / Military Aircraft Cockpit Control Panel
  • Display of Flight, Sensor, Mapping, Advisory Info
  • Mission Processing Platform
  • Command and Control (C2) / C4ISR Situational Awareness
  • Defense and Homeland Security
FeaturesSpecificationsAccessories

The DuraVIS® 4300 represents Parvus' 4th generation Commercial-Off-the-Shelf (COTS) Multi-Function Display (MFD) - an ideal solution for presenting flight, sensor, mapping, advisory and other information for civil and military aircraft retrofit/upgrade programs. This rugged control panel incorporates LED backlighting and upgraded processing performance over legacy Parvus MFDs onboard the QF-4, P-3, C-130 and other airframes.
Standard Compliance
Qualified to MIL-STD-810F, MIL-STD-704E and MIL-STD-461E standards, the DuraVIS 4300 offers exceptional low-temperature operation (-20C) and resistance to shock and vibration profiles experienced by jet and rotary aircraft. The unit is based around an expandable PC/104-Plus x86 computer architecture, avionics power supply and sunlight-readable 6.5" flat panel LCD. Designed to accommodate standard 1/4-turn (Dzus) rail mount installations, the unit features 18 user-programmable push buttons located around the front panel, an anti-glare protective cover for impact protection and a high luminance (800 Nit) LED backlight for long lamp life, excellent dimming capabilities (down to 4%), and exceptional low-temp operation.
Interfaces
Compatible with analog VGA inputs and customer-furnished x86 software, the DuraVIS 4300 integrates MIL-C-38999 connectors bringing out Ethernet, Video, Power, Audio, USB, Serial, Keyboard and Mouse signals. The DuraVIS 4300 boasts a 160-degree viewing angle, 600:1 contrast ratio, and a 79-pin expansion connector, which is conveniently routed to an internal breakout board and headers so that up to two application-specific PC/104(+) cards can be easily integrated without mechanical changes.
