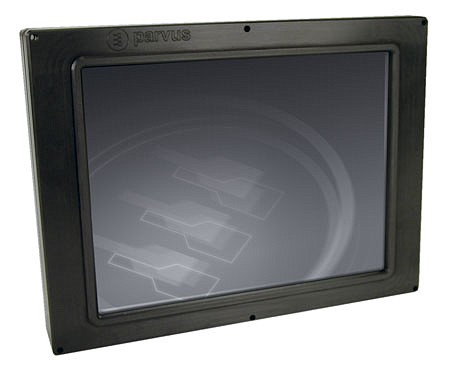

The DuraVIS® 3400 is a rugged 10.4" resistive touchscreen flat panel display. Optimized for panel-mount ship, vehicle and airborne installations, this 400 Nit SVGA (800x600) resolution color Liquid Crystal Display features a robust mechanical design with internal shock and vibration isolation, hardened aluminum housing, and integrated gasketing for water and EMI resistance.
Interfaces
The DuraVIS® 3400 accepts VGA input and uses a RS-232 interface for touchscreen control.
High Resistance
Designed for compliance with various MIL-STD-810F environmental and MIL-STD-461E EMI/EMC standards, the DuraVIS® 3400 display offers exceptional low-temperature operation (-20C) and resistance to shock and vibration profiles experienced by jet and rotary aircraft.

Color AMLCD:

• 10.4" Color TFT Active Matrix Liquid Crystal Display (AMLCD)

Resolution:

• SVGA 800 x 600 pixel resolution

Rugged Mechanicals:

• Panel-mountable, hardened aluminum chassis with elastomeric gasketing for water Resistance and EMI protection

Interface:

• Standard VGA Video Input

Power Supply:

• 9-36V DC isolated

Standards:

• MIL-STD-461E, MIL-STD-810F (temp, shock/vibe, humidity, impact)

Operating Temperature:

• -20 to +60°C

Panel Type:

• 10.39" Diagonal TFT-LCD w/ CCFL Backlight

Touchscreen:

• Resistive Film Analog Controller, RS-232 Interface; CE/XP/Linux/Dos Drivers

Backlight:

• CCFL Tubes, replaceable (Lamp Life MTBF: 50,000 hours)

Video Input:

• Standard VGA Video Input

Optical Characteristics:

• Viewable Area: 211.2mm (W) x 158.4mm (H)
• Resolution: SVGA (800x600 pixels)
• Contrast Ratio: 500:1 (typical)
• Number of Colors: 260K
• Response Time: 30ms (typical) black to white; 10ms (typical) white to black
• Luminance (Brightness): 400 cd/m² (nit) typical
• Viewing Angle: Optimal View: 6 O'Clock; 160 degree conical (-70~70° (H), -60~50° (V))

Power Supply:

• 9 to 36V DC (12-28V nominal)
• Isolated DC/DC Converter (25Watt)
• Isolation: 1500V Galvanic

Connectors/Inputs:

• Serial: DB-9M; VGA: HD15F; Power: DB-9F

Protective Window:

• Protective Cover Over Display
• Surface Treatments: Anti-Glare and ITO Hard Coating 3H

Mechanical:

• Dimension: 284.48 x 228.6 x 63.5 mm (11.2” x 9” x 2.5”)
• Weight: approx. 3.4 Kg
• Material/Finish: Aluminum, Black Anodized Hardened Finish
• Mounting method: Supports Panel Mounting - raised ridge on front around glass with holes on each corner and middle top and bottom)

Operating Temperature:

• -20 to +60°C
• +70°C up-screening
• Cooling: not required (natural convection)

Vibration & Shock:

• Vibe Isolation: Internal Silastic Boot for Shock & Vibration Isolation
