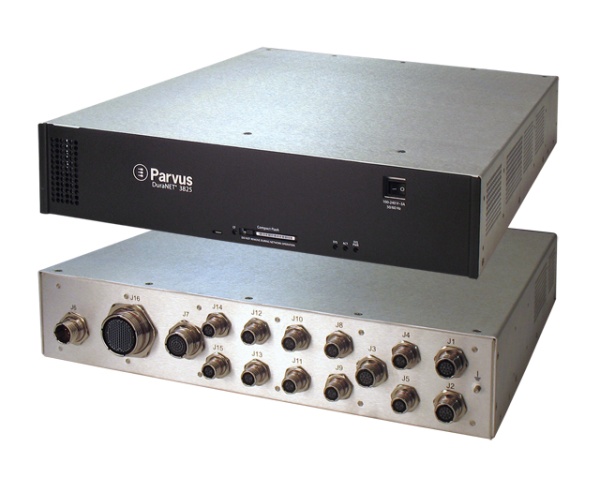

DuraNET 3825 Hide

Ruggedized Cisco 3825 integrated service router

The DuraNET® 3825 is a ruggedized version of the Cisco 3825 Integrated Services Router, combining the powerful features available in Cisco IOS® software, Catalyst® Layer 2 LAN switching, and flexible Layer 3 WAN routing into a single platform.

Not Recommended for New Designs.


  • Ruggedized Cisco 3825 Router w/ Integrated Ethernet Switch & Serial Network Modules
  • 19” Rackmount Compatible
  • Designed to Meet MIL-S-901D, Grade B
  • Designed to Meet MIL-STD-461


  • Civil and Military Computer Networking
  • Maritime / Shipboard / Military Vehicle
  • Situational Awareness / Net-Centric Operations
  • Layer 2/3 WAN Router and LAN Switching
  • Defense and Homeland Security

An ideal Commercial Off the Shelf (COTS) solution for Internet Protocol (IP)-based networking applications, the unit integrates embedded security processing, generous performance, high memory capacity, and high-density interfaces to deliver the performance, availability, and reliability required for scaling mission-critical applications.
Standard Compliance
Designed to meet MIL-STD-901D Grade B shock levels and MIL-STD-461 EMC requirements, the DuraNET 3825 incorporates mechanical packaging enhancements to suite shipboard / military installations.
It features up to two (2) copper Gigabit Ethernet uplinks, a (1) Gigabit Ethernet Switch port, sixteen (16) 10/100 Ethernet ports, and eight (8) Asynchronous /Synchronous RS-232 serial ports in a 19” rack-mount chassis with circular MIL-C-38999 connectors.
Protocols Supported
Network features include port autosensing, QoS and VLAN capabilities complaint with 802.1p and 802.1Q standards, and 802.1D Spanning Tree protocols. For ease of management and configuration, the router features the intuitive, Web-based Cisco Router and Security Device Manager (SDM) with support for Secure Shell Protocol Version 2 (SSHv2) and Simple Network Management Protocol Version 3 (SNMPv3) protocols to encrypt the management session. Select models also integrate a Cisco VPN Hardware Encryption Acceleration module and upgraded system and Flash memory configurations.
