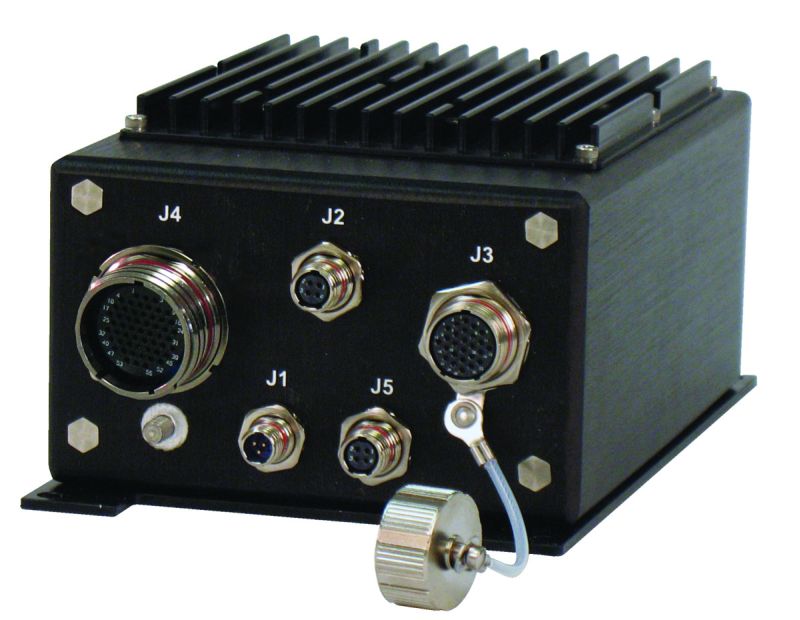

DuraCOR 820 Hide

Small Form-Factor Tactical Mission Computer

The DuraCOR® 820 is a rugged mission processor system, optimally designed for space/weight-constrained military/aerospace ground mobile and airborne deployments. Targeting manned and unmanned applications where reliable high performance computing is required, the DuraCOR 820 delivers compliance to MIL-STD-810F environmental conditions (high altitude, thermal, shock, vibration, humidity), MIL-STD-461E EMI/EMC levels, and 28VDC avionics power supply standards (MIL-STD-704E).


  • 1.4GHz Pentium M® CPU
  • Linux® or Windows XPe®
  • MIL-STD-810F Qualified
  • MIL-C-38999 Connectors
  • MIL-STD-704 Power
  • -40 to +71C Fanless Operation


  • (Un)manned Vehicle Mission Processor
  • Command and Control (C2) On the Move
  • Civil / Military Mobile Rugged Computing
  • C4ISR Situational Awareness
  • 12V/24/28V Vehicle/Aircraft Installations
  • Defense and Homeland Security

Less than 3" in height and 3lbs (<1.36kg) in weight, the DuraCOR 820 tactical computer features a conductively-cooled 1.4GHz Intel® Pentium-M™ processor (equivalent to a 2.8GHz Pentium 4™ performance) and a solid state disk pre-loaded with a Linux® or Windows XP Embedded® operating system image.
Rugged watertight ultraminiature Mil-spec performance connectors bring out power, analog video, 3x USB, 2x RS-232, DIO, Keyboard, Mouse, and dual 10/100 Ethernet network connections. This robust combination of function and small form factor ruggedness enables the DuraCOR 820 to support a wide range of field applications, including Command and Control (C2) On-the-Move, Unmanned Vehicle Operator Control, C4ISR Situational Awareness, etc.
Since the DuraCOR 820 is based on a modular PC/104+ architecture, the unit can be special ordered with a different I/O configuration. Options include integrated MIL-STD-1553 interfaces, additional RS/232/422/485 serial channels, a 12-channel GPS receiver, or other customer-specific I/O limited by available connector pinouts. For customer programs requiring greater expansion capabilities, Parvus offers the DuraCOR 810 processor platform.
