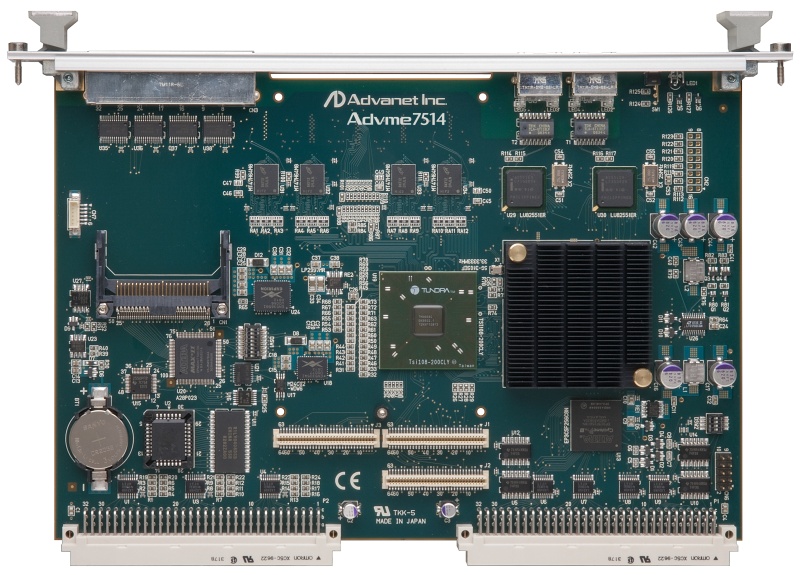

The Advme7514 is VME bus CPU board equipped with a PowerPC™ 750CL™. It features the Tundra® Tsi108™ host bridge that can interconnect PowerPC processor to DDR2-SDRAM, PCI devices, and other peripherals. The Advanet® PCI-VME bridge NARUTOII™ is incorporated into this board for the external VMEbus interface.
Interfaces
The board comes with two 10/100BASE-TX Ethernet ports, four RS232C serial ports, one CompactFlash interface, and one PMC interface with 64bit/33MHz. Several on-board connectors provide flexible expandability.
Memory
The Advme7514 provides a variety of available memory including CompactFlash, FlashROM, SRAM, and EEPROM. EC/ECC-capable DDR2-SDRAM, as main memory, is expandable up to 1GB (optional).

Architecture:

• VME compliant

CPU:

• IBM® PPC750CL™ (800MHz)
• L1 cache: 32KB/32KB, L2 cache: 512KBw/ parity

Memory:

• 512MB-1GB SDRAM (supports ECC function)
• 512KB Boot ROM Flash Memory
• 256 Bytes Serial EEPROM
• CompactFlash socket

System Controller:

• Tundra® Tsi 108™

PCI-VME Bridge:

• NARUTO II™

PMC Slot:

• Standard: IEEE 1386.1
• One slot

Real Time Clock:

• Battery backup

Front Panel:

• 4x RS-232 (using RJ-45 connectors)
• 2x 10/100 BASE-TX (using RJ-45 connectors)

Bus:

• VME bus
• Width complies with A32/A24/A16 D32/D16/D08 (EO) Rev. C.3
• Functions: master/slave, system controller, interrupter, interrupt handler, system reset input/output

RoHS:

• Compliant

Power Supply:

• Single +5V DC

Power Consumption:

• 23W max (excluding PMC)

Mechanical:

• Dimensions: 6U 160 x 233.35 mm (6.30” x 9.19”)
• Pitch: Single slot 20.02 mm (0.79”)

Operating System Supported:

• VxWorks®
