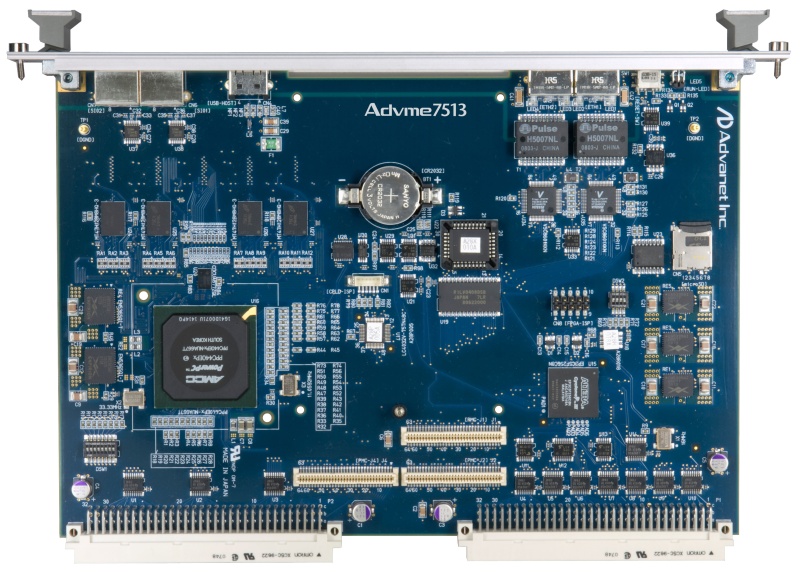

The Advme7513 is an AMCC® FPU-integrated G2 PowerPC 440EPx™ CPU board. The Advanet PCI-VME bridge NARUTO is incorporated into the Advme7513 for the VME interface bus, as an external bus.
Interfaces
It is equipped with two Gigabit Ethernet channels, one USB port, and two serial ports for I/O interfaces. The PMC module is also expandableand this allow the implementation of several aplications.
Memory
The Advme7513 provides a variety of available memory including DDR2-SRAM, microSD, FLASH memory, SRAM, and EEPROM.

Architecture:

• VME compliant

CPU:

• AMCC® PowerPC 440EPx™ (667MHz)
• L1 cache: 32KB/32KB

Memory:

• 512MB – 1GB SDRAM (support for error detection and correction)
• 512KB Boot ROM Flash (accommodating Advanet’s T4th boot loader)
• 512KB SRAM for backup
• 2k bit Serial EEPROM
• 64Mbit SPI Flash
• microSD module is optional

PCI-VME Bridge:

• NARUTO™

PMC Slot:

• Standard: IEEE 1386.1
• One slot
• Power supply +5V, +3.3V, +12V, -12V DC
• 32 bit

Watchdog Timer:

• Provided by CPU

Real Time Clock:

• EPSON® RTC-8546JE™
• Battery backup

Front Panel:

• 2x 10/100/1000 BASE-T Ethernet (using RJ-45 connectors)
• 1x USB port
• 2x RS-232 ports (using RJ-45 connectors)

Bus:

• VME bus
• Width complies with A32/A24/A16 D32/D16/D08 (EO) Rev.C.3
• Functions: master/slave, system controller, interrupter, interrupt handler, system reset input/output

RoHS:

• Compliant

Power Supply:

• Single +5V DC

Power Consumption:

• 15W max (excluding PMC)

Mechanical:

• Dimensions: 6U -160 x 233.35 mm (6.30” x 9.19”)
• Pitch: Single slot – 20.02 mm (0.79”)
• Weight: 265g

Operating Temperature:

• 0 to 60°C

Humidity:

• 35 to 85% non-condensing

Operating Systems Supported:

• VxWorks®
