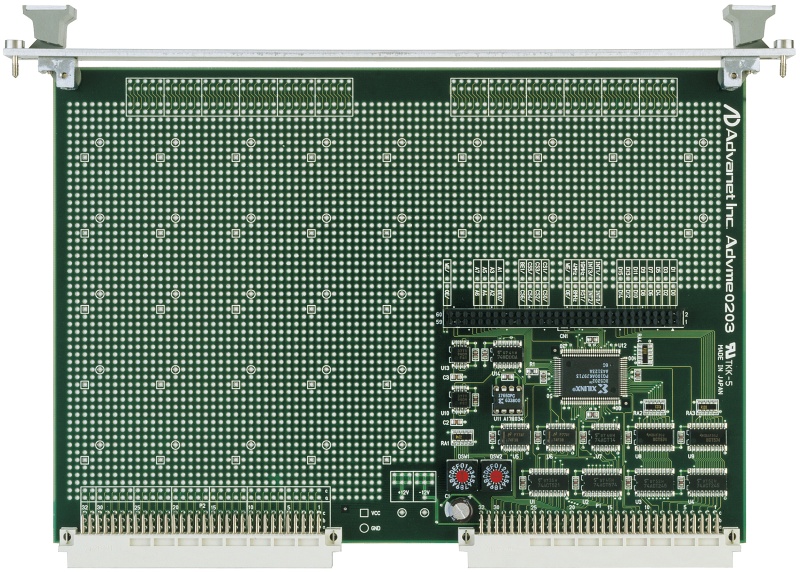

The Advme0203 is ideal for the manufacture of special I/O boards. It is used also for prototype manufacture, testing and small-scale production of I/O boards. It can be used as a learning material for testing peripheral I/O boards with VME bus and interface circuitry.
It is fitted with a front panel and ejector handle.
It uses a four-layer PC board for superior noise resistance and it is equipped with a VME bus P2 connector, and all pins in rows "a" and "c" on the P2 connector can be used as user-defined.
It has four interrupt inputs. Interrupt vectors and interrupt levels can be programmed individually.

Architecture:

• VME compliant

Interrupt:

• 4 Interrupts
• Interrupt vectors and interrupt levels can be programmed using software

Bus:

• VME bus
• Width complies with A16 D16/D08 (EO) Rev.C.3
• Accessible using AM codes 29H and 2DH

Power Supply:

• Single +5V DC

Mechanical:

• Dimensions: 6U – 262 x 172 mm (10.31” x 6.77”)
• Pitch: Single slot – 20.02 mm (0.79”)
• Weight: 220g typical
