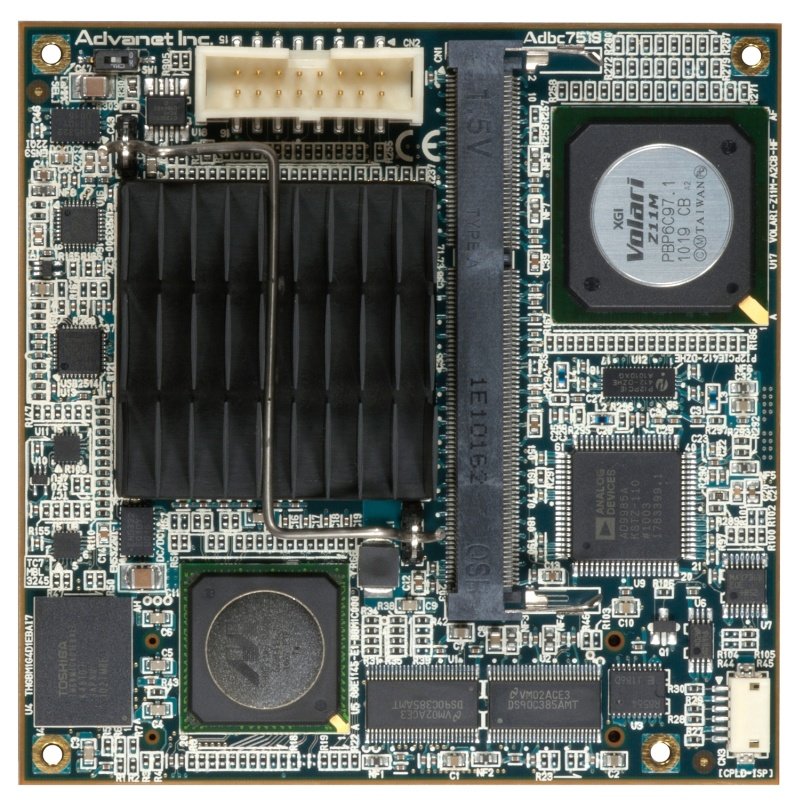

The Adbc7519 brings out a rich suite of I/O and multimedia capabilities by coupling the capabilities of the QorIQ processor with our engineering expertise and focus on small footprint and high-end performance.

Interfaces

Multimedia and I/O features include three Gigabit Ethernet ports, dual UARTS, and quad USB 2.0 ports. The Adbc7519 also allows for graphics and video plug-ins with VGA and LVDS features.

OEMs can choose from a Linux or VxWorks operating system, taking advantage of these development environments.

Eurotech offers a standard carrier board but also offers services for those customers who which to design their own.

PROCESSOR:

• Freescale P2020 with dual 1.2GHz cores
• L1 cache: 32kB for data and 32kB for instruction per core
• L2 cache: 512kB

OPERATING SYSTEM:

• VxWorks
• Linux

RAM MEMORY:
2GB of 72-bit DDR3-800 SO-DIMM with ECC

FLASH MEMORY:
2GB (bootable)

SERIAL EEPROM:
I2C 2KB

NETWORK:
3x 10/100/1000 BASE-T Ethernet interfaces

SPI:
QorIQ Enhanced Serial Peripheral Interface (eSPI)

SECURE DIGITAL:
QorIQ Enhanced Secure Digital Host Controller (SD/MMC) (bootable)

PCI EXPRESS:

• 1x PCI Express interface (x1 lane)
• 1x PCI Express interface (x2 lane)
• PCI Express Base Rev1.1

USB:
4x USB 2.0 ports

UARTS:
2X UART interfaces

I2C:
4x I2C interface expandable via I2C hub

GPIO:

• 6x GPI
• 6x GPO

INTERRUPT:
QorIQ Programmable interrupt controller (PIC)

IEEE1588
Connected to QorIQ processor:

• TMR_1588_CLK
• TMR_GCLK
• TMR_TRIG1,2
• TMR_PP1,2
• TMR_ALARM1,2

RTC:
Equivalent to RTC-8564JE (backed up by VCC_RTC power)

DISPLAY:

• 1x Analog VGA
• 2x LVDS (Data 4-pair, Clock 1-pair)
• Z11m (XGI)

JTAG COP:
Available as an option

PHYSICAL:

• Compact Module (95mm x 95mm)
• PICMG COM.0 R2.0 COM Express Module Base Specification
• RoHS compliant

POWER:

• Power supply: 12.0V±5%; SBY: 5V±5%; (supplied from COM Express connector)
• Consumption current: 12V: max 2.4A;SBY: max 0.1A

TEMPERATURE:
Operating: 0ºC to +50ºC
