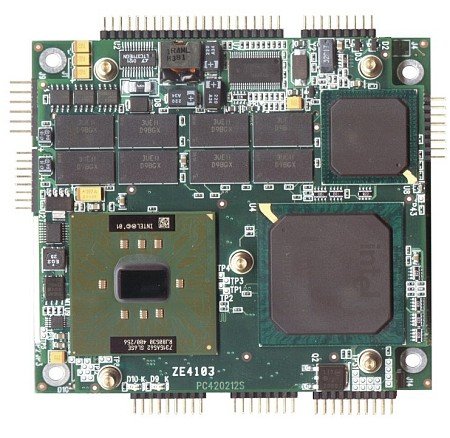

CPU-1452 Hide

PC/104-Plus Rugged Intel® Celeron™ with 4 USB 2.0 ports

The CPU-1452 is an embedded rugged board based on two modules: a mezzanine CPU module combined with a PC/104-Plus form factor carrier.
This product features the ULV BGA Intel® Celeron™ processor running at 400MHz, a Fast Ethernet interface, four USB 1.1 and four 2.0 ports.

HIGHLIGHTS

  • Intel® ULV BGA Celeron™
  • Intel® 815E
  • PC/104-Plus compliant
  • 4x USB 2.0 ports
  • 4x USB 1.1 ports
  • Embedded Enhanced BIOS
  • Power Management
  • Extended Temperature
  • Fanless

APPLICATIONS

  • Industrial
  • Medical
  • Transportation
  • Defense
FeaturesSpecificationsAccessories

The CPU-1452 is an embedded rugged board based on two modules: a mezzanine CPU module combined with a PC/104-Plus form factor carrier. CPU
The mezzanine CPU module features the Intel® Celeron™ 400MHz processor and the Intel® 815E chipset with 100MHz bus frequency.
Memory
The system comes with 256MB SDRAM soldered onboard.
BIOS
The 1MB Flash BIOS is fully re-programmable onboard. The set-up parameters are saved in the Flash memory for battery-free operation.
Interfaces
The carrier implements a very rich connectivity, including 8 USB ports (4x USB 1.1 and 4x USB 2.0), 1 Fast Ethernet interface (10/100Mbps), 2 Serial ports, Analog VGA and Digital LVDS outputs, 1 AC97 interface, Auxiliary Power, Keyboard and Mouse connectors and an IDE controller that supports any type of IDE Flash device (Disk-On-Module, Compact Flash and Flash Disk).
The carrier also provides the connections for the ISA and PCI bus making it possible to stack the CPU-1452 on top of a PC/104-Plus system. Additionally, the carrier provides support for Watchdog management and Real Time Clock (with external backup battery) and can be customized to match specific customer needs.
Rugged
No active cooling is required to operate within the standard and extended temperature ranges. Conformal coating is optionally available.
